U.S. Seal PS-3865R heavy duty 5/8 inch Viton carbon pump shaft sealU.S. Seal Heavy Duty Salt and Ozone Service Shaft Seal, Viton Carbon, PS-3865R In stock$1499
U.S. Seal PS-3865R heavy duty 5/8 inch Viton carbon pump shaft seal
Shop all US Seal

U.S. Seal Heavy Duty Salt and Ozone Service Shaft Seal, Viton Carbon, PS-3865R

Ask a questionMPN PS-3865R
$1499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Built for salt and ozone Viton and carbon stand up to salt water and ozone far better than a standard seal.
  • Same 5/8 inch shaft Interchanges with the standard AS-1000 and PS-1000 seal, so nothing else has to change.

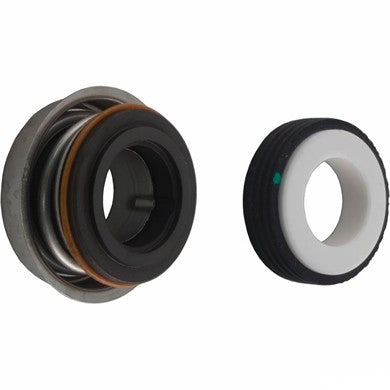

  • Two piece assembly A ceramic seat with a rubber back, plus a carbon face with spring and cup.
  • Stops the leak at the seal plate This is the part that fails when water drips between the motor and the seal plate.
  • Protects the motor Water that runs down the shaft ends up inside the motor, and a screaming motor usually means it already has.
  • Replace it every teardown Once a mechanical seal has been disturbed it rarely seats again, so fit a new one whenever the pump comes apart.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About U.S. Seal Heavy Duty Salt and Ozone Service Shaft Seal, Viton Carbon, PS-3865R, SKU USS-60-5010. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item U.S. Seal Heavy Duty Salt and Ozone Service Shaft Seal, Viton Carbon, PS-3865R
US Seal

U.S. Seal Heavy Duty Salt and Ozone Service Shaft Seal, Viton Carbon, PS-3865R

$1499
U.S. Seal PS1000 Shaft Seal Assembly
US Seal

U.S. Seal PS1000 Shaft Seal Assembly

$699
U.S. Seal PS200 Mechanical Seal Assembly
US Seal

U.S. Seal PS200 Mechanical Seal Assembly

$1199
U.S. Seal Pump Shaft Seal Assembly PS201
US Seal

U.S. Seal Pump Shaft Seal Assembly PS201

$699
U.S. Seal Heavy Duty Mechanical Seal Assembly (PS200), PS-3867
US Seal

U.S. Seal Heavy Duty Mechanical Seal Assembly (PS200), PS-3867

$1499
U.S. Seal Heavy Duty Seal Assembly, PS-3868
US Seal

U.S. Seal Heavy Duty Seal Assembly, PS-3868

$1899
U.S. Seal PS-851 Seal Assembly
US Seal

U.S. Seal PS-851 Seal Assembly

$1199
Subtotal

Similar products

Other products people compare with this one.

SuperPro 1000V-9 Viton heavy duty pool pump shaft seal for a 5/8 inch shaft SuperPro Viton Heavy Duty Shaft Seal, 5/8" Shaft, 1000V-9$1599 SuperPro 200V-9 Viton PS-200 pump shaft seal SuperPro Viton PS200 Shaft Seal, 200V-9$2199 U.S. Seal PS-3890 generic shaft seal assembly for Hayward Northstar pumps U.S. Seal Shaft Seal Assembly (Generic), PS-3890$2199 U.S. Seal PS-601 shaft seal assembly for a 3/4 inch pump shaft U.S. Seal Shaft Seal Assembly, 3/4" Shaft, PS-601$1899 CMP 27182-207-000 heavy duty pump basket for Hayward Super II pumps CMP Heavy Duty Pump Basket for Hayward® Super II, Generic, 27182-207-000$2099 SuperPro 201 pump shaft seal assembly for 3/4 inch shaft motors SuperPro 201 Seal Assembly for 3/4" Shaft Motors$1199 U.S. Seal PS-2131 pump shaft seal assembly U.S. Seal Shaft Seal Assembly PS2131$1599 Pentair Sta-Rite OEM Shaft Seal Without Copper Insert | 17304-0100S Pentair Sta-Rite OEM Shaft Seal Without Copper Insert | 17304-0100S$2199 Aladdin O-304-9 cartridge and seal plate o-ring, replaces 07-1445 and P-24263 Aladdin Cartridge and Seal Plate O-Ring for WhisperFlo and Purex, Replaces 07-1445 and P-24263, O-304-9$1499 Aladdin GO-KIT52V-9 Viton rebuild kit for Leisure Bay Cyclone pump Aladdin Viton Rebuild Kit for Leisure Bay Cyclone 75, 125 and 200 Pumps, GO-KIT52V-9$1799
Aladdin GO-KIT 71 seal kit for the old style Polaris PB4-60 booster pump Aladdin GO-KIT 71 Seal Kit for Polaris PB4-60 Booster Pump$1699 Jandy R0449100 pump lid seal gasket with o-ring Jandy Pump Lid Seal Gasket with O-Ring, R0449100$1999 Pentair 355619Z SuperFlo and Pinnacle seal bracket O-ring Pentair SuperFlo Seal Bracket O-Ring, 355619Z$1699 Pentair 351446 WhisperFlo XF seal plate o-ring Pentair WhisperFlo XF Seal Plate O-Ring, 351446$1299 Pentair 357099Z square ring for the seal plate on Max-E-Pro and IntelliPro pumps Pentair Square Ring, Seal Plate, Max-E-Pro / IntelliPro, 357099Z$1899 Hayward SPX0125F plastic motor shaft slinger for Super and Super II pumps Hayward Slinger for Motor Shaft, SPX0125F$1399 Hayward SPX1600T rubber housing gasket for Super Pump and Max-Flo pumps Hayward Housing Gasket for Super Pump and Max-Flo Pumps, SPX1600T$1799 Pentair 410016Z Whisperflo XF 2-1/2 inch diamond seal kit Pentair Whisperflo XF 2.5" Diamond Seal Kit, 410016Z$1799 Generic 5/8 inch inside diameter carbon and ceramic mechanical shaft seal for Jandy pumps U.S. Seal Mechanical Seal, 5/8" ID (Generic), PS-4231-OS$1899 SuperPro 201V-9 pump shaft seal assembly, replaces 37400-0028S SuperPro Seal Assembly (37400-0028S), 201V-9$1799

Product details

This is the heavy duty version of the standard 5/8 inch pump shaft seal, built with a carbon face and Viton elastomer for pools running salt water or ozone.

Why the upgrade matters

Salt and ozone are hard on ordinary seal materials. Viton and carbon hold up to both, so the seal keeps its face and its elasticity in water that would age a standard AS-1000 or PS-1000 seal early. The dimensions are unchanged, so it drops into the same 5/8 inch shaft position.

What failure looks like

A worn shaft seal leaks between the motor and the seal plate. Left alone, that water tracks down the shaft and into the motor. If the motor has started to scream, water has probably already been inside it, and the motor is likely due for replacement along with the seal.

Installing it

The seal arrives in two pieces: the ceramic seat with its rubber back, and the carbon face with spring and cup. A thin film of silicone on the back of the stainless cup keeps water from weeping past where it meets the plastic seal plate. Keep silicone off the seal face itself, and press the seat until it bottoms out. Always fit a new seal when you take a pump apart.

Specifications
Brand U.S. Seal
Manufacturer part number PS-3865R
Also listed as PS-3865
Type Heavy duty pump shaft seal
Shaft size 5/8"
Seal face Carbon
Elastomer Viton
Seat Ceramic with rubber back
Application Salt and ozone water
Interchanges with AS-1000 / PS-1000 5/8" shaft seal
Part type Pool pump part
Material Metal
Fits Pentair American Products Ultra-Flo pump
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from US Seal

U.S. Seal PS200 mechanical shaft seal assembly for pool pumps U.S. Seal PS200 Mechanical Seal Assembly$1199 U.S. Seal PS1000 mechanical shaft seal assembly for pool pumps U.S. Seal PS1000 Shaft Seal Assembly$699 U.S. Seal PS201 pump shaft seal assembly with ceramic seat U.S. Seal Pump Shaft Seal Assembly PS201$699 U.S. Seal PS-3867 heavy duty mechanical shaft seal assembly U.S. Seal Heavy Duty Mechanical Seal Assembly (PS200), PS-3867$1499 U.S. Seal PS-3868 heavy duty mechanical pump seal set U.S. Seal Heavy Duty Seal Assembly, PS-3868$1899 U.S. Seal PS-851 pump shaft seal assembly U.S. Seal PS-851 Seal Assembly$1199 U.S. Seal PS-4231 generic mechanical shaft seal with a 13/16 inch ceramic inside diameter U.S. Seal Mechanical Seal, 13/16" ID (Generic), PS-4231$2499 U.S. Seal PS-3890 generic shaft seal assembly for Hayward Northstar pumps U.S. Seal Shaft Seal Assembly (Generic), PS-3890$2199 Generic 5/8 inch inside diameter carbon and ceramic mechanical shaft seal for Jandy pumps U.S. Seal Mechanical Seal, 5/8" ID (Generic), PS-4231-OS$1899 U.S. Seal RD-50-370 run capacitor, 50 MFD 370 volts U.S. Seal Run Capacitor 50 MFD 370V, RD-50-370$4099
U.S. Seal 30 MFD 370 VAC run capacitor for pool pump motors U.S. Seal Run Capacitor, 30 MFD, 370vac, 5VR0303$2999 U.S. Seal PS-601 shaft seal assembly for a 3/4 inch pump shaft U.S. Seal Shaft Seal Assembly, 3/4" Shaft, PS-601$1899 U.S. Seal RD-25-370 round run capacitor, 25 MFD 370V U.S. Seal Run Capacitor 25 MFD 370V Round, RD-25-370$2699 U.S. Seal PS-3986 extra heavy duty shaft seal assembly for 3/4 inch shafts U.S. Seal Shaft Seal Assembly, 3/4" Shaft, Extra Heavy Duty, Saltwater/Ozone Pools, PS-3986$2699 U.S. Seal RBL-6203-LL double sealed 6203 pool pump motor bearing U.S. Seal 6203 Motor Bearing, RBL-6203-LL$1199 U.S. Seal PS100 replacement pump shaft seal assembly U.S. Seal PS100 Replacement Pump Seal Assembly$699 U.S. Seal PS-2131 pump shaft seal assembly U.S. Seal Shaft Seal Assembly PS2131$1599 US Seal CAPACITOR 35MFD 370V ROUND | RD-35-370 US Seal CAPACITOR 35MFD 370V ROUND | RD-35-370$3599 US Seal ASSEMBLY 3/4" CUP MTD | PS-201V-CMS US Seal ASSEMBLY 3/4" CUP MTD | PS-201V-CMS$2799 US Seal CAPACITOR 189/227 MFD 125V | BC-189 US Seal CAPACITOR 189/227 MFD 125V | BC-189$1399

Questions and answers

What people ask about this product, answered by our pool techs.

How is this different from a standard PS-1000 seal?
It is the same 5/8 inch shaft seal dimensionally, built in Viton and carbon for salt water and ozone service instead of the standard materials.
What comes in the box?
Two pieces. A ceramic seat with a rubber back, and a carbon face with its spring and cup.
Any tips on installing it?
Put a little silicone sealant on the back of the stainless cup before pressing the seat in, which stops water weeping past the cup where it meets the plastic seal plate. Keep silicone off the seal face, and press until it bottoms out.
My pump leaks between the motor and the seal plate, is this the fix?
That is the classic symptom of a failed shaft seal. Deal with it quickly, because water running down the shaft gets into the motor and ruins it. A loud screaming motor usually means the water already got there.
