SuperPro Viton Heavy Duty Shaft Seal, 5/8" Shaft, 1000V-9 In stock$15⁹⁹

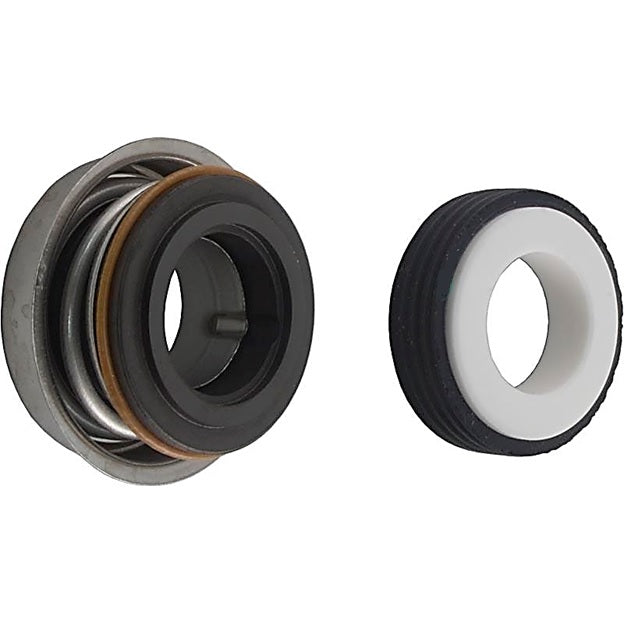

SuperPro 1000V-9 Viton heavy duty pool pump shaft seal for a 5/8 inch shaft

SuperPro Viton Heavy Duty Shaft Seal, 5/8" Shaft, 1000V-9

Name: SuperPro Viton Heavy Duty Shaft Seal, 5/8" Shaft, 1000V-9
Brand: Aladdin
SKU: SPG-60-1001
Price: 15.99 USD
Availability: InStock

Ask a questionMPN 1000V-9

$15⁹⁹

In stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Viton construction The heavy duty version of the 1000 series seal, built with Viton rather than the standard elastomer.
Fits a 5/8 inch shaft Sized for pool pump motors running a 5/8 inch shaft, so measure the shaft before ordering.
The part that stops the drip A shaft seal is what keeps pump water out of the motor, and a weeping seal plate is the classic sign it has failed.
Replace it on every rebuild Once a seal has been pulled off the shaft it will not seat the same way again, so fit a new one any time the wet end comes apart.
Two piece assembly A rotating half rides on the shaft and a stationary ceramic seat presses into the seal plate.
Listed for Ultra Flo Carried under the American Products Ultra Flo pump parts group and the general pool pump parts group.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select SuperPro Viton Heavy Duty Shaft Seal, 5/8" Shaft, 1000V-9

Aladdin

SuperPro Viton Heavy Duty Shaft Seal, 5/8" Shaft, 1000V-9

$15⁹⁹

Select

Aladdin

Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9

$34⁹⁹

Select

Aladdin

GO-KIT 71 Seal Kit for Polaris PB4-60 Booster Pump

$16⁹⁹

Select

Aladdin

Equipment Co. Super Pump Rebuild Kit, GO-KIT3-9

$19⁹⁹

Select

Aladdin

SuperPro Super II Pump Rebuild Kit GO-KIT2-9

$44⁹⁹

Select

Aladdin

Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9

$24⁹⁹

Select

Aladdin

SuperPro Super Pump Seal Kit with Viton Seals, GO-KIT3V-9

$37⁹⁹

Subtotal

Similar products

Other products people compare with this one.

U.S. Seal PS-3865R heavy duty 5/8 inch Viton carbon pump shaft seal

U.S. Seal Heavy Duty Salt and Ozone Service Shaft Seal, Viton Carbon, PS-3865R$14⁹⁹

SuperPro 200V-9 Viton PS-200 pump shaft seal

SuperPro Viton PS200 Shaft Seal, 200V-9$21⁹⁹

U.S. Seal PS-3867 heavy duty mechanical shaft seal assembly

U.S. Seal Heavy Duty Mechanical Seal Assembly (PS200), PS-3867$14⁹⁹

U.S. Seal PS-3868 heavy duty mechanical pump seal set

U.S. Seal Heavy Duty Seal Assembly, PS-3868$18⁹⁹

SuperPro 201 pump shaft seal assembly for 3/4 inch shaft motors

SuperPro 201 Seal Assembly for 3/4" Shaft Motors$11⁹⁹

U.S. Seal PS-3890 generic shaft seal assembly for Hayward Northstar pumps

U.S. Seal Shaft Seal Assembly (Generic), PS-3890$21⁹⁹

SuperPro 201V-9 pump shaft seal assembly, replaces 37400-0028S

SuperPro Seal Assembly (37400-0028S), 201V-9$17⁹⁹

SuperPro GO-KIT74 seal and gasket kit for Hayward Matrix pumps

SuperPro Pump Seal Kit Compatible with Hayward® Matrix, GO-KIT74$21⁹⁹

U.S. Seal PS-601 shaft seal assembly for a 3/4 inch pump shaft

U.S. Seal Shaft Seal Assembly, 3/4" Shaft, PS-601$20⁹⁹

CMP 27182-207-000 heavy duty pump basket for Hayward Super II pumps

CMP Heavy Duty Pump Basket Compatible with Hayward® Super II™, 27182-207-000$20⁹⁹

U.S. Seal PS-2131 pump shaft seal assembly

U.S. Seal Shaft Seal Assembly PS2131$15⁹⁹

Pentair Sta-Rite OEM Shaft Seal Without Copper Insert | 17304-0100S$21⁹⁹

SuperPro GO-KIT78 pump repair kit with AS-200 shaft seal and o-rings for Pentair SuperFlo and Sta-Rite SuperMax

SuperPro Superflo / Supermax Pump Repair Kit, GO-KIT78$22⁹⁹

U.S. Seal PS200 mechanical shaft seal assembly for pool pumps

U.S. Seal PS200 Mechanical Seal Assembly$11⁹⁹

Jandy R0449100 pump lid seal gasket with o-ring

Jandy Pump Lid Seal Gasket with O-Ring, R0449100$19⁹⁹

Pentair 355619Z SuperFlo and Pinnacle seal bracket O-ring

Pentair SuperFlo Seal Bracket O-Ring, 355619Z$16⁹⁹

Pentair 351446 WhisperFlo XF seal plate o-ring

Pentair WhisperFlo XF Seal Plate O-Ring, 351446$15⁹⁹

Pentair 357099Z square ring for the seal plate on Max-E-Pro and IntelliPro pumps

Pentair Square Ring, Seal Plate, Max-E-Pro / IntelliPro, 357099Z$18⁹⁹

Hayward SPX0125F plastic motor shaft slinger for Super and Super II pumps

Hayward Slinger for Motor Shaft, SPX0125F$14⁹⁹

SuperPro GO-KIT6-9 rebuild kit for Sta-Rite Max-E-Glas and Dura-Glas pumps

SuperPro Max-E-Glas/Dura-Glas Pump Rebuild Kit, GO-KIT6-9$22⁹⁹

Product details

The SuperPro 1000V-9 is the heavy duty version of the 1000 series pool pump shaft seal, built with Viton and sized for a 5/8 inch shaft.

What a shaft seal does

The motor shaft passes through the seal plate to drive the impeller, and the shaft seal is the only thing keeping pump water on the wet side of that hole. It is a two piece assembly: a stationary ceramic seat pressed into the seal plate, and a rotating half that grips the shaft and spins against it. The two faces run against each other with a film of water between them, which is why a seal that has been run dry or run with sand in the water fails early.

When to fit one

Water dripping from between the seal plate and the motor is the classic failed seal. Fit a new one any time the wet end is opened up as well, because a seal that has been pulled off the shaft will not reseat properly. Match the shaft size, which for this part is 5/8 inch.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Specifications
Brand	SuperPro
Manufacturer part number	1000V-9
UPC	601402265563
Type	Shaft seal, heavy duty
Material	Viton
Shaft size	5/8"
Series	1000
Listed under	American Products Ultra Flo pump, pool pump parts
Shipping weight	0.1 lb
Ships	Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Aladdin

Aladdin Magic Lube 630 PTFE o-ring lubricant, 1 oz. tube

Aladdin Magic Lube 1 oz. O-Ring Lubricant$6⁹⁹

Aladdin GO-KIT32-9 seal and gasket kit for Pentair WhisperFlo and IntelliFlo pumps

Aladdin Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9$34⁹⁹

Aladdin GO-KIT 71 seal kit for the old style Polaris PB4-60 booster pump

Aladdin GO-KIT 71 Seal Kit for Polaris PB4-60 Booster Pump$16⁹⁹

Aladdin Magic Lube 631 PTFE o-ring lubricant, 5 oz. tube

Aladdin Magic Lube 5 oz. O-Ring Lubricant$14⁹⁹

SuperPro O-176A-9 five spoke valve seat gasket, 5-5/16 in., for Hayward Vari-Flo valves

SuperPro Valve Seat Gasket 5 Spoke (5-5/16"), O-176A-9$7⁹⁹

Aladdin Equipment Co. GO-KIT3-9 rebuild kit for the Hayward Super Pump: housing gasket, diffuser gasket, lid gasket and shaft seal

Aladdin Equipment Co. Super Pump Rebuild Kit, GO-KIT3-9$19⁹⁹

SuperPro GO-KIT2-9 rebuild kit for Hayward Super II pump: seals and gaskets

SuperPro Super II Pump Rebuild Kit GO-KIT2-9$44⁹⁹

SuperPro O-429-9 generic tank o-ring for Hayward filters, replaces DEX2400K

SuperPro Tank O-Ring Compatible with Select Hayward® Filters, O-429-9$14⁹⁹

Aladdin GO-KIT5-9 pump rebuild kit for Pentair PacFab Challenger pumps, shaft seal and o-rings

Aladdin Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9$24⁹⁹

SuperPro GO-KIT70 2 in. valve rebuild kit for Pentair PacFab multiport valves

SuperPro 2 in. Valve Rebuild Kit, GO-KIT70$19⁹⁹

SuperPro B-37 generic replacement skimmer basket for the S-10 Admiral skimmer

SuperPro S-10 Admiral Skimmer Basket (Generic)$19⁹⁹

SuperPro 271148 diverter spider gasket for 2 in. Pentair PacFab multiport valve

SuperPro Generic 2" Diverter Gasket, G-417-9$12⁹⁹

Aladdin APCKIT39 SP715 multiport valve repair kit, 2 inch, with spring

Aladdin SP715 Multiport Valve Repair Kit 2" with Spring, APCKIT39$46⁹⁹

Aladdin O-411-9 replacement o-ring, 5-1/4 in. inside diameter

Aladdin O-Ring, 5-1/4" ID, O-411-9$3⁹⁹

Super-Pro GO-KIT3V-9 Viton gasket and o-ring seal kit for the Hayward Super Pump

SuperPro Super Pump Seal Kit with Viton Seals, GO-KIT3V-9$37⁹⁹

SuperPro O-497-9 generic tank o-ring, 20-7/8 inch ID by 7/16 inch thick

SuperPro Generic Tank O-Ring 20-7/8" ID (7/16" Thick), O-497-9$21⁹⁹

Aladdin Magic Lube II 5 oz tube of silicone lubricant and sealer, part 651

Aladdin Magic Lube II 5 oz$22⁹⁹

SuperPro GO-KIT14-9 seal kit for Jacuzzi Magnum pumps

SuperPro Jacuzzi Magnum Pump Seal Kit, GO-KIT14-9$29⁹⁹

SuperPro O-184-9 18 inch tank o-ring for Pentair PacFab Nautilus DE filters

SuperPro 18" Tank O-Ring, O-184-9$14⁹⁹

SuperPro Max-E-Glas/Dura-Glas Pump Rebuild Kit, GO-KIT6-9$22⁹⁹

Questions and answers

What people ask about this product, answered by our pool techs.

What shaft size does this seal fit?

A 5/8 inch shaft. The facts list it as the Viton 1000 shaft seal for 5/8 inch, so check the motor shaft before ordering.

What makes it heavy duty?

It is built with Viton instead of the standard seal material. It is sold as the heavy duty version of the 1000 series seal.

When should the shaft seal be replaced?

Any time the pump is opened for a rebuild, and immediately if water is weeping between the seal plate and the motor. A seal that has been removed once should not be reused.

Which pumps is it listed for?

It is carried under the American Products Ultra Flo pump parts group as well as the general pool pump parts group. Confirm the shaft size and seal dimensions on your pump.
