Nidec ASB661A 56Y square flange 0.75 HP pool pump motor in almondNidec Replacement Square Flange Motor for Pentair Pumps, 115/208-230V 0.75HP, ASB661A$30899

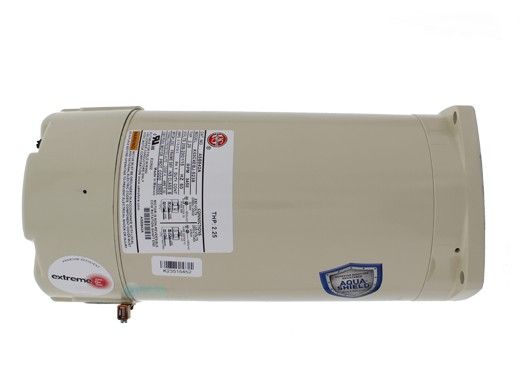

Nidec ASB661A 56Y square flange 0.75 HP pool pump motor in almond
Shop all Nidec

Nidec Replacement Square Flange Motor for Pentair Pumps, 115/208-230V 0.75HP, ASB661A

Ask a questionMPN ASB661A
$30899
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Square flange 56Y The 56Y frame square flange format used on Pentair WhisperFlo wet ends.
  • Direct WhisperFlo replacement Listed as a direct replacement for full rated and up rated energy efficient WhisperFlo models 011511 WFE-2, 011512 WFE-3 and 011517 WFE-24.
  • Dual voltage Wired for 115V or 208-230V at 60 Hz.
  • Switchless design Built without a start switch, and supplied with no base.
  • Ball bearing Ball bearings and stainless steel shaft, rated to 50 deg C ambient.
  • Single speed One speed, rotating counterclockwise viewed from the pump end.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Nidec Replacement Square Flange Motor for Pentair Pumps, 115/208-230V 0.75HP, ASB661A, SKU EMR-60-7253. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Nidec Replacement Square Flange Motor for Pentair Pumps, 115/208-230V 0.75HP, ASB661A
Nidec

Replacement Square Flange Motor for Pentair Pumps, 115/208-230V 0.75HP, ASB661A

$30899
Nidec Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165
Nidec

Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165

$64099
Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225
Nidec

Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225

$43799
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Polaris Front Housing Volute Cover with O-Ring, R0536300
Polaris

Front Housing Volute Cover with O-Ring, R0536300

$6699
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$11799
Subtotal

Similar products

Other products people compare with this one.

Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072$26599 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847$34099 U.S. Motors ASB848 square flange 56Y frame pool and spa motor U.S. Motors ASB848 Square Flange Pool and Spa Motor, 56Y Frame, 115/230V$32399 Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V Century 1 HP Square Flange Up-Rated Motor, 115/230V, USQ1102$31399 Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$29599 Century Motors A.O. Smith Square Flange Motor 1.5HP 115-230V | UQC1152 Century Motors A.O. Smith Square Flange Motor 1.5HP 115-230V | UQC1152$36399 Century B2855 2 HP 230 V 56Y square flange pool and spa pump motor Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855$41199 Century B2853V1 1 HP square flange pool pump motor, front view Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1$31999 Century HSQ220 Centurion Pro square flange pool and spa pump motor, 48Y frame Century Pro Square Flange Motor, 2.2 THP, 3450 RPM, 230V, 48Y, Threaded Shaft, HSQ220$41599
Century B2849 1.5 HP 230V 56Y square flange pool pump motor Century 1.5 HP 230V 56Y Square Flange Motor, B2849$44799 Century Centurion Pro HSQ095 square flange pool pump motor, 0.95 THP 48Y Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095$27499 Century Motors Magnetek Square Flange Motor .75HP Energy Efficient 115V-208V-230 | B2661 Century Motors Magnetek Square Flange Motor .75HP Energy Efficient 115V-208V-230 | B2661$36799 Century Motors Magnetek Threaded Shaft Motor 1 HP 115-208-230V 56 Round Frame | B654 Century Motors Magnetek Threaded Shaft Motor 1 HP 115-208-230V 56 Round Frame | B654$41599 Century Centurion Pro HSQ165 1.65 THP square flange pool and spa pump motor, 48Y frame Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165$33999 Hayward SPX1607Z1M 1 HP threaded shaft single phase pump motor, 115/230V Hayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M$39199 Century UST1102 1 HP up rated 56J round flange pool pump motor, front right view Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102$28799 Century BN35V1 1.5 HP 115/230V 48Y frame thru bolt pool pump motor with stainless steel shaft Century BN35V1 Motor, 1.5 HP, 115/230V, 48Y Frame (SS)$28699 Century QC1102 1 HP full rated 48Y square flange pool pump motor Century Energy Efficient Motor Full Rated 1 HP, 115/208 (QC1102)$38099 Century ST1152 energy efficient full rated 1.5 HP pool pump motor, front view Century Energy Efficient Pump Motor, Full Rated, 1.5 HP, 115/230V, ST1152$41099

Product details

The Nidec ASB661A is a single speed 56Y square flange pool and spa pump motor, 0.75 HP nameplate and 1.25 THP total, wired for 115V or 208-230V at 60 Hz, finished in almond.

What it replaces

It is listed as a direct replacement for the full rated and up rated energy efficient Pentair WhisperFlo pumps, specifically models 011511 WFE-2, 011512 WFE-3 and 011517 WFE-24. Because it is a square flange 56Y motor, it bolts to the WhisperFlo wet end in place of the original.

Build

The motor is switchless with ball bearings and a stainless steel shaft, rated for a 50 deg C ambient, and turns counterclockwise viewed from the pump end. It is supplied with no base, so reuse the existing mounting arrangement.

Before you order

Check the frame, the flange type and the horsepower against the nameplate on the motor you are replacing, not against the pump model alone. WhisperFlo wet ends were sold behind more than one motor rating.

Specifications
Brand Nidec
Manufacturer part number ASB661A
UPC 786382110871
Type Pool and spa pump motor
Frame 56Y square flange
Horsepower 0.75 HP
Total horsepower 1.25 THP
Speed 1 speed
Voltage 115/208-230V
Frequency 60 Hz
Ambient rating 50 deg C
Bearings Ball bearing
Shaft Stainless steel
Rotation CCW pump end
Design Switchless, no base
Color Almond
Fits Pentair WhisperFlo 011511 WFE-2, 011512 WFE-3, 011517 WFE-24, full rated and up rated energy efficient models
Shipping weight 28.25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Nidec

US Motors Neptune NPTQ165 1.65 HP variable speed pool pump motor, 48Y square flange Nidec Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165$64099 Nidec US Motors TEQ225 Aqua-Shield Pro 48Y TEFC square flange pool and spa pump motor Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225$43799 Nidec EZCOM1 EcoTech EZ interface adapter for variable speed pool pump motors Nidec EcoTech EZ Variable Speed Pump Motor Interface Adapter, EZCOM1$14099

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this motor replace?
It is listed as a direct replacement for full rated and up rated energy efficient Pentair WhisperFlo models 011511 WFE-2, 011512 WFE-3 and 011517 WFE-24.
What voltage does it run on?
It is a dual voltage motor, 115V or 208-230V, at 60 Hz.
Does it come with a base or a mounting bracket?
No. The motor is supplied with no base.
What is the difference between 0.75 HP and 1.25 THP?
The nameplate horsepower is 0.75 HP. Total horsepower, 1.25 THP, is the rated horsepower multiplied by the service factor, which is how pool pump motors are commonly compared.
