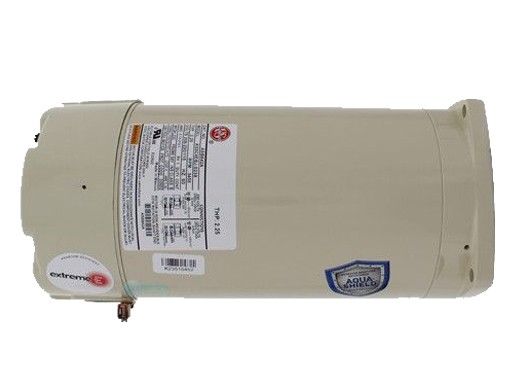

Nidec ASB843A 2 HP 56Y square flange pool pump motor in almondNidec Replacement Motor for Pentair Pumps, 56 Square Flange, 208/230V 2HP, ASB843A$26899
Nidec ASB843A 2 HP 56Y square flange pool pump motor in almond
Shop all Nidec

Nidec Replacement Motor for Pentair Pumps, 56 Square Flange, 208/230V 2HP, ASB843A

Ask a questionMPN ASB843A
$26899
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Direct WhisperFlo replacement Drops into the full rated and up rated energy efficient Pentair WhisperFlo 011515 WFE-8 and 011520 WFE-30.
  • 2 HP, 2.6 total horsepower Rated 2 HP with a 2.6 total horsepower figure, on 208 to 230 volts at 60 Hz.
  • 56Y square flange Mounts to the standard square flange seal plate used on those Pentair wet ends.
  • High efficiency build The energy efficient version of the motor rather than the older standard efficiency design.
  • Open drip proof The usual outdoor pool motor enclosure, meant to live under a pad cover or shelter.
  • Almond finish Matches the almond housings on the Pentair pumps it replaces.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Nidec Replacement Motor for Pentair Pumps, 56 Square Flange, 208/230V 2HP, ASB843A, SKU EMR-60-7256. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Nidec Replacement Motor for Pentair Pumps, 56 Square Flange, 208/230V 2HP, ASB843A
Nidec

Replacement Motor for Pentair Pumps, 56 Square Flange, 208/230V 2HP, ASB843A

$26899
Nidec Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165
Nidec

Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165

$64099
Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225
Nidec

Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225

$43799
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Polaris Front Housing Volute Cover with O-Ring, R0536300
Polaris

Front Housing Volute Cover with O-Ring, R0536300

$6699
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$11799
Subtotal

Similar products

Other products people compare with this one.

Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072$26599 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847$34099 U.S. Motors ASB848 square flange 56Y frame pool and spa motor U.S. Motors ASB848 Square Flange Pool and Spa Motor, 56Y Frame, 115/230V$32399 Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V Century 1 HP Square Flange Up-Rated Motor, 115/230V, USQ1102$31399 Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$29599 Century Motors A.O. Smith Square Flange Motor 1.5HP 115-230V | UQC1152 Century Motors A.O. Smith Square Flange Motor 1.5HP 115-230V | UQC1152$36399 Century Centurion Pro HSQ165 1.65 THP square flange pool and spa pump motor, 48Y frame Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165$33999 Century B2853V1 1 HP square flange pool pump motor, front view Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1$31999 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$37999
Century B2846 square flange full rated pool and spa pump motor, 0.5 HP Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP$27599 Hayward SMX300055036 1/3 HP 825 RPM fan motor Hayward 1/3 Horsepower, 825 RPM Fan Motor Replacement for Summit and HeatPro, SMX300055036$30699 Hayward SPX1605Z1M MaxRate 3/4 HP threaded shaft pool pump motor Hayward MaxRate Motor for Super Pump SP1600X Pool Pumps, 3/4 HP, SPX1605Z1M$35699 Century Centurion Pro HSQ095 square flange pool pump motor, 0.95 THP 48Y Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095$27499 Hayward SPX1600Z1M threaded shaft motor, 1/2 HP 115 V Hayward Threaded Shaft Motor for Super Pump and MaxFlo Pumps 1/2 HP 115V, SPX1600Z1M$37799 Century Motors Magnetek Square Flange Motor .75HP Energy Efficient 115V-208V-230 | B2661 Century Motors Magnetek Square Flange Motor .75HP Energy Efficient 115V-208V-230 | B2661$36799 CaliMar FB2030-M 3 HP 230 volt replacement pool pump motor CaliMar Replacement Motor, 230V 3HP, FB2030-M$15199 Hayward SPX1607Z1M 1 HP threaded shaft single phase pump motor, 115/230V Hayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M$39199 Century UST1102 1 HP up rated 56J round flange pool pump motor, front right view Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102$28799 Century BN35V1 1.5 HP 115/230V 48Y frame thru bolt pool pump motor with stainless steel shaft Century BN35V1 Motor, 1.5 HP, 115/230V, 48Y Frame (SS)$28699

Product details

The Nidec ASB843A is a 2 HP single speed replacement motor for 56 frame square flange pool and spa pumps. It runs on 208 to 230 volts at 60 Hz, carries a 2.6 total horsepower rating, and comes in the almond finish used on the Pentair pumps it replaces.

What it replaces

This is the direct replacement for the full rated and up rated energy efficient Pentair WhisperFlo models 011515 WFE-8 and 011520 WFE-30. When the motor on one of those pumps fails, the wet end, seal plate and plumbing all stay where they are and only the motor changes, which is far cheaper than a whole new pump.

Square flange and ODP

The 56Y square flange bolts to the square flange seal plate on those wet ends, and the open drip proof enclosure is standard outdoor pool motor construction. Before ordering, read the nameplate on the old motor and confirm the frame, the shaft and the voltage, since square flange and C face motors are not interchangeable and a 115 volt circuit will not run this one.

Plan on new seals

Any motor swap opens the pump at the seal plate, so it is normal practice to fit a fresh shaft seal and the seal plate gasket or o-ring at the same time rather than reusing parts that have already been compressed.

Specifications
Brand Nidec
Manufacturer part number ASB843A
UPC 786382110901
Type Single speed pool and spa pump motor
Horsepower 2 HP
Total horsepower 2.6 THP
Voltage 208-230V 60Hz
Frame 56Y square flange
Enclosure ODP, open drip proof
Color Almond
Replaces Pentair WhisperFlo 011515 WFE-8 and 011520 WFE-30
Shipping weight 32.95 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Nidec

US Motors Neptune NPTQ165 1.65 HP variable speed pool pump motor, 48Y square flange Nidec Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165$64099 Nidec US Motors TEQ225 Aqua-Shield Pro 48Y TEFC square flange pool and spa pump motor Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225$43799 Nidec EZCOM1 EcoTech EZ interface adapter for variable speed pool pump motors Nidec EcoTech EZ Variable Speed Pump Motor Interface Adapter, EZCOM1$14099

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this motor fit?
It is listed as a direct replacement for the full rated and up rated energy efficient Pentair WhisperFlo models 011515 WFE-8 and 011520 WFE-30.
Is this a genuine Pentair motor?
No. It is the Nidec ASB843A, an aftermarket replacement motor built to fit those Pentair pumps. Pentair sells its own OEM version separately.
Will it run on 115 volts?
No. This motor is 208-230V 60Hz only, so the circuit at the pad has to match.
What is the difference between 2 HP and 2.6 THP?
2 HP is the nameplate rating. 2.6 is the total horsepower, the nameplate horsepower multiplied by the service factor, which is why the same motor is described both ways.
