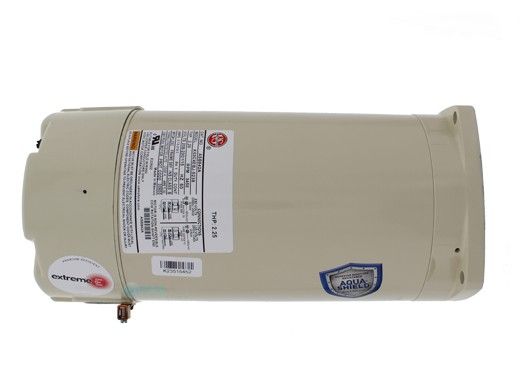

Nidec ASB844A 3 HP 56Y square flange almond pool pump motorNidec Replacement Motor for Pentair Pumps, 56 Square Flange, 208/230V 3HP, ASB844A$47299
Nidec ASB844A 3 HP 56Y square flange almond pool pump motor
Shop all Nidec

Nidec Replacement Motor for Pentair Pumps, 56 Square Flange, 208/230V 3HP, ASB844A

Ask a questionMPN ASB844A
$47299
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Direct WhisperFlo replacement A direct replacement for the full rated and up rated energy efficient Pentair WhisperFlo model 011516 WFE-12.
  • Square flange 56Y The 56 square flange pattern used across Pentair square flange wet ends.
  • 3 HP, 3.45 THP Rated 3 HP at 208-230V, 60 Hz, listed at 3.45 total horsepower.
  • Switchless with no base Supplied switchless and without a base, matching the original Pentair fitment.
  • Ball bearings, stainless shaft Ball bearing construction with a stainless steel shaft, rated to a 50 deg C ambient.
  • Almond to match Finished in almond, the color Pentair used, so the pad still looks right.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Nidec Replacement Motor for Pentair Pumps, 56 Square Flange, 208/230V 3HP, ASB844A, SKU EMR-60-7257. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Nidec Replacement Motor for Pentair Pumps, 56 Square Flange, 208/230V 3HP, ASB844A
Nidec

Replacement Motor for Pentair Pumps, 56 Square Flange, 208/230V 3HP, ASB844A

$47299
Nidec Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165
Nidec

Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165

$67999
Nidec U.S. Motors Pentair EQ Series Replacement Pool Motor, 7.5HP 3-Phase 208-230-460V, EEQK750
Nidec

U.S. Motors Pentair EQ Series Replacement Pool Motor, 7.5HP 3-Phase 208-230-460V, EEQK750

$1,05999
Nidec Replacement Square Flange Motor for Pentair Pumps, 115V/208/230V 1HP, ASB841A
Nidec

Replacement Square Flange Motor for Pentair Pumps, 115V/208/230V 1HP, ASB841A

$35199
Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225
Nidec

Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225

$43799
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Subtotal

Similar products

Other products people compare with this one.

Pentair 354811S almond 3 HP three phase motor for WhisperFlo and WhisperFlo XF pumps Pentair Almond Motor for WhisperFlo and WhisperFloXF Pumps, 3 Phase, 3 HP, 208-230/460V, 354811S$62199 Century B2843 square flange 2 HP 208/230V pool pump motor Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843$55799 Century B2844 energy efficient 3 HP square flange pool pump motor Century Energy Efficient 3 HP Square Flange Motor 208/230V, B2844$61499 Century B2855 2 HP 230 V 56Y square flange pool and spa pump motor Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855$41199 Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072$26599 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899 Century B985 square flange two speed pool pump motor, 230V Century Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985$66899 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847 Century Motors Magnetek Square Flange Motor, 0.75 HP, 115V/230V, Threaded Full-Rate, B2847V1$34299 U.S. Motors ASB848 square flange 56Y frame pool and spa motor U.S. Motors Square Flange Pool and Spa Motor, 56Y Frame, 115/230V, ASB848$32399 Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V Century 1 HP Square Flange Up-Rated Motor, 115/230V, USQ1102$31399
Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$55099 Century HSQ220 Centurion Pro square flange pool and spa pump motor, 48Y frame Century Pro Square Flange Motor, 2.2 THP, 3450 RPM, 230V, 48Y, Threaded Shaft, HSQ220$41599 Century B2849 1.5 HP 230V 56Y square flange pool pump motor Century 1.5 HP 230V 56Y Square Flange Motor, B2849$44799 Century Pro HSQ260 square flange pool and spa pump motor, 2.6 HP, 230 V, 48Y frame Century Pro Square Flange Pump Motor, 2.6 HP, 3450 RPM, 230V, 48Y, HSQ260$56099 Century H637 square flange full rated 2HP three phase pool pump motor Century Square Flange Full Rated 2HP 3 Phase 208/230/460V Pump Motor, H637$60299 Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$56999 Century H755 square flange 3 HP three phase pool pump motor Century Square Flange Pool Pump Motor, 3 HP, 3 Phase, 208/230/460V, H755$62199 Century B2840V1 2.5 HP 230V square flange pool pump motor Century 2.5 HP 230V 56 Frame ODP Square Flange PSC Switchless Motor, B2840V1$52499 Century SQ1072 3/4 HP square flange pool pump motor, front view Century 3/4 HP Square Flange Pool Pump Motor, 115/230V, SQ1072$29599 Pentair 354815S 2 HP TEFC 56Y frame pool pump motor, 208-230V Pentair TEFC 56Y Motor 2HP 208-230V, 354815S$49699

Product details

The Nidec ASB844A is a single speed square flange pool and spa pump motor rated 3 HP at 208-230V, listed at 3.45 total horsepower, and finished in almond.

What it replaces

This motor is a direct replacement for the full rated and up rated energy efficient Pentair WhisperFlo, model 011516 WFE-12. It uses the 56Y square flange pattern, is supplied switchless and without a base, and comes in the almond color Pentair used, so a swap leaves the pad looking the way it did.

Construction

It is a permanent split capacitor single phase motor with ball bearings, a stainless steel shaft and a drip proof open enclosure, rated for a 50 deg C ambient temperature. Rotation is counter clockwise viewed from the pump end.

Before you order

Check the frame, the flange and the voltage against the motor you are taking off. A square flange motor bolts to a square flange wet end, and the supply at the pad has to be 208-230V.

From Pool School

Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Nidec
Manufacturer part number ASB844A
UPC 786382110918
Type Single speed pool and spa pump motor, no base
Frame 56Y square flange
Horsepower 3 HP
Total horsepower 3.45 THP
Voltage 208-230V
Frequency 60 Hz
Enclosure ODP, drip proof
Motor type Permanent split capacitor, single phase, switchless
Bearings Ball bearing
Shaft Stainless steel
Rotation CCW pump end
Ambient temperature 50 deg C
Color Almond
Replaces Pentair WhisperFlo model 011516 WFE-12, full rated and up rated energy efficient
Shipping weight 37.95 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Nidec

US Motors Neptune NPTQ165 1.65 HP variable speed pool pump motor, 48Y square flange Nidec Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165$67999 Nidec U.S. Motors EEQK750 7.5 HP three phase replacement motor for Pentair EQ series pumps Nidec U.S. Motors Pentair EQ Series Replacement Pool Motor, 7.5HP 3-Phase 208-230-460V, EEQK750$1,05999 Nidec ASB841A square flange 56Y pool pump motor in almond Nidec Replacement Square Flange Motor for Pentair Pumps, 115V/208/230V 1HP, ASB841A$35199 Nidec US Motors TEQ225 Aqua-Shield Pro 48Y TEFC square flange pool and spa pump motor Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225$43799 Nidec EZCOM1 EcoTech EZ interface adapter for variable speed pool pump motors Nidec EcoTech EZ Variable Speed Pump Motor Interface Adapter, EZCOM1$14099

Questions and answers

What people ask about this product, answered by our pool techs.

Which Pentair pump does this motor replace?
It is a direct replacement for the full rated and up rated energy efficient Pentair WhisperFlo model 011516 WFE-12.
Is it 3 HP or 3.45 HP?
Both numbers describe the same motor. It is rated 3 HP, and listed at 3.45 total horsepower, which is the rated horsepower taken with the service factor.
Does it come with a base?
No. It is supplied without a base and switchless, which is how the original Pentair motor was fitted.
What voltage does it need?
208-230V at 60 Hz, single phase.
