Raypak Digital High Altitude Natural Gas Pool Heater, 332.5K BTU, 2,000 to 6,000 ft, P-R336A-EN-C #51, 009222$3,67900
Raypak Digital High Altitude Natural Gas Pool Heater, 332.5K BTU, 2,000 to 6,000 ft, P-R336A-EN-C #51, 009222
$3,67900
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
Out of stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- #51 orifice, 2,000 to 6,000 ft Jetted at the factory for sites between 2,000 and 6,000 ft; Raypak sells the 336A for each band under its own part number.
- 332,500 BTU/hr Raypak's 336A size, about 272,650 BTU/hr into the water at its rated 82 percent thermal efficiency.
- Digital control An LCD temperature display with a microprocessor diagnostic readout that watches operating status.
- ProTek Shield A module in the polymer header that takes the corrosion in place of the heat exchanger and is easy to replace.
- Straight copper tubes Raypak's straight fin tube exchanger, with no bends or helical coils to add friction.
- Two part numbers Our distributor lists 009968 as the Rheem model P-M336A-EN-C #51; Raypak's own model for this size and band is P-R336A-EN-C #51, 009222.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
Digital High Altitude Natural Gas Pool Heater, 332.5K BTU, 2,000 to 6,000 ft, P-R336A-EN-C #51, 009222
$3,67900
Raypak
Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
$3,85900
Raypak
156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
$1,94900
Pentair
MasterTemp 250 Natural Gas Pool Heater, EC-462026
$3,73900
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$3,85900
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$1,94900
Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900
Web Price
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$2,59900
Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900
Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$3,62900
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$2,87900
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,68900
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,02900
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$3,42900
Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900
Web Price
Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 460805$4,30899
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$1,89900
Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,08900
Raypak Pool Heater, 200K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-C, 009216$2,61900
Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,23900
Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,06900
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details

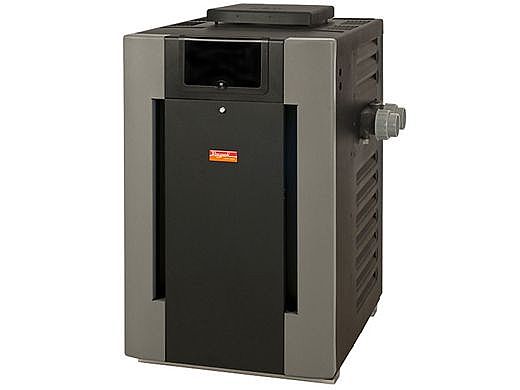

This is Raypak's Digital natural gas pool and spa heater in the 336A size, 332,500 BTU/hr input, jetted with the #51 orifice for installations from 2,000 to 6,000 ft. Raypak's model is the P-R336A-EN-C #51, part number 009222, and the figures on this page are Raypak's for that model. Our distributor also lists it as 009968, the Rheem model P-M336A-EN-C #51.
Why the orifice matters
Raypak sells the same heater jetted for three bands: #50 for 0 to 2,000 ft, #51 for 2,000 to 6,000 and #52 for 6,000 to 9,000, each under its own part number. Order the band that matches the installation address. This one covers 2,000 to 6,000 ft.
The heater
Polymer headers with the ProTek Shield module, a straight copper fin tube heat exchanger, digital IID ignition with no standing pilot, and a digital LCD that sets the temperature and reads out diagnostics. Raypak's Unitherm governor prevents condensation, the self adjusting burner compensates for gas pressure changes, and the heater plumbs directly to PVC and can sit on a combustible surface.
Power and connections
120 or 240 VAC, single phase, at 4 A or 2 A. Water connections are 2 inch slip, the gas connection 3/4 inch NPT, and the cabinet is 26 inches wide. At the rated 82 percent thermal efficiency the heater puts about 272,650 BTU/hr into the water.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 009222 |
| Model | P-R336A-EN-C #51 |
| Rheem part number | 009968, P-M336A-EN-C #51, as the distributor lists it |
| Series | Digital |
| Type | Pool and spa heater |
| Fuel | Natural gas |
| Heat input | 332,500 BTU/hr |
| Heat output | 272,650 BTU/hr at 82 percent |
| Thermal efficiency | 82 percent, by Raypak |
| Ignition | Electronic, digital IID |
| Heat exchanger | Copper fin tube |
| Headers | Polymer |
| Elevation | 2,000 to 6,000 ft, the #51 orifice |
| Electrical | 120 or 240 VAC, single phase, 60 Hz |
| Amp draw | 4 A at 120 V, 2 A at 240 V |
| Water connections | 2 in slip |
| Gas connection | 3/4 in NPT |
| Cabinet width | 26 in |
| Installation | Indoor or outdoor; can sit on a combustible surface |
| Shipping weight | 230 lb, 19 more with the indoor draft hood |
| Warranty | 2 years, parts and labor, by Raypak |
| Ships | Freight |
Downloads
Installation and Operation Manual
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5199
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$3,85900
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$1,94900
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$25199
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$2,59900
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$3,62900
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$2,87900
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,68900
Raypak Boiler Burner 10-Pack, 100-10000414$4799
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$37499
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,02900
Questions and answers
What people ask about this product, answered by our pool techs.
Is Raypak 009222 the same heater as Rheem 009968?
Our distributor lists Rheem's P-M336A-EN-C #51, 009968, as the same heater as Raypak's P-R336A-EN-C #51, 009222. Raypak's catalog prints that Raypak to Rheem pairing for its 206A, 266A and 406A digital heaters but not for the 336A, so the pairing is the distributor's word, not Raypak's.
Why is Raypak 009222 a high altitude heater?
It is jetted for 2,000 to 6,000 ft. Raypak sells the same heater jetted for three bands: #50 for 0 to 2,000 ft, #51 for 2,000 to 6,000 and #52 for 6,000 to 9,000, each under its own part number. This one is the #51 orifice.
Is Raypak 009222 natural gas or propane?
Natural gas. Raypak's catalog lists its propane Digital heaters for 0 to 2,000 ft only, under their own part numbers.
What power and connections does Raypak 009222 need?
120 or 240 VAC, single phase. Raypak's catalog gives 4 A at 120 V and 2 A at 240 V. The water connections are 2 inch and the gas connection 3/4 inch NPT.
What warranty does Raypak give the 336A, 009222?
Two years, parts and labor, under Raypak's pool heater limited warranty.
Where is the manual for the Raypak 009222?
Under Downloads on this page. It is Raypak's Digital Installation and Operation Manual for models 206A, 266A, 336A and 406A, part number 241236, which covers the bronze header ASME versions too.
