Pentair ED05 feed hose swivel for Kreepy Krauly Legend pool cleanersPentair Kreepy Krauly Legend Swivel Replacement, ED05 In stock$2199

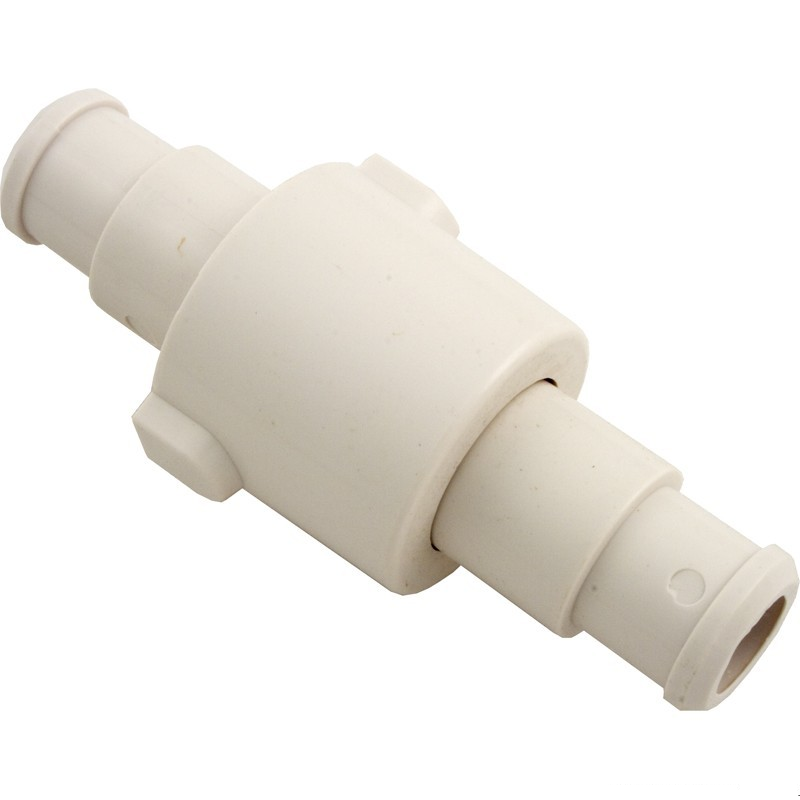

Pentair ED05 feed hose swivel for Kreepy Krauly Legend pool cleaners
Shop all Pentair

Pentair Kreepy Krauly Legend Swivel Replacement, ED05

Ask a questionMPN ED05
$2199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pentair ED05 The factory feed hose swivel for the Letro built Legend family.
  • Lets the hose rotate The swivel is what stops the feed hose twisting into a coil as the cleaner turns.
  • Wide fitment Legend, Legend Platinum, Legend 3 wheel and 4 wheel, Jet-Vac JV105 and Pool Sweeps I and II.
  • Plastic construction Molded plastic, as supplied on the original hose.
  • Cure for a wandering cleaner A seized swivel drags the hose taut and pulls the cleaner off its pattern.
  • Genuine OEM Pentair part rather than a generic hose fitting.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Kreepy Krauly Legend Swivel Replacement, ED05, SKU LET-201-2478. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Kreepy Krauly Legend Swivel Replacement, ED05
Pentair

Kreepy Krauly Legend Swivel Replacement, ED05

$2199
Pentair Communication Cable with Swivel for Prowler 920 Aboveground Pool Cleaner, 360499
Pentair

Communication Cable with Swivel for Prowler 920 Aboveground Pool Cleaner, 360499

$26499
Pentair Prowler 930 Communication Cable, 360446
Pentair

Prowler 930 Communication Cable, 360446

$34399
Pentair Prowler 920/930 Motor Unit, 360365
Pentair

Prowler 920/930 Motor Unit, 360365

$67699
Pentair Prowler 930/920 Replacement Front Brush Assembly, 360366
Pentair

Prowler 930/920 Replacement Front Brush Assembly, 360366

$4399
Pentair Prowler 910 Communication Cable, 360343
Pentair

Prowler 910 Communication Cable, 360343

$8999
Pentair Letro Legend Debris Bag with Snaplock, 360002
Pentair

Letro Legend Debris Bag with Snaplock, 360002

$5399
Subtotal

Similar products

Other products people compare with this one.

Pentair Kreepy Krauly 360007 rubber wheel tire for Legend and Legend II cleaners Pentair Kreepy Krauly Wheel Rubber Tire Replacement, 360007$1899 Pentair Kreepy Krauly EC55 white plastic wheel screw, 5 pack, for Letro Legend cleaners Pentair Kreepy Krauly Legend Wheel Screw, Plastic White, 5 Pack, EC55$1599 Pentair 360005 Letro Legend hub cap for Kreepy Krauly Legend cleaners Pentair Kreepy Krauly Letro Legend Hub Cap, 360005$1199 Kreepy Krauly K12156C swivel cone and bearing for the KK2000 pool cleaner Pentair Kreepy Krauly Swivel Cone and Bearing KK2000, K12156C$2899 Kreepy Krauly EC60 wheel bearings, 2 pack Pentair Kreepy Krauly Wheel Bearings, 2 Pack, EC60$2699 Pentair 360238 Kreepy Krauly Racer scrubber gear kit Pentair Kreepy Krauly Racer Scrubber Gear Kit, 360238$2599 Pentair Kreepy Krauly K12078 45 degree hose connector Pentair Kreepy Krauly 45 Degree Hose Connector, K12078$2599 Kreepy Krauly EA20 white ballast float for Pentair Letro Legend cleaners Pentair Kreepy Krauly Ballast Float, White, EA20$1199 Pentair K12054 hose weight for Kreepy Krauly and Kreepy Kadet pool cleaners Pentair Kreepy Krauly Hose Weight, K12054$2599 Pentair K12079 threaded compression adapter for Kreepy Krauly pool cleaners Pentair Kreepy Krauly Threaded Compression Adapter, K12079$1599
Pentair E24 metal wall fitting screen for Letro Legend and Kreepy Krauly pool cleaners Pentair Kreepy Krauly Wall Fitting Screen$1599 Pentair K12450 Kreepy Krauly Kruiser foot pad kit Pentair Kreepy Krauly Kruiser Foot Pad Kit, K12450$2599 Pentair 360006 Letro Legend LL505G replacement cleaner wheel Pentair Letro Legend Wheel, 360006$2199 Kreepy Krauly ED15 white plastic hose mender nuts, two pack Kreepy Krauly Hose Mender Nuts, Plastic, White (2 Pack), ED15$1399 Pentair LLC55PM gray plastic wheel screws for the Legend Platinum cleaner, 5 pack Pentair Legend Platinum Plastic Wheel Screw, Gray, 5 Pack, LLC55PM$1699 Pentair LLD05PM gray hose swivel for Letro Legend Platinum pool cleaners Pentair Platinum Hose Swivel, Gray, LLD05PM$2999 Pentair EC110 white turbine cover with elbow for Letro Legend pool cleaners Pentair Letro Legend Turbine Cover with Elbow, White, EC110$2199 Pentair LXC1 rubber tire for the Letro Legend II LX2000 pool cleaner Pentair Tire for Legend II Pool Cleaner, LXC1$1799 Pentair LLC1 white ribbed rubber tire for Legend 4-Wheel pool cleaner large wheel, product photo Pentair Ribbed Rubber Tire for Large Wheel on Legend 4-Wheel Pool Cleaners, LLC1$1699 Pentair ED10P white universal feed hose float, product photo Pentair Universal Feed Hose Float, White, for Jet-Vac and Legend Pool Cleaners, ED10P$1399

Product details

The Pentair ED05 is the feed hose swivel used on the Letro built Kreepy Krauly Legend family of pressure side cleaners. It is the genuine OEM part, in molded plastic.

Why a hose needs a swivel

A pressure cleaner spends its run turning, reversing and working its way around the pool, and every one of those turns puts a twist into the feed hose. The swivels let each hose section rotate on its own so that twist never accumulates. When one seizes, the hose coils up, goes taut, and starts hauling the cleaner back before it can finish its pattern. Owners usually read that as a cleaner that has lost power.

Fitment

The ED05 covers the Legend, Legend Platinum, the 3 wheel and 4 wheel Legend, the LL505G, the Jet-Vac JV105 and Pool Sweeps I and II. If more than one swivel on the hose feels stiff, replace them together, because a single free swivel in a stiff hose does not solve the twist.

Specifications
Brand Kreepy Krauly (Pentair)
Manufacturer part number ED05
UPC 807318017986
Part type Pool Cleaner Part
Material Plastic
Type Feed hose swivel
Fits Kreepy Krauly Legend, Legend Platinum, Legend 3 wheel and 4 wheel, Legend LL505G, Jet-Vac JV105, Pool Sweeps I and II
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What is the swivel for?
It joins sections of the feed hose and lets them rotate independently. As the cleaner turns and works the pool, the swivel absorbs the twist instead of letting it build up along the hose.
How do I know mine has failed?
A stiff or seized swivel shows up as a hose that coils and kinks, and as a cleaner that stops covering the whole pool because the hose is pulling it back.
Which cleaners does it fit?
Kreepy Krauly Legend, Legend Platinum, the 3 wheel and 4 wheel Legend, the LL505G, the Jet-Vac JV105 and Pool Sweeps I and II.
Is this the same as the Polaris hose swivel?
No. Polaris cleaners use their own swivel part. This one is the Pentair ED05 for the Letro built Legend family.
