Nidec U.S. Motors EEQ750 7.5 HP replacement motor for Pentair EQ series pumpsNidec U.S. Motors Pentair EQ Series Replacement Pool Motor, 7.5 HP Single Phase 230V, EEQ750$2,09199
Nidec U.S. Motors EEQ750 7.5 HP replacement motor for Pentair EQ series pumps
Shop all Nidec

Nidec U.S. Motors Pentair EQ Series Replacement Pool Motor, 7.5 HP Single Phase 230V, EEQ750

Ask a questionMPN EEQ750
$2,09199
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Built for the EQ series A replacement motor for Pentair EQ series commercial pumps, with the special JMZ mounting those pumps require.
  • 7.5 HP single phase Rated 7.5 HP on 230V single phase power.
  • Open dripproof ODP enclosure with a rigid base, the standard configuration for a covered equipment pad.
  • Continuous duty Class F insulation and a 40 C ambient rating, built to run rather than cycle.
  • Corrosion aware details A 300 series stainless steel shaft extension and a stainless steel ground lug where the wet environment does the most damage.
  • Permanently lubricated bearings Ball bearings that need no greasing in service.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Nidec U.S. Motors Pentair EQ Series Replacement Pool Motor, 7.5 HP Single Phase 230V, EEQ750, SKU EMR-60-7205. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Nidec U.S. Motors Pentair EQ Series Replacement Pool Motor, 7.5 HP Single Phase 230V, EEQ750
Nidec

U.S. Motors Pentair EQ Series Replacement Pool Motor, 7.5 HP Single Phase 230V, EEQ750

$2,09199
Nidec Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165
Nidec

Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165

$64099
Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225
Nidec

Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225

$43799
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Polaris Front Housing Volute Cover with O-Ring, R0536300
Polaris

Front Housing Volute Cover with O-Ring, R0536300

$6699
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$11799
Subtotal

Similar products

Other products people compare with this one.

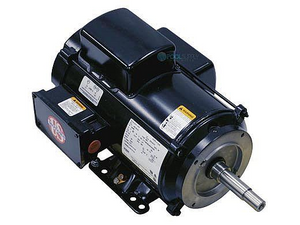

Pentair 357068S 5 HP three phase pump motor, 182JMZ frame Pentair 3-Phase Motor, 208/230/460V, 60 Hz, 5 HP, 182JMZ, 357068S$1,42899 Hayward SPX3206Z1VSPE 2.7 HP TriStar VS G3 pump power end assembly Hayward 2.7 HP TriStar VS G3 Pump Power End Assembly, SPX3206Z1VSPE$1,69799 Hayward SPX2603Z1VSPE Super Pump variable speed power end assembly Hayward Super Pump Variable Speed Power End Assembly, SPX2603Z1VSPE$1,21799 U.S. Motors EEQK500 5 HP three phase replacement motor for Pentair EQ series pool pumps U.S. Motors Pentair EQ Pump Series Replacement Pool Motor, 5HP 3-Phase 208-230-460V, EEQK500$74999 Pentair 357294S black 1-phase VFD square flange motor, 230 V, 56Y frame Pentair Black 1-Phase VFD Square Flange Motor, 230V, 4.3 HP, 3.2 kW, 56Y, 357294S$87999 Century SQS1202R 2 HP two-speed square flange pool pump motor, 230V, 48Y frame Century Motors 2 HP Two-Speed Square Flange Pool Pump Motor, 230V, 48Y, Full Rated, SQS1202R$71899 Century B2858 1.5 HP full rated pool pump motor, front right view Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed, B2858$47199 Hayward SPX1607Z1M 1 HP threaded shaft single phase pump motor, 115/230V Hayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M$39199 U.S. Motors ASB848 square flange 56Y frame pool and spa motor U.S. Motors ASB848 Square Flange Pool and Spa Motor, 56Y Frame, 115/230V$32399 Century B985 square flange two speed pool pump motor, 230V Century Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985$66899
Century H755 square flange 3 HP three phase pool pump motor Century Square Flange Pool Pump Motor, 3 HP, 3 Phase, 208/230/460V, H755$64499 Pentair 354811S almond 3 HP three phase motor for WhisperFlo and WhisperFlo XF pumps Pentair Almond Motor for WhisperFlo and WhisperFloXF Pumps, 3 Phase, 3 HP, 208-230/460V, 354811S$62199 Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$58499 Century Motors Magnetek Threaded Shaft Motor 2HP 115 230V 56 Round Frame Full-Rate | B836 Century Motors Magnetek Threaded Shaft Motor 2HP 115 230V 56 Round Frame Full-Rate | B836$56099 Century B2843 square flange 2 HP 208/230V pool pump motor Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843$55799 Century SN1152 1.5 HP full rated NorthStar replacement pool pump motor, 56J C-face with threaded shaft Century NorthStar Replacement Pool Pump Motor, 1.5 HP Full Rated, 208-230/115V, 56J Threaded Shaft, SN1152$53699 Century Motors MOTOR TRISTAR SQ FL FR 1.5HP 115/208-230V | HSQ1152 Century Motors MOTOR TRISTAR SQ FL FR 1.5HP 115/208-230V | HSQ1152$53099 Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$54299 Century Motors Magnetek Keyed Motor 2HP 230V Full-Rate 56 Round Frame | B124 Century Motors Magnetek Keyed Motor 2HP 230V Full-Rate 56 Round Frame | B124$51899 Century Motors MOTOR THRD FR 1HP 2SP 230V | STS1102RV1 Century Motors MOTOR THRD FR 1HP 2SP 230V | STS1102RV1$50199

Product details

The Nidec EEQ750 is a U.S. Motors replacement motor for Pentair EQ series pumps, rated 7.5 HP on 230V single phase power.

Why the mounting matters

This motor is built with the special JMZ mounting the EQ series pumps use. Horsepower alone does not make a motor a replacement; the frame and mount have to match the pump it drives, which is what makes this a direct fit where a general purpose motor is not.

How it is built

Open dripproof enclosure on a rigid base, Class F insulation, continuous duty, and a 40 C ambient rating. The bearings are permanently lubricated ball bearings, so there is nothing to grease in service. The shaft extension is 300 series stainless steel and the ground lug is stainless as well, both aimed at the corrosion that shortens motor life around a pool pad.

Installation

At 7.5 HP single phase this is a large motor and a large electrical load. Have the supply, disconnect and overload protection checked by a qualified electrician against the motor nameplate before it goes into service. As an open dripproof motor, it should sit under cover and out of direct spray.

Specifications
Brand Nidec
Manufacturer part number EEQ750
UPC 922001483166
Type Replacement pool pump motor
Fits Pentair EQ series pumps
Horsepower 7.5 HP
Phase Single phase
Voltage 230V
Mounting Special JMZ
Enclosure Open dripproof
Duty Continuous duty
Insulation Class F
Ambient rating 40 C
Bearings Permanently lubricated ball bearings
Base Rigid base
Shaft extension 300 series stainless steel
Ground lug Stainless steel
Shipping weight 139 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Nidec

US Motors Neptune NPTQ165 1.65 HP variable speed pool pump motor, 48Y square flange Nidec Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165$64099 Nidec US Motors TEQ225 Aqua-Shield Pro 48Y TEFC square flange pool and spa pump motor Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225$43799 Nidec EZCOM1 EcoTech EZ interface adapter for variable speed pool pump motors Nidec EcoTech EZ Variable Speed Pump Motor Interface Adapter, EZCOM1$14099

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this motor fit?
Pentair EQ series pumps. It is built with the special JMZ mounting those pumps use, which is why a general purpose motor of the same horsepower will not bolt up.
What power supply does it need?
230V single phase. At 7.5 HP this is a substantial load, so the circuit and disconnect need to be sized for it by a qualified electrician.
Is the enclosure suitable for outdoors?
It is an open dripproof motor with a rigid base. ODP motors want to be under cover and out of direct spray, so mount it in a protected equipment area.
Do the bearings need greasing?
No. The ball bearings are permanently lubricated. The stainless steel shaft extension and ground lug are there to hold up in the corrosive environment around a pool pad.
Ask your own question
