Hayward WG1030AVPAK2 8 in. round white suction outlet frame and cover, 2 packHayward 8 in. Round Suction Outlet (Main Drain) Frame and Cover, White, 2 Pack, WG1030AVPAK2 In stock$5099

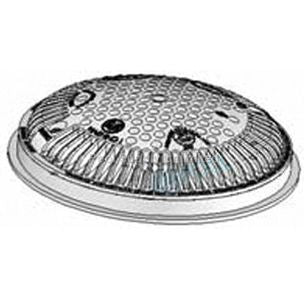

Hayward WG1030AVPAK2 8 in. round white suction outlet frame and cover, 2 pack
Shop all Hayward

Hayward 8 in. Round Suction Outlet (Main Drain) Frame and Cover, White, 2 Pack, WG1030AVPAK2

Ask a questionMPN WG1030AVPAK2
$5099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Dual drain set Two 8 in. round white frames with covers, for pools that run a pair of main drains.
  • VGB compliant Tested to ANSI/APSP/ICC-16 2017 and certified to the Virginia Graeme Baker Act, with 8.1 sq in of open area per cover.
  • Rated by sump Floor mounted ratings run 107 to 123 GPM and wall mounted 59 to 72 GPM, depending on pipe size and port position.
  • For field built sumps The WG1058C frame sits flat on the finished surface over a field fabricated sump with 1-1/2 or 2 in. pipe.
  • Fits Hayward frames Hayward replacement covers retrofit to existing Hayward frames; the white cover alone is WGX1048E.
  • Replace every 7 years Hayward calls for inspecting covers and screws often and replacing them at least every 7 years.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward 8 in. Round Suction Outlet (Main Drain) Frame and Cover, White, 2 Pack, WG1030AVPAK2, SKU HAY-25-1050. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward 8 in. Round Suction Outlet (Main Drain) Frame and Cover, White, 2 Pack, WG1030AVPAK2
Hayward

8 in. Round Suction Outlet (Main Drain) Frame and Cover, White, 2 Pack, WG1030AVPAK2

$5099
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Hayward WGX1048E 8 inch anti-vortex main drain cover in white Hayward 8" Anti-Vortex Main Drain Cover, White, WGX1048E$3399 AquaStar A10RCFR101 10 inch white universal round main drain cover with adapter kit AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101$6799 AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3599 Paramount SDX2 main drain grate for concrete pools, white, part 004-192-2231-01 Paramount SDX2 Main Drain Grate for Concrete Pools, White, 004-192-2231-01$5699 Hayward WG1030AVBLKPAK2 black round drain cover with frame for dual suction flow drain Hayward Round Cover with Frame for Dual Suction Flow Drain, 8 Inch Diameter, Black, WG1030AVBLKPAK2$5099 Pentair 500103 StarGuard 8 inch white main drain cover with short ring Pentair 8" StarGuard Main Drain Cover with Short Ring, White, 500103$4899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3499 Hayward 9 by 9 inch high flow replacement drain cover with inner frame Hayward 9" x 9" High Flow Replacement Cover and Inner Frame, WGX1031BHF2$7199 Waterway 640-2130 V 10 in. Ultra-Retro drain suction outlet in white Waterway 10" Ultra-Retro Drain Suction Outlet, 640-2130 V$5799
Pentair 500108 8 inch StarGuard main drain cover with long ring, white Pentair 8" StarGuard Main Drain Cover with Long Ring, White, 500108$4899 Paramount 005-252-2087-01 retro VGB SDX hi-flow drain cover, white Paramount Retro VGB SDX Hi-Flow Drain Cover, White, 005-252-2087-01$5399 Hayward Paramount SDX2 white retro safety drain for concrete pools Hayward SDX2 Retro Safety Drain for Concrete Pools, White, 004192221301$6199 AquaStar 8MF101 8 inch white round MoFlow suction outlet cover with mud frame AquaStar 8" White Round MoFlow Suction Outlet Cover and Mud Frame, 8MF101$3099 AquaStar 10AVR101 10 inch white round anti-entrapment suction outlet cover AquaStar 10" White Round Anti-Entrapment Suction Outlet Cover, 10AVR101$3999 AquaStar 10AVR103 10 inch round light gray anti-entrapment suction outlet cover AquaStar 10" Light Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR103$3599 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3599 AquaStar 8MF102 8 inch black round MoFlow suction outlet cover with mud frame AquaStar 8" Black Round MoFlow Suction Outlet Cover and Mud Frame, 8MF102$2899 Waterway 640-2750 V complete main drain for vinyl liner pools with cover and sump Waterway Main Drain for Vinyl Liner Pools, 640-2750 V$3699 AquaStar A8R104 8 inch Star anti-entrapment cover with riser ring and mud frame, blue AquaStar 8" Star Anti-Entrapment Cover with Solid Riser Ring and Mud Frame, VGB Series, Blue, A8R104$3199

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward WG1030AVPAK2 is a two pack of 8 in. round white suction outlet frames and covers, the main drain set for in-ground pools built with field fabricated sumps. Each ABS cover has an 8.1 sq in open area and is VGB compliant, tested to ANSI/APSP/ICC-16 2017.

Flow ratings

Hayward rates the cover and sump combination by pipe size and port position: 107 to 123 GPM floor mounted and 59 to 72 GPM wall mounted. The WG1058C frame is qualified for 1-1/2 in. and 2 in. pipe only. New pools need suction outlets in multiples, at least 3 ft apart on pipe centers, and a single outlet in an existing pool keeps its rating only alongside an added ASME A112.19.17 entrapment protection device.

Installation

The frame must be secured to the pool structure and sit flat to the finished surface. Because the interior finish holds it in place, that surface has to be sound and free of voids. Each cover takes two machine screws, started and finished by hand to 15 in-lb, with no power tools.

Before you order

Hayward replacement covers retrofit to existing Hayward frames, and the white cover on its own is WGX1048E. Vinyl liner and fiberglass pools use the WG1048AVPAK2 or WG1049AVPAK2 outlets, which come with a mounting ring and gaskets for the liner. Hayward calls for replacing covers and screws at least every 7 years.

Specifications
Brand Hayward
Manufacturer part number WG1030AVPAK2
UPC 610377008389
Type Round suction outlet frame and cover, main drain
Quantity 2 frames and covers
Size 8 in. round
Color White
Material ABS
Pool type In ground, field fabricated sump
Pipe size 1-1/2 in. or 2 in.
Open area 8.1 sq in per cover
Maximum flow Floor 107 to 123 GPM, wall 59 to 72 GPM, by pipe size and sump port
Standards ANSI/APSP/ICC-16 2017, VGB compliant
Cover screws WGX1030Z1AM machine screw set, 1-1/4 in., hand tightened to 15 in-lb
Replacement cover WGX1048E, white
Service life Replace covers and screws at least every 7 years
Warranty 1 year, parts
Shipping weight 2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Will the Hayward WG1030AVPAK2 fit my existing main drain?
Hayward replacement covers retrofit to existing Hayward frames, and the WG1030AVPAK2 supplies the round frame and cover together for in-ground pools with field fabricated sumps. If your Hayward frame is sound and only the covers need replacing, the white cover alone is WGX1048E.
What flow rate is the Hayward WG1030AVPAK2 rated for?
Each 8 in. WG1030AVPAK2 cover has an 8.1 sq in open area. Hayward rates the cover and sump combination at 107 to 123 GPM floor mounted and 59 to 72 GPM wall mounted, depending on 1-1/2 or 2 in. pipe and a side or bottom port.
Can one Hayward WG1030 frame and cover be my only main drain?
In new pools Hayward requires suction outlets in multiples, at least 3 ft apart on pipe centers. In an existing pool with a single outlet, the rating holds only when an added entrapment protection device qualified to ASME A112.19.17, such as an SVRS, is also installed.
How are the WG1030AVPAK2 covers fastened?
Each WG1030AVPAK2 cover takes two machine screws, started by hand to avoid cross threading and finished by hand to 15 in-lb, with no power tools. Hayward calls for the WG1058C frame to be secured to the pool structure and flat to the finished surface.
