Pentair 195351 complete band clamp assembly for FNS DE filtersPentair Band Assembly Complete for FNS Filters, Genuine OEM, 195351$31299

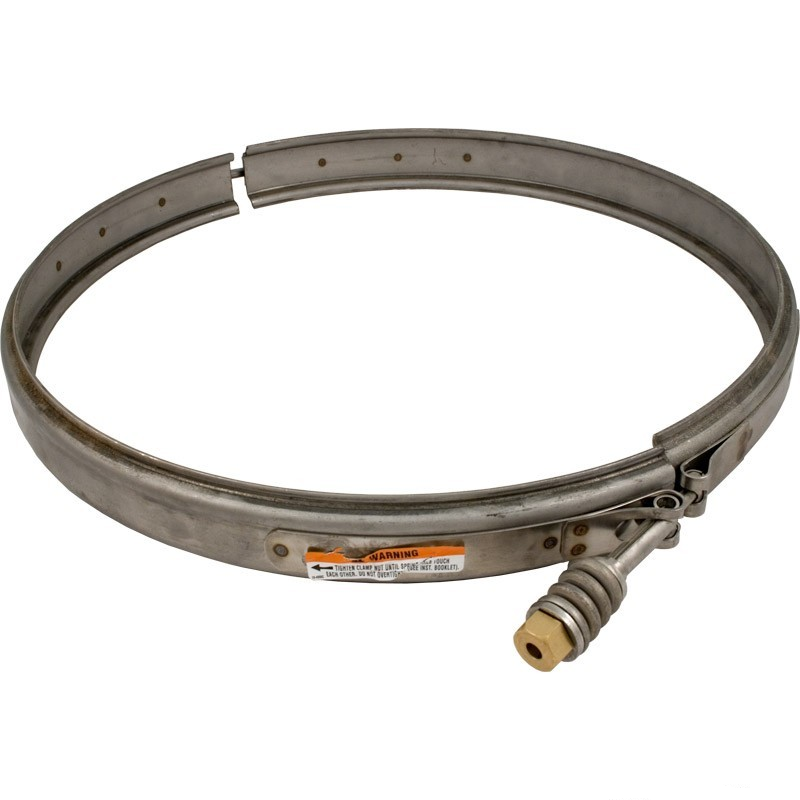

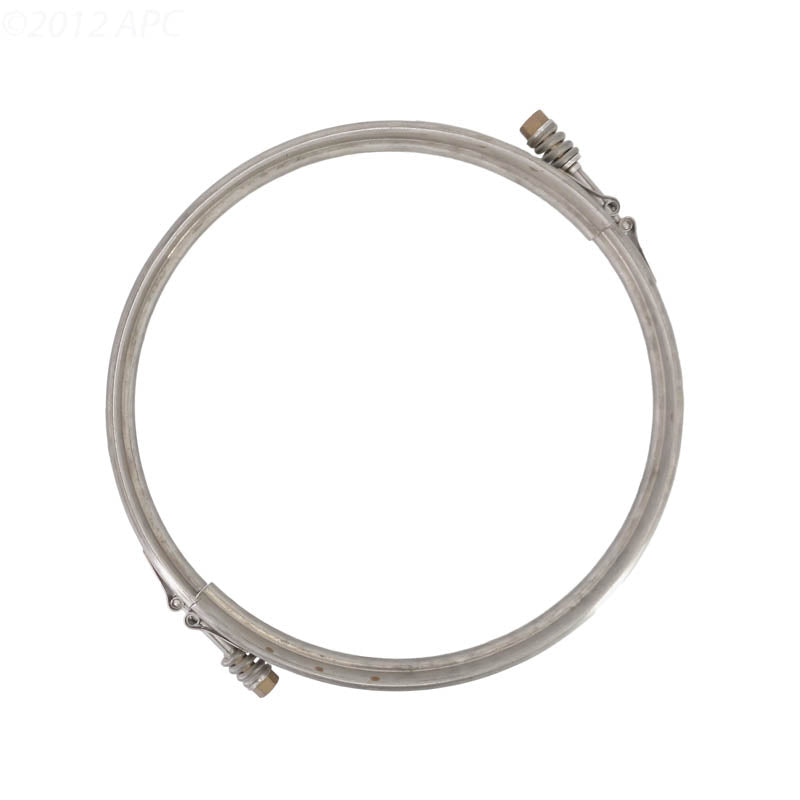

Pentair 195351 complete band clamp assembly for FNS DE filters
Shop all Pentair

Pentair Band Assembly Complete for FNS Filters, Genuine OEM, 195351

Ask a questionMPN 195351
$31299
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete assembly The full band clamp assembly, ready to fit.
  • Fits four FNS sizes FNS24, FNS36, FNS48 and FNS60 DE filters manufactured after March 1, 1993.
  • Also fits Sea Horse FSH Used on the Sea Horse FSH cartridge filter as well.
  • Measure the height This clamp is 2-1/8 in. tall; the older style is 1-3/4 in. Height is the reliable way to tell them apart.
  • Metal construction Metal band clamp assembly that holds the tank halves together.
  • Genuine Pentair Factory OEM part 195351.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Band Assembly Complete for FNS Filters, Genuine OEM, 195351, SKU PAC-051-1934. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Band Assembly Complete for FNS Filters, Genuine OEM, 195351
Pentair

Band Assembly Complete for FNS Filters, Genuine OEM, 195351

$31299
Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800
Pentair

Genuine OEM High Flow Manual Air Relief Valve, 98209800

$3899
Pentair Genuine OEM Clamp Kit with Tension Control, 190003
Pentair

Genuine OEM Clamp Kit with Tension Control, 190003

$30199
Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152
Pentair

2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152

$29799
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400
Pentair

Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400

$39399
Pentair OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z
Pentair

OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z

$6099
Pentair 60 Sq Ft Element Assembly Complete, 59023300
Pentair

60 Sq Ft Element Assembly Complete, 59023300

$44499
Subtotal

Similar products

Other products people compare with this one.

Pentair 194801Z 2 inch filter bulkhead fitting with buttress thread Pentair Genuine OEM Bulkhead, Buttress Thread, 194801Z$10299 Pentair 195339 stainless steel back-up ring for PacFab filters Pentair Genuine OEM Back-Up Ring, Stainless Steel, 195339$7999 Pentair 270100Z valve adapter kit, 2 in by 2.5 in black slip bulkhead Pentair Genuine OEM Valve Adapter Kit 2" Clean and Clear Plus, 270100Z$6399 Pentair 271096 bulkhead union kit, 1-1/2 inch and 2 inch, white Pentair Genuine OEM Bulkhead Union Kit, 1-1/2" and 2", White, 271096$5399 Pentair 192019 genuine OEM metal drain plug wrench Pentair Genuine OEM Drain Plug Wrench, 192019$5199 Pentair 190030Z 1-1/2 in. drain cap plug for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM 1-1/2 in. Drain Cap Plug, 190030Z$3599 Pentair 192320 upper bulkhead O-Ring, size 2-137 Buna N Pentair Genuine OEM Bulkhead O-Ring, 192320$899 Pentair 53108900Z spring barrel nut assembly for pool filter tank clamps Pentair Spring Barrel Nut Assembly, 53108900Z$4899

Product details

Pentair part 195351 is the complete band clamp assembly that holds the tank halves together on FNS series DE filters. It fits the FNS24, FNS36, FNS48 and FNS60 manufactured after March 1, 1993, and it is also the clamp used on the Sea Horse FSH cartridge filter. It is the genuine Pentair OEM part, in metal.

Old style or new style

Two clamps were used on these filters and height is the reliable way to tell them apart. This assembly is 2-1/8 in. tall. The earlier style, used on filters built before March 1993, is 1-3/4 in. tall and is a different part. Measure yours before ordering.

Replacing a corroded or stretched clamp is not something to put off; it is the one part holding the two halves of the tank together under full system pressure.

Specifications
Brand Pentair
Manufacturer part number 195351
UPC 788379673895
Type Band clamp assembly, complete
Material Metal
Clamp height 2-1/8 in.
Older style height 1-3/4 in.
Fits Pentair FNS24, FNS36, FNS48, FNS60 DE filters manufactured after March 1, 1993
Also fits Pentair Sea Horse FSH cartridge filter
Shipping weight 10.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

How do I know if this is the right clamp?
Measure the height of your existing clamp. This one is 2-1/8 in. tall and fits FNS filters made after March 1, 1993. If yours is 1-3/4 in. tall, you have the older style, which is a different part.
Which filters does it fit?
Pentair FNS24, FNS36, FNS48 and FNS60 DE filters manufactured after March 1, 1993, and the Sea Horse FSH cartridge filter.
Is it the whole clamp or just the band?
The complete band assembly, as Pentair sells it, not the band alone.
Is it genuine Pentair?
Yes, OEM part 195351, UPC 788379673895.
Ask your own question
