Baker Hydro 15B0129 hub and lateral assembly for 25 inch and 31 inch sand filter tanksBaker Hydro Hub Lateral Assembly, 25"/31" Tank, 15B0129$14699
Baker Hydro 15B0129 hub and lateral assembly for 25 inch and 31 inch sand filter tanks
Shop all Baker Hydro

Baker Hydro Hub Lateral Assembly, 25"/31" Tank, 15B0129

Ask a questionMPN 15B0129
$14699
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Covers two tank sizes The assembly listed for both the 25 inch and the 31 inch tank.
  • Hub and laterals together Supplied as an assembly rather than as loose laterals.
  • Cross referenced Also carried under part number 4640-41C.
  • Sits under the sand The laterals collect filtered water at the bottom of the bed and feed it back to the pool.
  • The fix for sand in the pool Cracked laterals let sand pass through to the returns, and no amount of backwashing corrects that.
  • Plan the sand change The tank has to be emptied of sand to reach the assembly, so replace the media at the same time.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Baker Hydro Hub Lateral Assembly, 25"/31" Tank, 15B0129, SKU BAK-051-1525. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Baker Hydro Hub Lateral Assembly, 25"/31" Tank, 15B0129
Baker Hydro

Hub Lateral Assembly, 25"/31" Tank, 15B0129

$14699
Baker Hydro Control Plate Gasket, 00B7000
Baker Hydro

Control Plate Gasket, 00B7000

$1099
Baker Hydro HRV Valve Adapter, 31B0077
Baker Hydro

HRV Valve Adapter, 31B0077

$4899
Baker Hydro V-Band Clamp Assembly HRV, 00B8083
Baker Hydro

V-Band Clamp Assembly HRV, 00B8083

$9699
Baker Hydro BULKHEAD ASSY 30" & 36" HRV | 31B9031
Baker Hydro

BULKHEAD ASSY 30" & 36" HRV | 31B9031

$9099
Baker Hydro Bulkhead Seal Gasket for 30 in. and 36 in. HRV Filters, 31B9036
Baker Hydro

Bulkhead Seal Gasket for 30 in. and 36 in. HRV Filters, 31B9036

$1999
Baker Hydro Air Relief Screen for HRV Sand Filters, 15B0074
Baker Hydro

Air Relief Screen for HRV Sand Filters, 15B0074

$899
Subtotal

Similar products

Other products people compare with this one.

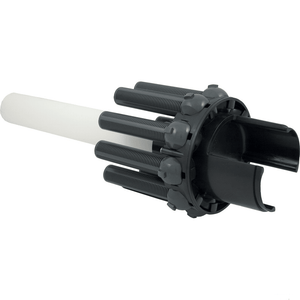

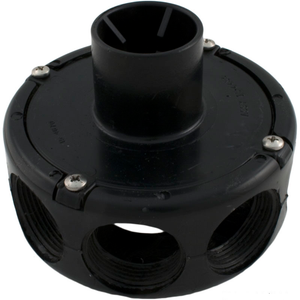

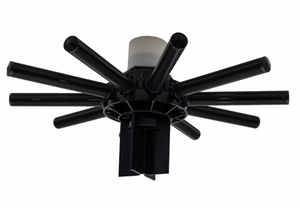

Hayward SX242MA1S lateral hub assembly with center pipe for S220S and S244S sand filters Hayward Lateral Hub Assembly (S244S, S220S), SX242MA1S$13099 Hayward SX310DA2 folding lateral assembly with center pipe for the S310T sand filter Hayward Folding Lateral Assembly With Center Pipe for S310T Sand Filters, SX310DA2$16699 Hayward SX202QA folding umbrella lateral assembly for the S200 sand filter Hayward Lateral Assembly Replacement S200, SX202QA$13899 Hayward SX242MA lateral assembly for Pro Series S210S sand filter Hayward Lateral Assembly Replacement S210S, SX242MA$12399 Hayward SWX256DA2 lateral assembly with center pipe for SwimPro SW256T sand filter Hayward Lateral Assembly with Center Pipe, SW256T, SWX256DA2$14399 Hayward SX210DA lateral assembly with center pipe for the S210T sand filter Hayward Lateral Assembly with Center Pipe (S210T), SX210DA$12699 Pentair 154453Z 1.25 inch lateral hub assembly for Triton II TR100 and TR140 sand filters Pentair Genuine OEM Hub Assembly TR100/TR140, 154453Z$10299 Hayward SX164DAS 16 inch folding lateral assembly for sand filters Hayward 16" Folding Lateral Assembly, SX164DAS$12599 Waterway 505-2080 lateral and manifold assembly for 26 inch ClearWater and TWM sand filters Waterway Lateral and Manifold Assembly for 26" ClearWater and TWM Sand Filters, 505-2080$8099 Hayward SX160QA folding umbrella lateral assembly with center pipe for S160T sand filters Hayward S160T Filter Lateral Assembly with Center Pipe, SX160QA$13399

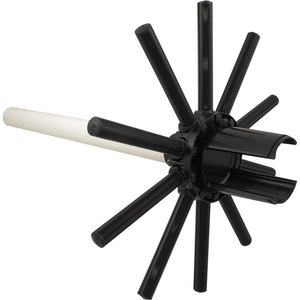

Jandy R0520200 hub assembly with 24 inch laterals for the JS60-SM sand filter Jandy Hub Assembly with 24" Laterals, JS60, R0520200$12499 Hayward SX244DAS 24 inch folding lateral assembly for Pro Series sand filters Hayward 24" Folding Lateral Assembly, SX244DAS$15899 Pentair 150088 ClearPro lateral assembly for sand filters Pentair Genuine OEM Lateral Assembly, ClearPro, 150088$10499 Sta-Rite 24203-0034 flexible pump to filter hose assembly Sta-Rite Flexible Pump to Filter Hose Assembly, 22" Tank, 24203-0034$14299 Hayward SX180DAS 18 inch folding lateral assembly for a sand filter Hayward 18" Folding Lateral Assembly, SX180DAS$11799 Waterway Plastics 505-2160 lateral and manifold assembly for 22 inch Carefree sand filter Waterway Lateral and Manifold Assembly for 22" Carefree Sand Filter, 505-2160$7799 Waterway 505-2150 lateral and manifold assembly for the 19 inch Carefree sand filter Waterway Lateral and Manifold Assembly for 19 Inch Carefree Sand Filter, 505-2150$7499 Jacuzzi 42377309 snap fit standpipe assembly with lateral for Laser 225L sand filter Jacuzzi Standpipe Assembly for Laser 225L Sand Filter, Snap Fit with Lateral, 42377309$7699 Pentair 273564Z genuine manual air relief assembly for Triton II sand filters Pentair Genuine OEM Manual Air Relief Assembly for Triton II, 273564Z$9299 Pentair 152237 2 in. standpipe and piping assembly with hub for the Tagelus TA60 sand filter Pentair 2" TA60 Standpipe Assembly, 152237$11099

Product details

The Baker Hydro 15B0129 is the hub and lateral assembly for 25 inch and 31 inch sand filter tanks. It is also carried under the part number 4640-41C.

What it does

The assembly sits at the bottom of the tank, buried in the sand bed. Water passes down through the media and is collected by the slotted laterals, which feed it back up the standpipe and out to the pool. The slots are sized to pass water and hold the sand back.

When it needs replacing

Split or cracked laterals send sand out to the returns. Because the assembly lives under the media, reaching it means emptying the tank, so it is normal to fit new sand at the same time.

Specifications
Brand Baker Hydro
Manufacturer part number 15B0129
Type Hub and lateral assembly
Tank sizes 25 inch and 31 inch
Substitute part numbers 4640-41C
Listed for Baker Hydro II top mount sand filters, Purex Tahitian top mount models HR-21, 25 and 31
Shipping weight 1.7 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Baker Hydro

Baker Hydro WC624070A replacement skimmer weir door with clips Baker Hydro Replacement Weir Door, WC624070A5.0 (1) $4999 Baker Hydro 51B1016 skimmer forming frame Baker Hydro Skimmer Forming Frame, 51B1016$3899 Baker Hydro 51B1019 pre-fab kit with faceplate, gasket, inserts and screws Baker Hydro Pre-Fab Kit with Inserts, 51B1019$9099 Baker Hydro 00B7000 control plate gasket, also listed as G-317 Baker Hydro Control Plate Gasket, 00B7000$1099 Baker Hydro 31B0077 HRV valve adapter, union connection Baker Hydro HRV Valve Adapter, 31B0077$4899 Baker Hydro 00B8083 V-band clamp assembly for HRV filters Baker Hydro V-Band Clamp Assembly HRV, 00B8083$9699 Baker Hydro BULKHEAD ASSY 30" & 36" HRV | 31B9031 Baker Hydro BULKHEAD ASSY 30" & 36" HRV | 31B9031$9099 Baker Hydro 31B9036 bulkhead seal gasket for 30 in. and 36 in. HRV sand filters Baker Hydro Bulkhead Seal Gasket for 30 in. and 36 in. HRV Filters, 31B9036$1999 Baker Hydro 15B0074 air relief screen for HRV series sand filters Baker Hydro Air Relief Screen for HRV Sand Filters, 15B0074$899

Questions and answers

What people ask about this product, answered by our pool techs.

Which tanks does this fit?
It is listed for the 25 inch and 31 inch tanks.
Is 4640-41C the same part?
Yes, that number is carried as a substitute part number for this assembly.
Do I get the hub and the laterals?
Yes. It is supplied as the hub and lateral assembly, not as individual laterals.
Why would laterals need replacing?
Cracked or split laterals let sand through to the returns and drop the pressure across the filter. If you are seeing sand in the pool, the laterals are the first place to look.
