Pentair 273564Z genuine manual air relief assembly for Triton II sand filtersPentair Genuine OEM Manual Air Relief Assembly for Triton II, 273564Z In stock$9299
Pentair 273564Z genuine manual air relief assembly for Triton II sand filters
Shop all Pentair

Pentair Genuine OEM Manual Air Relief Assembly for Triton II, 273564Z

Ask a questionMPN 273564Z
$9299
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete top assembly The manifold that screws into the top of the tank, its o-ring, the pressure gauge and the air relief valve, all in one part.
  • Genuine Pentair OEM part 273564Z, not a generic gauge and bleeder kit.
  • Screws straight in The manifold threads into the top of the Triton II tank, so the swap is a matter of unscrewing the old one.
  • Gauge included A new pressure gauge comes fitted, replacing the one that is usually stuck or fogged by the time the bleeder fails.
  • Bleeds trapped air Opening the manual valve after a backwash or cleaning lets air out so the tank fills fully and the gauge reads true.
  • Triton II fit Made for Pentair Triton II sand filters.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Genuine OEM Manual Air Relief Assembly for Triton II, 273564Z, SKU PAC-051-1959. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Genuine OEM Manual Air Relief Assembly for Triton II, 273564Z
Pentair

Genuine OEM Manual Air Relief Assembly for Triton II, 273564Z

$9299
Pentair Genuine OEM 2 in. Triton II Bulkhead Kit, 154714Z
Pentair

Genuine OEM 2 in. Triton II Bulkhead Kit, 154714Z

$15299

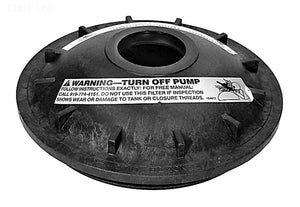

Pentair Genuine OEM 8-1/2" Triton II Buttress Thread Closure Kit, 154856Z
Pentair

Genuine OEM 8-1/2" Triton II Buttress Thread Closure Kit, 154856Z

$23499
Pentair Triton II Buttress Thread Closure O-Ring, 152516Z
Pentair

Triton II Buttress Thread Closure O-Ring, 152516Z

$1199
Pentair Genuine OEM 2" Bulkhead O-Ring, 154492
Pentair

Genuine OEM 2" Bulkhead O-Ring, 154492

$1199
Pentair Lateral for Triton II TR40, TR50, TR60, Genuine OEM, 152290
Pentair

Lateral for Triton II TR40, TR50, TR60, Genuine OEM, 152290

$1499
Pentair Genuine OEM Triton II Air Relief Tee Assembly, 154689Z
Pentair

Genuine OEM Triton II Air Relief Tee Assembly, 154689Z

$3599
Subtotal

Similar products

Other products people compare with this one.

Pentair 156355 upper piping assembly for Triton TR100C and TR140C sand filters Pentair Genuine OEM Upper Piping Assembly for Triton Pool Filters, 156355$11599 Pentair 154687Z complete air bleeder package with tee and brass fitting Pentair Genuine OEM Air Bleeder Package, Complete, 154687Z$5099 Pentair 154453Z 1.25 inch lateral hub assembly for Triton II TR100 and TR140 sand filters Pentair Genuine OEM Hub Assembly TR100/TR140, 154453Z$10599 Pentair 150088 ClearPro lateral assembly for sand filters Pentair Genuine OEM Lateral Assembly, ClearPro, 150088$11099 Pentair 154599 diffuser assembly for the Triton TR60 sand filter Pentair Genuine OEM Diffuser Assembly TR60, 154599$5799 Pentair 156344 upper inlet piping assembly for Triton II TR100C and TR140C sand filters Pentair Genuine OEM Upper Inlet Piping Assembly, 156344$8299 Pentair 154805 lower piping assembly for the side mount Triton TR60 sand filter Pentair Genuine OEM Lower Piping Assembly TR60, 154805$5899 Pentair 154426 upper piping assembly for TR100 Triton II sand filter Pentair Genuine OEM TR100 Upper Piping Assembly, 154426$8899 Pentair 152220Z 2 inch NPT left-hand threaded spigot sand filter drain Pentair Genuine OEM 2" NPT Left-Hand Threaded Spigot Sand Filter Drain, 152220Z$4799 Pentair 154575Z 8-1/2 inch buttress thread top closure for Triton sand filters Pentair Genuine OEM 8-1/2" Buttress Thread Top Closure, 154575Z$7099

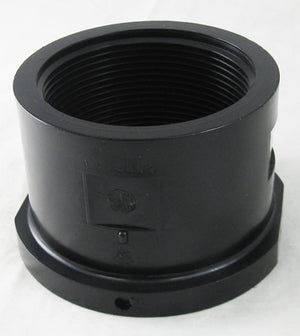

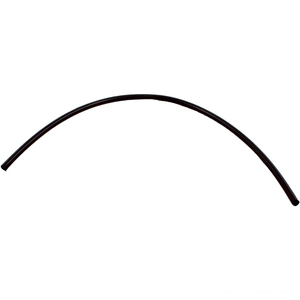

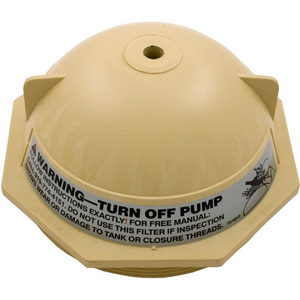

Pentair 271092Z 2 inch threaded bulkhead adapter kit, 2 pack Pentair Genuine OEM 2" Threaded Bulkhead Adapter Kit, 2 Pack, 271092Z$6299 Pentair 154001 3 in. adapter flange for Triton C-3 side mount sand filter Pentair Genuine OEM 3" Adapter Flange, 154001$6699 Pentair PacFab 154559Z tan 6 inch V thread closure for TR Triton sand filter Pentair Genuine OEM Closure 6" V Thread, Tan, 154559Z$5599 Pentair 152519Z Triton II 6 in. buttress thread closure Pentair 6" Triton II Buttress Thread Closure (After 12-1-91), 152519Z$11199 Pentair 154438 air relief tube for Triton TR140 sand filter, 27 inches long, 1/4 inch outside diameter Pentair Genuine OEM Air Relief Tube, TR140 Before 11/99, 154438$3099 Pentair 150040 air relief tube for Triton II TR50 and TR60 sand filters Pentair Genuine OEM Air Relief Tube TR50/60 (After 11/99), 150040$2699 Pentair 154437 plastic air relief tube for the TR100 sand filter Pentair Genuine OEM Air Relief Tube TR100 (before 11/99), 154437$2699 Pentair 150041 air relief tube for Triton II TR100 sand filter Pentair Genuine OEM Air Relief Tube TR100 (After 11/99), 150041$2199 Pentair 155753 genuine OEM hub adapter assembly for Triton II sand filters Pentair Genuine OEM Hub Adapter Assembly, 155753$4599 Pentair 154763 hub assembly for Triton II TR40, TR50 and TR60 sand filters Pentair Genuine OEM Hub Assembly TR40/TR50/TR60, 154763$3999

Product details

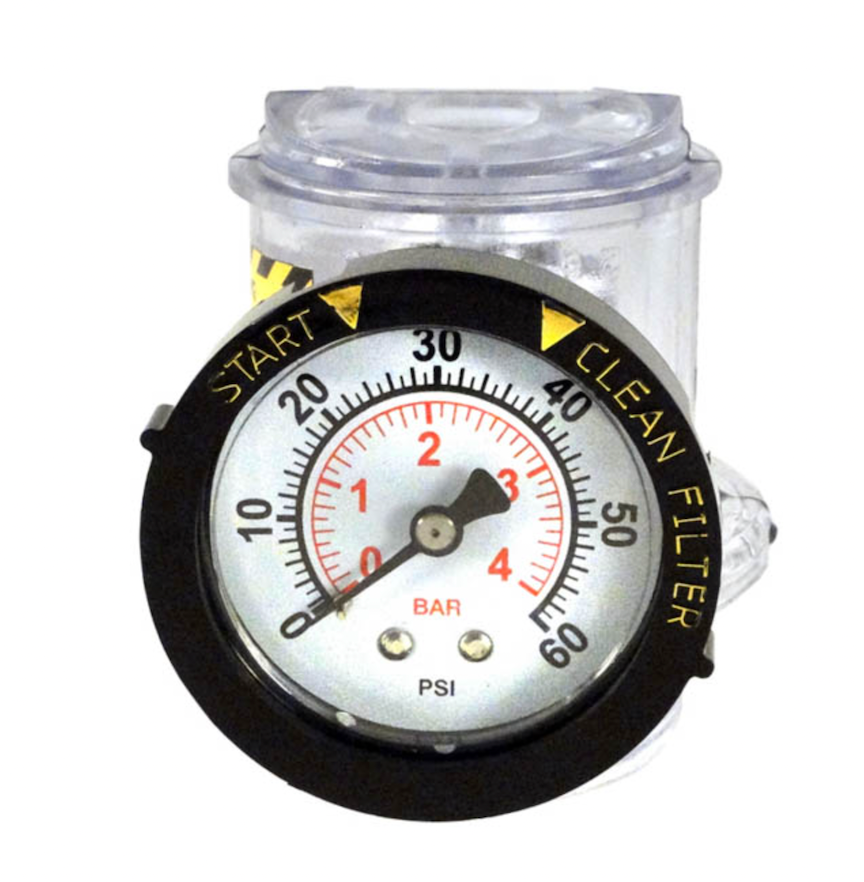

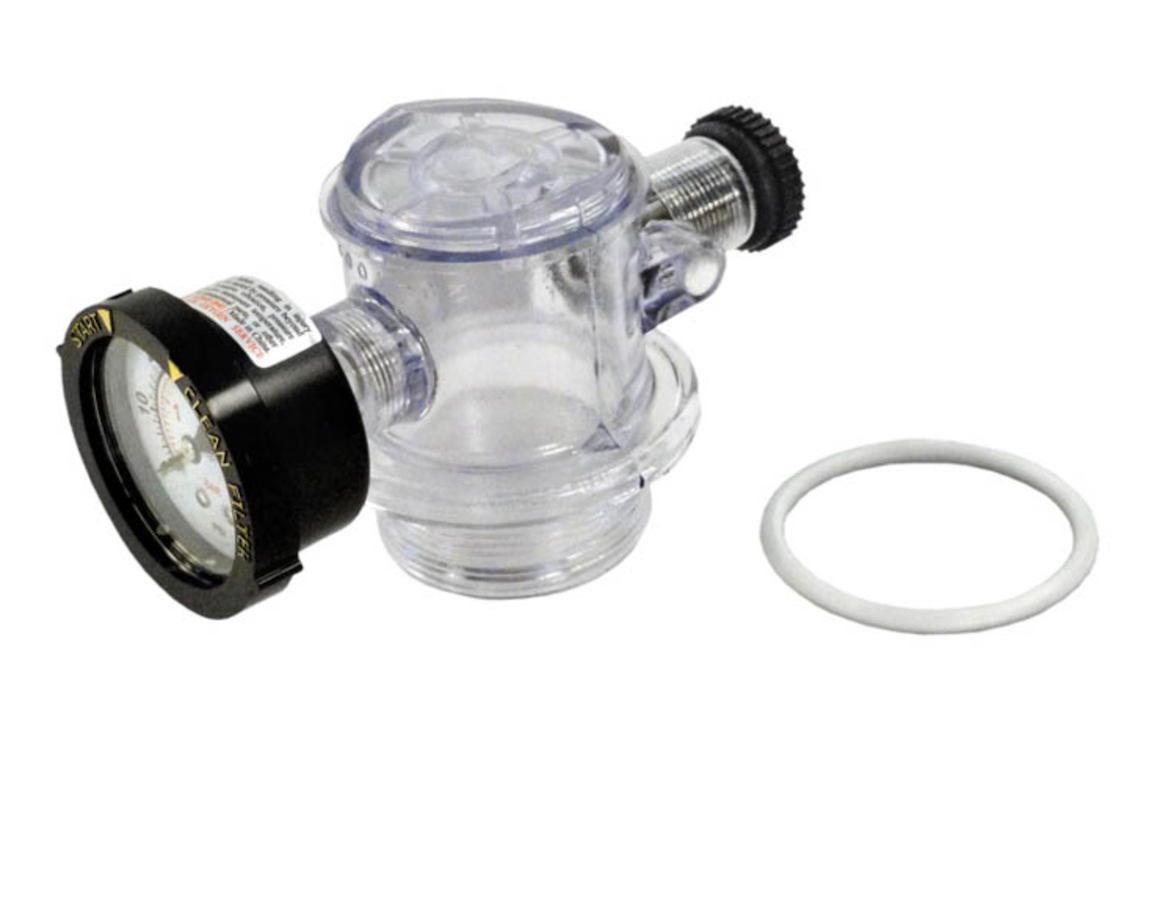

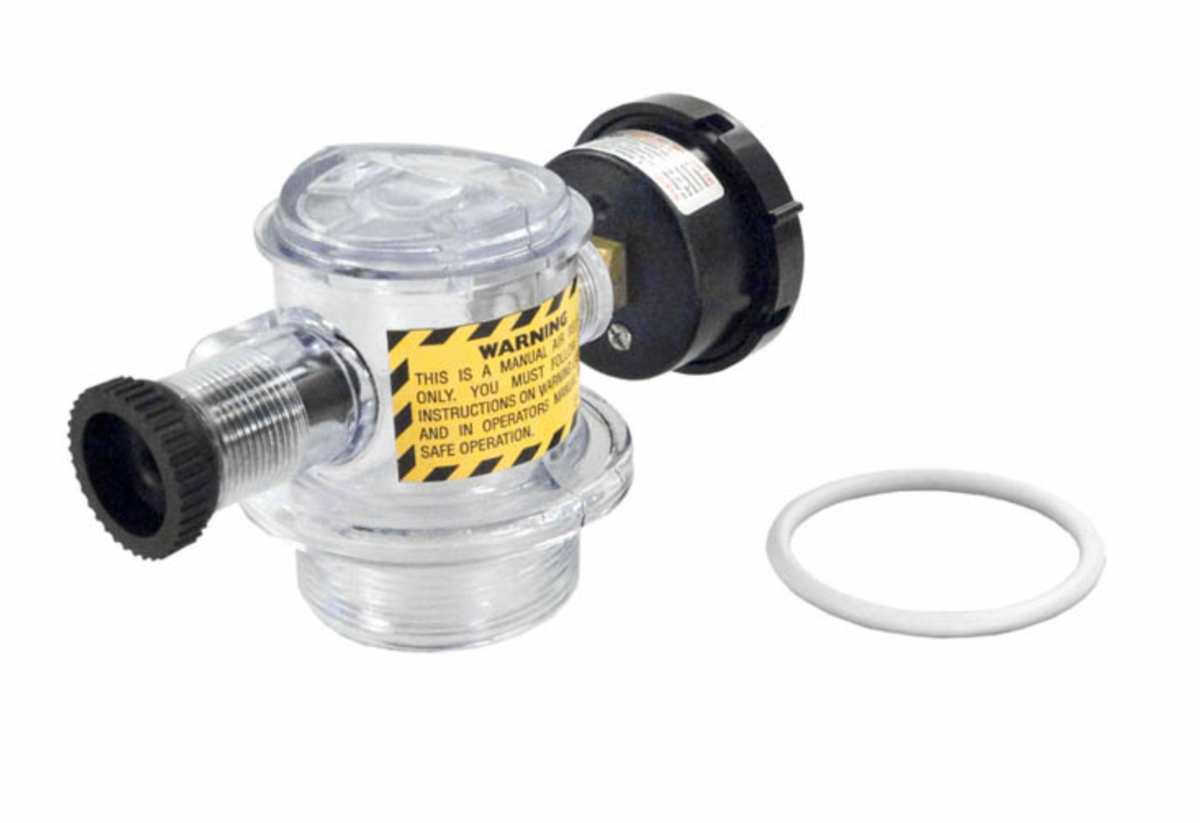

The Pentair 273564Z is the genuine manual air relief assembly that sits on top of a Triton II sand filter. It is sold as a complete unit: the manifold that screws into the top of the tank, its sealing o-ring, the pressure gauge and the manual air relief valve.

Why replace the whole assembly

By the time the bleeder valve seizes or the manifold cracks, the gauge on the same body is usually stuck or unreadable too. Replacing the assembly puts a fresh gauge, valve and seal on the filter in one step, without hunting down each part and hoping the old threads are sound.

Using it

After a backwash, cartridge clean or any time the pump has been off, open the manual relief valve while the pump runs until water sprays from it, then close it. That purges air from the top of the tank so the filter runs full and the gauge gives a reliable clean pressure reading to compare against later.

Specifications
Brand Pentair
Manufacturer part number 273564Z
Also known as 273564
UPC 788379885717
Fits Pentair Triton II sand filters
Includes Manifold, o-ring, pressure gauge, air relief valve
Mounting Screws into the top of the filter tank
Shipping weight 0.55 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What is in the assembly?
The manifold that screws into the top of the filter, the o-ring that seals it, the pressure gauge and the manual air relief valve.
Will it fit my Triton II?
Yes, it is the OEM top manifold and air relief assembly for Pentair Triton II sand filters.
Can I buy just the gauge or the bleeder valve?
Both are available separately, but if the manifold threads or body are cracked, or more than one piece is worn, the complete assembly is the simpler fix.
Is 273564 the same as 273564Z?
Yes. The Z suffix is the current Pentair number for the same assembly.
