Pentair 152290 lateral for Triton II TR40, TR50 and TR60 sand filtersPentair Lateral for Triton II TR40, TR50, TR60, Genuine OEM, 152290 In stock$1499

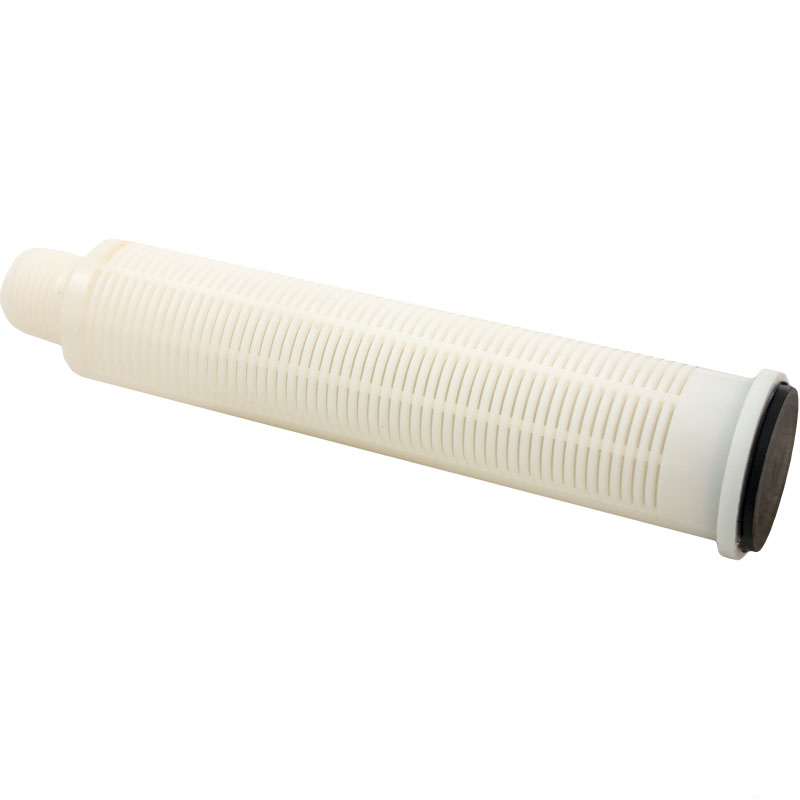

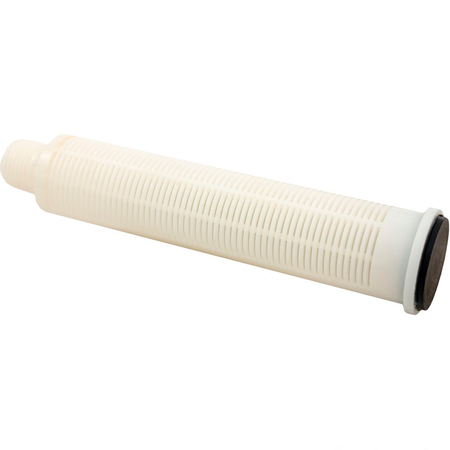

Pentair 152290 lateral for Triton II TR40, TR50 and TR60 sand filters
Shop all Pentair

Pentair Lateral for Triton II TR40, TR50, TR60, Genuine OEM, 152290

Ask a questionMPN 152290
$1499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair part 152290.
  • Fits Triton II TR40, TR50 and TR60 sand filters.
  • 6-11/16 in. long measure a broken one against this before ordering.
  • Eight per filter order a full set if you are already changing the sand.
  • Molded plastic slotted to hold back sand while letting water through.
  • Sold each the price is per lateral.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Lateral for Triton II TR40, TR50, TR60, Genuine OEM, 152290, SKU PAC-051-2805. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Lateral for Triton II TR40, TR50, TR60, Genuine OEM, 152290
Pentair

Lateral for Triton II TR40, TR50, TR60, Genuine OEM, 152290

$1499
Pentair Genuine OEM 2 in. Triton II Bulkhead Kit, 154714Z
Pentair

Genuine OEM 2 in. Triton II Bulkhead Kit, 154714Z

$15299
Pentair Genuine OEM 8-1/2" Triton II Buttress Thread Closure Kit, 154856Z
Pentair

Genuine OEM 8-1/2" Triton II Buttress Thread Closure Kit, 154856Z

$23499
Pentair Genuine OEM Manual Air Relief Assembly for Triton II, 273564Z
Pentair

Genuine OEM Manual Air Relief Assembly for Triton II, 273564Z

$9299
Pentair Triton II Buttress Thread Closure O-Ring, 152516Z
Pentair

Triton II Buttress Thread Closure O-Ring, 152516Z

$1199
Pentair Genuine OEM 2" Bulkhead O-Ring, 154492
Pentair

Genuine OEM 2" Bulkhead O-Ring, 154492

$1199
Pentair Genuine OEM Triton II Air Relief Tee Assembly, 154689Z
Pentair

Genuine OEM Triton II Air Relief Tee Assembly, 154689Z

$3599
Subtotal

Similar products

Other products people compare with this one.

Pentair 150085 lateral for 22 inch sand filters, 1/4 turn Pentair Genuine OEM Lateral for 22" Filter, 1/4 Turn, After 10-04, 150085Z$1499 Pentair 154871 threaded 1-1/2 inch cap for Triton II sand filters Pentair Genuine OEM Cap Threaded 1-1/2" Triton II, 154871$1599 Pentair 154416 internal spacer for 2 inch Triton II side mount sand filters Pentair Genuine OEM 2" Triton II Internal Spacer, 154416$1999 Pentair 154538 genuine OEM 2 inch bulkhead gasket for Triton II sand filters Pentair Genuine OEM 2" Bulkhead Gasket, 154538$1299 Pentair 150036 retainer for 3/8 inch air relief vent tube, Triton II sand filters Pentair Genuine OEM Retainer Vent Tube 3/8" (After 11/99), 150036$999 Pentair 150041 air relief tube for Triton II TR100 sand filter Pentair Genuine OEM Air Relief Tube TR100 (After 11/99), 150041$2199 Pentair 154004 flange adapter o-ring Pentair Genuine OEM Flange Adapter O-Ring, 154004$1299 Pentair 154613 spacer air vent for the Triton II TR100 sand filter Pentair Genuine OEM Spacer Air Vent TR100, 154613$1499 Pentair 150042 air relief tube for Triton II TR140 sand filter, after 11/99 Pentair Genuine OEM Air Relief Tube, TR140 (after 11/99), 150042$1999 Pentair 152202Z 9-1/8 inch replacement lateral for TA100 and TR100 filters Pentair 9-1/8" TA100 and TR100 Replacement Lateral, 152202Z$1799
Pentair 156355 upper piping assembly for Triton TR100C and TR140C sand filters Pentair Genuine OEM Upper Piping Assembly for Triton Pool Filters, 156355$11599 Pentair 154408 2 inch Triton II external spacer for TR100C and TR140C sand filters Pentair Genuine OEM 2" Triton II External Spacer, 154408$2299 Pentair 154540 12 in. lateral assembly for Triton II TR140 sand filter Pentair Genuine OEM Lateral Assembly TR140, 154540$2899 Pentair 150088 ClearPro lateral assembly for sand filters Pentair Genuine OEM Lateral Assembly, ClearPro, 150088$11099 Pentair 274495 white O-ring, 3/16 inch by 2 5/8 inch Pentair Genuine OEM O-Ring 3/16" x 2 5/8", White, 274495$599 Pentair 154005 spacer o-ring for Triton C-3 side mount sand filters Pentair Genuine OEM Spacer O-Ring (2 Required), 154005$499 Pentair 154437 plastic air relief tube for the TR100 sand filter Pentair Genuine OEM Air Relief Tube TR100 (before 11/99), 154437$2699 Pentair 154660 1/4 in. FPT brass tee fitting Pentair 1/4 in. FPT Brass Tee Fitting for PF Series and Triton II Sand Filters, 154660$2799 Pentair 154698 sand drain spigot with 3/4 inch NPT thread Pentair Genuine OEM Spigot 3/4" NPT Sand Drain, 154698$3399 Pentair 154527Z plastic wrench for the 8-1/2 in. Triton filter closure Pentair Plastic Wrench for Triton 8.5" Closure, 154527Z$3699

Product details

The Pentair 152290 is a replacement lateral for Triton II TR40, TR50 and TR60 sand filters. Laterals are the slotted plastic fingers at the bottom of the tank that let clean water out while holding the sand back. When one cracks, sand shows up in the pool and it is time to open the tank.

This lateral is 6-11/16 in. long and each filter uses eight of them. They are sold individually, so order the quantity you need. Since all eight have seen the same years of service, replacing the full set while the sand is out is usually the sensible move.

The laterals thread into the hub assembly, which is a separate part and only needs replacing if it is damaged. Reaching them means emptying the sand from the tank, so plan the job around a sand change.

Specifications
Brand Pentair
Manufacturer part number 152290
UPC 788379668532
Part type Pool filter part
Material Plastic
Length 6-11/16 in.
Fits Pentair Triton II TR40, TR50, TR60
Quantity required 8 per filter
Sold Each
Shipping weight 0.3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

How many do I need?
Eight per filter. If one has cracked, the rest are the same age, so many people replace the set while the sand is out.
Does it fit the TR100 or TR140?
This 6-11/16 in. lateral is specified for the TR40, TR50 and TR60. Check the parts list for your model before ordering it for anything else.
Do I need the hub as well?
Only if the hub is damaged. The hub assembly is a separate part; the laterals thread into it.
Do I have to remove the sand?
Yes. The laterals sit at the bottom of the tank under the sand bed, so the sand has to come out to reach them.
