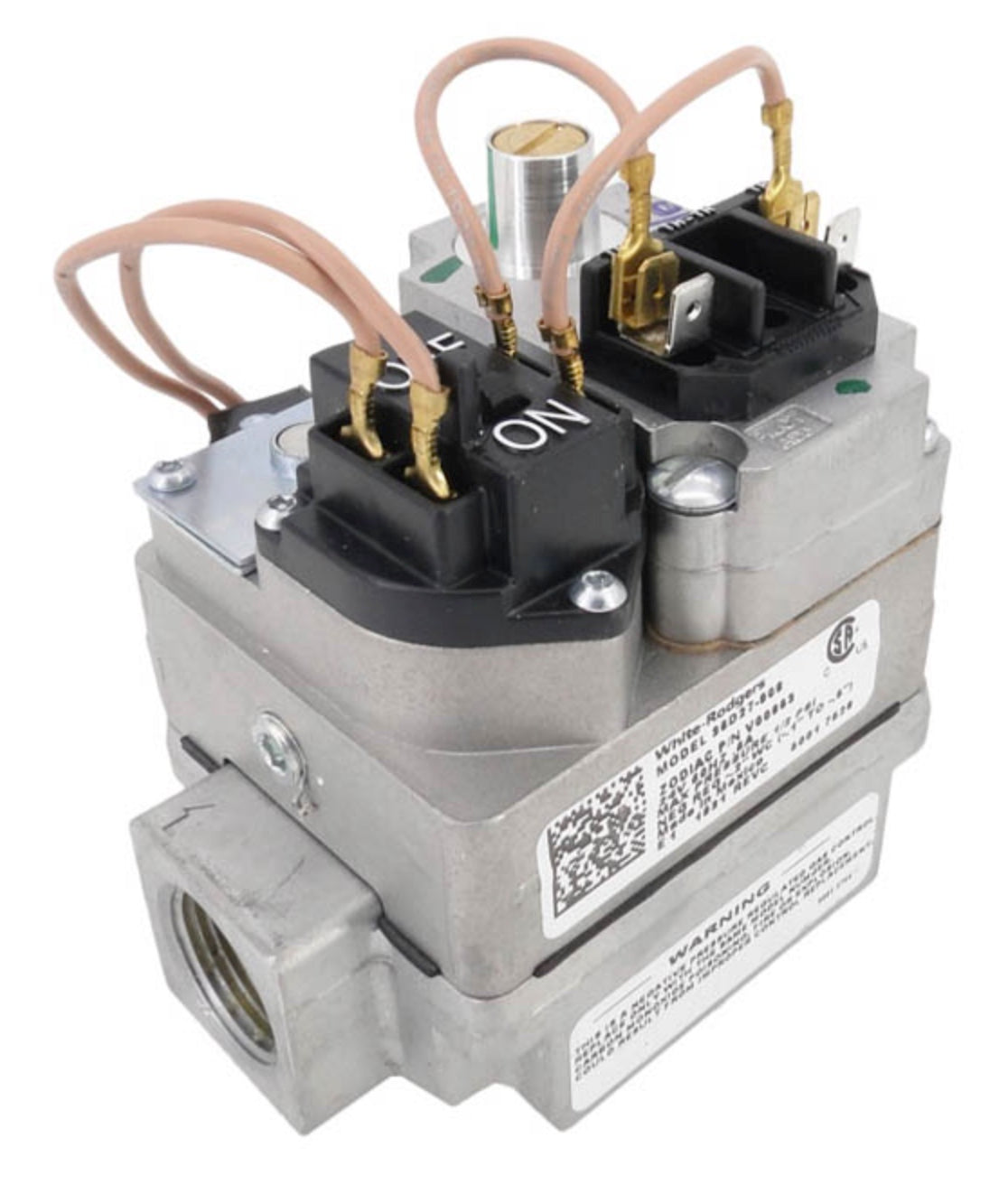

Jandy R0591400 gas valve for JXi heater models 200, 260 and 400Jandy JXi Gas Valve for Models 200, 260, 400, R0591400 In stock$43399
Jandy R0591400 gas valve for JXi heater models 200, 260 and 400
Shop all Jandy

Jandy JXi Gas Valve for Models 200, 260, 400, R0591400

Ask a questionMPN R0591400
$43399
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy part The factory gas valve, part number R0591400.
  • Covers three JXi sizes Listed for the JXi 200, 260 and 400 heater models.
  • Meters gas to the burner The valve opens on a call for heat and holds the correct pressure while the heater runs.
  • Safety shutoff It is also the component that closes the gas when the control drops out on a fault or a limit.
  • A common failure point A valve that no longer opens, or that will not hold pressure, keeps a heater from firing even when everything else is healthy.
  • Model specific JXi valves are not interchangeable across the wider Jandy heater range, so match the model before ordering.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy JXi Gas Valve for Models 200, 260, 400, R0591400, SKU LAR-151-3249. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy JXi Gas Valve for Models 200, 260, 400, R0591400
Jandy

JXi Gas Valve for Models 200, 260, 400, R0591400

$43399
Jandy Igniter Kit for JXi Heater Models 200/260/400, R0457502
Jandy

Igniter Kit for JXi Heater Models 200/260/400, R0457502

$6499
Jandy Access Door Kit for JXi Heaters, R0589600
Jandy

Access Door Kit for JXi Heaters, R0589600

$4599
Jandy JXi User Interface Kit for Model 200/260/400, R0591900
Jandy

JXi User Interface Kit for Model 200/260/400, R0591900

$25399
Jandy Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001
Jandy

Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001

$6099
Jandy 3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100
Jandy

3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100

$17499
Jandy Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500
Jandy

Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500

$9999
Subtotal

Similar products

Other products people compare with this one.

Jandy R0719500 VersaFlo power interface board kit for Pro Series JXi heater Jandy VersaFlo Power Interface Board Kit for Pro Series JXi Heater, R0719500$62399 Jandy R0724600 3 inch JXi air intake adapter Jandy 3" JXi Air Intake Adapter, R0724600$29099 Jandy R0592400 JXi heater jacket top cover for model 200, 260 and 400 Jandy JXi Heater Jacket Top Cover for Model 200/260/400, R0592400$17199 Jandy R0592300 high-limit temperature sensor for JXi 200, 260 and 400 heaters Jandy High-Limit Temperature Sensor for JXi 200, 260 and 400 Heaters, R0592300$8799 Jandy R0590005 manifold backplate for JXi Model 400 pool heater Jandy R0590005 Manifold Backplate for Model 400 JXi Heaters$6899 Jandy R0589405 heat exchanger tube for Model 400 JXi heater, front view Jandy Heat Exchanger Tube Replacement for Model 400 JXi Heater, R0589405$1,27299 Jandy R0731100 four inch JXi vent adapter for pool heaters Jandy 4 in. JXi Vent Adapter for Pool Heaters, R0731100$19499 Jandy R0456301 transformer for JXi pool and spa heaters Jandy Transformer for JXi Heaters, R0456301$16399 Jandy R0719400 VersaFlo flue sensor kit for Jandy Pro Series JXi heaters Jandy VersaFlo Flue Sensor Kit for Jandy Pro Series JXi Heaters, R0719400$15799 Jandy R0590500 internal refractory replacement kit for JXi heaters Jandy Refractory Replacement Kit, Internal, for JXi Heaters, R0590500$14599
Jandy R0589403 copper heat exchanger for JXi 260 pool heater Jandy JXi 260 Copper Heat Exchanger, R0589403$1,04299 Jandy R0590900 JXi gasket kit for 200, 260 and 400 pool heaters Jandy JXi Gasket Kit R0590900$7199 Jandy R0589800 JXi heater bypass kit Jandy JXi Heater Bypass Kit, R0589800$3899 Jandy R0524300 vent fusible link rated 240 C for JXi and Legacy heaters Jandy Vent Fusible Link, 240 C, R0524300$2499

Product details

The Jandy R0591400 is the gas valve for JXi heater models 200, 260 and 400. It is the genuine Jandy part.

What the valve does

On a call for heat, the control energizes the gas valve, which opens and delivers gas to the burner at the pressure the heater is rated for. It is also the part that shuts the gas off the moment a limit trips or the control drops out, so it sits in both the operating and the safety path.

Symptoms of a bad valve

A heater that goes through its ignition sequence but never lights, or that lights and then cannot hold a steady flame, points at the valve once gas supply and inlet pressure have been confirmed. Because those symptoms overlap with ignition and sensor faults, it is worth checking the cheaper parts first.

Fitting

Replacing a gas valve is work for a qualified technician. The joints have to be leak tested and manifold pressure has to be checked against the rating plate before the heater goes back into service.

Specifications
Brand Jandy
Manufacturer part number R0591400
UPC 052337067379
Type Gas valve
Fits Jandy JXi heater models 200, 260, 400
Shipping weight 3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299

Questions and answers

What people ask about this product, answered by our pool techs.

Which heaters does this valve fit?
Jandy JXi heater models 200, 260 and 400.
Is it a genuine Jandy part?
Yes. It is Jandy part R0591400. The source also lists it under the Zodiac Jandy name, which is the same product.
What are the signs of a failed gas valve?
A heater that runs its ignition sequence but never lights, or that lights and cannot hold a stable flame, with gas supply and pressure at the heater already confirmed good.
Can I fit this myself?
Gas work should be done by a qualified technician. The valve has to be leak tested and the manifold pressure checked against the rating plate after it goes in.
