Jandy R0589403 copper heat exchanger for JXi 260 pool heaterJandy JXi 260 Copper Heat Exchanger, R0589403 In stock$1,04299

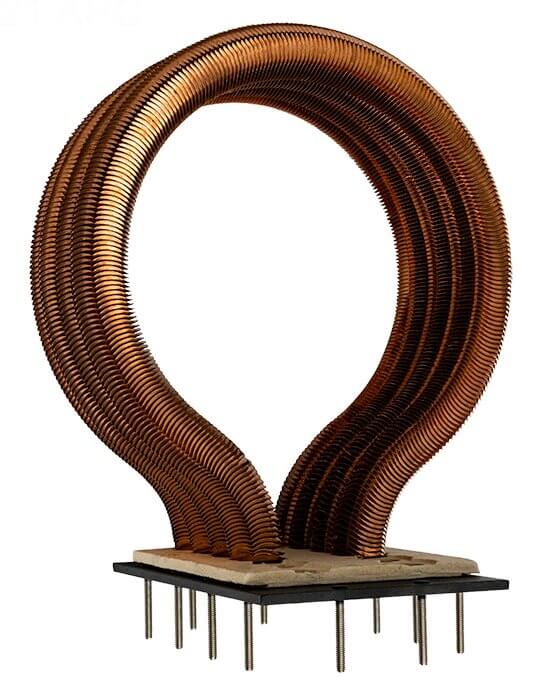

Jandy R0589403 copper heat exchanger for JXi 260 pool heater
Shop all Jandy

Jandy JXi 260 Copper Heat Exchanger, R0589403

Ask a questionMPN R0589403
$1,04299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy Factory part R0589403, the OEM heat exchanger.
  • JXi 260 only Listed as the heat exchanger tube replacement for the Model 260 JXi heater.
  • Copper construction The copper tube bundle that carries pool water through the combustion chamber.
  • The core of the heater Everything else in a JXi exists to move gas, air and water past this component.
  • Chemistry kills exchangers Low pH and high sanitizer levels attack copper from the inside, so correct the water before the new one goes in.
  • Flow matters too Poor flow through the exchanger overheats the tubes, so check the filter and pump before refitting.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy JXi 260 Copper Heat Exchanger, R0589403, SKU LAR-151-3252. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy JXi 260 Copper Heat Exchanger, R0589403
Jandy

JXi 260 Copper Heat Exchanger, R0589403

$1,04299
Jandy Igniter Kit for JXi Heater Models 200/260/400, R0457502
Jandy

Igniter Kit for JXi Heater Models 200/260/400, R0457502

$6499
Jandy Access Door Kit for JXi Heaters, R0589600
Jandy

Access Door Kit for JXi Heaters, R0589600

$4599
Jandy JXi User Interface Kit for Model 200/260/400, R0591900
Jandy

JXi User Interface Kit for Model 200/260/400, R0591900

$25399
Jandy Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001
Jandy

Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001

$6099
Jandy 3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100
Jandy

3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100

$17499
Jandy Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500
Jandy

Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500

$9999
Subtotal

Similar products

Other products people compare with this one.

Jandy R0589405 heat exchanger tube for Model 400 JXi heater, front view Jandy Heat Exchanger Tube Replacement for Model 400 JXi Heater, R0589405$1,27299 Jandy R0719500 VersaFlo power interface board kit for Pro Series JXi heater Jandy VersaFlo Power Interface Board Kit for Pro Series JXi Heater, R0719500$62399 Jandy R0591400 gas valve for JXi heater models 200, 260 and 400 Jandy JXi Gas Valve for Models 200, 260, 400, R0591400$43399 Jandy R0592400 JXi heater jacket top cover for model 200, 260 and 400 Jandy JXi Heater Jacket Top Cover for Model 200/260/400, R0592400$17199 Jandy R0592300 high-limit temperature sensor for JXi 200, 260 and 400 heaters Jandy High-Limit Temperature Sensor for JXi 200, 260 and 400 Heaters, R0592300$8799 Jandy R0724600 3 inch JXi air intake adapter Jandy 3" JXi Air Intake Adapter, R0724600$29099 Jandy R0731100 four inch JXi vent adapter for pool heaters Jandy 4 in. JXi Vent Adapter for Pool Heaters, R0731100$19499 Jandy R0456301 transformer for JXi pool and spa heaters Jandy Transformer for JXi Heaters, R0456301$16399 Jandy R0719400 VersaFlo flue sensor kit for Jandy Pro Series JXi heaters Jandy VersaFlo Flue Sensor Kit for Jandy Pro Series JXi Heaters, R0719400$15799 Jandy R0590500 internal refractory replacement kit for JXi heaters Jandy Refractory Replacement Kit, Internal, for JXi Heaters, R0590500$14599
Jandy R0590900 JXi gasket kit for 200, 260 and 400 pool heaters Jandy JXi Gasket Kit R0590900$7199 Jandy R0590005 manifold backplate for JXi Model 400 pool heater Jandy R0590005 Manifold Backplate for Model 400 JXi Heaters$6899 Jandy R0589800 JXi heater bypass kit Jandy JXi Heater Bypass Kit, R0589800$3899 Jandy R0524300 vent fusible link rated 240 C for JXi and Legacy heaters Jandy Vent Fusible Link, 240 C, R0524300$2499

Product details

The Jandy R0589403 is the copper heat exchanger tube replacement for the Model 260 JXi pool heater. It is the genuine Jandy part.

What it is

The heat exchanger is the copper bundle that pool water passes through inside the heater. Combustion heat crosses the copper wall into the water. Every other part of the heater, the burner, the blower and the controls, exists to serve this one component.

Why it fails

Copper is attacked from the water side. Water carried below the correct pH, or with sanitizer levels held too high, eats the tubes from within, and a heater fed by a dirty filter or a weak pump runs the tubes hotter than they were designed for. A leaking exchanger is almost always the symptom of one of those two conditions.

Before you refit

Balance the water and confirm the pump and filter are delivering proper flow before the new exchanger goes in. A replacement fitted into the same conditions that destroyed the first one will not last any longer.

Specifications
Brand Jandy
Manufacturer part number R0589403
UPC 052337067133
Type Copper heat exchanger, tube replacement
Material Copper
Fits Jandy JXi Model 260 heater
Shipping weight 43 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299

Questions and answers

What people ask about this product, answered by our pool techs.

Which heater does this fit?
The Jandy JXi Model 260. It is the heat exchanger tube replacement for that model.
What makes a heat exchanger fail?
Water chemistry and flow. Water held below the correct pH or carrying too much sanitizer attacks the copper from the inside, and poor flow lets the tubes run too hot. Both shorten the life of the exchanger.
Will fitting a new one fix the leak for good?
Only if the cause is dealt with. Correct the water chemistry and confirm the pump and filter are giving proper flow, or the replacement will fail the same way.
Is it a genuine Jandy part?
Yes. It is Jandy OEM part R0589403.
