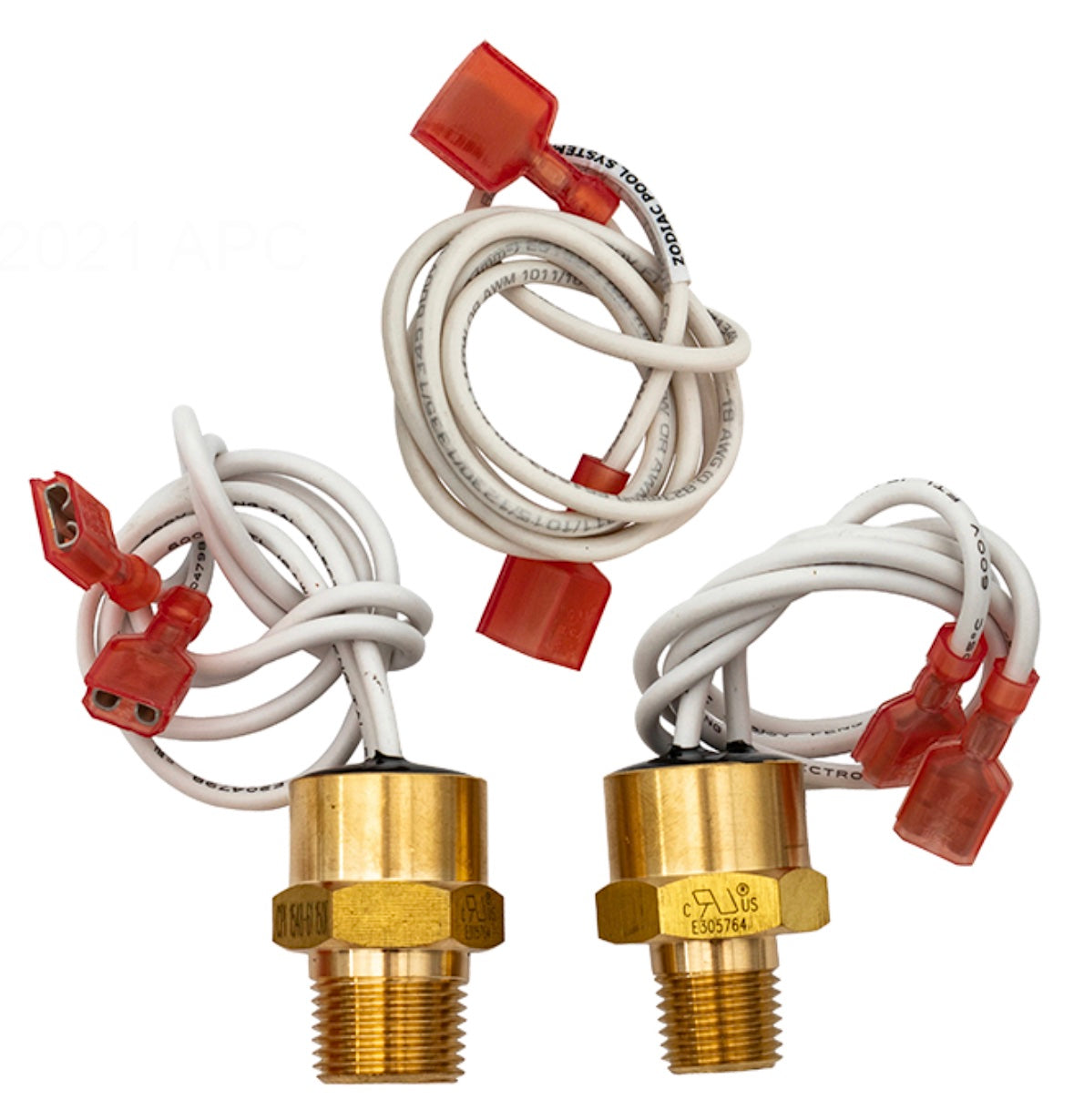

Jandy R0592300 high-limit temperature sensor for JXi 200, 260 and 400 heatersJandy High-Limit Temperature Sensor for JXi 200, 260 and 400 Heaters, R0592300 In stock$8599
Jandy R0592300 high-limit temperature sensor for JXi 200, 260 and 400 heaters
Shop all Jandy

Jandy High-Limit Temperature Sensor for JXi 200, 260 and 400 Heaters, R0592300

Ask a questionMPN R0592300
$8599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy part Factory sensor R0592300, the one specified for the JXi.
  • Fits three JXi sizes Listed for the JXi model 200, 260 and 400 heaters.
  • A safety device The high limit is what stops the heater when water temperature climbs past the safe point.
  • Common fault code cause A failed or drifting high limit sensor can shut a heater down while the water is nowhere near hot.
  • Fix the cause too Repeated high limit trips usually mean poor flow, so check the filter, valves and pump before blaming the sensor alone.
  • Direct replacement Swaps for the original sensor on an installed JXi.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy High-Limit Temperature Sensor for JXi 200, 260 and 400 Heaters, R0592300, SKU LAR-151-3232. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy High-Limit Temperature Sensor for JXi 200, 260 and 400 Heaters, R0592300
Jandy

High-Limit Temperature Sensor for JXi 200, 260 and 400 Heaters, R0592300

$8599
Jandy Igniter Kit for JXi Heater Models 200/260/400, R0457502
Jandy

Igniter Kit for JXi Heater Models 200/260/400, R0457502

$6299
Jandy Access Door Kit for JXi Heaters, R0589600
Jandy

Access Door Kit for JXi Heaters, R0589600

$4399
Jandy JXi User Interface Kit for Model 200/260/400, R0591900
Jandy

JXi User Interface Kit for Model 200/260/400, R0591900

$24699
Jandy Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001
Jandy

Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001

$5899
Jandy 3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100
Jandy

3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100

$16999
Jandy Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500
Jandy

Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500

$9699
Subtotal

Similar products

Other products people compare with this one.

Jandy R0590005 manifold backplate for JXi Model 400 pool heater Jandy R0590005 Manifold Backplate for Model 400 JXi Heaters$6599 Jandy R0590900 JXi gasket kit for 200, 260 and 400 pool heaters Jandy JXi Gasket Kit R0590900$6999 Jandy R0592400 JXi heater jacket top cover for model 200, 260 and 400 Jandy JXi Heater Jacket Top Cover for Model 200/260/400, R0592400$18499 Jandy R0591400 gas valve for JXi heater models 200, 260 and 400 Jandy JXi Gas Valve for Models 200, 260, 400, R0591400$42099 Jandy R0719400 VersaFlo flue sensor kit for Jandy Pro Series JXi heaters Jandy VersaFlo Flue Sensor Kit for Jandy Pro Series JXi Heaters, R0719400$15399 Jandy R0590500 internal refractory replacement kit for JXi heaters Jandy Refractory Replacement Kit, Internal, for JXi Heaters, R0590500$14099 Jandy R0456301 transformer for JXi pool and spa heaters Jandy Transformer for JXi Heaters, R0456301$15899 Jandy R0731100 four inch JXi vent adapter for pool heaters Jandy 4 in. JXi Vent Adapter for Pool Heaters, R0731100$18899 Jandy R0589405 heat exchanger tube for Model 400 JXi heater, front view Jandy Heat Exchanger Tube Replacement for Model 400 JXi Heater, R0589405$1,23499 Jandy R0719500 VersaFlo power interface board kit for Pro Series JXi heater Jandy VersaFlo Power Interface Board Kit for Pro Series JXi Heater, R0719500$60499
Jandy R0589403 copper heat exchanger for JXi 260 pool heater Jandy JXi 260 Copper Heat Exchanger, R0589403$1,01199 Jandy R0589800 JXi heater bypass kit Jandy JXi Heater Bypass Kit, R0589800$3799 Jandy R0724600 3 inch JXi air intake adapter Jandy 3" JXi Air Intake Adapter, R0724600$28199 Jandy R0524300 vent fusible link rated 240 C for JXi and Legacy heaters Jandy Vent Fusible Link, 240 C, R0524300$2499

Product details

The Jandy R0592300 is the high-limit temperature sensor for the JXi pool heater, listed for the model 200, 260 and 400. It is the genuine Jandy part.

What it is there for

The high limit is a safety sensor. It is separate from the thermostat that holds your set temperature, and its only job is to shut the heater down if water temperature climbs past the point the heater is allowed to run at. Without a working one, an overtemperature condition has nothing to stop it.

Diagnosing a high limit fault

Heaters that lock out on high limit fall into two groups. Either the water really is getting too hot, which almost always comes back to flow, a dirty filter, a closed or partly closed valve, a struggling pump, or the sensor itself has failed and is reporting a temperature that is not there. Work through the flow side first. If the flow is good and the heater still trips, the sensor is the part to change.

Specifications
Brand Jandy
Manufacturer part number R0592300
UPC 052337067539
Type High-limit temperature sensor
Part type Pool heater part
Fits Jandy JXi model 200, 260 and 400 heaters
Shipping weight 0.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$67399 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2599 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$70099 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24899 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$32699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

Which heaters does it fit?
The Jandy JXi in the 200, 260 and 400 sizes.
What does the high limit sensor do?
It watches water temperature and shuts the heater down if it goes past the safe limit. It is a protective device, not the sensor that controls your set point.
My heater keeps tripping on high limit. Is the sensor the problem?
It can be, but a genuine overtemperature is more often caused by low flow. Check the filter, the valves and the pump first, and replace the sensor when the flow is good and the trips continue.
Is it a genuine Jandy part?
Yes. It is Jandy OEM part R0592300.
