Pentair LL505PM Kreepy Krauly Platinum pressure side pool cleaner, gray and whitePentair Kreepy Krauly Platinum Automatic Pool Cleaner, LL505PM In stock$85499

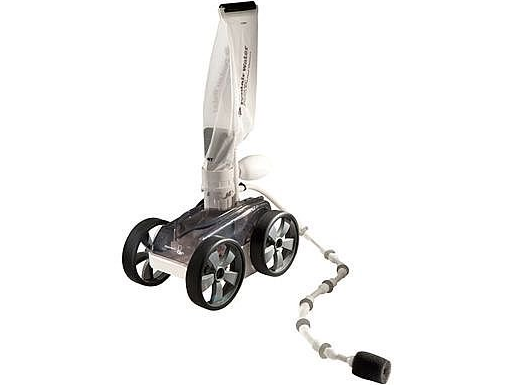

Pentair LL505PM Kreepy Krauly Platinum pressure side pool cleaner, gray and white
Shop all Pentair

Pentair Kreepy Krauly Platinum Automatic Pool Cleaner, LL505PM

Ask a questionMPN LL505PM
$85499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Built for leaves Large capacity debris channel and wide intake throat swallow big leaves and debris that clog lesser cleaners.
  • Dual thrust jets Extra drive and suction so most pools are done in 1 to 3 hours.
  • Four wheels, front wheel drive Treaded tires climb inclines and walls, and the four wheel stance resists tipping.
  • Any inground surface Suitable for concrete, vinyl lined and fiberglass pools.
  • Booster pump powered Runs on a dedicated booster pump, so the skimmer keeps working at full strength.
  • Ready to install Cleaner head, 30 ft hose, back-up valve, debris bag and universal wall fitting are in the box.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Kreepy Krauly Platinum Automatic Pool Cleaner, LL505PM, SKU LET-20-250. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Kreepy Krauly Platinum Automatic Pool Cleaner, LL505PM
Pentair

Kreepy Krauly Platinum Automatic Pool Cleaner, LL505PM

$85499
Pentair Complete Hose Kit, White, LL209
Pentair

Complete Hose Kit, White, LL209

$32299
Pentair Kreepy Krauly Racer Feedline Hose Kit Complete, 360264
Pentair

Kreepy Krauly Racer Feedline Hose Kit Complete, 360264

$30999
Pentair HydroBoost Booster Pump 115/230V 60Hz, 360526
Pentair

HydroBoost Booster Pump 115/230V 60Hz, 360526

$54899
Pentair Prowler 930/920 Replacement Front Brush Assembly, 360366
Pentair

Prowler 930/920 Replacement Front Brush Assembly, 360366

$4499
Pentair Prowler 910 Communication Cable, 360343
Pentair

Prowler 910 Communication Cable, 360343

$8999
Subtotal

Similar products

Other products people compare with this one.

Polaris 280 pressure side automatic pool cleaner, complete Polaris 280 Pressure Side Automatic Pool Cleaner$59900 Web Price Polaris 3900 Sport F6 pressure side automatic pool cleaner Polaris 3900 Sport Automatic Pool Cleaner$1,02699 Zodiac Polaris 280 Automatic Pool Cleaner BLACK MAX FB5 | ZOD-F5B Zodiac Polaris 280 Automatic Pool Cleaner BLACK MAX FB5 | ZOD-F5B$97499 Pentair Kreepy Krauly Racer Pressure-Side Inground Pool | 360228 Pentair Kreepy Krauly Racer Pressure-Side Inground Pool | 360228$1,23699 Hayward TigerShark Filter Cartridge Assembly | RCX70100 Hayward TigerShark Filter Cartridge Assembly | RCX70100$11899 Pentair Tire For Legend Platinum White | LLC1PM Pentair Tire For Legend Platinum White | LLC1PM$3399 Kokido Vektro XL heavy-duty rechargeable pool vacuum Kokido Vektro XL Heavy-Duty Rechargeable Pool Vacuum, 24V, EV104CBXUSXXSCP$30999 Power Vac PV3600 battery powered pool cleaner with 40 ft cord Power Vac PV3600 Pool Cleaner with 40' Cord, Filter Bag and Battery Case, PV3600-D-40$1,26199 WaterTech Volt Leaf Vac 11A0060LS rechargeable cordless pool vacuum with mesh leaf bag and handle WaterTech Volt Leaf Vac, Rechargeable, 11A0060LS$20999 Web Price BWT BC30 rechargeable cordless handheld pool vacuum BWT BC30 Rechargeable Handheld Cordless Pool Vacuum$9799
Hammerhead Remora XR1600 battery powered portable pool vacuum Hammerhead Remora Complete Portable Vacuum Kit, XR1600$1,26799 Maytronics Dolphin Explorer E40 99991083-XPI Wi-Fi robotic pool cleaner Maytronics Dolphin Explorer E40 Robotic Pool Cleaner, Wi-Fi Enabled with Wall Climbing and Waterline Scrubbing for Inground Pools up to 50 Ft$1,44900 Web Price Maytronics Dolphin Explorer E25 WiFi robotic pool cleaner Maytronics Dolphin (2026 Model) Explorer E25 Wi-Fi Robotic Pool Vacuum Cleaner Pools up to 50 FT - Waterline Scrubber Brush, 99996406-XPI$79900 Kokido Vektro Orkka EV380 cordless battery powered commercial pool leaf vac Kokido Vektro Orkka Cordless Battery Powered Commercial Pool Leaf Vac, EV380BRXUSXXKOK$1,09900 Web Price Power Vac PV3600SW shallow water pool vacuum with 40 ft power cord Power Vac PV3600SW with 40 ft Power Cord, 2 Sets of Filter Bags and Battery Carrying Case, PV3600SW-D-40$1,39199 Polaris 9550 Sport F9550 4WD robotic pool cleaner with remote Polaris 9550 4WD Sport Robotic Pool Cleaner with Remote, F9550$1,15499 Kokido by BWT BC40 cordless pool vacuum picking up leaves Kokido by BWT BC40 Rechargeable Cordless Pool Vacuum with 1.72 gal Debris Bag, 75 min Run Time, 125506569$15999 Web Price Aquamoto Scrubo Zoom cordless rechargeable automatic pool cleaner Aquamoto Scrubo Zoom Automatic Pool Cleaner, Cordless Rechargeable Battery Powered, AQM301000$21908 WaterTech Volt battery powered leaf vac, part 1AA0060 WaterTech Volt Battery Powered Leaf Vac$12999 Web Price Beatbot A100 Pro cordless robotic pool cleaner in blue Beatbot A100 Pro Cordless Robotic Pool Cleaner, Clarifies Water, Skims Surface, Surface Parking, Blue, 92055$1,79900 Web Price

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair Kreepy Krauly Platinum is a pressure side cleaner for inground pools, powered by a dedicated booster pump. It is built for pools that take a beating from leaves and landscaping debris: a large debris channel and wide intake throat pick up big leaves whole, and the debris bag keeps them out of your skimmer and filter.

Drive and coverage

Dual thrust jets give it the push to finish most pools in 1 to 3 hours. Front wheel drive and heavily treaded tires keep traction on slopes and walls, and the four wheel layout resists the tipping that three wheel cleaners are prone to, so it keeps running unattended. Pentair credits the light frame and tire design with four times the wall coverage of earlier designs.

Pools and finish

It works on concrete, vinyl lined and fiberglass pools and is recommended for lighter colored finishes. The head is gray on top and white underneath.

In the box

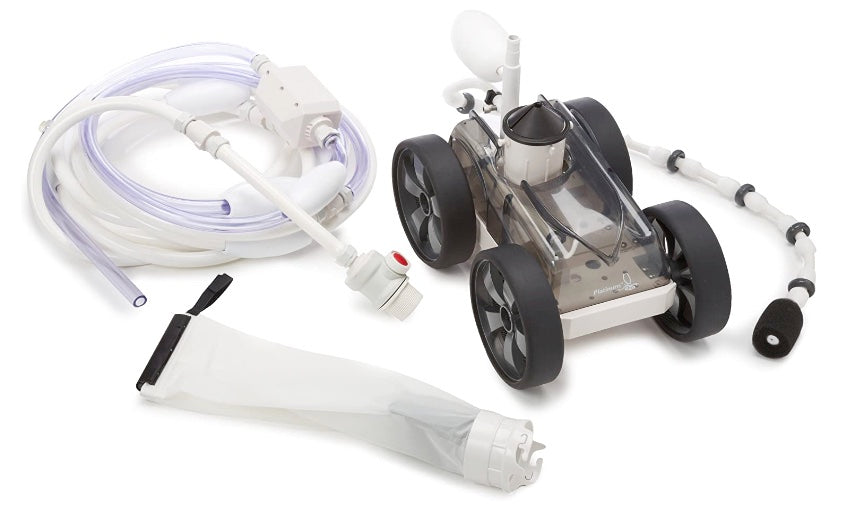

The cleaner head, a 30 ft hose, a back-up valve, a debris bag, a universal wall connect fitting and the warranty card. Because the booster pump drives the cleaner, your main circulation and skimmer keep working at full strength while it runs.

Specifications
Brand Pentair
Manufacturer part number LL505PM
UPC 788379851637
Model Kreepy Krauly Platinum
Type Pressure side automatic pool cleaner
Pool type Inground
Power Independent booster pump
Pool surfaces Concrete, vinyl lined, fiberglass
Drive Front wheel drive, four wheels
Hose length 30 ft
Color Gray top, white bottom
Typical cleaning cycle 1 to 3 hours
Included Cleaner head, 30 ft hose, back-up valve, debris bag, universal wall connect fitting, warranty card
Shipping weight 22 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Do I need a booster pump?
Yes. The Platinum is a pressure side cleaner driven by an independent booster pump. That dedicated pressure is what gives it the power to move large debris, and it leaves the skimmer free to clean the surface.
What pools is it suited to?
Inground concrete, vinyl lined and fiberglass pools, particularly ones that collect a lot of leaves from surrounding landscaping. Pentair recommends it for lighter colored pools.
How long does a cleaning cycle take?
Most pools are cleaned in 1 to 3 hours thanks to the dual thrust jets.
What is in the box?
The Kreepy Krauly Platinum cleaner head, a 30 ft hose, a back-up valve, a debris bag, a universal wall connect fitting and the warranty card.
Ask your own question
