Hayward Local Display for OmniLogic, HLX-LOC-DSP

Ask a questionMPN HLX-LOC-DSP
$83999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • For OmniLogic the local display unit for Hayward OmniLogic automation.
  • Genuine Hayward part number HLX-LOC-DSP.
  • Control at the equipment the local display is the on-site interface for the OmniLogic controller.
  • Replacement part swaps in for a damaged or unresponsive display.

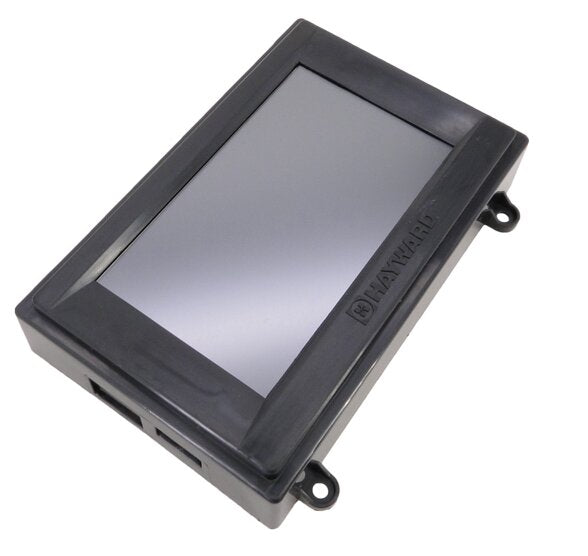

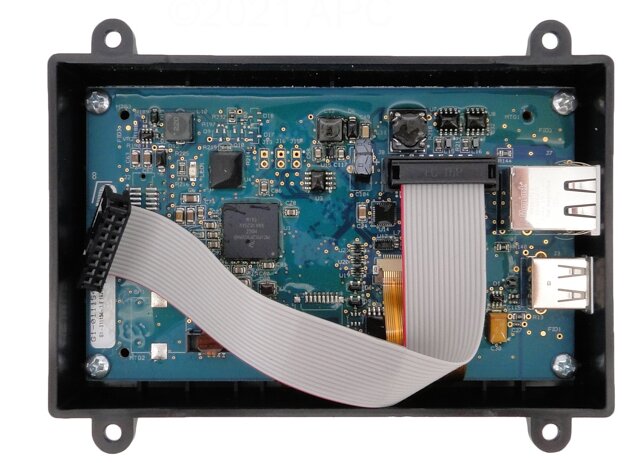

  • Front and back both faces are pictured so you can match the housing and connections on yours.
  • Match the part number confirm HLX-LOC-DSP against your system before ordering.
Full description and specifications ↓
