Hayward HLX-PSUPPLY OmniLogic power supply assemblyHayward OmniLogic Power Supply Assembly, HLX-PSUPPLY In stock$53999
Hayward HLX-PSUPPLY OmniLogic power supply assembly
Shop all Hayward

Hayward OmniLogic Power Supply Assembly, HLX-PSUPPLY

Ask a questionMPN HLX-PSUPPLY
$53999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward the HLX-PSUPPLY factory replacement.
  • For OmniLogic the power supply assembly inside the OmniLogic automation enclosure.
  • Sold as an assembly the complete power supply unit, ready to install.
  • Restores power to the controller replaces a failed supply that leaves the OmniLogic dark.
  • Hayward part HLX-PSUPPLY UPC 610377270762.
  • HLX series part one of the Hayward replacement parts for OmniLogic.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward OmniLogic Power Supply Assembly, HLX-PSUPPLY, SKU HAY-301-1993. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward OmniLogic Power Supply Assembly, HLX-PSUPPLY
Hayward

OmniLogic Power Supply Assembly, HLX-PSUPPLY

$53999
CaliMar Salt Cell Compatible with Hayward® T-Cell-15®, 2-Year Warranty, 40K Gallons, CMARCHA40-2Y
CaliMar

Salt Cell Compatible with Hayward® T-Cell-15®, 2-Year Warranty, 40K Gallons, CMARCHA40-2Y

$54900
Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE
Hayward

AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE

$1,16900
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Hayward 1/2 in. MPT Replacement Flow Switch with 15' Cord, GLX-FLO-RP
Hayward

1/2 in. MPT Replacement Flow Switch with 15' Cord, GLX-FLO-RP

$10699
Hayward AquaPod 2.0 Wireless Waterproof Touchscreen Remote, AQL2-POD2
Hayward

AquaPod 2.0 Wireless Waterproof Touchscreen Remote, AQL2-POD2

$59900
Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG
Hayward

Pro Logic Retrofit Kit, OmniPL, HLXPROUPG

$1,99900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Subtotal

Similar products

Other products people compare with this one.

Hayward HLWLAN OmniLogic wireless network bridge Hayward OmniLogic Wireless Network Bridge, HLWLAN$35099 Hayward GLX-PL-LOC-P-4 local display for the Goldline Pro Logic PL-P-4 Hayward Local Display Replacement for PL-P-4 Goldline Pro Logic Automation and Chlorination, GLX-PL-LOC-P-4$59099 Hayward GLX-PCB-RITE AquaRite main printed circuit board Hayward PCB Main Printed Circuit Board for AquaRite, GLX-PCB-RITE$48299 Hayward GLX-PCB-HPC-4 main printed circuit board for HPC-4 E-Command 4 control Hayward Main PCB Service Part Replacement for HPC-4 E-Command 4 Automation and Sanitization, GLX-PCB-HPC-4$80599 Hayward GLX-PCB-TROL-RJ main PCB for the AquaTrol AQ-TROL-RJ Hayward Main PCB for AquaTrol AQ-TROL-RJ, GLX-PCB-TROL-RJ$46099 Hayward HLX-TRNSFMR OmniLogic transformer Hayward OmniLogic Transformer, HLX-TRNSFMR$26799 Hayward HLX-LOC-DSP local display for OmniLogic, front view Hayward Local Display for OmniLogic, HLX-LOC-DSP$83999 Hayward HLX-PCB-MAIN OmniLogic main control replacement board Hayward OmniLogic Main Control Replacement Board, HLX-PCB-MAIN$1,12599 Hayward GLX-PCB-DSP Aqua Rite digital display board Hayward Aqua Rite Digital Display Board, GLX-PCB-DSP$22099 Hayward GLX-PL-LOC-PS4 local display for Goldline ProLogic PS-4 Hayward Local Display for Goldline ProLogic PS-4, GLX-PL-LOC-PS4$86799

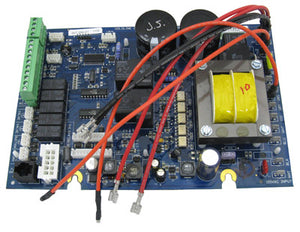

Hayward HLAQRPCB AquaRite daughter board Hayward AquaRite Daughter Board, HLAQRPCB$15199 Hayward GLX-PCB-AR-PRO AquaRite Pro replacement main PCB Hayward AquaRite Pro Replacement PCB, GLX-PCB-AR-PRO$1,01799 Hayward GLX-PCB-MAIN main PCB for Aqua Logic and Aqua Plus automation Hayward Main PCB for Aqua Logic, All Versions, GLX-PCB-MAIN$1,03199

Product details

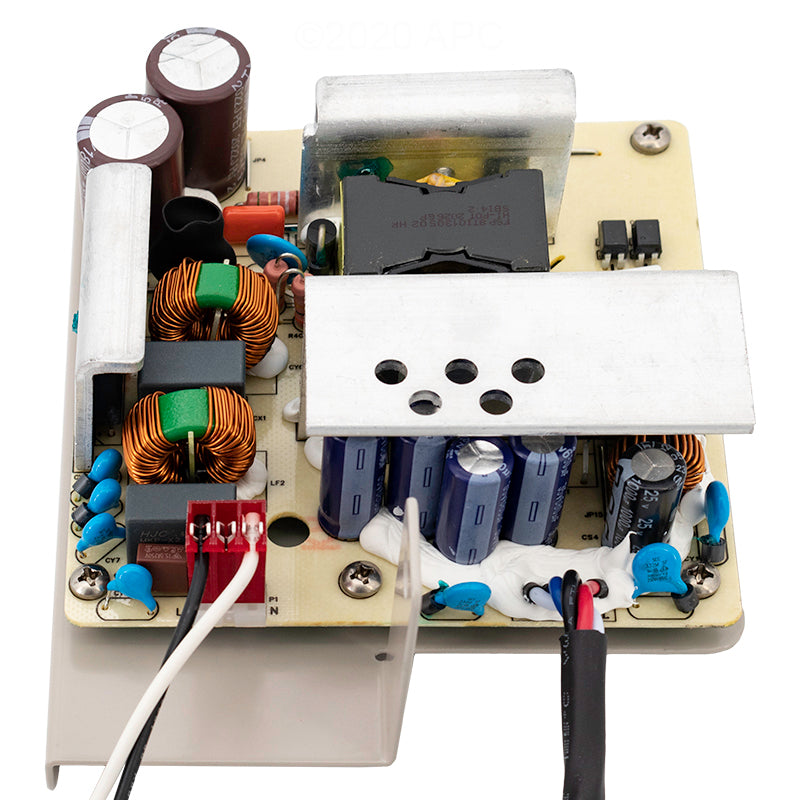

The Hayward OmniLogic Power Supply Assembly, HLX-PSUPPLY is the replacement low voltage power supply for the Hayward OmniLogic pool controller. It is a Brand OEM Hayward part, supplied as a complete assembly, and it powers the Main Board and the valve actuator outputs.

What it does

Hayward's installation manual describes the HLX-PSUPPLY as the low voltage supply that powers the OmniLogic Main Board and its valve actuator outputs. When the controller is dead even though there is power at the breaker, the power supply is a common cause. A qualified technician should confirm the fault before the swap.

Installing it

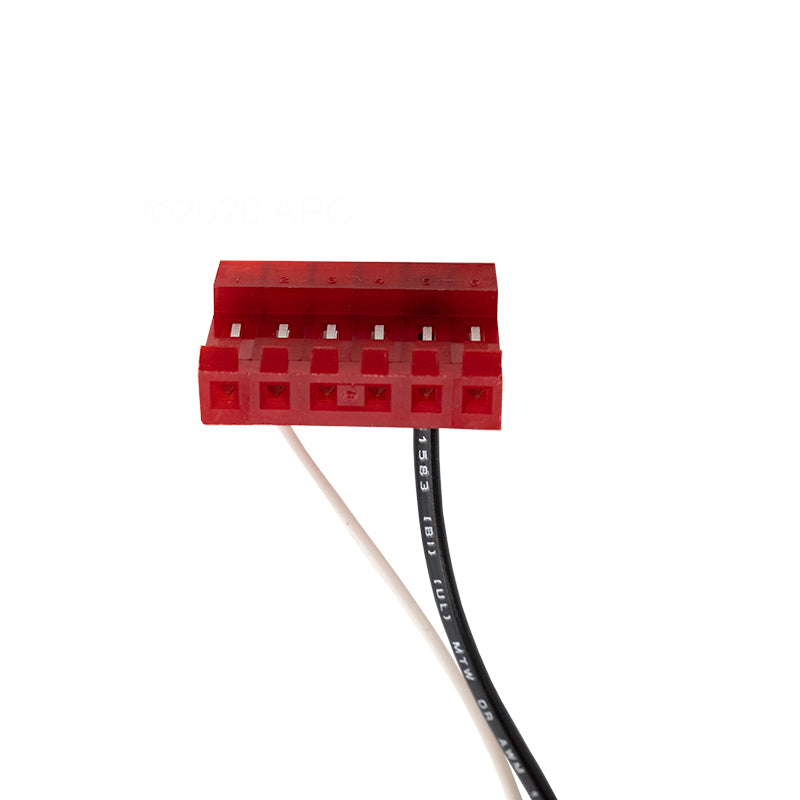

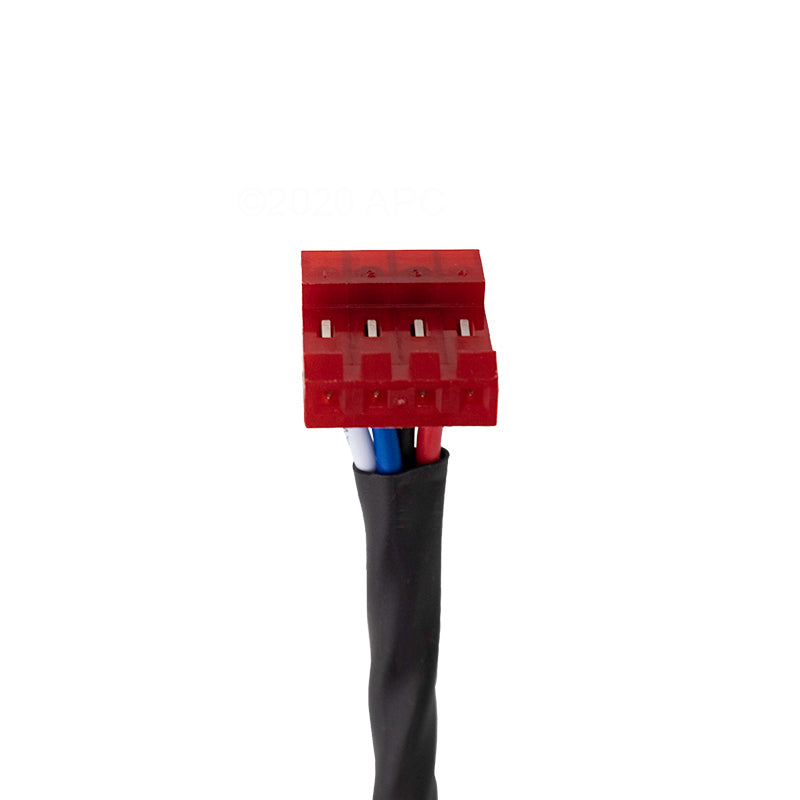

The supply connects beneath the dead front, and Hayward's manual warns that power to the entire OmniLogic panel must be shut off before the dead front is removed. The supply sits on the right side of the subpanel, held by 3 screws. Remove the screws, then disconnect the incoming wires while noting where each one connects. Reconnect the wires in the same locations on the HLX-PSUPPLY, secure it with the three screws, replace the dead front and power up. Hayward confirms the supply is working by turning the actuators on and off.

Before you order

This is the power supply assembly only, not the OmniLogic control panel or its boards. Work inside the enclosure involves line voltage, so leave the swap to a qualified technician. An install guide is linked on this page.

Specifications
Brand Hayward
Manufacturer part number HLX-PSUPPLY
UPC 610377270762
Type Power supply assembly
Fits Hayward OmniLogic
Powers OmniLogic Main Board and valve actuator outputs
Mounting Right side of the OmniLogic subpanel, 3 screws
Shipping weight 1.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit, SP0714T$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,20799 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which system does this fit?
The Hayward OmniLogic pool automation system.
Is this the whole OmniLogic control?
No. It is the power supply assembly only, the part that feeds power to the OmniLogic electronics.
Is this a genuine Hayward part?
Yes. It is Hayward part number HLX-PSUPPLY.
How do I know the power supply is the problem?
If the OmniLogic has power at the breaker but the controller itself is dead, the power supply is a common cause. Have a qualified tech confirm before replacing it.
Ask your own question
