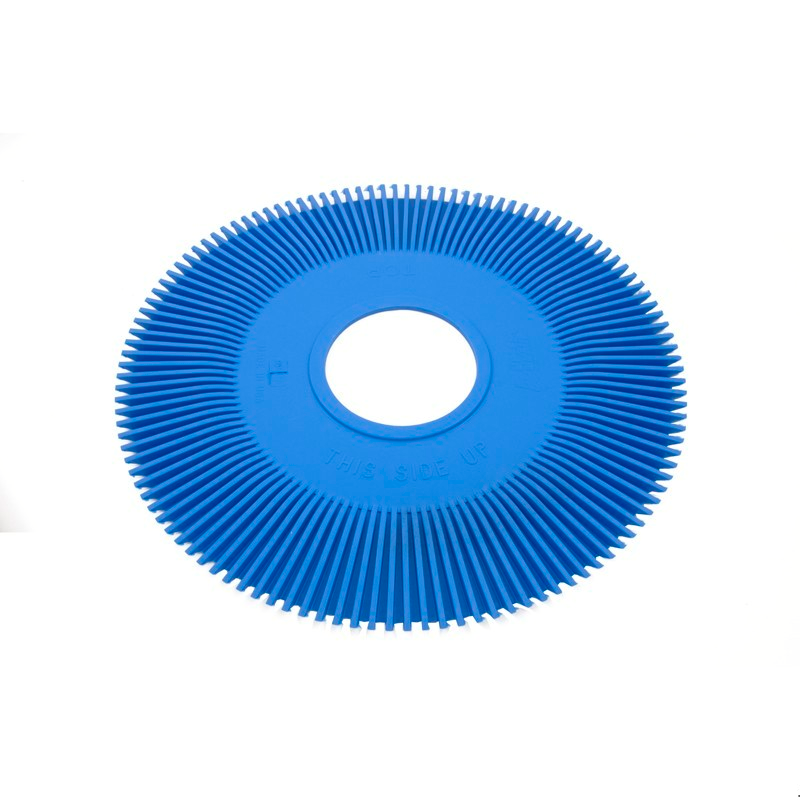

Pentair K12896 Kreepy Krauly pleated seal for vinyl, fiberglass and tile poolsPentair Kreepy Krauly Pleated Seal, Vinyl/Fiberglass/Tile, K12896 In stock$11699
Pentair K12896 Kreepy Krauly pleated seal for vinyl, fiberglass and tile pools
Shop all Pentair

Pentair Kreepy Krauly Pleated Seal, Vinyl/Fiberglass/Tile, K12896

Ask a questionMPN K12896
$11699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Surface specific This is the vinyl, fiberglass and tile seal, not the version cut for rougher plaster and gunite finishes.
  • Fits 2000 to current Made for Kreepy Krauly cleaners from the 2000 model year forward.
  • Molded rubber Flexible rubber, so it beds down against the pool surface as the cleaner works.
  • Measured before you order 18-3/16 inch outside diameter and 4-5/16 inch inside diameter, so an old seal can be checked against it.
  • Tapered section 3/8 inch thick at the outside edge and 1/4 inch through the inner area.
  • A wear part Seals harden, tear and lose their shape with time, and a tired one costs the cleaner grip and travel.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Kreepy Krauly Pleated Seal, Vinyl/Fiberglass/Tile, K12896, SKU KPY-201-1763. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Kreepy Krauly Pleated Seal, Vinyl/Fiberglass/Tile, K12896
Pentair

Kreepy Krauly Pleated Seal, Vinyl/Fiberglass/Tile, K12896

$11699
Pentair Communication Cable with Swivel for Prowler 920 Aboveground Pool Cleaner, 360499
Pentair

Communication Cable with Swivel for Prowler 920 Aboveground Pool Cleaner, 360499

$25799
Pentair Prowler 930 Communication Cable, 360446
Pentair

Prowler 930 Communication Cable, 360446

$34399
Pentair Prowler 920/930 Motor Unit, 360365
Pentair

Prowler 920/930 Motor Unit, 360365

$65199
Pentair Prowler 930/920 Replacement Front Brush Assembly, 360366
Pentair

Prowler 930/920 Replacement Front Brush Assembly, 360366

$4399
Pentair Prowler 910 Communication Cable, 360343
Pentair

Prowler 910 Communication Cable, 360343

$8999
Pentair Letro Legend Debris Bag with Snaplock, 360002
Pentair

Letro Legend Debris Bag with Snaplock, 360002

$5399
Subtotal

Similar products

Other products people compare with this one.

Kreepy Krauly R211084K leaf trap canister with handle Pentair Kreepy Krauly Leaf Trap Canister, R211084K$11099 Pentair 360249 feedline swivel kit for the Kreepy Krauly Racer pool cleaner Pentair Kreepy Krauly Racer Feedline Swivel Kit, 360249$6199 Pentair 360236 Kreepy Krauly Racer small wheel kit Pentair Kreepy Krauly Racer Small Wheel Kit, New Style, 360236$7399 Kreepy Krauly E10 white back up valve for Legend pressure cleaners Pentair Kreepy Krauly Back Up Valve, White$10199 Pentair 360239 Kreepy Krauly Racer replacement scrubber kit Pentair Kreepy Krauly Racer Replacement Scrubber Kit, 360239$6299 Pentair 360244 Kreepy Krauly Racer sweep hose kit Pentair Kreepy Krauly Racer Sweep Hose Kit, 360244$6599 Pentair 360247 Kreepy Krauly Racer timer valve kit Pentair Kreepy Krauly Racer Timer Valve Kit, 360247$8699 Kreepy Krauly K12156 swivel cone head kit for the KK2000 cleaner Pentair Kreepy Krauly Swivel Head Kit (KK2000), K12156$7999 Pentair K12443 Kreepy Krauly Kruiser internal kit Pentair Kreepy Krauly Kruiser Internal Kits, K12443$8099 Sta-Rite GW9016 vacuum regulator assembly for Kreepy Krauly pool cleaners Sta-Rite Vacuum Regulator for Kreepy Krauly LilShark Pool Cleaner, GW9016$6799
Pentair 360367 rear brush assembly for Prowler 920/930 and Warrior SE/SI cleaners Pentair Rear Brush Assembly for Prowler 920/930 and Warrior SE/SI Cleaners, 360367$5999 Pentair 360363 Prowler 920 and 930 robotic cleaner cartridge filter kit Pentair Prowler 930/920 Cartridge Filter Kit, 360363$16699 Pentair 360490 Rebel V2 large hump tire Pentair Rebel V2 Large Hump Tire, 360490$7699 Pentair LX10 low pressure back up valve for Legend II pool cleaners Pentair LX10 Back Up Valve, Low Pressure$10199 Pentair Letro EU10N white bottom cover with bracket for Legend cleaner heads Pentair Letro Legend Bottom Cover with Bracket, White, EU10N$7399 Pentair 360319 Racer LS debris bag with collar filter kit Pentair Racer LS Debris Bag with Collar Filter Kit, 360319$9999 Pentair LL10PM gray back up valve for the Legend Platinum pool cleaner Pentair Back Up Valve, Gray, LL10PM$10499 Pentair 360516 tune up pack kit for the Rebel 360275 suction side pool cleaner Pentair Tune Up Kit for Rebel Pool Cleaner, 360516$15199 Pentair 41201-0242W white chassis with pad for Kreepy Krauly SandShark pool cleaner Pentair White Chassis with Pad for SandShark Pool Cleaner, 41201-0242W$13699 Pentair JV30 funnel adapter for the Jet Vac pool cleaner Pentair Funnel Adapter for Jet Vac Cleaner, JV30$7999

Product details

The Pentair K12896 is the pleated rubber seal for Kreepy Krauly cleaners built from 2000 to current, in the version made for vinyl, fiberglass and tile pools.

Match the seal to the surface

Kreepy Krauly seals are cut differently depending on what the cleaner runs across. This one is the vinyl, fiberglass and tile version. Fitting the wrong seal changes how the cleaner sits and how it tracks, so the surface matters as much as the model year.

Check it against the old one

The seal measures 18-3/16 inches across the outside and 4-5/16 inches across the inside opening. It is 3/8 inch thick at the outer edge and just under 1/4 inch through the inner section. Those figures are the quickest way to confirm you have the right part before the cleaner comes apart.

Why it wears out

Rubber that spends its life submerged and dragged over a pool floor hardens, tears and loses its shape. A seal in that condition lets the cleaner skate instead of gripping, and replacing it usually restores normal travel.

Specifications
Brand Kreepy Krauly (Pentair)
Manufacturer part number K12896
UPC 718705121165
Part type Pool Cleaner Part
Material Rubber
Fits Kreepy Krauly, 2000 to current
Surface Vinyl, fiberglass, tile
Outside diameter 18-3/16"
Inside diameter 4-5/16"
Thickness, outside edge 3/8"
Thickness, inside 1/4" (just slightly under)
Shipping weight 1.3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which pool surfaces is this seal for?
Vinyl, fiberglass and tile. There is a separate seal for other pool finishes, so match the seal to your surface rather than to the cleaner alone.
Which Kreepy Krauly cleaners does it suit?
Kreepy Krauly cleaners from 2000 to current.
What size is it?
The outside diameter is 18-3/16 inches and the inside diameter is 4-5/16 inches. It measures 3/8 inch thick at the outside edge and just under 1/4 inch through the inside.
How do I know the old one is done?
Compare it against the measurements above. A seal that has gone hard, split at the pleats, curled or worn thin no longer holds the cleaner down the way it should.
