Pentair LX10 low pressure back up valve for Legend II pool cleanersPentair LX10 Back Up Valve, Low Pressure In stock$10499

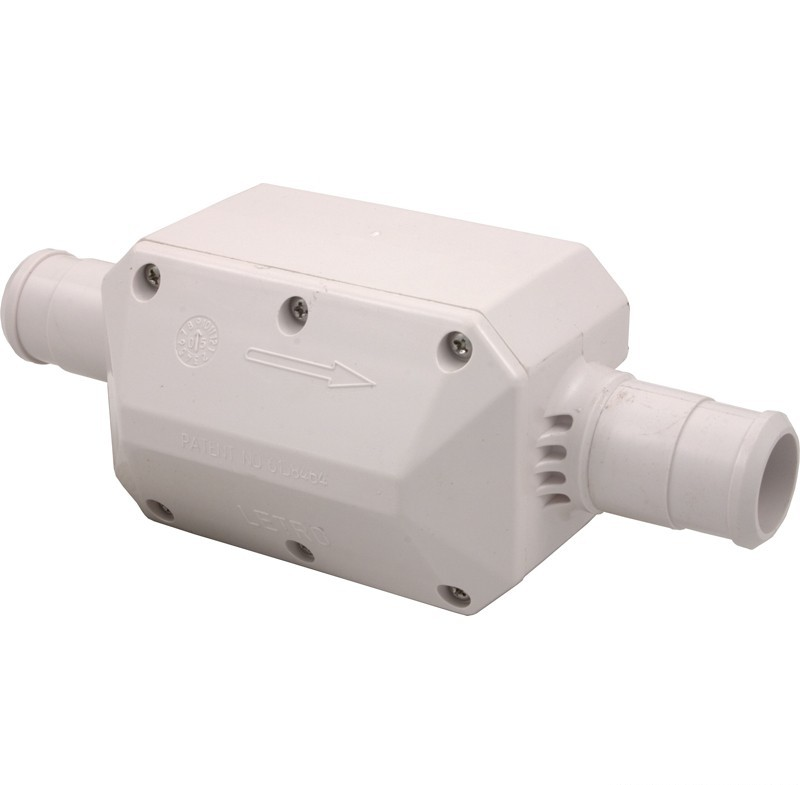

Pentair LX10 low pressure back up valve for Legend II pool cleaners
Shop all Pentair

Pentair LX10 Back Up Valve, Low Pressure

Ask a questionMPN LX10
$10499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pentair part LX10 The factory low pressure back up valve, not an aftermarket copy.
  • Fits Legend II LX2000 and LX5000G The valve used on both Letro Legend II cleaner heads.
  • Low pressure version Matched to low pressure systems, so check which valve your cleaner was built with.
  • Frees a stuck cleaner The back up valve is what pulls the cleaner out of corners and off steps.
  • Plastic construction Molded plastic, the same material as the original.
  • A scheduled wear item Back up valves are timed devices that lose their cycle with age, and a tired one is a common cause of a cleaner that parks in one place.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair LX10 Back Up Valve, Low Pressure, SKU LET-201-1054. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair LX10 Back Up Valve, Low Pressure
Pentair

LX10 Back Up Valve, Low Pressure

$10499
Pentair Communication Cable with Swivel for Prowler 920 Aboveground Pool Cleaner, 360499
Pentair

Communication Cable with Swivel for Prowler 920 Aboveground Pool Cleaner, 360499

$25799
Pentair Prowler 930 Communication Cable, 360446
Pentair

Prowler 930 Communication Cable, 360446

$34399
Pentair Prowler 920/930 Motor Unit, 360365
Pentair

Prowler 920/930 Motor Unit, 360365

$65199
Pentair Prowler 930/920 Replacement Front Brush Assembly, 360366
Pentair

Prowler 930/920 Replacement Front Brush Assembly, 360366

$4399
Pentair Prowler 910 Communication Cable, 360343
Pentair

Prowler 910 Communication Cable, 360343

$8999
Pentair Letro Legend Debris Bag with Snaplock, 360002
Pentair

Letro Legend Debris Bag with Snaplock, 360002

$5399
Subtotal

Similar products

Other products people compare with this one.

Kreepy Krauly E10 white back up valve for Legend pressure cleaners Pentair Kreepy Krauly Back Up Valve, White$10499 Pentair LL10PM gray back up valve for the Legend Platinum pool cleaner Pentair Back Up Valve, Gray, LL10PM$10799 Pentair 360237 large tires kit for the Kreepy Krauly Racer pressure side pool cleaner Pentair Large Tires Kit for Racer Pressure Side Cleaner, 360237$5799 Pentair 360235 large wheel kit for Kreepy Krauly Racer and Racer LS cleaners Pentair Large Wheel Kit for Racer and Racer LS Pressure Side Pool Cleaner, 360235$5499 Pentair 360247 Kreepy Krauly Racer timer valve kit Pentair Kreepy Krauly Racer Timer Valve Kit, 360247$8999 Pentair 360367 rear brush assembly for Prowler 920/930 and Warrior SE/SI cleaners Pentair Rear Brush Assembly for Prowler 920/930 and Warrior SE/SI Cleaners, 360367$5999 Pentair 360480 Rebel V2 wheel kit for the Rebel suction side pool cleaner Pentair Rebel V2 Wheel Kit, 360480$5899 Pentair EU16G Legend Platinum fine mesh velcro filter bag in gray Pentair Legend Platinum Fine Mesh Velcro Filter Bag, Gray, EU16G$5399 Kreepy Krauly R211084K leaf trap canister with handle Pentair Kreepy Krauly Leaf Trap Canister, R211084K$11399 Pentair Letro Legend LLU6 feed mast pipe with o-ring, white Pentair Letro Legend LLU6 Feed Mast with O-Ring, White$5599
Pentair 360286 Rebel pool cleaner wheel kit, side view Pentair Rebel Cleaner Wheel Kit, 360286$5299 Pentair 360490 Rebel V2 large hump tire Pentair Rebel V2 Large Hump Tire, 360490$7999 Pentair 360249 feedline swivel kit for the Kreepy Krauly Racer pool cleaner Pentair Kreepy Krauly Racer Feedline Swivel Kit, 360249$6399 Pentair 360236 Kreepy Krauly Racer small wheel kit Pentair Kreepy Krauly Racer Small Wheel Kit, New Style, 360236$7599 Pentair Letro EU10N white bottom cover with bracket for Legend cleaner heads Pentair Letro Legend Bottom Cover with Bracket, White, EU10N$7699 Pentair 360287 replacement tire 2 pack for Rebel and Kreepy Krauly Warrior pool cleaners Pentair Rebel and Kreepy Krauly Warrior Tire, 2 Pack, 360287$5399 Pentair Letro LLW22PM Legend Platinum gray wall fitting Pentair Letro Legend Platinum Wall Fitting, Gray, LLW22PM$5499 Pentair 360319 Racer LS debris bag with collar filter kit Pentair Racer LS Debris Bag with Collar Filter Kit, 360319$10299 Pentair 360239 Kreepy Krauly Racer replacement scrubber kit Pentair Kreepy Krauly Racer Replacement Scrubber Kit, 360239$6499 Pentair K12896 Kreepy Krauly pleated seal for vinyl, fiberglass and tile pools Pentair Kreepy Krauly Pleated Seal, Vinyl/Fiberglass/Tile, K12896$12099

Product details

The Pentair LX10 is the low pressure back up valve for the Letro Legend II pressure side pool cleaners, fitting the LX2000 and the LX5000G. It is the genuine Pentair replacement.

Why it matters

A pressure side cleaner has no brain. It drives forward until something stops it, and the back up valve is the only thing that gets it moving again. On a timed cycle the valve diverts flow, the cleaner reverses for a moment, and it leaves the corner or the step it had wedged into. When the valve stops cycling, the cleaner still runs but covers a fraction of the pool.

Before you order

This is the low pressure version, molded in plastic like the original. Check which valve your cleaner was built with, since a low pressure valve will not behave correctly on a high pressure setup.

Specifications
Brand Pentair
Manufacturer part number LX10
UPC 807318010635
Part type Pool cleaner part
Type Back up valve, low pressure
Material Plastic
Fits Letro Legend II LX2000, Legend II LX5000G
Shipping weight 0.85 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which cleaners does this valve fit?
The Letro Legend II LX2000 and the Legend II LX5000G.
What does a back up valve actually do?
It interrupts the flow to the cleaner on a timed cycle and sends it into reverse for a moment. That reversal is what backs the cleaner out of a corner or off a step instead of leaving it stalled there.
Is this the low pressure or the high pressure valve?
Low pressure. Confirm which version your cleaner uses before ordering, because the two are not interchangeable.
My cleaner keeps getting stuck in one corner. Is this the part?
It is the first thing to check. When a back up valve stops cycling, the cleaner loses its reverse and will sit against the same wall until someone moves it.
