Raypak Professional Series PS10354ti-E-HC heat pump pool heaterRaypak Professional Series Heat and Cool Pump, 170K BTU, Titanium, 460V Three Phase, PS10354ti-E-HC, TWPH-10354EHC17$10,33100

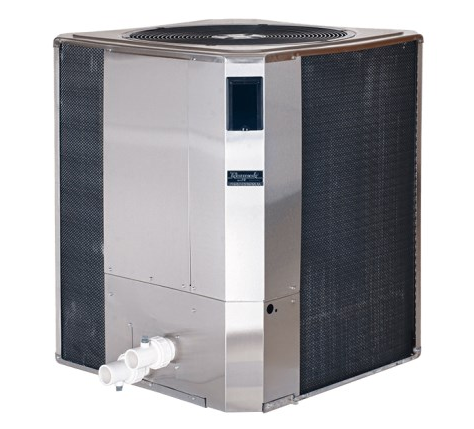

Raypak Professional Series PS10354ti-E-HC heat pump pool heater
Shop all Raypak

Raypak Professional Series Heat and Cool Pump, 170K BTU, Titanium, 460V Three Phase, PS10354ti-E-HC, TWPH-10354EHC17

Ask a questionMPN TWPH-10354EHC17
$10,33100
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 170,000 BTU/hr Raypak's AHRI 1160 rating at 80F air, 80F water and 80 percent humidity, with a COP of 5.8; 155,000 BTU/hr at 63 percent humidity.
  • Heats and cools A reversing valve lets the Professional take heat out of the water as well as put it in, for summer cooling.
  • Titanium heat exchanger A spiral titanium tube that Raypak says resists harsh pool chemistry and cuts deposit build up.
  • Stainless steel cabinet Raypak builds the Professional for commercial pools and coastal sites where salt air is hard on outdoor equipment.
  • Copeland scroll compressor Raypak chose a scroll compressor for lower sound and vibration than a reciprocating one.
  • 460 V three phase Minimum circuit ampacity 26 A on a 30 to 40 A breaker, by Raypak's manual.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak Professional Series Heat and Cool Pump, 170K BTU, Titanium, 460V Three Phase, PS10354ti-E-HC, TWPH-10354EHC17, SKU RAY-15-3735. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak Professional Series Heat and Cool Pump, 170K BTU, Titanium, 460V Three Phase, PS10354ti-E-HC, TWPH-10354EHC17
Raypak

Professional Series Heat and Cool Pump, 170K BTU, Titanium, 460V Three Phase, PS10354ti-E-HC, TWPH-10354EHC17

$10,33100
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak Crosswind V Deluxe heat and chill pool heat pump TWPH-8550EHC08, quarter view Raypak Crosswind V Deluxe Heat and Chill, 137,000 BTU with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHC08$5,40800 Madimack InverELITE INVELITE084 84,000 BTU inverter heat and cool pump Madimack InverElite 84,000 Heat and Cool Inverter Heat Pump, Rated 76,000 BTU/hr, INVELITE084$6,23000 Web Price Madimack InverTITAN INVTIT140 inverter heat and cool pool pump, 140,000 BTU Madimack InverTitan 140,000 Heat and Cool Inverter Heat Pump, Rated 133,000 BTU/hr, INVTIT140$7,35000 Web Price Pentair 460934 UltraTemp 140 heat pump, 143K BTU 230V, almond cabinet Pentair UltraTemp 140 Heat Pump 143K BTU 230V, Almond, 460934$6,47099 Pentair UltraTemp HeatCool Pump 140K BTU Heat 80K BTU Cool | 460958 Pentair UltraTemp 140 Heat and Cool Pool Heat Pump, 140,000 BTU Heat, 80,000 BTU Cool, 230V, Almond, 460958$7,30399 Madimack InverELITE Inverter Heat & Cool Pump 110,000 BTU 230V 1 Ph 60Hz - 14.8 ~ 6.6 COP | IEV2110 Madimack InverElite 116,000 Heat and Cool Inverter Heat Pump, Rated 105,000 BTU/hr, INVELITE1100$6,90000 Web Price Madimack InverTITAN Inverter Heat & Cool Pump 112,000 BTU | INVTIT112 Madimack InverTitan 112,000 Heat and Cool Inverter Heat Pump, Rated 107,000 BTU/hr, INVTIT112$5,79000 Web Price Pentair UltraTemp 120Q Quiet High Performance Heat Pump 120K BTU Titanium Heat Exchanger Digital Controls | 460833 Pentair UltraTemp 120Q Quiet High Performance Heat Pump 120K BTU Titanium Heat Exchanger Digital Controls | 460833$5,90099 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200 Madimack InverTITAN Inverter Heat & Cool Pump 90,000 BTU | INVTIT090 Madimack InverTitan 90,000 Heat and Cool Inverter Heat Pump, Rated 80,000 BTU/hr, INVTIT090$5,00000 Web Price
Glacier Pool Coolers GPC-215 Iceburg pool cooler Glacier Pool Coolers Iceburg Pool Cooler, up to 45,000 Gallons, GPC-215$4,31399 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400 Raypak Compact Series Digital Pool Heat Pump Titanium 62K BTU | 16635 Raypak Compact Series Digital Pool Heat Pump R3450Ti-E, 62,000 BTU, 240V, Titanium Heat Exchanger, 016635$3,44900 Web Price Raypak Crosswind 65-I heat and cool pool heat pump, 65,000 BTU Raypak Crosswind Heat Pump 65-I Heat & Cool, 65,000 BTU, Spiral Titanium Heat Exchanger, Digital Controls, 017741$3,13700 Glacier Pool Coolers GPC-210 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 30,000 Gallons, GPC-210$3,11899 Madimack InverECO Inverter Heat & Cool Pump 66,000 BTU | INVECO660 Madimack InverECO 66,000 BTU Heat and Cool Inverter Pool Heat Pump, 230V Single Phase, INVECO660$3,11500 Web Price Glacier Pool Coolers GPC-25 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 20,000 Gallons, GPC-25$3,03599 Hayward HeatPro W3HP50HA2 horizontal fan swimming pool heat pump Hayward HeatPro 47,000 BTU Horizontal Fan Swimming Pool Heat Pump, W3HP50HA2$2,99900 Web Price Moov MI650 inverter variable speed pool heat pump, 65K BTU Moov MI650 Inverter Variable Speed Heat Pump, Rated 61,500 BTU/hr, MI650$2,89900 Web Price Moov MI500 50K BTU inverter variable speed pool heat pump Moov MI500 Inverter Variable Speed Heat Pump, Rated 45,500 BTU/hr, MI500$2,39900 Web Price

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Product details

The Raypak PS10354ti-E-HC, part number TWPH-10354EHC17, is a Professional Series heat pump pool and spa heater with heat and cool: 170,000 BTU/hr at 80F air, 80F water and 80 percent humidity with a COP of 5.8, a spiral titanium heat exchanger and a stainless steel cabinet, on 460 V three phase power.

Built for commercial pools

Raypak designs the Professional for apartments, condos, hotels, schools, parks, community pools and high end private pools, and for coastal sites where salt air shortens the life of outdoor equipment. The cabinet is stainless steel, and the spiral titanium tube exchanger stands up to harsh pool chemistry and helps reduce deposit build up.

Heat and cool

A reversing valve lets the heat pump cool the water in summer as well as heat it, and a refrigerant management system defrosts the coil quickly in cold weather. The Copeland scroll compressor runs quieter and with less vibration than a reciprocating compressor. A flow switch is standard.

Electrical and plumbing

Raypak's manual gives 460 V, three phase, 60 Hz, a minimum circuit ampacity of 26 A and a breaker of 30 to 40 A for the 10354HC. The heater draws 8.6 kW. Water connections are 2 inch PVC unions and the flow range is 30 to 60 GPM. The unit rating plate governs the exact electrical requirements.

Specifications
Brand Raypak
Manufacturer part number TWPH-10354EHC17
Model PS10354ti-E-HC
Also listed as 013735
Series Professional Series heat pump
Type Heat pump pool and spa heater, heat and cool
Heat output 170,000 BTU/hr at 80F air, 80F water, 80 percent humidity (AHRI 1160), by Raypak
Heat output at 80F air, 63 percent humidity 155,000 BTU/hr
COP 5.8 at 80/80/80; 5.3 at 80F air, 63 percent humidity; 4.0 at 50F air, 63 percent humidity
Electrical 460 V, three phase, 60 Hz
Power input 8.6 kW
Minimum circuit ampacity 26 A
Breaker 30 A minimum, 40 A maximum, by Raypak's manual
Compressor Copeland scroll
Refrigerant R-410A
Heat exchanger Spiral titanium tube
Water flow 30 to 60 GPM
Water connections 2 in PVC unions
Cabinet Stainless steel
Controls Digital, microprocessor, pool and spa settings with diagnostics
Included Flow switch
Shipping weight 450 lb
Warranty 2 years labor, 7 years parts; the titanium tube 10 years parts, by Raypak
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$30299 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200 Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400 Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4199 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$43099 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8299 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10899 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$77399 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$69499 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,36999 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300

Questions and answers

What people ask about this product, answered by our pool techs.

What breaker does the Raypak PS10354ti-E-HC need?
30 A minimum and 40 A maximum, with a minimum circuit ampacity of 26 A on 460 V three phase, by Raypak's manual for the 10354HC. The unit rating plate governs, and the wiring is for a licensed electrician.
How many BTU is the Raypak TWPH-10354EHC17?
170,000 BTU/hr at 80F air, 80F water and 80 percent humidity, and 155,000 BTU/hr at 63 percent humidity, by Raypak's AHRI 1160 table. Raypak gives a COP of 4.0 at 50F air.
Does the Raypak PS10354ti-E-HC cool the pool too?
Yes. The HC at the end of the model is heat cool: a reversing valve lets it take heat out of the water in summer as well as heat it.
What flow rate does the Raypak TWPH-10354EHC17 need?
30 to 60 GPM, by Raypak's catalog. The water connections are 2 inch PVC unions and a flow switch is standard.
What warranty does Raypak give the Professional PS10354ti-E-HC?
Two years labor and seven years parts under Raypak's pool heater limited warranty, with ten years parts and two years labor on the titanium tube of the heat exchanger.
Where is the manual for the Raypak PS10354ti-E-HC?
Under Downloads on this page. It is Raypak's Professional Series heat pump Installation and Operating Instructions for the 9350HC, 9353HC, 10353HC, 10354HC and 10355HC, part number 241571.
