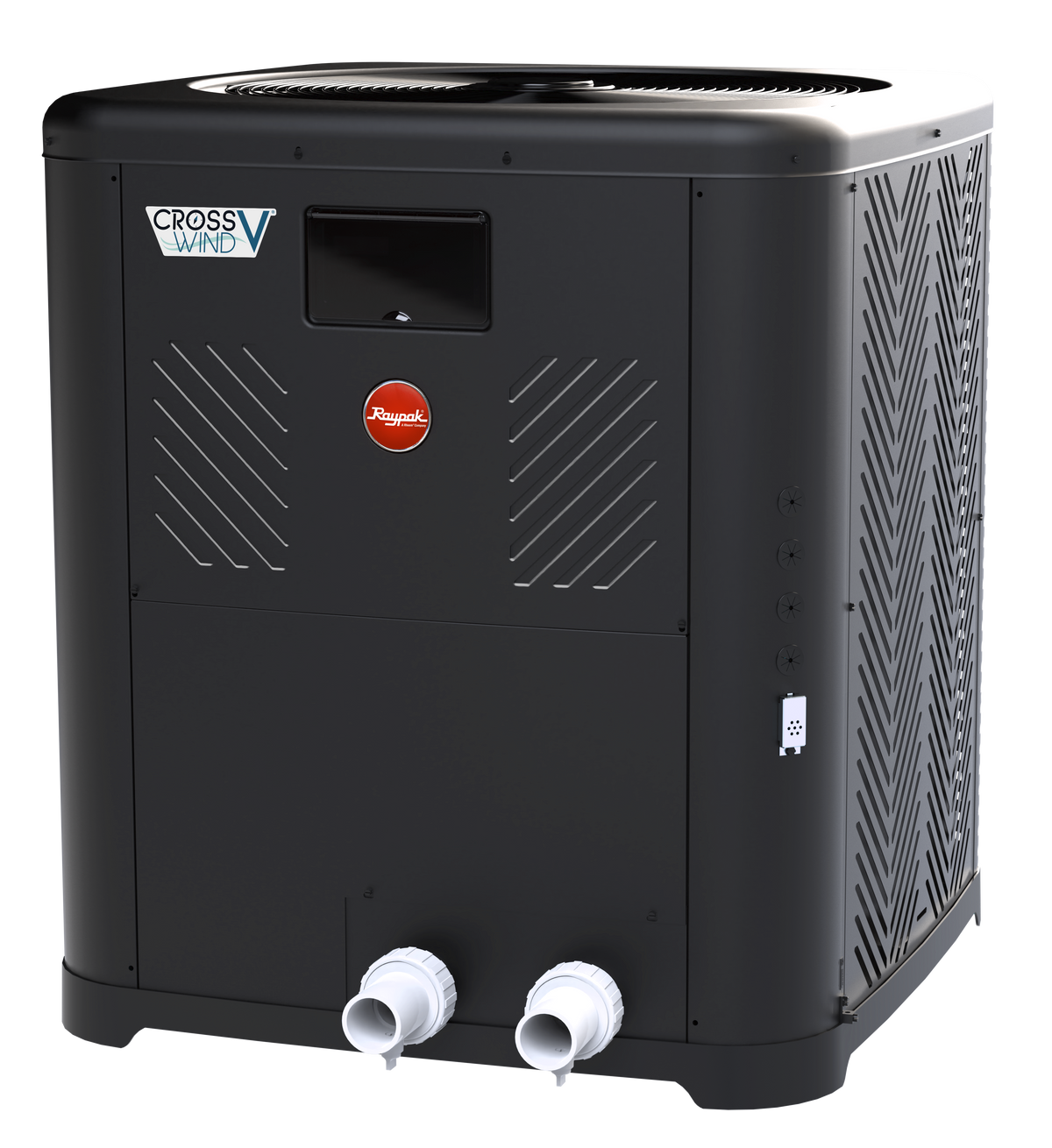

Raypak Crosswind V 85,000 BTU pool heat pump, quarter viewRaypak Crosswind V Heat Pump, 85,000 BTU, Titanium Heat Exchanger and Digital Controls, TWPH-4550EHT08 In stock$4,26400
Raypak Crosswind V 85,000 BTU pool heat pump, quarter view
Shop all Raypak

Raypak Crosswind V Heat Pump, 85,000 BTU, Titanium Heat Exchanger and Digital Controls, TWPH-4550EHT08

Ask a questionMPN TWPH-4550EHT08
$4,26400
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Titanium heat exchanger Titanium stands up to pool water chemistry far better than copper does in a heat pump.
  • 85,000 BTU Sized for a mid size residential pool on 208-230V power.
  • Capacitive touch controls A digital touch panel with readable diagnostics and real time status.
  • Standard connections Ties into industry standard 2 inch water connections.
  • Fits a normal pad Compact and light enough to sit on a standard equipment pad without special work.
  • Front panel service Components are reached from the front, which keeps routine maintenance simple.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak Crosswind V Heat Pump, 85,000 BTU, Titanium Heat Exchanger and Digital Controls, TWPH-4550EHT08, SKU RHM-15-7133. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak Crosswind V Heat Pump, 85,000 BTU, Titanium Heat Exchanger and Digital Controls, TWPH-4550EHT08
Raypak

Crosswind V Heat Pump, 85,000 BTU, Titanium Heat Exchanger and Digital Controls, TWPH-4550EHT08

$4,26400
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400 Raypak Crosswind V Deluxe heat and chill pool heat pump TWPH-8550EHC08, quarter view Raypak Crosswind V Deluxe Heat and Chill, 137,000 BTU with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHC08$5,40800 Raypak 017740 Crosswind 50-I-R heat and cool pump, front view Raypak Crosswind 50-I-R Heat & Cool Pump, 50,000 BTUH, Spiral Titanium Heat Exchanger, Digital Controls, 017740$2,27700 Raypak Crosswind 65-I heat and cool pool heat pump, 65,000 BTU Raypak Crosswind Heat Pump 65-I Heat & Cool, 65,000 BTU, Spiral Titanium Heat Exchanger, Digital Controls, 017741$3,13700 Madimack InverELITE INVELITE084 84,000 BTU inverter heat and cool pump Madimack InverElite 84,000 Heat and Cool Inverter Heat Pump, Rated 76,000 BTU/hr, INVELITE084$6,23000 Web Price Moov MI650 inverter variable speed pool heat pump, 65K BTU Moov MI650 Inverter Variable Speed Heat Pump, Rated 61,500 BTU/hr, MI650$2,89900 Web Price Moov MI500 50K BTU inverter variable speed pool heat pump Moov MI500 Inverter Variable Speed Heat Pump, Rated 45,500 BTU/hr, MI500$2,39900 Web Price Hayward HeatPro W3HP50HA2 horizontal fan swimming pool heat pump Hayward HeatPro 47,000 BTU Horizontal Fan Swimming Pool Heat Pump, W3HP50HA2$2,99900 Web Price Glacier Pool Coolers GPC-215 Iceburg pool cooler Glacier Pool Coolers Iceburg Pool Cooler, up to 45,000 Gallons, GPC-215$4,31399 Glacier Pool Coolers GPC-210 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 30,000 Gallons, GPC-210$3,11899
Glacier Pool Coolers GPC-25 Iceburg pool cooler Glacier Pool Coolers Residential Pool Chiller for Pools up to 20,000 Gallons, GPC-25$3,03599 Madimack InverECO Inverter Heat & Cool Pump 66,000 BTU | INVECO660 Madimack InverECO 66,000 BTU Heat and Cool Inverter Pool Heat Pump, 230V Single Phase, INVECO660$3,11500 Web Price Madimack InverTITAN Inverter Heat & Cool Pump 90,000 BTU | INVTIT090 Madimack InverTitan 90,000 Heat and Cool Inverter Heat Pump, Rated 80,000 BTU/hr, INVTIT090$5,00000 Web Price Madimack InverTITAN Inverter Heat & Cool Pump 112,000 BTU | INVTIT112 Madimack InverTitan 112,000 Heat and Cool Inverter Heat Pump, Rated 107,000 BTU/hr, INVTIT112$5,79000 Web Price Raypak Compact Series Digital Pool Heat Pump Titanium 62K BTU | 16635 Raypak Compact Series Digital Pool Heat Pump R3450Ti-E, 62,000 BTU, 240V, Titanium Heat Exchanger, 016635$3,44900 Web Price Pentair 460934 UltraTemp 140 heat pump, 143K BTU 230V, almond cabinet Pentair UltraTemp 140 Heat Pump 143K BTU 230V, Almond, 460934$6,47099 Madimack InverELITE Inverter Heat & Cool Pump 110,000 BTU 230V 1 Ph 60Hz - 14.8 ~ 6.6 COP | IEV2110 Madimack InverElite 116,000 Heat and Cool Inverter Heat Pump, Rated 105,000 BTU/hr, INVELITE1100$6,90000 Web Price Pentair UltraTemp HeatCool Pump 140K BTU Heat 80K BTU Cool | 460958 Pentair UltraTemp 140 Heat and Cool Pool Heat Pump, 140,000 BTU Heat, 80,000 BTU Cool, 230V, Almond, 460958$7,30399 Madimack InverTITAN INVTIT140 inverter heat and cool pool pump, 140,000 BTU Madimack InverTitan 140,000 Heat and Cool Inverter Heat Pump, Rated 133,000 BTU/hr, INVTIT140$7,35000 Web Price Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Product details

The Raypak Crosswind V is an 85,000 BTU pool heat pump built around a titanium heat exchanger and run from a digital capacitive touch control panel, on 208-230V power.

Titanium where it counts

A heat pump passes pool water through its exchanger every minute it runs, which means salt, chlorine and any pH drift go through it too. Titanium is the material that holds up to that, and it is why this unit will outlast a heat pump built with a cheaper exchanger in the same water.

Installation and service

The Crosswind V is compact and light enough to set on a standard equipment pad, and it plumbs into industry standard 2 inch water connections, so it drops into a conventional pad layout. The front panel design puts the serviceable components where a tech can reach them without pulling the unit apart.

Controls

The capacitive touch panel gives readable diagnostics and real time status, so it is clear what the unit is doing and why it is or is not calling for heat.

Note on the model number

Our source data lists this unit under both TWPH-4550EHT08 and TWPH-4550EHT10. Both are shown in the specifications above. Confirm the exact model before ordering if the distinction matters for your install.

Specifications
Brand Raypak
Manufacturer part number TWPH-4550EHT08
Also listed as TWPH-4550EHT10
Series Crosswind V
UPC 662021604584
Type Inverter pool heat pump
Heat output 85,000 BTU/hr at 80F air, 80F water, 80 percent humidity, by the manufacturer
COP 5.8 at 80/80/80; 5.5 at 80F air, 63 percent humidity; 4.0 at 50F air, 63 percent humidity
Heat output at 80F air, 63 percent humidity 80,000 BTU/hr
Heat output at 50F air, 63 percent humidity 56,000 BTU/hr
Electrical 208 to 230 V, single phase, 60 Hz
Power input 4.3 kW
Minimum circuit amps 38 A
Breaker 50 A
Refrigerant R-410A
Heat exchanger Titanium
Cabinet Powder coated metal
Connectivity Wi-Fi, Raymote app; drives most variable speed pumps and up to six devices
Rheem part number TWPH-4550EHT10, the same unit under the Rheem name, by Raypak's cross reference
Unit weight 247 lb
Shipping weight 265 lb
Warranty 2 years labor, 7 years parts, 10 years on the titanium heat exchanger, by Raypak
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$30299 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200 Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400 Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4199 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$43099 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8299 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10899 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$77599 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$69499 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,36999 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300

Questions and answers

What people ask about this product, answered by our pool techs.

How many BTU is the Raypak Crosswind V TWPH-4550EHT08?
85,000 BTU/hr at 80F air, 80F water and 80 percent humidity, by Raypak's catalog. A heat pump's rating depends on the air it breathes. The manufacturers rate at 80F air, 80F water and 80 percent humidity, and the figure falls as the air cools: the rows on this page give all three of the standard points.
What is the difference between TWPH-4550EHT08 and TWPH-4550EHT10?
The name on the cabinet. Raypak's cross reference lists TWPH-4550EHT10 as the Rheem version of the same heat pump, and the Ruud version ends in 11.
What breaker does the Crosswind V TWPH-4550EHT08 need?
50 A, on 208 to 230 V single phase, with a minimum circuit of 38 A, by Raypak's catalog.
Does the Crosswind V TWPH-4550EHT08 cool the pool as well?
No. It is a heat only model. Raypak's heat and cool versions end in EHC, the 6550 and 8550.
What warranty does Raypak give the Crosswind V TWPH-4550EHT08?
Two years labor, seven years parts and ten years on the titanium heat exchanger, by Raypak's catalog.
Can the Crosswind V TWPH-4550EHT08 run my variable speed pump?
Yes. Raypak says it drives most variable speed pumps on the market and controls up to six devices, and it reports through the Raymote app.
