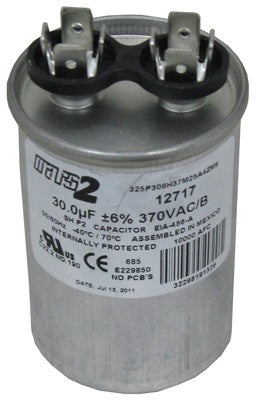

Century 628318-308 run capacitor, 30 MFD 370 VAC, for pool pump motorsCentury Run Capacitor, 30 MFD, 370 VAC, 1-3/4" x 2-7/8", 628318-308 In stock$5699
Century 628318-308 run capacitor, 30 MFD 370 VAC, for pool pump motors
Shop all Century Motors

Century Run Capacitor, 30 MFD, 370 VAC, 1-3/4" x 2-7/8", 628318-308

Ask a questionMPN 628318-308
$5699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Rated 30 MFD at 370 VAC Match both numbers to the capacitor coming off the motor before you order.
  • Measures 1-3/4 in. by 2-7/8 in. The physical size matters as much as the rating, because the capacitor has to sit in the motor housing or under the band.
  • Run capacitor, not a start capacitor A run capacitor stays in the circuit the whole time the motor is turning.
  • Century branded Supplied under the Century motor brand.
  • A common motor no start cause A motor that hums, trips or starts slowly is very often a tired capacitor rather than a failed motor.
  • Inexpensive first repair Far cheaper to change than the motor it protects.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century Run Capacitor, 30 MFD, 370 VAC, 1-3/4" x 2-7/8", 628318-308, SKU MGT-601-2722. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century Run Capacitor, 30 MFD, 370 VAC, 1-3/4" x 2-7/8", 628318-308
Century Motors

Century Run Capacitor, 30 MFD, 370 VAC, 1-3/4" x 2-7/8", 628318-308

$5699
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century 628318-307 capacitor rated 25 MFD at 370 volts Century Capacitor 25 MFD 370V, 628318-307$3199 U.S. Seal RD-50-370 run capacitor, 50 MFD 370 volts U.S. Seal Run Capacitor 50 MFD 370V, RD-50-370$4099 U.S. Seal 30 MFD 370 VAC run capacitor for pool pump motors U.S. Seal Run Capacitor, 30 MFD, 370vac, 5VR0303$2999 SuperPro 12717 round run capacitor, 30 MFD 370V SuperPro 30 MFD 370V Round Run Capacitor, 12717$3399 SuperPro 12725 round run capacitor rated 50 MFD 370V SuperPro 50 MFD 370V Round Run Capacitor, 12725$4599 Century 629002-001 stationary single speed starter switch for A.O. Smith pump motors Century Stationary Single Speed Switch, 629002-001$3599 Century motor switch assembly for BN frame pool and spa motors Century OEM Motor Switch Assembly, 1576815$4999 Pentair R221016 protective pool pump motor cover, B8200C Pentair Protective Pool Motor Cover, R221016$3699 U.S. Seal RD-25-370 round run capacitor, 25 MFD 370V U.S. Seal Run Capacitor 25 MFD 370V Round, RD-25-370$2699 Century 610807-007 start capacitor, 189/227 MFD at 125 VAC Century Start Capacitor, 189/227 MFD, 125 VAC, 1-7/16" x 2-3/4", 610807-007$1699
Century motor capacitor rated 161-193 MFD at 125V, BC161 Century Motor Capacitor 161-193 MFD 125V, 11914$1699 SuperPro 11914 start capacitor, 161/192 MFD at 125V SuperPro 125V Start Capacitor, 161/192 MFD, 11914$1699 Century 626531 terminal board for UST and USQ series motors Century Terminal Board for UST/USQ Series Motors, 626531$1199 Century 2517501-002 V-Green 270 automation adapter kit in black Century V-Green 270 Automation Adapter Kit, Black 2517501-002$16499 Century Centurion Pro HSQ095 square flange pool pump motor, 0.95 THP 48Y Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095$20799 Century BN24V1 up rated 0.75 HP pool pump motor, 115v, 48Y frame Century Motor, Up Rated, .75 HP, 115v, Flex 48, BN24V1$21299 Century UST1072 up rated .75 HP pool pump motor, 115/230 V, 56J frame, front view Century Pump Motor, Up Rated, .75 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft, UST1072$25499 Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072$26599 Century B227SE 3/4 HP 56J frame threaded shaft pool pump motor Century 56J Threaded UR .75 HP 115/230V Pool Pump Motor, B227SE$26999 Century Motors A.O Smith Motor Sq .5HP 115-230V | SQ1052 Century Motors A.O Smith Motor Sq .5HP 115-230V | SQ1052$26999

Product details

The Century 628318-308 is a run capacitor rated 30 MFD at 370 VAC, in a can measuring 1-3/4 in. by 2-7/8 in. It is a replacement capacitor for pool pump motors.

Matching the part

Three things have to line up: the capacitance in MFD, the voltage rating, and the physical size of the can. The rating is printed on the side of the capacitor already in the motor. Size matters because the capacitor has to fit the housing or the band it is clamped under, and capacitors of the same rating are not all the same shape.

What a bad capacitor looks like

A motor that hums without turning, comes up to speed slowly, runs hot or trips a breaker is very often carrying a failed run capacitor rather than a failed motor. Capacitors are consumable and they age faster in hot equipment pads. Swapping one is cheap next to replacing a motor.

Safety

Capacitors hold a charge after the power is off. Kill the breaker and discharge the old capacitor before you touch the terminals.

From Pool School

Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Century
Manufacturer part number 628318-308
UPC 032240731543
Type Run capacitor
Capacitance 30 MFD
Voltage 370 VAC
Dimensions 1-3/4" x 2-7/8"
Application Pool motor capacitor
Shipping weight 0.3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

What are the ratings on this capacitor?
30 MFD at 370 VAC. Both figures need to match the capacitor you are replacing.
What size is it?
1-3/4 in. by 2-7/8 in. Check that against the space in your motor before ordering, since capacitors of the same rating come in more than one can size.
Is this a start capacitor or a run capacitor?
It is a run capacitor. It stays in the circuit while the motor runs, rather than dropping out after start up.
My motor hums but will not turn. Is this the fix?
It is the first thing to check. A failed run capacitor commonly leaves a motor humming, drawing current and not coming up to speed. Discharge the old capacitor before handling it.
