Jandy 3045 diverter valve assembly with knob, non-positive sealJandy Diverter Assembly Non-Positive Seal, 3045 In stock$5299

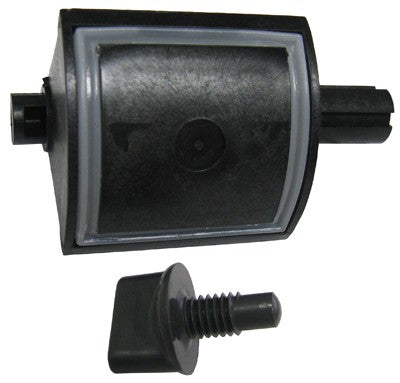

Jandy 3045 diverter valve assembly with knob, non-positive seal
Shop all Jandy

Jandy Diverter Assembly Non-Positive Seal, 3045

Ask a questionMPN 3045
$5299
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy Pro Series part 3045, the complete diverter assembly.
  • Knob included Supplied with the handle knob, so a cracked or stripped knob is covered by the same part.
  • 2 way and 3 way Serves both the two port and three port Jandy valve bodies.
  • Non-positive seal The non-positive style allows a small amount of bypass rather than shutting a port dead tight.
  • Check the seal type first Jandy also builds a positive seal diverter, and the two are not interchangeable, so confirm which one your valve uses.
  • Rebuild instead of replace Fitting a fresh diverter is far less work than cutting a whole valve body out of the plumbing.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Diverter Assembly Non-Positive Seal, 3045, SKU JDY-561-2363. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Diverter Assembly Non-Positive Seal, 3045
Jandy

Diverter Assembly Non-Positive Seal, 3045

$5299
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Jandy

1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715

$7199
Jandy NeverLube Valve 3 Port, 2" x 2-1/2", 4717
Jandy

NeverLube Valve 3 Port, 2" x 2-1/2", 4717

$9999
Jandy 2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716
Jandy

2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716

$9299
Jandy Cover O-Ring, 3 in. ID, 1132
Jandy

Cover O-Ring, 3 in. ID, 1132

$1699
Jandy Neverlube 3 Port Valve, 2-1/2" x 2", 4944
Jandy

Neverlube 3 Port Valve, 2-1/2" x 2", 4944

$10399
Subtotal

Similar products

Other products people compare with this one.

Jandy R0487200 handle for 2-way and 3-way Neverlube valves Jandy 2-Way/3-Way Neverlube Valve Handle, R0487200$3599 Jandy R0465700 cover o-ring, 3-3/4 inch inside diameter Jandy Cover O-Ring, 3-3/4" ID, R0465700$2799 Jandy 3500 handle for the Jandy Space Saver valve Jandy Space Saver Handle, 3500+$3799 Jandy 4734 two port CPVC valve cover in black Jandy Valve Cover 2 Port CPVC (Black), 4734$4699 Jandy R0552200 Neverlube backwash valve lid kit Jandy Neverlube Lid Kit, R0552200$5799 Jandy 3457 diverter seal ring for Space Saver 3 port diverter valve, product photo Jandy Diverter Seal Ring for 1-1/2 to 2 in. Space Saver Valves, 3457$799 Jandy 4720 NeverLube valve diverter kit Jandy NeverLube Diverter Kit, 4720$8699 Super Pro GO-KIT72 seal kit for Jandy Neverlube valves Super Pro Jandy Neverlube Valve Seal Kit, GO-KIT72$1699 Jandy R0465800 Never Lube large valve diverter Jandy Never Lube Large Valve Diverter, R0465800$15099 Jandy R0486900 black NeverLube valve knob for 2-way and 3-way valves Jandy 2-Way/3-Way NeverLube Valve Knob, R0486900$2499

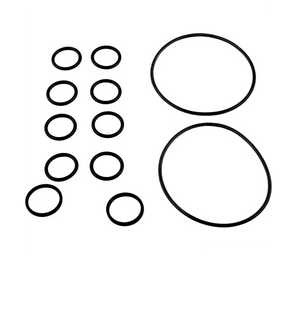

Jandy R0552400 o-ring kit for the Never Lube 2-in-1 backwash valve Jandy O-Ring Kit for 2-in-1 Backwash Valve, R0552400$2399 Jandy R0487000 gray 2-way and 3-way valve knob Jandy 2-Way/3-Way Valve Knob (Gray), R0487000$2399 Jandy R0409600 gasket and screw kit for JVA 2444 valve actuator, product photo Jandy Gasket and Screw Kit for JVA 2444 Valve Actuator, R0409600$2217 Jandy 5009 red 1/8 in. pipe plug for 2 way Neverlube valves, product photo Jandy Red 1/8 in. Pipe Plug for 2 Way Neverlube Valves, 5009$899 Jandy R0487100 valve shaft O-ring, size O-158 Jandy Valve Shaft O-Ring R0487100, O-158$399

Product details

The Jandy 3045 is the Pro Series diverter assembly with knob, built with a non-positive seal, for Jandy 2 way and 3 way valves.

What the diverter is

Inside every Jandy diverter valve is a plate on a shaft that swings between the ports and sends water one way or the other. That plate, its shaft, its seals and the knob on top make up the diverter assembly. The valve body itself is glued into the plumbing and rarely fails, so almost every diverter valve complaint is really about the assembly that turns inside it.

Non-positive versus positive

This is the non-positive seal version, which allows a small amount of flow past the closed side rather than shutting a port dead tight. Jandy builds a positive seal diverter as well for applications that need a hard shut off, and the two are not swaps for each other, so check which one came out of your valve.

Why rebuild

A diverter that has gone stiff, started weeping around the shaft, or spins without moving the plate is a repair you can do without touching a pipe. Replacing the assembly costs a fraction of the disruption of cutting a valve body out of a working plumbing run.

Specifications
Brand Jandy
Manufacturer part number 3045
UPC 052337055475
Series Jandy Pro Series
Type Diverter assembly with knob
Seal type Non-positive seal
Fits Jandy 2 way and 3 way valves
Shipping weight 0.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$76899 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$91399 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24999 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33199 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

What is a non-positive seal diverter?
It is the style that does not seal a port completely shut. A little water can still pass the closed side, which is intentional on many circulation valves.
Does it come with the knob?
Yes. The 3045 is the diverter assembly complete with its knob.
Will it fit a 2 way or a 3 way valve?
Both. Jandy uses this diverter assembly in its 2 way and 3 way valve bodies.
How do I know I need this rather than a whole new valve?
If the body is sound and the plumbing is not leaking, a diverter that is stiff, worn, leaking past the shaft or turning without moving the plate is fixed by replacing the diverter assembly alone.
Ask your own question
