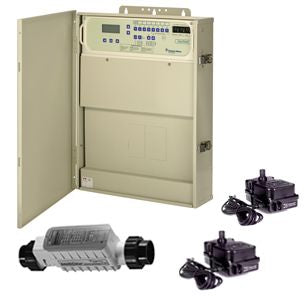

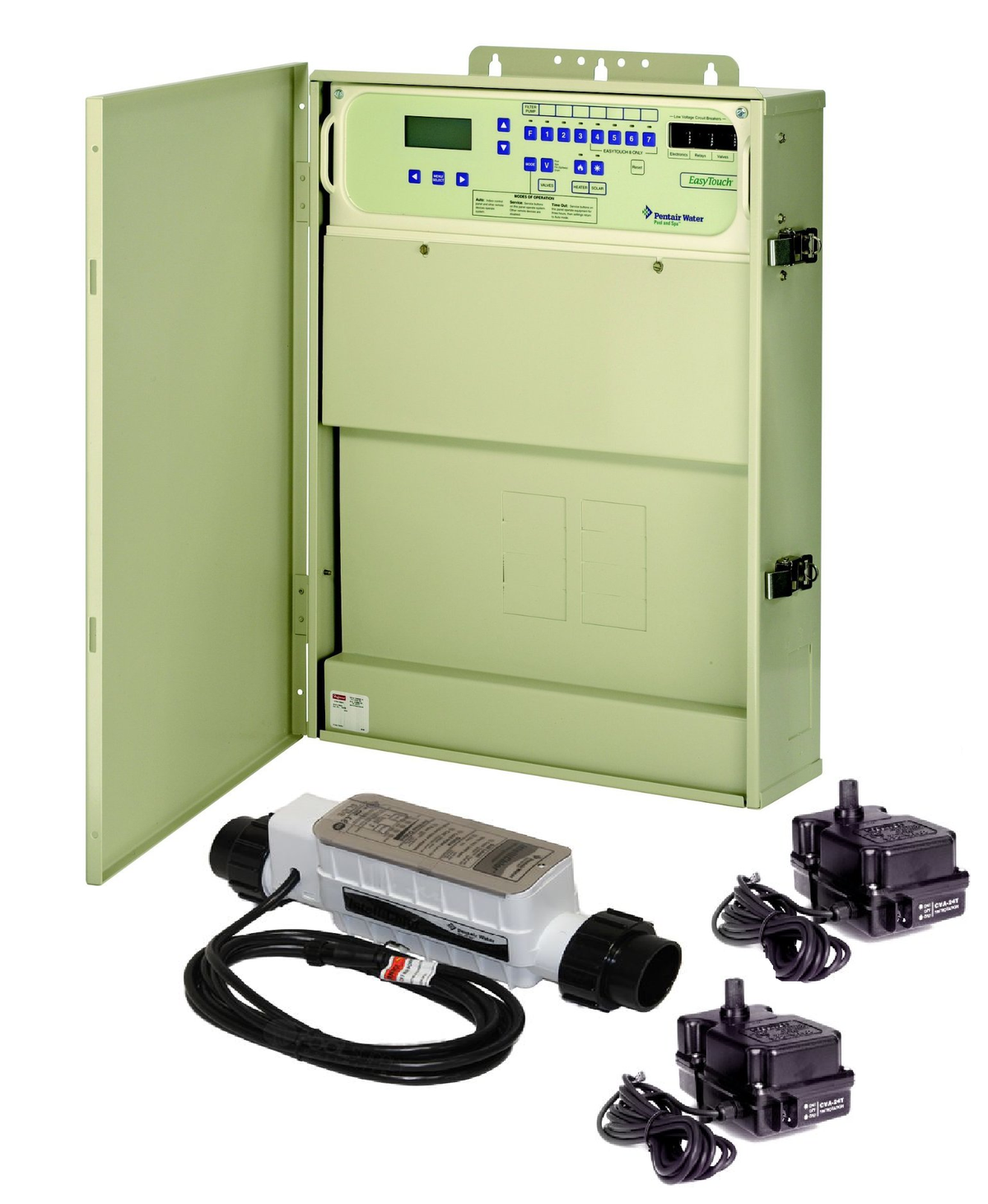

Pentair 520544 EasyTouch 8SC pool and spa combo control system with IntelliChlor IC20 and two valve actuatorsPentair EasyTouch 8SC Pool/Spa Combo with IntelliChlor IC20, 2 Actuators, 520544$3,20999
Pentair 520544 EasyTouch 8SC pool and spa combo control system with IntelliChlor IC20 and two valve actuators
Shop all Pentair

Pentair EasyTouch 8SC Pool/Spa Combo with IntelliChlor IC20, 2 Actuators, 520544

Ask a questionMPN 520544
$3,20999
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Built for a pool and spa on one system The 8SC is the EasyTouch model that runs a pool/spa combo rather than a standalone pool.
  • Eight feature relays Enough switched circuits for the pump, heater, lights and the extras most combo pads carry.

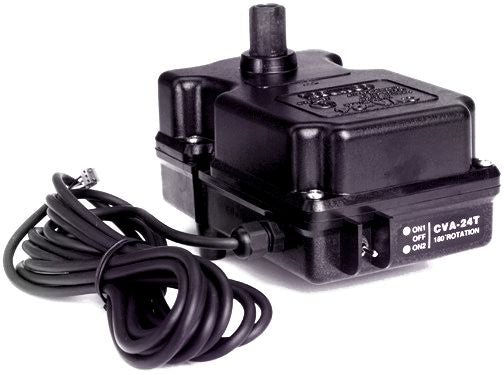

  • Three valve outputs, two actuators Two actuators are supplied, and a third valve output is there when the plumbing needs it.

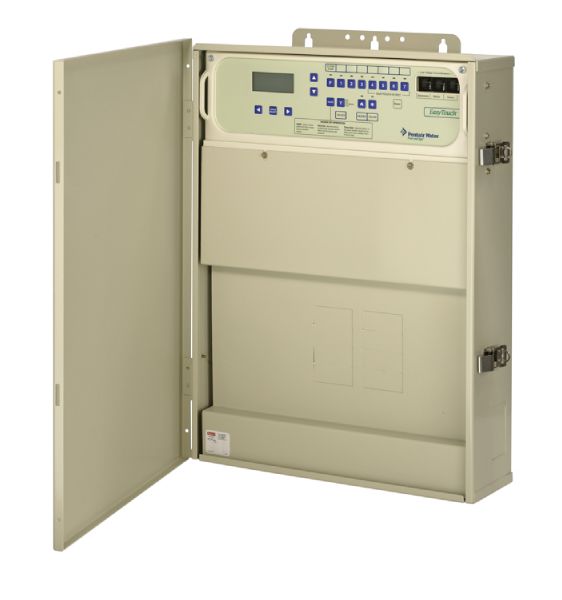

  • Eight position breaker panel The load center arrives with its own breaker panel rather than needing a separate enclosure.
  • Two temperature sensors Water and air sensing, which is what heater and freeze logic run on.

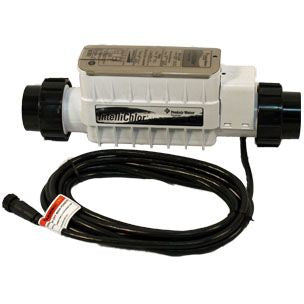

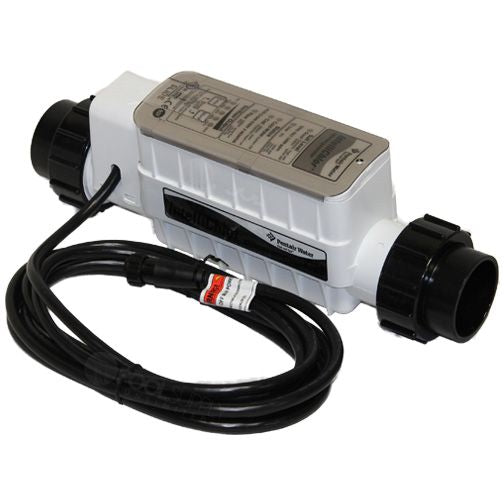

  • IntelliChlor IC20 in the package The IC20 cell is rated for pools up to 20,000 gallons.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair EasyTouch 8SC Pool/Spa Combo with IntelliChlor IC20, 2 Actuators, 520544, SKU COM-30-0544. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair EasyTouch 8SC Pool/Spa Combo with IntelliChlor IC20, 2 Actuators, 520544
Pentair

EasyTouch 8SC Pool/Spa Combo with IntelliChlor IC20, 2 Actuators, 520544

$3,20999
Pentair Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218
Pentair

Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218

$30299
Pentair OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045
Pentair

OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045

$23599
Pentair EasyTouch Indoor Control Panel for 4 Circuit Systems, 520548
Pentair

EasyTouch Indoor Control Panel for 4 Circuit Systems, 520548

$57399
Pentair Air, Water, Solar Sensor with 20 ft Cable, 520272
Pentair

Air, Water, Solar Sensor with 20 ft Cable, 520272

$8399
Subtotal

Similar products

Other products people compare with this one.

Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Pentair EasyTouch 8 EC-520540 pool and spa combo control system with 2 actuators Pentair EasyTouch 8 Pool/Spa Combo with 2 Actuators, EC-520540$2,13099 Pentair 523448 IntelliCenter load center system with i5P personality kit Pentair IntelliCenter Load Center System with i5P Personality Kit, 523448$2,14699 Pentair 521907 IntelliCenter Load Center System with i5PS personality kit Pentair IntelliCenter Load Center System with i5PS Personality Kit, without SCG, 521907$2,52299 Pentair IntelliCenter 521904 Load Center System with i8PS Personality Kit Pentair IntelliCenter Load Center System with i8PS Personality Kit, 521904$2,94799 Pentair IntelliCenter Load Center System with i8PS Personality Kit and IntelliChlor, 523961$4,59099 Hayward Goldline Hayward Pro Logic Pool & Spa 8 Relays | PL-PS-8 Hayward ProLogic Pool and Spa Automation Base System, 8 Function with 8 Relays, PL-PS-8$2,61499 Jandy AquaLink RS-PS6 pool and spa combo 6 function automation control system Jandy AquaLink RS Pool and Spa Combo 6 Automation System, RS-PS6$2,09599 Pentair 521909 IntelliCenter i5P single body personality kit Pentair IntelliCenter i5P Single Body Personality Kit, 521909$1,36499 Pentair 520547 EasyTouch wireless controller for 8 circuit systems Pentair Genuine OEM EasyTouch Wireless Controller for 8 Circuit System, 520547$1,36499
Jandy IQ30-RS AquaLink 3.0 upgrade kit with RS-PS8 PCB, bezel and CPU Jandy AquaLink 3.0 Upgrade Kit with RS-PS8 PCB, Bezel, CPU, IQ30-RS$1,32299 Pentair 522048 IntelliTouch and EasyTouch to IntelliCenter upgrade kit, i10PS for CLC/CPC Pentair IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10PS for CLC/CPC, 522048$1,23399 Jandy R0468501 AquaLink RS8 upgrade kit, Pool/Spa Combo, Rev.QQ Jandy AquaLink RS8 Upgrade Kit, Pool/Spa Combo, Rev.QQ, R0468501$1,15599 Jandy AQWHR18 AquaLink wireless handheld remote with transceiver Jandy AquaLink AQWHR18 Wireless Handheld Remote with Transceiver, AQWHR18$1,09799 Hayward OmniHub smart pool and spa control, part HLOMNIHUB Hayward OmniHub Smart Pool and Spa Control with One Smart Relay, HLOMNIHUB$1,07299 Hayward HLWIRELESS OmniLogic waterproof wireless remote Hayward OmniLogic Waterproof Wireless Remote, HLWIRELESS$1,03799 S.R. Smith PT-6001 poolLUX Plus2 60W single zone LED light control power tower S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001$90199 Pentair iS10 10-Function Spa-side Wired Remote with LED Screen | 150 | 521178 Pentair SpaCommand iS10 Spa-Side Wired Remote with LED Screen, 150 ft Cable, White, 521178$86699 Pentair EasyTouch PL4-PSL4 Wireless Remote | 522464 Pentair EasyTouch PL4 and PSL4 Wireless Remote Control Panel with Backlit LCD, 522464$85599 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN$79499

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair EasyTouch 8SC, part 520544, is the automation package for a pool and spa that share one equipment pad. It is supplied with the IntelliChlor IC20 salt cell and two valve actuators.

What is in the package

The 8SC gives you eight feature relays, three valve outputs, two actuators, an eight position breaker panel, a local remote powered from the supply, and two temperature sensors. That is the working set for a combo pad: switched power for pump, heater and lighting, motorized valves to move water between pool and spa, and the sensing the heater and freeze protection depend on.

Why the SC version

A pool and spa on shared equipment needs valves that actually move under control, not by hand. That is the difference between the 8SC and a single body system, and it is why the actuators and the extra valve output are part of the specification rather than an accessory list.

Before you order

The indoor control is not part of this package and is bought separately. If you are replacing an existing EasyTouch, check how many relays and valve outputs your pad is currently using so the 8SC covers everything you already run.

Specifications
Brand Pentair
Manufacturer part number 520544
UPC 788379704452
Type Pool and spa automation control system
Model EasyTouch 8SC
Configuration Pool/spa combo
Feature relays 8
Valve outputs 3
Valve actuators 2
Breaker panel 8 position
Temperature sensors 2
Remote Local remote from power supply
Chlorine generator IntelliChlor IC20, rated to 20,000 gallons
Not included Indoor control
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29899 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What makes this the 8SC rather than a plain EasyTouch 8?
SC is the Pentair suffix for salt chlorination. The 8SC is the pool and spa control system supplied with an IntelliChlor IC20 cell, where the plain 8 is the same system without one.
Is the IntelliChlor IC20 cell part of this package?
Yes. The IC20 cell, rated to 20,000 gallons, is supplied with the 8SC, which is what the SC in the model name refers to.
Does an indoor control panel come with it?
No. The indoor control is a separate purchase.
How many valves can it operate?
Three valve outputs, with two actuators supplied. A third actuator would be bought on its own if the plumbing calls for it.
