Pentair Push Pull Valve, 7.81" Center, 263053
30 day returns · Easy, with prepaid labels provided
Quick overview
- Genuine Pentair The factory replacement push pull slide valve, part number 263053.
- 7.81 inch centers Centerline distance between the filter ports is 7.81 inches, so measure yours before ordering.
- Two inch connections 2 inch PVC socket connections.
- Unions included The valve to filter unions and the union o-rings are supplied with the valve.
- DE and sand filters Built for DE and sand filters.
- Replaces Sta-Rite WC212-134P Goes in place of the Sta-Rite WC212-134P valve.
Need a hand?
Similar products
Other products people compare with this one.
Pentair Push Pull Valve Kit, PVC Slide 2", 263064$14099
Pentair 1.5" Multiport Valve Kit for Side Mount DE Filters, SM10-2, 261177$21599
Pentair Valve Top Assembly 2", 272422$20899
Pentair 1.5" Multiport Valve for Triton and Quad D.E. Filters SM 10-3, 261173$21699
Pentair Hi-Flow Side Mount Valve Kit, 2" Slip, 261049$21699

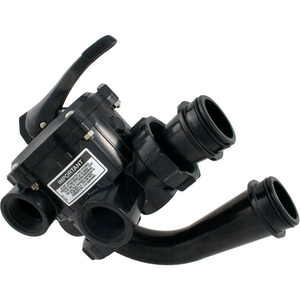

Hayward Vari-Flo Backwash Valve 1.5" (DE Filters), SP0710XR50$18099
Hayward 2 in. SKT, 2-1/2 in. Slip SelectaFlo High Efficiency D.E. Filter Valve, SP0425$18199
Jandy Neverlube Backwash Valve, 2-in-1, 8034$23599
Hayward Slide Valve Assembly, 2" SKT, SP0410X502S$14599
Praher 2" ABS Clamp-Down Top Mount Multiport Valve for Sand or DE Filter, TM-22-PB$17899
Waterway 2" DE Filter Multiport Valve, WVD001$18999
Praher ABS Pre-Plumbed Side Mount Multiport Valve for DE Filters, 1-1/2 in. FIP, SM1-HP2$10999
Pentair FullFloXF Push Pull Backwash Valve, 2 in., 263080$28599
Pentair Valve Kit Hi-Flow SM DE 2" Slip, 261142$27699
Pentair 2" Hi-Flow Valve, 261050$28499
Pentair FullFloXF PVC Backwash Valve with Union, 2 Inch, 2-1/2 Inch and 3 Inch, 263081$28599
Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999
Hayward Vari-Flo 2 in. DE Filter Valve, SP0715XR50$29899

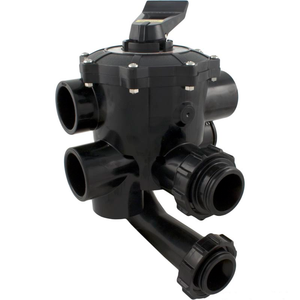

Hayward Complete 2" 4-Way Multiport D.E. Valve, SP0740DE$30099
Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799
Product details
The Pentair 263053 is a push pull slide valve for DE and sand filters. It has 2 inch PVC socket connections and a 7.81 inch centerline distance between the filter ports, and it ships in black.
Measure the centers
Push pull valves are chosen by the distance between the two filter ports, not by the pipe size alone. This one is the 7.81 inch center version. Pentair builds an 8 inch center valve as well, and the two are not interchangeable, so measure before you order.
What comes with it
The valve to filter unions and their o-rings are included, which is most of what an install needs. It also goes in as a replacement for the Sta-Rite WC212-134P valve.
| Brand | Pentair |
|---|---|
| Manufacturer part number | 263053 |
| UPC | 788379780616 |
| Part type | Filter Valves Part |
| Type | Push pull slide valve |
| Connection | 2" SKT PVC |
| Port centerline | 7.81" |
| Color | Black |
| Included | Valve to filter unions and union o-rings |
| Fits | DE and sand filters |
| Replaces | Sta-Rite WC212-134P |
| Shipping weight | 3.8 lb |
| Ships | Parcel |
