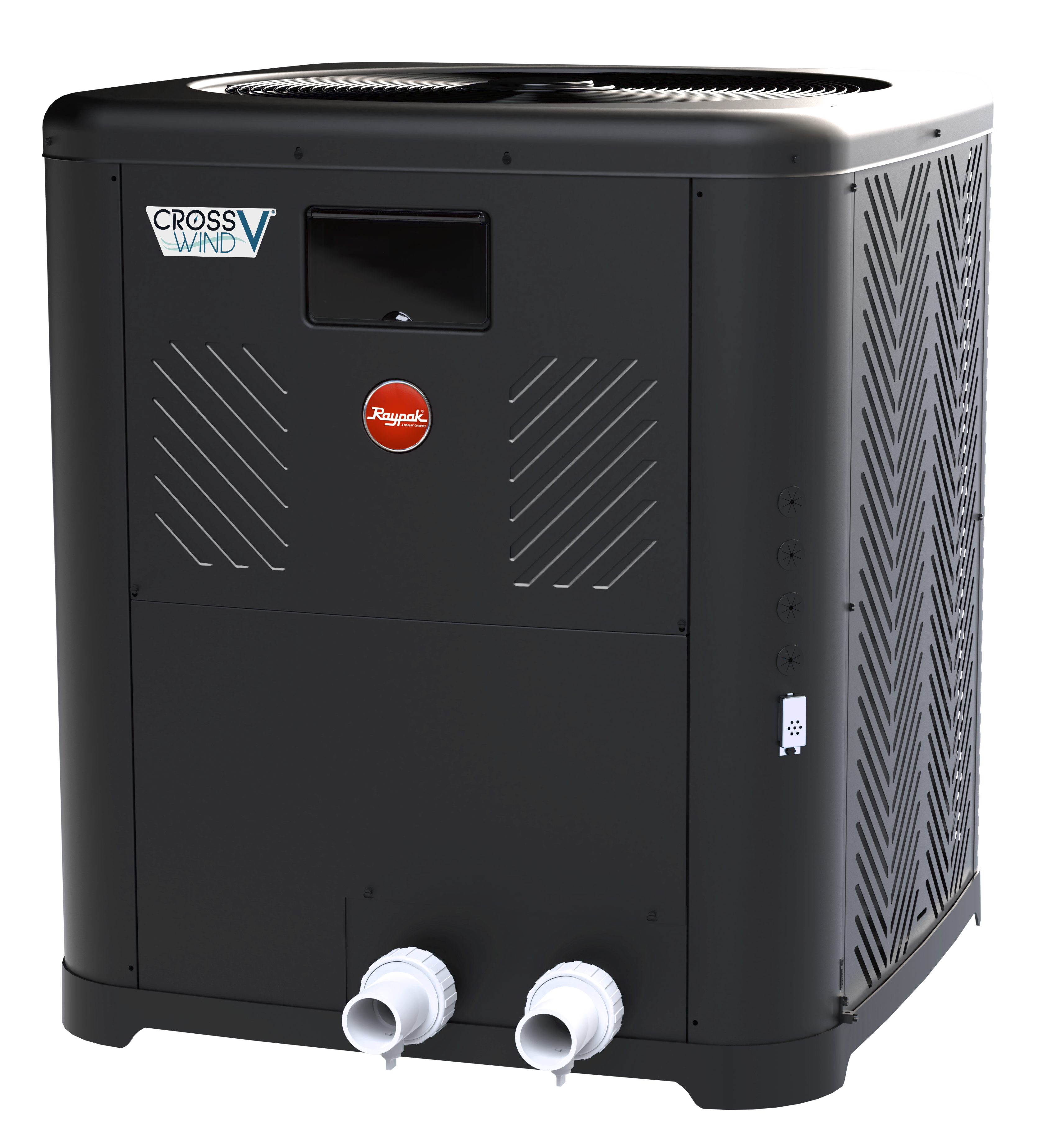

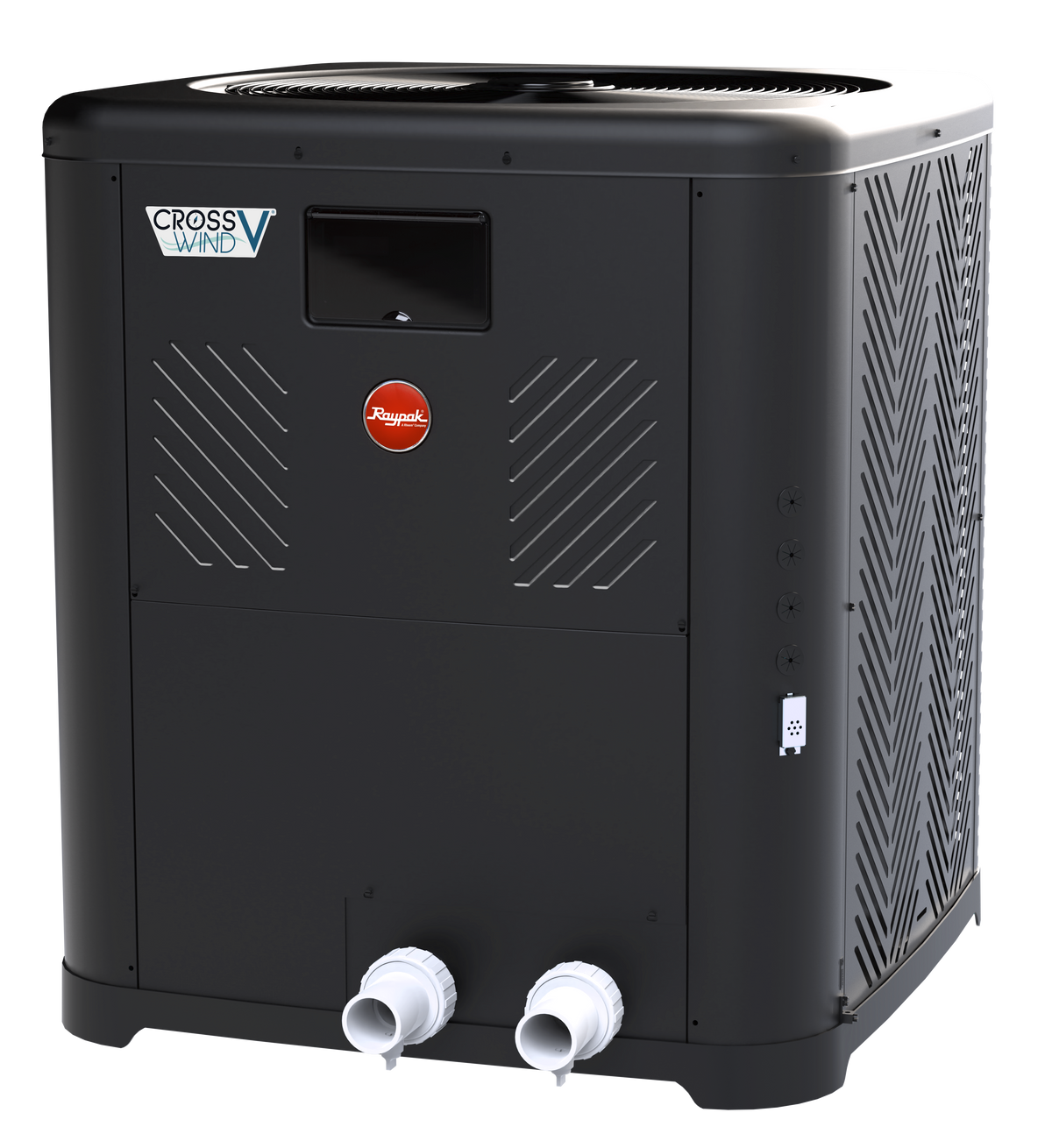

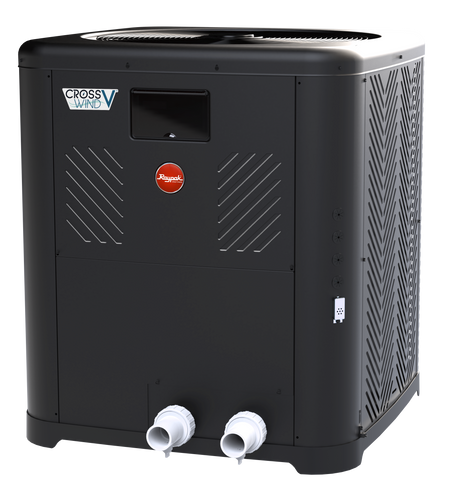

Raypak Crosswind V Heat Pump, 118,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-6550EHT08 In stock$4,65000
Raypak Crosswind V Heat Pump, 118,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-6550EHT08
$4,65000
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- 118,000 BTU sized to stretch the swim season on a residential inground pool.
- Titanium heat exchanger stands up to pool water chemistry for a long service life.
- Digital controls capacitive touch panel with easy to read diagnostics and real time status.
- Front panel access industry standard 2 in. water connections are reached through the front for service.
- Compact footprint smaller and lighter than older units at 268 lb, sits on a standard equipment pad.
- 208-230V single phase 60 Hz, 5.4 kW, R-410A refrigerant.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
Crosswind V Heat Pump, 118,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-6550EHT08
$4,65000
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800
Web Price
Raypak Crosswind V Deluxe Heat and Chill, 137,000 BTU with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHC08$5,20000
Web Price
Raypak Crosswind Heat Pump 65-I Heat & Cool, 65,000 BTU, Spiral Titanium Heat Exchanger, Digital Controls, 017741$2,90000
Madimack InverElite 84,000 Heat and Cool Inverter Heat Pump, Rated 76,000 BTU/hr, INVELITE084$6,23000
Web Price
Moov MI650 Inverter Variable Speed Heat Pump, Rated 61,500 BTU/hr, MI650$2,89900
Web Price
Hayward HeatPro 47,000 BTU Horizontal Fan Swimming Pool Heat Pump, W3HP50HA2$2,99900
Web Price
Moov MI500 Inverter Variable Speed Heat Pump, Rated 45,500 BTU/hr, MI500$2,39900
Web Price
Glacier Pool Coolers Iceburg Pool Cooler, up to 45,000 Gallons, GPC-215$4,31399
Pentair UltraTemp 140 Heat Pump 143K BTU 230V, Almond, 460934$6,47099
Pentair UltraTemp HeatCool Pump 140K BTU Heat 80K BTU Cool | 460958$6,54399
Glacier Pool Coolers Residential Pool Chiller for Pools up to 30,000 Gallons, GPC-210$3,11899
Glacier Pool Coolers Residential Pool Chiller for Pools up to 20,000 Gallons, GPC-25$3,03599
Madimack InverEco 66,000 Heat and Cool Inverter Heat Pump, Rated 61,000 BTU/hr, INVECO660$3,11500
Web Price
Madimack InverTitan 90,000 Heat and Cool Inverter Heat Pump, Rated 80,000 BTU/hr, INVTIT090$5,00000
Web Price
Madimack InverElite 116,000 Heat and Cool Inverter Heat Pump, Rated 105,000 BTU/hr, INVELITE1100$6,90000
Web Price
Madimack InverTitan 112,000 Heat and Cool Inverter Heat Pump, Rated 107,000 BTU/hr, INVTIT112$5,79000
Web Price
Pentair UltraTemp 120Q Quiet High Performance Heat Pump 120K BTU Titanium Heat Exchanger Digital Controls | 460833$5,24899
Raypak Compact Series Digital Pool Heat Pump Titanium 62K BTU | 016635$3,44900
Web Price
Raypak Crosswind 50-I-R Heat & Cool Pump, 50,000 BTUH, Spiral Titanium Heat Exchanger, Digital Controls, 017740$2,06500
Web Price
Madimack InverTitan 140,000 Heat and Cool Inverter Heat Pump, Rated 133,000 BTU/hr, INVTIT140$7,35000
Web Price
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details
The Raypak Crosswind V 6550 is a 118,000 BTU electric heat pump for inground pools. It pulls heat from the outside air and moves it into the pool water through a titanium heat exchanger, which shrugs off the chlorine and salt levels that shorten the life of lesser exchangers. Running on 208-230V single phase power, it draws 5.4 kW and uses R-410A refrigerant.
Built for the equipment pad
The cabinet has a smaller footprint than older Raypak heat pumps and weighs 268 lb, so it fits a standard pad without a rebuild. Water connections are the industry standard 2 in. size and sit behind the front panel, so a tech can reach the plumbing for service without dragging the unit away from the wall.
Controls you can read
A capacitive touch panel replaces the old membrane buttons. It shows easy to read diagnostics and real time status, so you know at a glance whether the unit is heating, idle or waiting on flow. Lower energy use than the units it replaces helps keep the monthly bill in check while the pool stays warm.
This unit ships by freight because of its weight. Have the pad, the 2 in. plumbing and the electrical circuit ready before it arrives.
| Brand | Raypak |
|---|---|
| Manufacturer part number | TWPH-6550EHT08 |
| Model | Crosswind V 6550 |
| UPC | 662021624582 |
| Type | Inverter pool heat pump |
| Heat output | 118,000 BTU/hr at 80F air, 80F water, 80 percent humidity, by the manufacturer |
| COP | 6.1 at 80/80/80; 5.9 at 80F air, 63 percent humidity; 4.0 at 50F air, 63 percent humidity |
| Heat output at 80F air, 63 percent humidity | 110,000 BTU/hr |
| Heat output at 50F air, 63 percent humidity | 75,000 BTU/hr |
| Electrical | 208 to 230 V, single phase, 60 Hz |
| Power input | 5.4 kW |
| Minimum circuit amps | 46 A |
| Breaker | 60 A |
| Refrigerant | R-410A |
| Heat exchanger | Titanium |
| Cabinet | Powder coated metal |
| Connectivity | Wi-Fi, Raymote app; drives most variable speed pumps and up to six devices |
| Rheem part number | TWPH-6550EHT10, the same unit under the Rheem name, by Raypak's cross reference |
| Unit weight | 268 lb |
| Shipping weight | 286 lb |
| Warranty | 2 years labor, 7 years parts, 10 years on the titanium heat exchanger, by Raypak |
| Ships | Freight |
Downloads
Installation and Operation Manual
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000
Web Price
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900
Web Price
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800
Web Price
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000
Web Price
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900
Web Price
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900
Web Price
Raypak Boiler Burner 10-Pack, 100-10000414$4199
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000
Web Price
Questions and answers
What people ask about this product, answered by our pool techs.
How many BTU is the Raypak Crosswind V TWPH-6550EHT08?
118,000 BTU/hr at 80F air, 80F water and 80 percent humidity, by Raypak's catalog. A heat pump's rating depends on the air it breathes. The manufacturers rate at 80F air, 80F water and 80 percent humidity, and the figure falls as the air cools: the rows on this page give all three of the standard points.
What is the difference between TWPH-6550EHT08 and TWPH-6550EHT10?
The name on the cabinet. Raypak's cross reference lists TWPH-6550EHT10 as the Rheem version of the same heat pump, and the Ruud version ends in 11.
What breaker does the Crosswind V TWPH-6550EHT08 need?
60 A, on 208 to 230 V single phase, with a minimum circuit of 46 A, by Raypak's catalog.
Does the Crosswind V TWPH-6550EHT08 cool the pool as well?
No. It is a heat only model. Raypak's heat and cool versions end in EHC, the 6550 and 8550.
What warranty does Raypak give the Crosswind V TWPH-6550EHT08?
Two years labor, seven years parts and ten years on the titanium heat exchanger, by Raypak's catalog.
Can the Crosswind V TWPH-6550EHT08 run my variable speed pump?
Yes. Raypak says it drives most variable speed pumps on the market and controls up to six devices, and it reports through the Raymote app.
