Intermatic Control Panel w/ Transformer 110/220V 300W | T40003RT3Intermatic 100 Amp Load Center with 300W Transformer and T103M Time Switch, 8 Breaker Spaces, T40003RT3 In stock$46499
Intermatic Control Panel w/ Transformer 110/220V 300W | T40003RT3
Shop all Intermatic

Intermatic 100 Amp Load Center with 300W Transformer and T103M Time Switch, 8 Breaker Spaces, T40003RT3

Ask a questionMPN T40003RT3
$46499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • All in one control center Holds the time switch, the transformer and the other components needed to complete a pool or spa installation.
  • 300W transformer 120 VAC input, 12, 13 or 14V output, for low voltage pool and spa lighting.
  • T103M time switch Comes with the T103M mechanism for scheduling equipment such as filter pumps.
  • 100 amp, 8 breaker spaces 120-240 VAC or 120-208 VAC single phase, 60 Hz load center.
  • Room to add The T40000RT series panels accept additional Intermatic mechanisms and components.
  • Steel case with knockouts 0.048 in. steel with a light beige finish, plus combination knockouts on the bottom and sides.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic 100 Amp Load Center with 300W Transformer and T103M Time Switch, 8 Breaker Spaces, T40003RT3, SKU INT-30-860. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic 100 Amp Load Center with 300W Transformer and T103M Time Switch, 8 Breaker Spaces, T40003RT3
Intermatic

100 Amp Load Center with 300W Transformer and T103M Time Switch, 8 Breaker Spaces, T40003RT3

$46499
Intermatic Time Clock Mechanism Only, 110V, T103M
Intermatic

Time Clock Mechanism Only, 110V, T103M

$9199
Subtotal

Similar products

Other products people compare with this one.

J&J Electronics ColorSplash LXG-W RGBW LED pool lamp 26910, 120V J&J Electronics ColorSplash LXG-W RGBW LED Color Changing Pool Lamp 120V, LPL-P3-RGBW-120, 26910$13999 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price J&J Electronics 25014P VU Retro-P RGBW nicheless LED pool light with 100 ft cord J&J Electronics VU Retro-P Replacement Nicheless LED Color RGBW Pool Light, 100' Cord, 25014P$47999 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 CMP 25549-500-000 stainless steel pool light adapter repair ring CMP Pool Light Adapter Repair Ring, 25549-500-000$5099 S.R. Smith Treo FLED-C-TR LED pool light dimensions drawing S.R. Smith Treo 5W LED Color Changing RGB Light, 80' Cord, FLED-C-TR$37799 Pentair 618040 MicroBrite to GloBrite niche adapter Pentair GloBrite to MicroBrite Niche Adapter, 618040$2799 SuperPro JD100MC/120 100 watt 120 volt T4 E11 threaded screw-in halogen bulb SuperPro 100 Watt 120 Volt T4 E11 Threaded Screw-In Halogen Bulb, JD100MC/120$1099 Pentair 590104Z ColorVision LED light bubbler lens with o-ring Pentair ColorVision Lens with O-Ring for LED Light Bubbler, 590104Z$2899 Hayward SPX0580Z2 lens gasket for Astrolite pool lights Hayward Lens Gasket for Astrolite Pool Light, SPX0580Z2$3699
Jandy R0739400 light engine PCB for large LED pool light, light shaping diverge, 120V Jandy Light Engine PCB Large LED Light with Light Shaping Diverge 120V, R0739400$1,01999 Pentair 590119Z ColorVision bubbler color ring screw kit Pentair ColorVision Bubbler Color Ring Screw Kit, 590119Z$1799 J&J Electronics ColorSplash LXG-W LPL-S3-RGBW-120 color changing LED spa lamp, part 26912 J&J Electronics ColorSplash LXG-W RGBW LED Color Changing Spa Lamp 120V, LPL-S3-RGBW-120, 26912$9899 S.R. Smith FLED-LC-TR clear snap-on outer cover lens for Fiberstars and Treo LED lights S.R. Smith Clear Snap-On Outer Cover Lens, FLED-LC-TR$2799 Hayward AstroLite W3SP0583L100 500W 120V underwater pool light with 100 ft cord and plastic trim ring Hayward AstroLite Series, 500W/120V, 100 Ft Cord, Plastic Trim Ring, W3SP0583L100$50900 Pentair 590130Z black color ring for the ColorVision LED light bubbler Pentair Color Ring for ColorVision LED Light Bubbler, Black, 590130Z$1999 Pentair 79206000 sealing ring for the small stainless steel AquaLight niche Pentair Stainless Steel AquaLight Niche Sealing Ring, 79206000$7599 Pentair 619917Z IntelliBrite 5G 55 W white LED replacement light engine with gasket Pentair IntelliBrite 5G 55W White Engine, 619917Z$58399 Pentair 619875Z IntelliBrite 5g white LED 300W replacement engine Pentair IntelliBrite 5g White LED 300W Replacement Engine, 619875Z$54599 Pentair 620057 o-ring replacement kit for the GloBrite light Pentair O-Ring Replacement Kit for GloBrite Light, 620057$3599

Product details

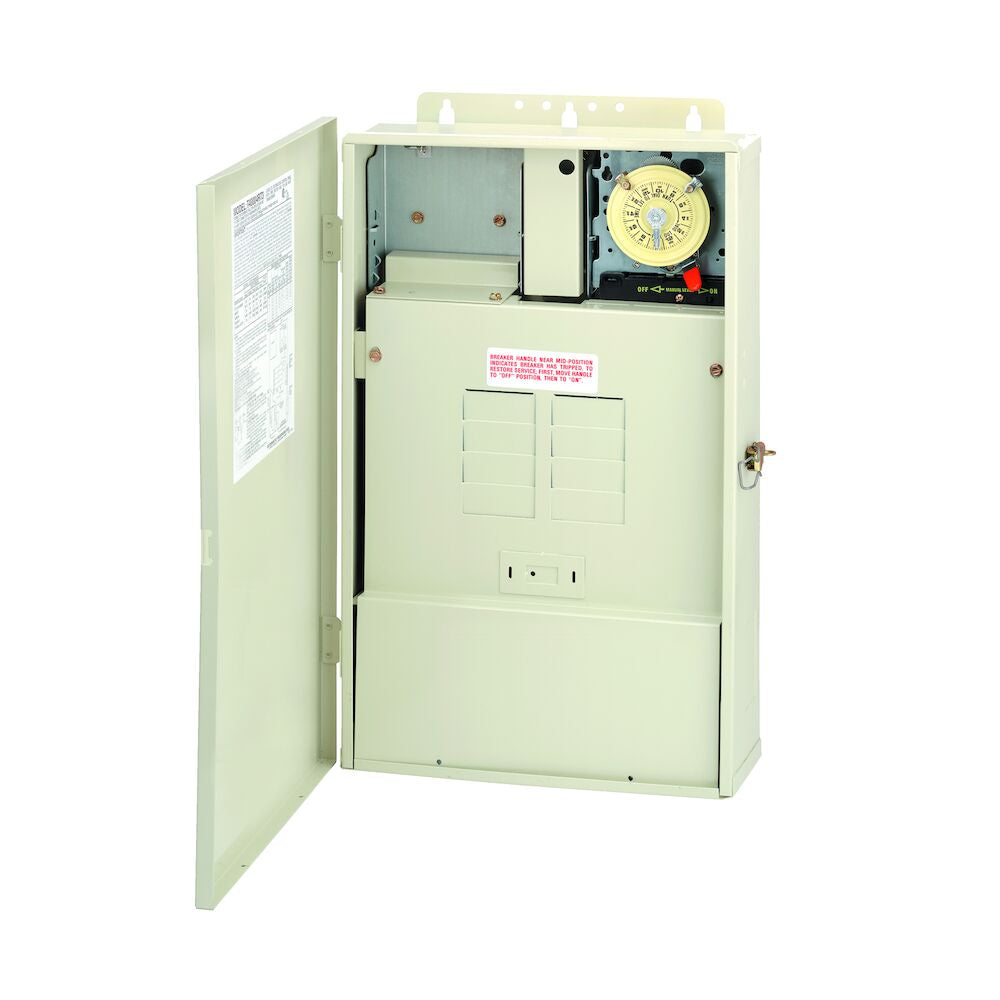

The Intermatic T40003RT3 is a 100 amp pool and spa load center with 8 breaker spaces, a 300W transformer and a T103M time switch mechanism built into one steel enclosure.

What it does

Intermatic designed the T40000RT series panels as an all in one electrical control center for any pool or spa installation. Inside the enclosure are the time switch, the transformer and the other components needed to complete the installation. The panel is rated 100 amp, 120-240 VAC or 120-208 VAC single phase, at 60 Hz.

Transformer and time switch

The transformer is rated 300 W, with 120 VAC input at 60 Hz and 12, 13 or 14 volt output. The T103M mechanism handles scheduled switching, and typical applications include filter pumps, blowers, low voltage pool and spa lighting, low voltage outdoor lighting and fountains.

Case and wiring

The steel case is 20-3/4 in. high by 12-3/4 in. wide by 4-1/4 in. deep, in 0.048 in. steel with a light beige finish. The bottom has seven 1/2-3/4 in. and three 3/4-1 in. combination knockouts, the left side has five 1/2-3/4 in. combination knockouts, and the right side has a 1-3/4 by 2-3/4 in. knockout for mounting switches or a GFCI.

Before you order

The panel accepts additional Intermatic mechanisms and components. Confirm the service voltage and the number of circuits you need against the 100 amp rating and the 8 breaker spaces.

Specifications
Brand Intermatic
Manufacturer part number T40003RT3
UPC 078275061675
Type Pool and spa load center with transformer and time switch
Panel rating 100 amp, 120-240 VAC or 120-208 VAC single phase, 60 Hz
Breaker spaces 8
Transformer 300 W, 120 VAC input at 60 Hz, 12 V, 13 V or 14 V output
Time switch mechanism T103M
Case T40000RT series, 20-3/4 in. high x 12-3/4 in. wide x 4-1/4 in. deep, 0.048 in. steel, light beige finish
Knockouts Bottom: seven 1/2-3/4 in. and three 3/4-1 in. combination; left side: five 1/2-3/4 in. combination; right side: one 1-3/4 x 2-3/4 in. for switches or a GFCI
Applications Filter pumps, blowers, low voltage pool and spa lighting, low voltage outdoor lighting, fountains
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9299 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7099 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$5999 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic Safety Transformer, 100W, Steel Enclosure, Beige, PX100$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5499 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$26699 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$26999 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12399 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11199 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$33099 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13499 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor, AG3000$9199 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5099 Intermatic PS3000 surge protector for pool and spa equipment Intermatic Surge Protector for Pool and Spa Equipment, 120/240V, PS3000$11599 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$36399

Questions and answers

What people ask about this product, answered by our pool techs.

What is included in the Intermatic T40003RT3?
The T40003RT3 is a load center with 8 breaker spaces, a 300 watt transformer and a T103M time switch mechanism, built into one steel enclosure.
What size is the T40003RT3 panel rated for?
The Intermatic T40003RT3 is a 100 amp panel for 120-240 VAC or 120-208 VAC single phase, 60 Hz service.
What output does the transformer in the T40003RT3 provide?
The 300 watt transformer takes 120 VAC at 60 Hz and gives a 12, 13 or 14 volt output for low voltage pool and spa lighting or outdoor lighting.
Can I add more switches or timers to the T40003RT3?
Yes. The T40000RT series panels accept additional Intermatic mechanisms and components, and the right side has a knockout for mounting switches or a GFCI.
