Hayward OmniLogic Wallmount Remote | HLWALLMOUNTHayward OmniLogic Wired Wall-Mount Touchscreen Remote, HLWALLMOUNT In stock$53099
Hayward OmniLogic Wallmount Remote | HLWALLMOUNT
Shop all Hayward

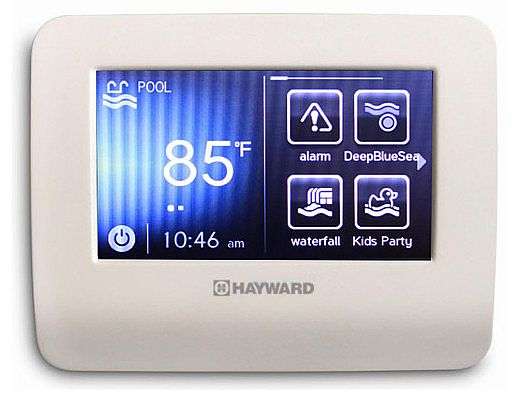

Hayward OmniLogic Wired Wall-Mount Touchscreen Remote, HLWALLMOUNT

Ask a questionMPN HLWALLMOUNT
$53099
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Wired touchscreen A full function wall-mount touchscreen wired to the OmniLogic controller.
  • Omni systems Hayward lists it for OmniLogic, OmniPL and OmniHub systems.
  • Indoor or protected outdoor Mount it indoors or somewhere covered, because rain must never reach the touchscreen.
  • Self configuring The OmniLogic discovers the terminal on startup and configures itself with no input.
  • Same as the local terminal Everything works from the wall except Service Mode and full configuration access.
  • Four conductor cable Runs up to 350 ft on 20 AWG, 285 ft on 22 AWG or 180 ft on 24 AWG.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward OmniLogic Wired Wall-Mount Touchscreen Remote, HLWALLMOUNT, SKU HAY-30-2104. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward OmniLogic Wired Wall-Mount Touchscreen Remote, HLWALLMOUNT
Hayward

OmniLogic Wired Wall-Mount Touchscreen Remote, HLWALLMOUNT

$53099
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$25899
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340
Pentair

Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340

$30299
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7099
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX3200LCD digital control interface assembly for TriStar VS pumps Hayward Digital Control Interface Assembly, SPX3200LCD$44599 Hayward AquaPod 2.0 AQL2-POD2 wireless waterproof touchscreen remote Hayward AquaPod 2.0 Wireless Waterproof Touchscreen Remote, AQL2-POD2$59900 Pentair IntelliConnect EC-523317 control and monitoring system, front view Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317$59900 Web Price Hayward LKCUS1100 ColorLogic standalone light controller Hayward ColorLogic Light Controller, Standalone, LKCUS1100$37699 Jandy 8050 four function spa side remote switch, gray, with 150 ft cable Jandy 4 Function Spa Side Remote Switch, Gray, 150 ft., 8050$52199 Pentair 521885 iS4 four-function spa-side remote, white, 100 ft. cable Pentair Genuine OEM iS4 Spa-Side Remote, White, 100 ft., 521885$30999 Hayward AQL-CHEM2 Sense and Dispense pH Dispense 120 V CO2 solenoid valve Hayward Sense and Dispense pH Dispense, 120V Solenoid Valve for CO2, AQL-CHEM2$44599 Pentair SunTouch 520859 single body control system power center Pentair SunTouch Single Body Control System, Includes Temp Sensors and 3 Relays, 520859$70999 Hayward AQL2-BASE-RF AQL2 wireless base station Hayward AQL2 Wireless Base Station, AQL2-BASE-RF$35799 Pentair 520548 EasyTouch Indoor Control Panel for 4 circuit systems Pentair EasyTouch Indoor Control Panel for 4 Circuit Systems, 520548$57399
Pentair 618031 Color Sync Controller for color changing pool lights Pentair Color Sync Controller, 618031$38499 Hayward AQL2-SS-RF wireless spa side remote Hayward Wireless Spa Side Remote, AQL2-SS-RF$55399 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$33099 Hayward HLXPLCONTROL replacement OmniPL controller Hayward HLXPLCONTROL Replacement OmniPL Controller, HLXPLCONTROL$78699 Hydroquip 50-BP7-600-40-K BP7 Water Pro Series three load retro-fit control system Hydroquip BP7 Water Pro Series Control System, 4.0 kW, TP600, Three Load Retro-Fit Kit, 50-BP7-600-40-K$57900 Web Price Hayward GL-235 AquaSolar dual differential solar control Hayward AquaSolar Control, GL-235$39699 Pentair 521441 load center for IntelliTouch and EasyTouch control systems Pentair Load Center for IntelliTouch, IntelliChlor SCG Transformer, EasyTouch and EasyTouch PL4/PSL4 Control System, 521441$30199 Pentair 521892 iS4 black four function spa-side remote control Pentair Black iS4 4-Function Spa-Side Remote Control with 100 ft Cord, 521892$31699 Pentair 522035 IntelliCenter white indoor control panel Pentair IntelliCenter White Indoor Control Panel, 522035$53199 Hydro-Quip 50-BP7-600-55-K Water Pro BP7 spa control with TP600 topside panel Hydro-Quip TP600 Controller 5.5kW BP7 Retro-Fit Kit, 50-BP7-600-55-K$57900 Web Price

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward HLWALLMOUNT is the wired wall-mount touchscreen remote for OmniLogic pool automation, and Hayward also lists it for OmniPL and OmniHub systems. It puts the controller on a wall inside the house or in a protected outdoor spot, wired to the OmniLogic main board with four conductor cable.

What it does

The terminal monitors and controls the pool from the wall. It provides the same functions as the OmniLogic local terminal, with two limits: Service Mode is only on the local terminal, and configuration options are limited, with full access to all settings kept at the local terminal.

Installing it

The cable lands on the high speed RS-485 screw terminals, matching 1 to 1, 2 to 2 and so on, with terminal 5 unused on the OmniLogic. Hayward calls for 4 conductor, 20 to 24 AWG twisted pair, and recommends 22 AWG solid phone cable. The longest runs are 350 feet on 20 AWG, 285 feet on 22 AWG and 180 feet on 24 AWG. The OmniLogic must be fully powered down and the dead front removed to connect it, so this is a job for a qualified installer. On startup the OmniLogic discovers the terminal and configures itself.

Before you order

Hayward allows one HLWALLMOUNT per OmniLogic. The terminal firmware has to match the OmniLogic firmware, so update both to the latest version. The box contains the remote terminal only, so plan on your own mounting screws, anchors and cable.

Specifications
Brand Hayward
Manufacturer part number HLWALLMOUNT
UPC 0610377225076
Type Wired wall-mount touchscreen remote
Series Omni Remotes
Works with OmniLogic, OmniPL and OmniHub systems
Connection Wired, RS-485 screw terminals 1 to 4 on the OmniLogic main board
Cable 4 conductor, 20 to 24 AWG twisted pair
Maximum cable run 350 ft on 20 AWG, 285 ft on 22 AWG, 180 ft on 24 AWG
Terminals per OmniLogic One
Location Indoors or weather protected area
Included HLWALLMOUNT remote terminal
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit, SP0714T$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,20799 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What does the Hayward HLWALLMOUNT do?
The HLWALLMOUNT is a wired touchscreen terminal that mounts on a wall and controls an OmniLogic pool automation system, indoors or in a protected outdoor spot.
Can I use more than one HLWALLMOUNT?
Hayward states in the owner manual that no more than one HLWALLMOUNT can be installed and connected to an OmniLogic.
What cable and distance does it need?
Use 4 conductor, 20 to 24 AWG twisted pair, with 22 AWG solid phone cable recommended. The maximum run is 350 feet on 20 AWG, 285 feet on 22 AWG and 180 feet on 24 AWG.
Is there anything it cannot do compared with the OmniLogic panel?
It matches the local terminal except that Service Mode is only on the local terminal, and configuration options are limited there.
