AquaStar Three-Piece Directional Eyeball Fittings 1.5 | 4103AquaStar Three-Piece Directional Eyeball Fitting, 1-1/2 in. Knock-In, 1 in. Orifice, Light Gray, 4103 In stock$1099
AquaStar Three-Piece Directional Eyeball Fittings 1.5 | 4103
Shop all AquaStar

AquaStar Three-Piece Directional Eyeball Fitting, 1-1/2 in. Knock-In, 1 in. Orifice, Light Gray, 4103

Ask a questionMPN 4103
$1099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Knock-In fit Knocks into standard 1-1/2 in. pipe.
  • 1 in. orifice The 4103 carries the 1 in. orifice size, one of four available.
  • Self-leveling Self-leveling for pipe and surface construction variations.
  • Adjustable eyeball The eyeball is directional and adjusts to aim the return flow.
  • UV-resistant ABS Made from engineered polymer, UV-resistant ABS material.
  • Light gray color Light gray is the 03 color suffix in the 41xx series.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About AquaStar Three-Piece Directional Eyeball Fitting, 1-1/2 in. Knock-In, 1 in. Orifice, Light Gray, 4103, SKU API-25-1087. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item AquaStar Three-Piece Directional Eyeball Fitting, 1-1/2 in. Knock-In, 1 in. Orifice, Light Gray, 4103
AquaStar

Three-Piece Directional Eyeball Fitting, 1-1/2 in. Knock-In, 1 in. Orifice, Light Gray, 4103

$1099
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1899
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$35699
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 Hayward SP1419D 3/4 inch HydroStream eyeball return jet, white Hayward 3/4" HydroStream Eyeball Return Jet, White, SP1419D$825 Hayward SPX1408B white faceplate for the SP1408 return inlet Hayward Return Inlet SP1408 Faceplate, White, SPX1408B$699 Hayward SPX1408C vinyl liner return inlet face plate gasket Hayward Return Inlet Gasket, Vinyl Liner 1.5", SPX1408C$1399 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699 CMP 25524-200-000 white wall return fitting, 1-1/2 inch FIP by 2 inch CMP Wall Return Fitting, 1.5" FIP x 2" Insider Fitting, White, 25524-200-000$699 Hayward SP1419C 1/2 inch HydroStream eyeball return jet in white Hayward 1/2" HydroStream Eyeball Return Jet, White, SP1419C$1599 Hayward SP1023 1-1/2 inch return inlet fitting with locknut and gaskets Hayward 1-1/2 Inch FIP Return Inlet Fitting with Locknut and Gasket, SP1023$1599 Hayward SPX1411B threaded white ABS face plate for SP1411 vinyl liner inlet fitting Hayward Threaded Face Plate for SP1411 Vinyl Liner Inlet Fitting, SPX1411B$1599 Hayward SP1419B 3/8 inch HydroStream eyeball return jet in white Hayward 3/8" HydroStream Eyeball Return Jet, White, SP1419B$799

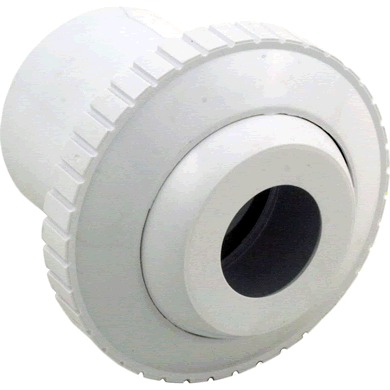

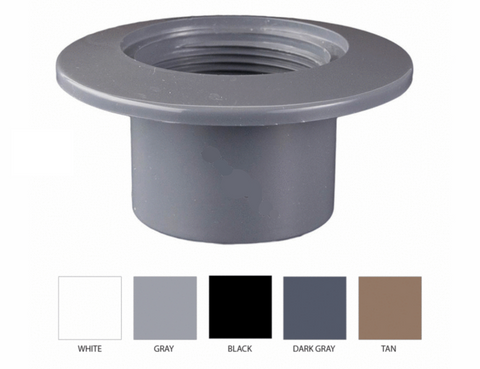

CMP 25552-307-000 dark gray Hydrostream inlet fitting with 3/4 inch opening CMP 1.5" MPT Dark Gray Hydrostream Fitting with 3/4" Opening, 25552-307-000$1199 CMP 25545-100-000 white vinyl return faceplate kit replacing Hayward SPX1408B CMP Vinyl Inlet Fitting Face Plate Compatible with Hayward® SPX1408B, White, with Screws and Gaskets, 25545-100-000$1399 AquaStar DIV0101 2 in. x 1.5 in. white return diverter plate AquaStar 2 in. x 1.5 in. White Return Diverter Plate, DIV0101$1599 Hayward SP1419ABLK Hydrostream slotted jet fitting in black Hayward Hydrostream Jet Fitting Slotted, Black, SP1419ABLK$899 CMP 25524-201-000 Insider wall return fitting in gray CMP Insider Wall Return Fitting, Gray, 25524-201-000$699 AquaStar JO101 white flush retrofit eyeball AquaStar White Flush Retrofit Eyeball, JO101$1599 Hayward SP1421D 3/4 in Insider HydroStream return jet fitting, white Hayward 3/4 in Insider HydroStream, White, SP1421D$799 Hayward SP1418D HydroStream return inlet with 3/4 inch opening, white Hayward 3/4 inch Opening HydroStream Return Inlet, White, SP1418D$1499 Hayward SPX1425C face plate grate, 4 inch round Hayward Face Plate Grate, 4 Inch Round, SPX1425C$1299 Hayward SP1418DDGR dark gray Hydrostream flanged eyeball fitting with 3/4 in. eye Hayward 1-1/2" MPT 3/4" Eye Dark Gray Hydrostream Flanged Eyeball Fitting, SP1418DDGR$1499

Product details

The AquaStar 4103 is a three-piece directional eyeball fitting in light gray, 1-1/2 in. knock-in, with a 1 in. orifice.

What it does

The fitting knocks into standard 1-1/2 in. pipe and is self-leveling, which accommodates variations in pipe and surface construction. The eyeball is adjustable, so the return flow can be aimed.

How to choose

The eyeball comes in four orifice sizes. AquaStar numbers them by series: 1 in. is 41xx, 3/4 in. is 42xx, 1/2 in. is 43xx and slotted is 44xx. The last two digits are the color, so the 4103 is the 1 in. orifice in light gray. The same fittings are also made in clear, as 4100, 4200, 4300 and 4400.

Material

The fitting is molded from engineered polymer, UV-resistant ABS material.

Before you order

This listing is one fitting in light gray with the 1 in. orifice. Choose the orifice size and the color by part number before ordering, since the series sets the orifice and the last two digits set the color.

Specifications
Brand AquaStar
Manufacturer part number 4103
UPC 883612002484
Type Three-piece directional eyeball fitting
Pipe size 1-1/2 in. knock-in
Orifice size 1 in.
Color Light gray
Material Engineered polymer, UV-resistant ABS
Orifice series 1 in. = 41xx, 3/4 in. = 42xx, 1/2 in. = 43xx, slotted = 44xx
Clear versions 4100, 4200, 4300, 4400
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from AquaStar

AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,00000 AquaStar DIV0101 2 in. x 1.5 in. white return diverter plate AquaStar 2 in. x 1.5 in. White Return Diverter Plate, DIV0101$1599 AquaStar PF35CART 250 sq ft replacement cartridge for the Pipeline PF35000 filter AquaStar Pipeline 250 sqft 31" Cartridge Filter Replacement, PF35CART$16199 AquaStar A10RCFR101 10 inch white universal round main drain cover with adapter kit AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101$6399 AquaStar PF27CART 200 sq ft replacement cartridge for the PipeLine PF27000 filter AquaStar Pipeline 200 Sq Ft 24 in. Filter Cartridge Replacement, PF27CART$13799 AquaStar WAV9WR101 9 inch by 9 inch white Wave suction cover with frame and riser AquaStar 9" x 9" Wave Suction Cover with Frame and Riser, White, WAV9WR101$14499 AquaStar SKWD105 Flow Star skimmer weir plate assembly in dark gray AquaStar Flow Star Skimmer Weir, Dark Gray, SKWD105$2299 AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3499 AquaStar UNHT20 high temperature 2 inch threaded union AquaStar High Temperature 2" Threaded Union, UNHT20$2999 AquaStar SKZ214 ZarStar large skimmer basket AquaStar ZarStar Skimmer Basket, SKZ214$8299
AquaStar SKWD101 Flow Star skimmer weir plate assembly in white AquaStar Flow Star Skimmer Weir Plate, SKWD101$2399 AquaStar WAV18WRNF101 18 by 18 inch white Square Wave suction outlet cover set AquaStar 18" x 18" White Square Wave Suction Outlet Cover Set, WAV18WRNF101$30999 AquaStar 8MF101 8 inch white round MoFlow suction outlet cover with mud frame AquaStar 8" White Round MoFlow Suction Outlet Cover and Mud Frame, 8MF101$3099 AquaStar GV14 14 inch Gyro-Vac Flex multi directional pool vacuum head AquaStar 14" Gyro-Vac Flex Vacuum Head, GV14$18199 AquaStar R9MF101 9 inch square white MoFlow retrofit suction outlet cover AquaStar 9" Square White MoFlow Retrofit Suction Outlet Cover, R9MF101$7399 AquaStar 32CDFLNFK101 32 in. white channel drain flat grate suction outlet AquaStar 32 in. White Channel Drain Flat Grate Suction Outlet, Without Frame, 32CDFLNFK101$11399 AquaStar SK6 white skimmer basket with stainless steel handle AquaStar Skimmer Basket with Stainless Steel Handle, SK6$1899 AquaStar GV22 22 inch Gyro-Vac Flex vacuum head AquaStar 22" Gyro-Vac Flex Vacuum Head, GV22$28499 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3499 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3499

Questions and answers

What people ask about this product, answered by our pool techs.

What pipe does the AquaStar 4103 fit?
The AquaStar 4103 is a knock-in fitting that goes into standard 1-1/2 in. pipe.
What orifice size is the AquaStar 4103?
The 4103 has the 1 in. orifice. The 1 in. size is the 41xx series, 3/4 in. is 42xx, 1/2 in. is 43xx and slotted is 44xx.
What color is the AquaStar 4103?
It is light gray. The same 1 in. orifice fitting in clear is part number 4100.
What is the AquaStar 4103 made of?
It is made from engineered polymer, UV-resistant ABS material.
