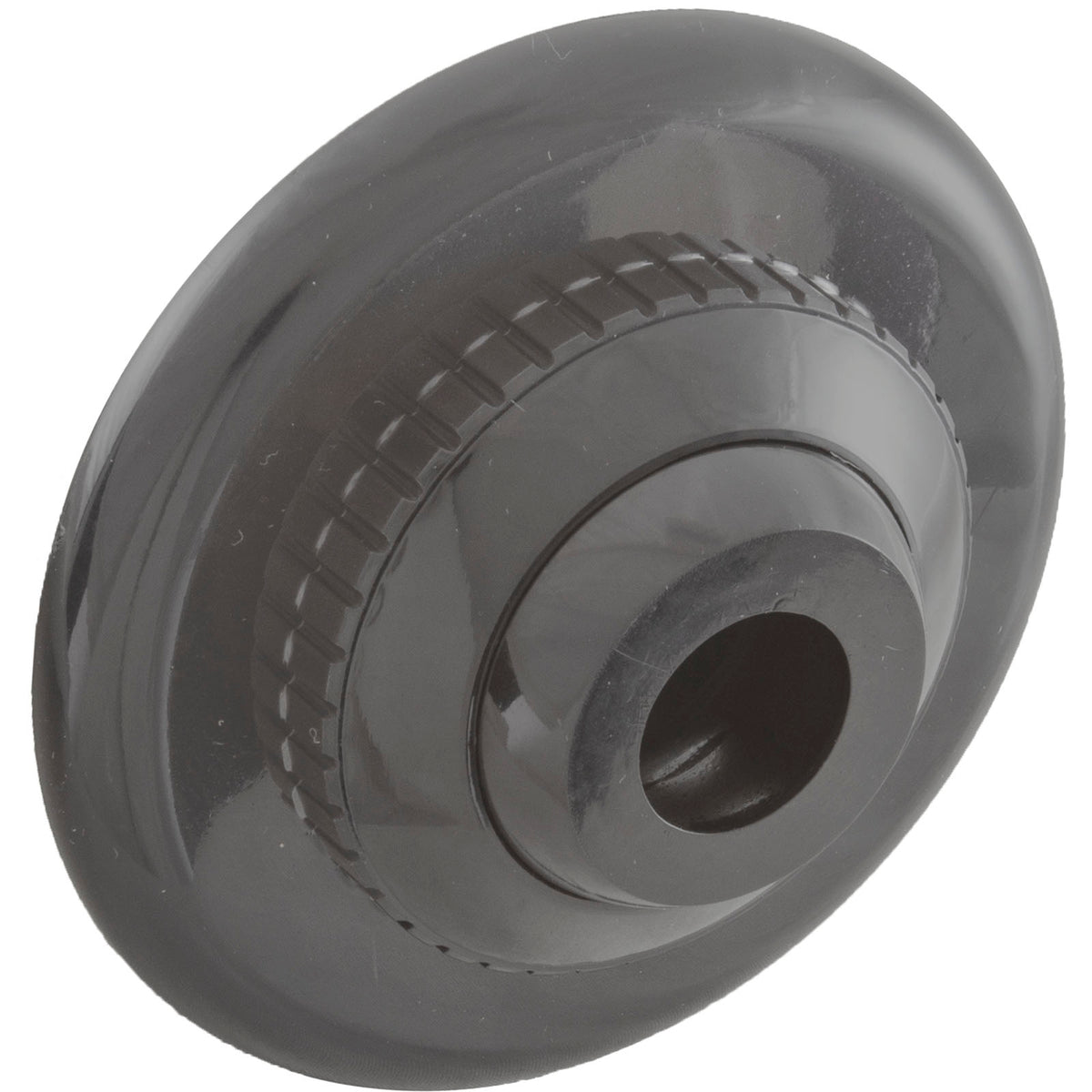

Hayward SP1418DDGR dark gray Hydrostream flanged eyeball fitting with 3/4 in. eye
Shop all Hayward

Hayward 1-1/2" MPT 3/4" Eye Dark Gray Hydrostream Flanged Eyeball Fitting, SP1418DDGR

Ask a questionMPN SP1418DDGR
$1499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward The factory Hydrostream fitting, part SP1418DDGR.
  • 1-1/2 in. MPT Threads into the standard 1-1/2 in. female thread of a pool return.
  • 3/4 in. eye The narrow opening raises the exit velocity of the return water, which is what keeps the pool turning over.
  • Aimable The eyeball swivels in the body, so the return can be pointed down for circulation or across the surface for skimming.
  • Dark gray The DGR in the part number is the color code, for pools finished in dark trim rather than white.
  • Flanged face The flange seats against the wall fitting and finishes the opening cleanly.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward 1-1/2" MPT 3/4" Eye Dark Gray Hydrostream Flanged Eyeball Fitting, SP1418DDGR, SKU HAY-25-7039. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward 1-1/2" MPT 3/4" Eye Dark Gray Hydrostream Flanged Eyeball Fitting, SP1418DDGR
Hayward

1-1/2" MPT 3/4" Eye Dark Gray Hydrostream Flanged Eyeball Fitting, SP1418DDGR

$1499
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1899
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$1099
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$35699
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 Hayward SP1419D 3/4 inch HydroStream eyeball return jet, white Hayward 3/4" HydroStream Eyeball Return Jet, White, SP1419D$825 Hayward SPX1408C vinyl liner return inlet face plate gasket Hayward Return Inlet Gasket, Vinyl Liner 1.5", SPX1408C$1399 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Hayward SP1419C 1/2 inch HydroStream eyeball return jet in white Hayward 1/2" HydroStream Eyeball Return Jet, White, SP1419C$1599 Hayward SP1023 1-1/2 inch return inlet fitting with locknut and gaskets Hayward 1-1/2 Inch FIP Return Inlet Fitting with Locknut and Gasket, SP1023$1599 Hayward SP1419B 3/8 inch HydroStream eyeball return jet in white Hayward 3/8" HydroStream Eyeball Return Jet, White, SP1419B$799 Hayward SPX1411B threaded white ABS face plate for SP1411 vinyl liner inlet fitting Hayward Threaded Face Plate for SP1411 Vinyl Liner Inlet Fitting, SPX1411B$1599 Hayward SP1023G above-ground pool wall fitting with locknut and gaskets Hayward Above-Ground Wall Fitting with Locknut and Gaskets, SP1023G$1999 CMP 25552-307-000 dark gray Hydrostream inlet fitting with 3/4 inch opening CMP 1.5" MPT Dark Gray Hydrostream Fitting with 3/4" Opening, 25552-307-000$1199
Hayward SPX1420A1 rubber flow director for a 1 inch eyeball fitting Hayward Rubber Flow Director, SPX1420A1$1699 CMP 25523-700-000 white fiberglass wall fitting with flush eyeball CMP 1-1/2" Socket x 2" Spigot White Fiberglass Wall Fitting and Flush Eyeball, 25523-700-000$1899 CMP 25545-100-000 white vinyl return faceplate kit replacing Hayward SPX1408B CMP Vinyl Inlet Fitting Face Plate Compatible with Hayward® SPX1408B, White, with Screws and Gaskets, 25545-100-000$1399 AquaStar DIV0101 2 in. x 1.5 in. white return diverter plate AquaStar 2 in. x 1.5 in. White Return Diverter Plate, DIV0101$1599 Hayward SP1419ABLK Hydrostream slotted jet fitting in black Hayward Hydrostream Jet Fitting Slotted, Black, SP1419ABLK$899 Pentair 542405 standard body return fitting in white for concrete pools Pentair 1.5 inch Threaded x 1.5 inch Socket Standard Body Return Fitting for Concrete, White, 542405$1799 Hayward SP1421D 3/4 in Insider HydroStream return jet fitting, white Hayward 3/4 in Insider HydroStream, White, SP1421D$799 AquaStar JO101 white flush retrofit eyeball AquaStar White Flush Retrofit Eyeball, JO101$1599 CMP 25523-701-000 gray fiberglass pool return fitting CMP Fiberglass Return Fitting, Gray, 25523-701-000$1999 CMP 25524-204-000 black wall return fitting, 1.5 inch FIP by 2 inch CMP Wall Return Fitting, 1.5" FIP x 2" Insider Fitting, Black, 25524-204-000$999

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward SP1418DDGR is a Hydrostream flanged eyeball fitting in dark gray, with a 1-1/2 in. MPT thread and a 3/4 in. eye. It threads into the return in the pool wall and becomes the visible face of that return.

What the small eye is for

The eye is deliberately smaller than the line feeding it. Restricting the outlet raises the speed of the water leaving the fitting, and that jet is what moves the whole body of water in the pool. A pool that turns over properly holds chemical evenly and pushes floating leaves and dust toward the skimmer instead of leaving them to settle.

Aiming it

The eyeball swivels inside the flanged body, so the direction is set on installation and can be changed later. Pointing the flow down and away from the skimmer is the usual setting for circulation. Raising it toward the surface skims harder but stirs the deep water less.

Color

This is the dark gray version. The color code sits in the part number itself, so quote SP1418DDGR when matching the fittings already on the pool.

Specifications
Brand Hayward
Manufacturer part number SP1418DDGR
UPC 0610377142380
Type Hydrostream flanged eyeball fitting
Thread 1-1/2 in. MPT
Eye opening 3/4 in.
Color Dark gray
Shipping weight 0.13 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,20799 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What thread does it use?
1-1/2 in. MPT, so it screws straight into the 1-1/2 in. female thread of a standard pool return.
What does the 3/4 in. eye do?
It narrows the outlet, which raises the speed of the water leaving it. That extra push is what circulates the pool and drives floating debris toward the skimmer.
Can I aim the flow?
Yes. The eyeball rotates inside the flanged body. Point it down and slightly away from the skimmer for general circulation, or nearer the surface when you want the water skimmed harder.
What color is it?
Dark gray, as the DGR in SP1418DDGR indicates.
