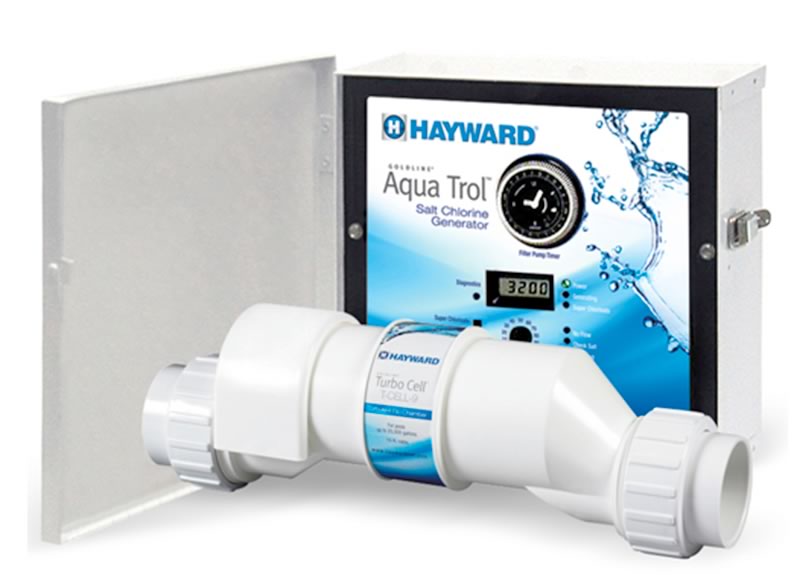

Hayward AquaTrol salt water chlorine generator for above ground pools, straight blade versionHayward AquaTrol Salt Water Chlorine Generator, Straight Blade, W3AQ-TROL-HP$1,50900 Web Price
Hayward AquaTrol salt water chlorine generator for above ground pools, straight blade version
Shop all Hayward

Hayward AquaTrol Salt Water Chlorine Generator, Straight Blade, W3AQ-TROL-HP

Ask a questionMPN W3AQ-TROL-HP
$1,50900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
Out of stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Above ground pools to 18,000 gallons Sized for the average residential above ground pool, 67,500 liters.
  • Chlorine from salt The system converts a low level of salt in the water into free chlorine, low enough that it is not normally tasted.
  • Built in filter pump timer The timer runs the filter pump so the daily filtration and sanitizing actually happen.
  • Straight blade return jet This version ships with the straight blade jet, as opposed to the twist lock style.
  • Flexible plumbing options The cell connects to 1-1/2 in. or 1-1/4 in. flexible hose, or to 2 in. rigid PVC pipe with the HP option.
  • Standard household power Electrical connections are made at 120V, 15A.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward AquaTrol Salt Water Chlorine Generator, Straight Blade, W3AQ-TROL-HP, SKU GLD-45-1012. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward AquaTrol Salt Water Chlorine Generator, Straight Blade, W3AQ-TROL-HP
Hayward

AquaTrol Salt Water Chlorine Generator, Straight Blade, W3AQ-TROL-HP

$1,50900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
AquaChek White Salt Titrators, Salt Water Test Strips, 40 Count Bottle, 561161
AquaChek

White Salt Titrators, Salt Water Test Strips, 40 Count Bottle, 561161

$3999
AquaChek Salt System Test Kit for Salt Water Pools, Yellow 4-Way and White Salt Test Strips, 542228A
AquaChek

Salt System Test Kit for Salt Water Pools, Yellow 4-Way and White Salt Test Strips, 542228A

$2499
Subtotal

Similar products

Other products people compare with this one.

Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Hayward W3AQR15 AquaRite complete salt chlorination system, control box and cell Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15$2,19900 Web Price Pentair 523744-EC IntelliChlor LT15 salt chlorine generator and 110 volt power pack bundle Pentair IntelliChlor LT15 Salt Chlorine Generator Power Pack Bundle, 110V, 523744-EC$1,23900 Web Price Jandy R0802200 TruClear salt chlorinator power pack, 120/240 VAC Jandy TruClear Salt Chlorinator Power Pack 120/240 VAC, R0802200$75499 Solaxx CLG928A PoolTux above ground salt chlorine generator Solaxx PoolTux 28K Gallon Above Ground Salt Chlorine Generator, CLG928A$1,26099 Hayward AquaRite S3 salt chlorine generator system for pools up to 40,000 gallons Hayward AquaRite S3 Salt System, 40K Gallon, AQRS340$2,19199 Solaxx CLGD60-020 Relaxx Resilience ComfortChlor replacement power supply Solaxx Relaxx Resilience ComfortChlor Power Supply, CLGD60-020$1,51199 Madimack InverChlor MC250 inverter salt chlorine generator system Madimack InverChlor MC250 Inverter Salt Generator System, Up to 25K Gallons, MC250NA$1,84000 Web Price Pentair 520556 IntelliChlor PC100 salt chlorine generator power center, 110/220V Pentair IntelliChlor PC100 Salt Chlorine Generator Power Center 110/220V, 520556$66099
Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12999 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 CompuPool GRC/J/APURE1400-3 3 port 14 blade replacement salt cell for Jandy AquaPure 1400 CompuPool 3-Port 14-Blade Replacement Salt Cell for Jandy AquaPure System, 40,000 Gallons, GRC/J1400-3$56799 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Aquamoto 58470-110-700 jumbo floating chlorine dispenser for 3 in. tablets Aquamoto Jumbo Chlorine Floater for 3" Chlorine Tabs, 58470-110-700$2099

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward AquaTrol is a salt water chlorine generator built for above ground pools, in the straight blade return jet version. It handles the average residential above ground pool up to 18,000 gallons, or 67,500 liters.

How salt chlorination works

The pool carries a low concentration of salt, low enough that swimmers do not normally taste it. As water passes through the cell, the system converts that salt into free chlorine, which kills bacteria and algae exactly as added chlorine does. After it has done its work the chlorine reverts to salt, and the cycle repeats. Salt is only topped up when water is lost to backwashing, draining or splash out, not to evaporation.

Timer and power

The AquaTrol includes a filter pump timer, so the pump and the chlorine generation run together for the hours the pool actually needs. Electrical connections are made at 120V, 15A.

Plumbing and options

The cell connects with 1-1/2 in. or 1-1/4 in. flexible hose, or to 2 in. rigid PVC pipe when the HP option is ordered, which covers most above ground installations. Chlorine demand varies with swimmer load, rainfall, water temperature and how clean the pool is kept, so expect to adjust the output through the season.

From Pool School

How to Convert a Pool to Salt WaterWhat gets installed, how to size it, what to check first, and the start up in order. Read Pool Salt Calculator: How Much Salt to AddEnter the gallons, the salt in the water and your system. Get the pounds and the bags. Read How to Clean a Salt CellHose first, acid only on scale that stays, and each manufacturer's own mix and time limit. Read
Specifications
Brand Hayward
Manufacturer part number W3AQ-TROL-HP
UPC 0610377387637
Type Salt water chlorine generator
Pool type Above ground
Capacity Up to 18,000 gallons (67,500 liters)
Return jet Straight blade
Timer Built in filter pump timer
Electrical 120V/15A
Plumbing 1-1/2 in. or 1-1/4 in. flexible hose, or 2 in. rigid PVC pipe with the HP option
Shipping weight 25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,10299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What size pool does the AquaTrol handle?
It is designed for the average residential above ground pool up to 18,000 gallons, or 67,500 liters. Actual demand varies with swimmer load, rainfall, temperature and how clean the pool is kept.
Will the water taste salty?
It is not normally tasted. The system runs at a low salt concentration, far below sea water.
What is the difference between straight blade and twist lock?
It is the return jet fitting the system comes with. This one is the straight blade version. Order the style that matches the return on your pool.
How does it plumb in?
The cell takes 1-1/2 in. or 1-1/4 in. flexible hose, or 2 in. rigid PVC pipe when the HP option is ordered. Power is 120V at 15A.
Ask your own question
