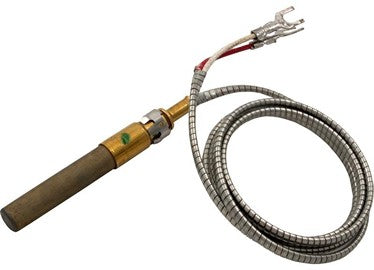

Pentair 071515 MiniMax and MiniMax Plus pilot generator with Q313A clipPentair MiniMax Pilot Generator with Clip Q313A, 071515 In stock$9799
Pentair 071515 MiniMax and MiniMax Plus pilot generator with Q313A clip
Shop all Pentair

Pentair MiniMax Pilot Generator with Clip Q313A, 071515

Ask a questionMPN 071515
$9799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair part Factory pilot generator 071515, supplied with the Q313A clip.
  • Clip included The Q313A mounting clip comes with the generator, so the pilot bracket does not have to be reused.
  • Millivolt output The generator produces the small voltage that holds the gas valve open once the pilot is lit.
  • Common no heat cause A pilot that lights but will not stay lit when the button is released usually points here.
  • MiniMax family Listed for Pentair MiniMax and MiniMax Plus heaters.
  • Check the model coverage The source lists both the Model 75 and 100 heaters and the 150 to 400 MiniMax Plus and MiniMax CH range, so confirm against your heater before ordering.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair MiniMax Pilot Generator with Clip Q313A, 071515, SKU PUR-151-9673. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair MiniMax Pilot Generator with Clip Q313A, 071515
Pentair

MiniMax Pilot Generator with Clip Q313A, 071515

$9799
Pentair Digital Thermostat Circuit Board (IID), 470179
Pentair

Digital Thermostat Circuit Board (IID), 470179

$18899
Pentair MiniMax NT STD Heater Flame Sensor, 471603
Pentair

MiniMax NT STD Heater Flame Sensor, 471603

$3499
Pentair 2" Heat Pump PVC Union, 473381
Pentair

2" Heat Pump PVC Union, 473381

$3399
Pentair Thermister Probe MX NT, 471566Z
Pentair

Thermister Probe MX NT, 471566Z

$5399
Pentair Transformer for MiniMax Plus, ThermaFlo and ThermaFlo Titanium Heat Pump, 473155
Pentair

Transformer for MiniMax Plus, ThermaFlo and ThermaFlo Titanium Heat Pump, 473155

$15199
Pentair Minimax Pressure Switch, 470190Z
Pentair

Minimax Pressure Switch, 470190Z

$9099
Subtotal

Similar products

Other products people compare with this one.

Pentair MiniMax Pilot Assembly Propane LP IID | 471205 Pentair MiniMax Pilot Assembly Propane LP IID | 471205$10999 Pentair 473605 pressure switch for MiniMax pool heaters Pentair Pressure Switch for MiniMax Heaters, 473605$7699 Pentair 460799Z igniter kit for NT Low NOx heaters Pentair Igniter Kit NT Low NOx TSI, 460799Z$13299 Pentair 71017 150F high limit switch with safety shutoff Pentair 150F High Limit with Safety Shutoff, 71017$4699 Pentair 471587 115 F hi-limit thermostat for MiniMax NT and MiniMax CH pool heaters Pentair Hi-Limit Thermostat, 115 F, for MiniMax NT and MiniMax CH Pool Heaters, 471587$4699 Pentair 471420 plastic main manifold bottom cap for MiniMax NT heaters Pentair Plastic Main Manifold Bottom Cap for MiniMax NT Heaters, 471420$1299 Pentair Ignition Control Module Minimax | 472150 Pentair Ignition Control Module Minimax | 472150$23399 Pentair MiniMax DDTC Control Circuit Board Assembly | 472100 Pentair MiniMax DDTC Control Circuit Board Assembly | 472100$46099 Pentair Minimax Heat Exchanger Less Heads 200kBTU | 075628 Pentair Minimax Heat Exchanger Less Heads 200kBTU | 075628$60199 Pentair 155187 double insulated toggle switch Pentair Double Insulated Toggle Switch, 155187$2999
Pentair 70951 tube seal gasket for MiniMax pool heaters Pentair Tube Seal Gasket, 70951$699

Product details

The Pentair 071515 is the pilot generator for MiniMax and MiniMax Plus pool and spa heaters, supplied with the Q313A clip. It is the genuine Pentair replacement.

How it works

A millivolt heater runs without line power at the gas valve. The pilot flame heats the tip of the pilot generator, the generator produces a small voltage, and that voltage is what keeps the main gas valve open. When the generator ages and its output drops, the valve can no longer be held open and the pilot dies as soon as you release the button.

Before you replace it

Check the pilot flame first. A weak, yellow or misaimed flame gives the same symptom as a dead generator, and a new part will not fix a dirty pilot orifice.

Model coverage

The source information for this part lists it in two ways: for MiniMax and MiniMax Plus Model 75 and Model 100, and under the MiniMax Plus and MiniMax CH 150 through 400 range. Both are noted here rather than picking one. Check the model plate on your heater before you order.

Specifications
Brand Pentair
Manufacturer part number 071515
UPC 788379605506
Type Pilot generator with clip
Clip Q313A
Part type Pool heater part
Fits Pentair MiniMax and MiniMax Plus heaters
Model coverage in the source Listed for MiniMax and MiniMax Plus Model 75 and Model 100, and also listed under MiniMax Plus and MiniMax CH 150 through 400
Shipping weight 0.3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What does a pilot generator do?
On a millivolt heater the pilot flame heats the generator, which produces a small voltage. That voltage is what holds the gas valve open. No signal means the pilot goes out the moment you release the valve button.
Which MiniMax heaters does it fit?
The source lists it two ways: for MiniMax and MiniMax Plus Model 75 and 100, and under the MiniMax Plus and MiniMax CH 150 through 400 range. Both readings are carried here, so check the model plate on your heater before ordering.
Does the clip come with it?
Yes. The Q313A clip is supplied with the generator.
My pilot lights but goes out when I let go of the knob. Is this the part?
That is the classic failed pilot generator symptom. Confirm the pilot flame is strong and correctly aimed at the generator tip first, since a weak or misaimed flame produces the same result.
Ask your own question
