Pentair EasyTouch 4P 520591 pool or spa control systemPentair EasyTouch 4P Pool or Spa (No Salt Chlorine Generator, No Actuators), 520591$1,18999
Pentair EasyTouch 4P 520591 pool or spa control system
Shop all Pentair

Pentair EasyTouch 4P Pool or Spa (No Salt Chlorine Generator, No Actuators), 520591

Ask a questionMPN 520591
$1,18999
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Single body of water The 4P model controls one body, a pool or a spa, rather than a shared pool and spa system.
  • Four relays Four relays are included for switching the equipment on the pad.
  • Eight position breaker panel The enclosure carries an eight position breaker panel for the circuits it powers.
  • Local remote at the power supply Control is available right at the power supply without a separate wall unit.
  • Two temperature sensors Two temperature sensors are supplied with the system.
  • Read the exclusions first No salt chlorine generator and no actuators are included, and the chlorine generator, transformer and indoor controller are all bought separately.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair EasyTouch 4P Pool or Spa (No Salt Chlorine Generator, No Actuators), 520591, SKU COM-30-0591. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair EasyTouch 4P Pool or Spa (No Salt Chlorine Generator, No Actuators), 520591
Pentair

EasyTouch 4P Pool or Spa (No Salt Chlorine Generator, No Actuators), 520591

$1,18999
Pentair OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045
Pentair

OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045

$23599
Pentair Genuine OEM IntelliTouch Transformer, 521233
Pentair

Genuine OEM IntelliTouch Transformer, 521233

$20199
Pentair Air, Water, Solar Sensor with 20 ft Cable, 520272
Pentair

Air, Water, Solar Sensor with 20 ft Cable, 520272

$8399
Subtotal

Similar products

Other products people compare with this one.

Hayward AquaPod 2.0 AQL2-POD2 wireless waterproof touchscreen remote Hayward AquaPod 2.0 Wireless Waterproof Touchscreen Remote, AQL2-POD2$59900 Pentair IntelliConnect EC-523317 control and monitoring system, front view Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317$59900 Web Price Pentair 522048 IntelliTouch and EasyTouch to IntelliCenter upgrade kit, i10PS for CLC/CPC Pentair IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10PS for CLC/CPC, 522048$1,23399 Pentair SunTouch 520859 single body control system power center Pentair SunTouch Single Body Control System, Includes Temp Sensors and 3 Relays, 520859$70999 Jandy R0468501 AquaLink RS8 upgrade kit, Pool/Spa Combo, Rev.QQ Jandy AquaLink RS8 Upgrade Kit, Pool/Spa Combo, Rev.QQ, R0468501$1,15599 Hayward HLWIRELESS OmniLogic waterproof wireless remote Hayward OmniLogic Waterproof Wireless Remote, HLWIRELESS$1,03799 Jandy IQ30-RS AquaLink 3.0 upgrade kit with RS-PS8 PCB, bezel and CPU Jandy AquaLink 3.0 Upgrade Kit with RS-PS8 PCB, Bezel, CPU, IQ30-RS$1,32299 Hayward HLXPLCONTROL replacement OmniPL controller Hayward HLXPLCONTROL Replacement OmniPL Controller, HLXPLCONTROL$78699 Hayward OmniHub smart pool and spa control, part HLOMNIHUB Hayward OmniHub Smart Pool and Spa Control with One Smart Relay, HLOMNIHUB$1,07299 S.R. Smith PT-6001 poolLUX Plus2 60W single zone LED light control power tower S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001$90199
Pentair 521909 IntelliCenter i5P single body personality kit Pentair IntelliCenter i5P Single Body Personality Kit, 521909$1,36499 Pentair 520547 EasyTouch wireless controller for 8 circuit systems Pentair Genuine OEM EasyTouch Wireless Controller for 8 Circuit System, 520547$1,36499 Jandy AQWHR18 AquaLink wireless handheld remote with transceiver Jandy AquaLink AQWHR18 Wireless Handheld Remote with Transceiver, AQWHR18$1,09799 Pentair EasyTouch PL4-PSL4 Wireless Remote | 522464 Pentair EasyTouch PL4 and PSL4 Wireless Remote Control Panel with Backlit LCD, 522464$85599 Pentair iS10 10-Function Spa-side Wired Remote with LED Screen | 150 | 521178 Pentair SpaCommand iS10 Spa-Side Wired Remote with LED Screen, 150 ft Cable, White, 521178$86699 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN$79499 Pentair SolarTouch Solar Control System with Solar Valve | 521592 Pentair SolarTouch Solar Control System with Solar Valve | 521592$58799 Intermatic PF1202T multi circuit freeze protection dual timer switch in its enclosure Intermatic Multi Circuit Freeze Protection Dual Timer Switch, PF1202T$57957 Web Price Hydroquip 50-BP7-600-40-K BP7 Water Pro Series three load retro-fit control system Hydroquip BP7 Water Pro Series Control System, 4.0 kW, TP600, Three Load Retro-Fit Kit, 50-BP7-600-40-K$57900 Web Price Hydro-Quip 50-BP7-600-55-K Water Pro BP7 spa control with TP600 topside panel Hydro-Quip TP600 Controller 5.5kW BP7 Retro-Fit Kit, 50-BP7-600-55-K$57900 Web Price

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

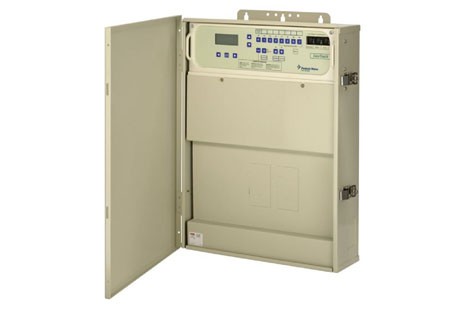

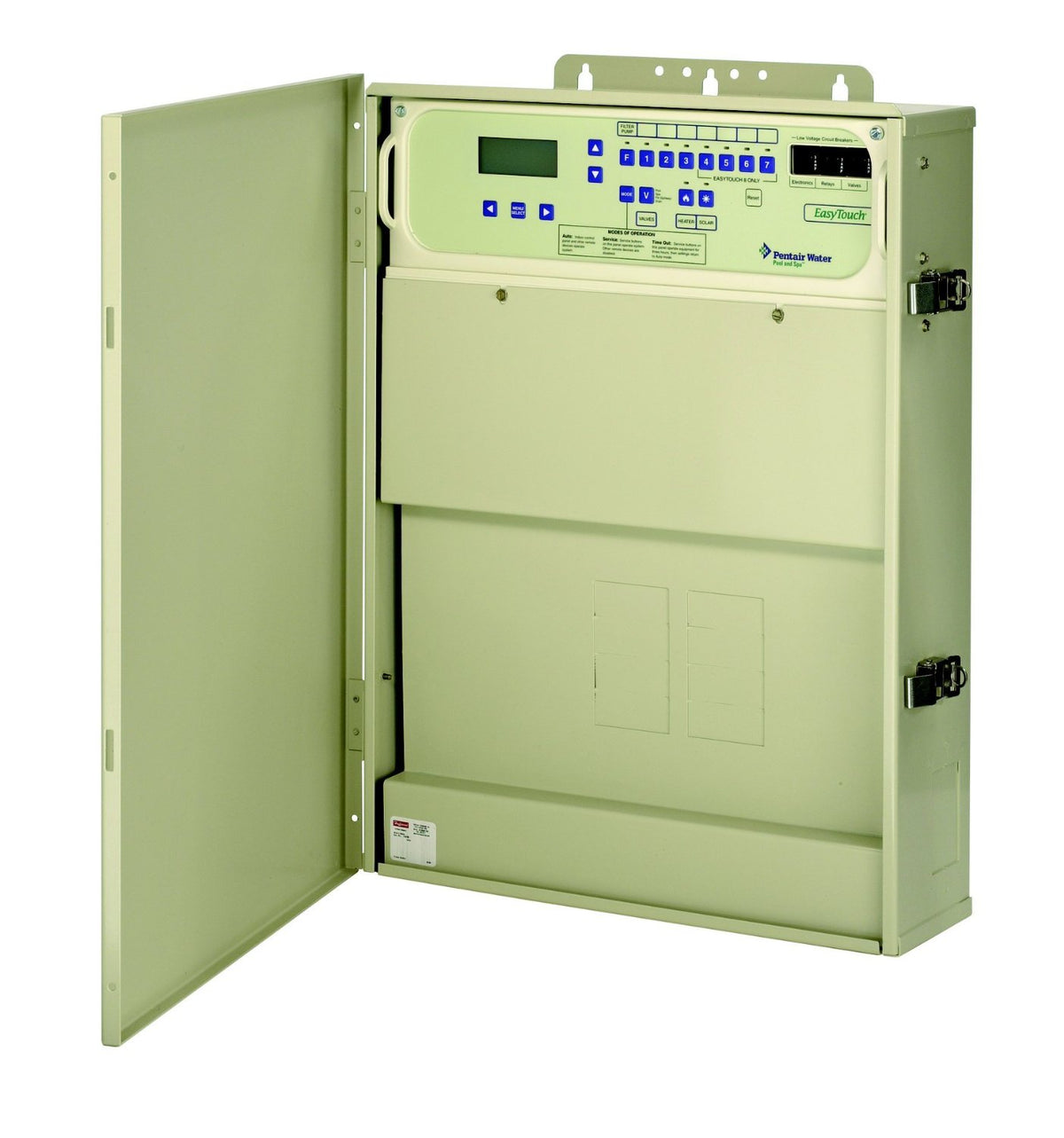

The Pentair EasyTouch 4P, part number 520591, is the four function version of the EasyTouch control system built for a single body of water. It runs a pool or a spa, not both as a shared system.

What the system includes

Four relays handle the equipment on the pad, and an eight position breaker panel supplies the circuits behind them. A local remote is built into the power supply, so basic control is available at the equipment without a separate wall unit, and two temperature sensors are supplied with the system.

What is sold separately

This configuration ships with no salt chlorine generator and no valve actuators. The chlorine generator, the transformer and the indoor controller are each ordered separately, so plan those into the job before the install day rather than discovering them at the pad.

Specifications
Brand Pentair
Manufacturer part number 520591
UPC 788379704384
Type Pool and spa control system
Model EasyTouch 4P
Bodies of water One, pool or spa
Relays 4
Breaker panel 8 position
Local control Local remote from power supply
Included 2 temperature sensors
Not included Salt chlorine generator, actuators, chlorine generator, transformer, indoor controller
Shipping weight 48 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Can this run a pool and a spa together?
No. The 4P is the single body version, so it controls either a pool or a spa. A shared pool and spa system needs a combination model.
What is in the box?
The control system with four relays and an eight position breaker panel, a local remote at the power supply, and two temperature sensors.
Does it include a salt chlorine generator?
No. This version ships without the salt chlorine generator, and the chlorine generator, transformer and indoor controller are each purchased separately.
Does it come with valve actuators?
No. This listing is the no actuator version, so any valve actuators you need are ordered on their own.
Ask your own question
