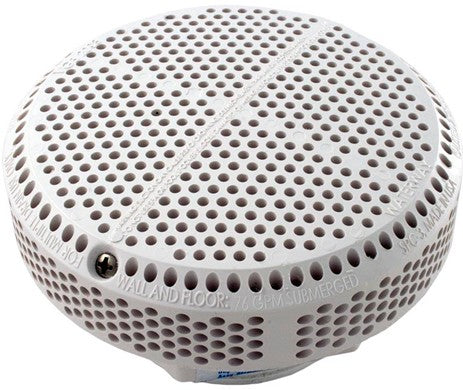

Waterway 640-3580V Super Hi-Flo straight suction assembly, white, 2-1/2 inchWaterway Super Hi-Flo Suction Assembly, Straight, 2-1/2", White, 180 GPM (VGB), 640-3580V In stock$2599
Waterway 640-3580V Super Hi-Flo straight suction assembly, white, 2-1/2 inch
Shop all Waterway

Waterway Super Hi-Flo Suction Assembly, Straight, 2-1/2", White, 180 GPM (VGB), 640-3580V

Ask a questionMPN 640-3580V
$2599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Straight body The straight version of the Super Hi-Flo suction assembly, for runs where the plumbing comes in square to the wall.
  • High flow rating Rated at 180 GPM, which is what lets a single fitting carry a large suction load safely.
  • VGB compliant Built to the Virginia Graeme Baker suction entrapment standard.
  • 2-1/2 inch suction Sized for 2-1/2 inch suction plumbing.
  • Five inch front The visible face measures 5 inches.
  • White finish Standard white, the usual match for white plaster and white spa shells.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Super Hi-Flo Suction Assembly, Straight, 2-1/2", White, 180 GPM (VGB), 640-3580V, SKU WWP-85-8800. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Super Hi-Flo Suction Assembly, Straight, 2-1/2", White, 180 GPM (VGB), 640-3580V
Waterway

Super Hi-Flo Suction Assembly, Straight, 2-1/2", White, 180 GPM (VGB), 640-3580V

$2599
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX1091Z9 threaded extension coupling, 1-1/2 in. MIP x FIP, white Hayward Threaded Extension Coupling, 1-1/2 in. MIP x 1-1/2 in. FIP, White, SPX1091Z9$1699 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3499 Hayward SP1480BLK 1-1/2 inch male thread union in black Hayward 1-1/2" Union Male Thread, Black, SP1480BLK$2699 SP1107 pool plumbing and piping tag labels, one sheet Pool I.D. Pool Plumbing and Piping Tag Labels, SP1107$1799 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599 Super-Pro 25215-001-000 gray fiberglass Hi-Flo suction fitting with 6 in. cover, wall fitting and nut SuperPro Gray Fiberglass Hi-Flo Suction Fitting Complete with 6" Cover, Wall Fitting and Nut, 25215-001-000$3599 CMP 21063-750-000 3/4 inch male by 3/4 inch slip union CMP 3/4" Male x 3/4" Slip Union, 21063-750-000$1499 Perma-Cast PB-2008 bronze PoolBond water bonding fitting Perma-Cast 1" MPT Bronze PoolBond Water Bonding Fitting, PB-2008$3799 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Aquamoto FullFlow 2 in. black PVC sweep 90 degree street elbow, slip by spigot Aquamoto FullFlow 2" PVC Sweep 90 Degree Street Elbow Slip x SPG, Black, 21006-004-000$1399
SuperPro 21049-200-000 2 inch PVC union, slip by slip SuperPro PVC 2" Union, Slip by Slip, 21049-200-000$1399 Jandy R0522900 universal half union kit Jandy Universal Half Union, R0522900$3499 AquaStar UNHT20 high temperature 2 inch threaded union AquaStar High Temperature 2" Threaded Union, UNHT20$2999 Sta-Rite PKG 188 union half, 2 inch by 2 inch slip Sta-Rite Union Half, 2" x 2" Slip, PKG 188$3199 CMP 25503-510-500 fiberglass pool dry conduit nicheless LED light wall fitting, 1.5 inch CMP Fiberglass Pool Dry Conduit Nicheless LED Light Wall Fitting 1.5", 25503-510-500$2599 CMP 21063-160-000 union assembly, 1.5 in thread by 2 in slip, hi-temp CMP Union, 1.5" Thread x 2" Slip, Hi-Temp, 21063-160-000$1799 Hayward SP14953S 1-1/2 inch slip by threaded ABS pool union Hayward 1-1/2" Slip x Threaded Union (ABS), SP14953S$2199 CMP FullFlow 21005-004-000 2 inch black PVC sweep 90 degree elbow, slip x slip CMP FullFlow 2" PVC Sweep 90 Degree Elbow Slip x Slip, Black, 21005-004-000$1399 Pentair 270141Z black replacement union nut for SuperMax pumps and push pull valves Pentair Black Replacement Union Nut, SuperMax, 270141Z$2699 Lasco 406-020 two inch schedule 40 PVC 90 degree elbow Lasco 90 Degree Elbow, 2 in. SCH 40 PVC, 406-020$1599

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

The Waterway 640-3580V is the straight body Super Hi-Flo suction assembly in white, with a 2-1/2 inch suction connection and a 5 inch front. It is rated at 180 GPM and is VGB compliant.

Why the flow rating matters

A suction fitting is rated for the flow it can carry without creating an entrapment hazard. The 180 GPM rating on this assembly is high, which is why the Super Hi-Flo is used where a smaller cover would have to be doubled up. Match the rating to the actual pump flow on the suction line, not to the pipe size alone.

Choosing the right body

Waterway builds this assembly in more than one body style. This listing is the straight version, for plumbing that meets the wall square. Check the shape of the fitting you are taking out before you order.

Specifications
Brand Waterway
Manufacturer part number 640-3580V
UPC 806105197962
Type Super Hi-Flo suction assembly
Body Straight
Suction size 2-1/2"
Front 5"
Color White
Flow rating 180 GPM
Compliance VGB
Shipping weight 0.7 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$2999 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

Is this the straight or the elbow version?
Straight. Waterway 640-3580V is the straight body Super Hi-Flo suction assembly.
What flow is it rated for?
180 GPM.
Does it meet the suction entrapment rules?
Yes, it is a VGB compliant assembly.
What size plumbing does it take?
The suction connection is 2-1/2 inch, and the front of the fitting measures 5 inches.
Ask your own question
