Waterway 400-5161B 2" Split Nut for 2012 Heater In stock$7⁹⁹

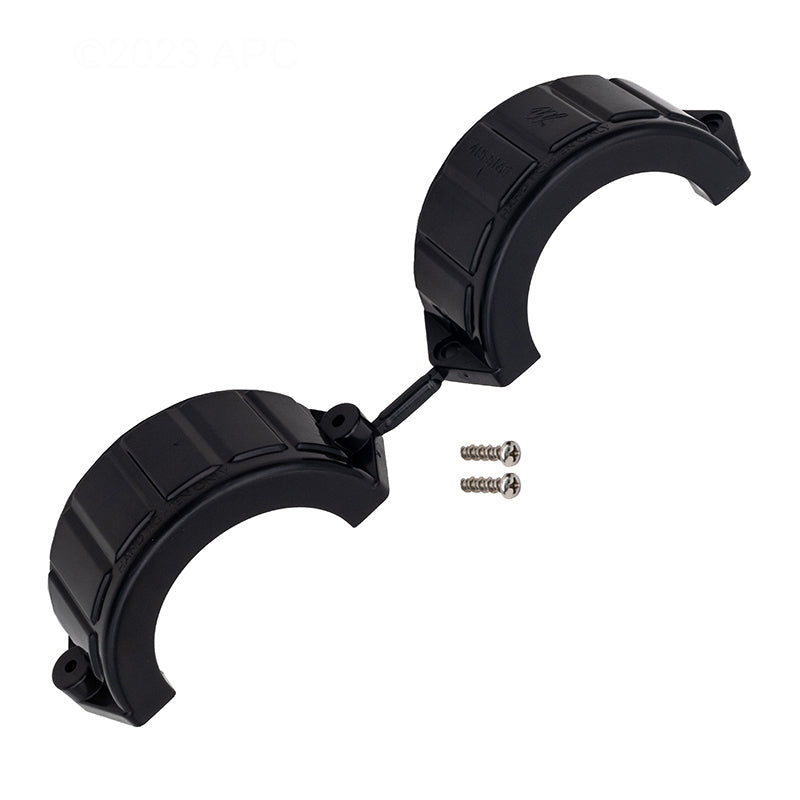

Waterway 400-5161B 2 inch split nut for the 2012 heater

Waterway 400-5161B 2" Split Nut for 2012 Heater

Name: Waterway 400-5161B 2" Split Nut for 2012 Heater
Brand: Waterway
SKU: WWP-101-5422
Price: 7.99 USD
Availability: InStock

Ask a questionMPN 400-5161B

$7⁹⁹

In stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Genuine Waterway Part number 400-5161B, the factory nut rather than a generic union nut.
Two inch size Sized for the 2 inch heater connection.
Split design A split nut comes apart, so it can be fitted around plumbing that is already in place instead of threading over the end of a pipe.
For the 2012 heater Waterway lists this nut for the 2012 heater specifically.
A common casualty Union nuts crack from over tightening and from freeze pressure, and a cracked nut will never seal no matter how hard it is pulled up.
Hand tight is enough These nuts seal on the union o-ring, so snug them by hand and leave the pipe wrench in the truck.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select Waterway 400-5161B 2" Split Nut for 2012 Heater

Waterway

400-5161B 2" Split Nut for 2012 Heater

$7⁹⁹

Select

Waterway

2" Heater O-Ring/Gasket, 711-4030

$4⁹⁹

Select

Waterway

2.5" Heater Union Gasket, 711-6020

$5⁹⁹

Select

Raypak

Genuine OEM Protek Shield Module Assembly, 017960F

$51⁹⁹

Select

Raypak

Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347

$296⁹⁹

Select

Hayward

Heat Exchanger Assembly for H250FD, FDXLHXA1250

$1,282⁹⁹

Select

Pentair

Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z

$538⁹⁹

Subtotal

Similar products

Other products people compare with this one.

SuperPro SP0121108020 two inch split nut with screws for heater repair

SuperPro 2" Split Nut with Screws for Heater Repair, SP0121108020$9⁹⁹

Balboa Heater O-Ring 2", 21619$5⁹⁹

Pentair 70951 tube seal gasket for MiniMax pool heaters

Pentair Tube Seal Gasket, 70951$6⁹⁹

Teledyne Laars P0026800 return header drain plug for pool heaters

Teledyne Laars Return Header Drain Plug, P0026800$6⁹⁹

Zodiac TEMP SENSOR PLASTIC SLEEVE | 10444900$8⁹⁹

Thermcore Products 86-02370 uni-nut for a 3 inch heater tube

Thermcore Products Uni-Nut for 3" Heater Tube, 86-02370$11⁹⁹

Coates 32705010 split nut union in PVC for SHA and SHB heaters

Coates Split Nut Union for SHA and SHB Heaters, PVC, 1-1/2 to 2 inch, 32705010$19⁹⁹

Jandy R0460105 air chamber cover for LXi 400 Low NOx pool and spa heater

Jandy Air Chamber Cover for LXi 400 Low NOx Pool/Spa Heater, R0460105$42⁹⁹

Sta-Rite 77707-1441 natural gas to propane conversion kit for the 400 Max-E-Therm heater burner system

Sta-Rite Natural Gas to Propane Conversion Kit for 400 Max-E-Therm Heater Burner System, 77707-1441$60⁹⁹

Jandy R0457502 igniter kit for JXi 200, 260 and 400 pool heaters

Jandy Igniter Kit for JXi Heater Models 200/260/400, R0457502$62⁹⁹

Pentair 476072 propane gas conversion kit for the ETi 400 pool heater

Pentair Propane Gas Conversion Kit for ETi 400 Heater, 476072$118⁹⁹

Jandy R0592400 JXi heater jacket top cover for model 200, 260 and 400

Jandy JXi Heater Jacket Top Cover for Model 200/260/400, R0592400$184⁹⁹

Pentair 475971 indoor direct air intake kit for the ETI 400 heater

Pentair Air Intake Kit for ETI 400 Heater, 475971$211⁹⁹

Pentair 475612 condensate neutralizer kit for the ETI 400 heater

Pentair Condensate Neutralizer Kit for ETI 400 Heater, 475612$232⁹⁹

Pentair 475615Z heat exchanger and chimney gasket kit for the ETi 400 heater

Pentair Heat Exchanger and Chimney Gaskets for ETi 400 Heater, 475615Z$308⁹⁹

Jandy R0589405 heat exchanger tube for Model 400 JXi heater, front view

Jandy Heat Exchanger Tube Replacement for Model 400 JXi Heater, R0589405$1,234⁹⁹

Pentair 77707-0120 manifold o-ring kit for Max-E-Therm and MasterTemp heaters

Pentair Manifold O-Ring Kit for Max-E-Therm and MasterTemp Heater Burner System, 77707-0120$29⁹⁹

Raypak H000025 water pressure switch for Model 5100, 6100 and 5100ti

Raypak Water Pressure Switch for Model 5100, 6100, 5100ti Pool Heater, H000025$48⁹⁹

Swimables SW-41-053 generic thermistor for MasterTemp and Max-E-Therm pool heaters

Swimables Generic Thermistor for MasterTemp Max-E-Therm Heater, SW-41-053$50⁹⁹

Pentair 462023 flame sensor kit for the ETI 400 pool heater

Pentair Flame Sensor Kit for ETI 400, 462023$52⁹⁹

Product details

Waterway 400-5161B is the 2 inch split nut for the 2012 heater. It is the genuine Waterway part, and it is the fix when the nut at the heater connection has cracked, stripped or been cross threaded.

Why it is split

An ordinary union nut has to be slid onto the pipe before the fitting is glued on. A split nut is made in halves and closes around plumbing that is already in place, which is what makes a heater swap or a nut replacement possible without cutting pipe. That convenience is also why these nuts get damaged: they are handled far more often than a fixed nut ever is.

Fitting

The nut provides clamping force only. Sealing happens at the union o-ring, so bring the nut up hand tight and stop. Over tightening is what splits these in the first place, and if the joint still weeps once the nut is snug, look at the o-ring and the sealing faces rather than reaching for more leverage.
