Jandy 90 Degree Check Valve, 2" SLIP x 2-1/2" SPG, 7512 In stock$8999
Jandy 90 Degree Check Valve, 2" SLIP x 2-1/2" SPG, 7512
30 day returns · Easy, with prepaid labels provided
Quick overview
- Elbow and check in one The 90 degree body turns the run and stops backflow without a separate fitting.
- Two pipe sizes 2 inch slip on one end and 2-1/2 inch spigot on the other.
- Spring loaded Part of the Jandy spring check valve family, so it closes on its own when flow stops.
- Saves pad space One fitting instead of an elbow plus a straight check valve, which matters on a crowded equipment pad.
- Genuine Jandy Factory part number 7512, not a generic substitute.
- Serviceable Jandy publishes a parts breakdown for this spring check valve family if the internals ever need attention.
Need a hand?
Similar products
Other products people compare with this one.
Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715$7199
Pentair Three Port Diverter Valve 2" x 2.5", 263028$5799
Pentair Chemical Resistant 1-1/2" x 2" Check Valve, R172288$7499
Jandy NeverLube Valve 3 Port, 2" x 2-1/2", 4717$9999
Jandy 2 in. / 2-1/2 in. Check Valve, 7305$8099
Jandy 2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716$9299
Pentair Two Port Diverter Valve, 2 in. x 2-1/2 in., 263029$5199
Jandy Neverlube 3 Port Valve, 2-1/2" x 2", 4944$10399
Hayward 2" x 2-1/2" PSV Series 3-Way Diverter Valve, PVC, PSV3S2DGR$5099
Hayward 1-1/2" x 2" PSV Series 3-Way Diverter Valve, PVC, PSV3SDGR$5399
Jandy Check Valve, 1-1/2" / 2", 7235$6399
Pentair Three Port Diverter Valve 1-1/2" x 2", 263037$4999
Pentair Check Valve, CPVC, 2", 263042$7999
Hayward PSV Series 2-Way Diverter Valve, 2 in. x 2-1/2 in. PVC, PSV2S2DGR$5099
Hayward 2 in. x 2-1/2 in. Straight PVC PSV Check Valve, PSCV2S2DGR$5299
Hayward 1-1/2" 4 Way Ball Valve, SP0735$8099
Pentair 1.5 in. 6 Port Low Profile T-Valve Kit, 230148$13299
Jandy Neverlube Valve 2 Port, 2-1/2" x 3", 4718$8999
Pentair 3-Way 1-1/2" x 2" CPVC Diverter Valve, 263035$8999
Praher 3 Port Valve, 1-1/2" with Union, OV3-1500U$5299
Product details

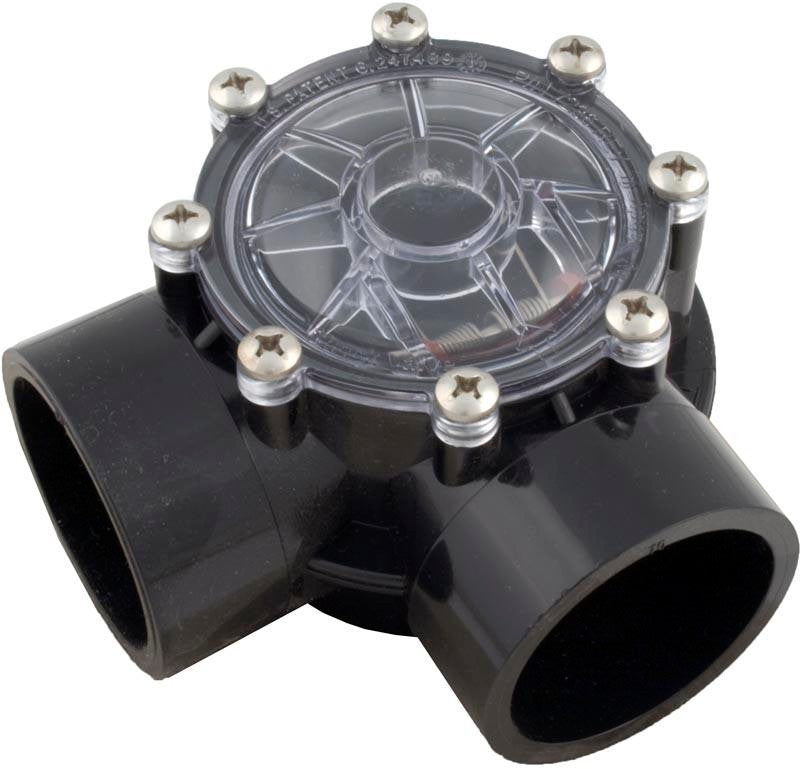

Jandy 7512 is a 90 degree check valve with a 2 inch slip socket on one end and a 2-1/2 inch spigot on the other. It belongs to the Jandy spring check valve family, so the valve closes on its own when flow stops.
Two parts in one body
Most equipment pads are tight, and every extra fitting is another joint and another few inches of pipe. This valve turns the run through 90 degrees and provides backflow protection at the same time, which takes an elbow out of the run entirely.
Getting the ends right
Slip and spigot are not the same thing. The 2 inch slip end is a socket that pipe slides into. The 2-1/2 inch spigot end is sized like pipe and slides into a fitting or a bell. Dry fit the whole assembly before cementing, and check the flow direction marked on the body, because a check valve installed backwards will block the line.
| Brand | Jandy |
|---|---|
| Manufacturer part number | 7512 |
| UPC | 052337003155 |
| Type | 90 degree check valve |
| Connections | 2" SLIP x 2-1/2" SPG |
| Style | Spring check valve |
| Shipping weight | 1.35 lb |
| Ships | Parcel |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Questions and answers
What people ask about this product, answered by our pool techs.
What do SLIP and SPG mean?
Why use a 90 degree check valve?
Is this a genuine Jandy part?
Which way does it go in?
