Hayward AXV301 intermediate gear for vinyl model pool cleanersHayward Intermediate Gear, AXV301 In stock$2099
Hayward AXV301 intermediate gear for vinyl model pool cleaners
Shop all Hayward

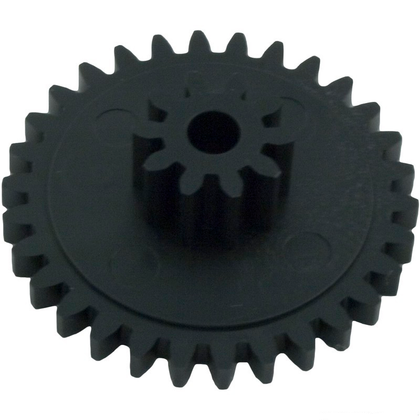

Hayward Intermediate Gear, AXV301

Ask a questionMPN AXV301
$2099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward Factory part AXV301, molded in plastic.
  • Vinyl models only Hayward lists this gear for the vinyl versions, not the concrete or desert cleaners.
  • Mid gear train The intermediate gear passes drive from the turbine side of the box through to the wheels.
  • Wide family fit Shown in the diagrams for Pool Vac, Pool Vac Ultra, Pool Vac XL, Navigator, Navigator Pro, AquaBug, Diver Dave, Wanda the Whale and the Arneson Aquadroid.
  • A stalling cleaner Chipped teeth on any one gear will make the cleaner crawl or stop while the turbine keeps spinning.
  • Rebuild, do not replace The gear box is designed to be opened and its gears renewed individually.
Full description and specifications ↓
