Hayward RCX11000 impeller for TigerShark and SharkVac robotic pool cleanersHayward Impeller, TigerShark, RCX11000 In stock$2499
Hayward RCX11000 impeller for TigerShark and SharkVac robotic pool cleaners
Shop all Hayward

Hayward Impeller, TigerShark, RCX11000

Ask a questionMPN RCX11000
$2499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward Factory impeller RCX11000 for the AquaVac cleaner line.
  • TigerShark and SharkVac Listed for TigerShark, TigerShark QC, TigerShark Plus, SharkVac and SharkVac XL.
  • Restores pickup The impeller pulls water and debris through the cleaner, so a worn one leaves dirt on the floor.
  • Molded plastic The same plastic impeller the cleaner was built with.
  • Screw sold separately The impeller screw is its own Hayward part and is worth changing at the same time.
  • Gradual wear Grit and hair chew the vanes over the seasons, and suction falls off slowly enough that it is easy to blame the filter.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Impeller, TigerShark, RCX11000, SKU AQV-201-9838. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Impeller, TigerShark, RCX11000
Hayward

Impeller, TigerShark, RCX11000

$2499
Hayward TigerShark Drive Track, Soft Thread, RCX23002
Hayward

TigerShark Drive Track, Soft Thread, RCX23002

$4499
Hayward Wheel Tube Assembly, Set of 2, RCX26003
Hayward

Wheel Tube Assembly, Set of 2, RCX26003

$8399
Hayward TigerShark Cord 55 Ft, RCX50061
Hayward

TigerShark Cord 55 Ft, RCX50061

$19299
Hayward Genuine OEM Standard Leaf Canister, W560
Hayward

Genuine OEM Standard Leaf Canister, W560

$7599
Hayward AquaVac TigerShark Roller Bearing Guide, RCX26001
Hayward

AquaVac TigerShark Roller Bearing Guide, RCX26001

$4099
Hayward Aqua Vac Tigershark Cartridge Refill Set | RCX70101
Hayward

Aqua Vac Tigershark Cartridge Refill Set | RCX70101

$8299
Subtotal

Similar products

Other products people compare with this one.

Hayward RCX26005S wheel tube bearing for TigerShark robotic pool cleaners Hayward Wheel Tube Bearing for TigerShark Robotic Cleaners, RCX26005S$3699 Hayward RCX70103PAK2 TigerShark spring cleanup filter cartridges, 2 pack Hayward TigerShark Spring Cleanup Filters, 2 Pack, RCX70103PAK2$3199 Hayward RCX78005 TigerShark filter bottom lid gasket Hayward TigerShark Filter Bottom Lid Gasket, RCX78005$3399 Hayward RCX11400 TigerShark lid clip, set of 2 Hayward TigerShark Lid Clip, Set of 2, RCX11400$1499 Hayward RCX13200 side cover for the TigerShark robotic pool cleaner Hayward TigerShark Side Cover, RCX13200$2799 Hayward RCX11208 new style venturi assembly for TigerShark and TigerShark QC robotic pool cleaners Hayward TigerShark Venturi Assembly, New Style, for TigerShark, TigerShark QC and TigerShark Plus Cleaners, RCX11208$3599 Hayward AXV414P pod shoes for concrete pools, 4 pack Hayward Genuine OEM Pod Shoes, Concrete, 4 Pack, AXV414P$2799 Hayward AXV604WHP white wing kit for Navigator pool cleaner Hayward OEM Wing Kit, White, AXV604WHP$2399 Hayward V094P in-line regulator valve for suction pool cleaners Hayward In-Line Regulator Valve, V094P$3599 Hayward AXV014SP slotted Santoprene pod shoes, 4 pack Hayward Slotted Santoprene Shoes (4 Pack), AXV014SP$2999
Hayward RCX26000PAK2 pulley bearing kit for AquaVac 500 Series robotic cleaners Hayward Pulley Bearing Kit for AquaVac 500 Series Robotic Cleaners, RCX26000PAK2$3399 Hayward RCX12001 M4 x 12 pan head screws for TigerShark robotic pool cleaners Hayward Screw, M4 x 12 Pan, RCX12001$1599 Hayward AXV092 hose connector for PoolVac Plus, PoolVac Ultra and Navigator pool cleaners Hayward Hose Connector for PoolVac Plus, PoolVac Ultra and Navigator Cleaners, AXV092$1699 Hayward AXV408P gear box assembly for Pool Vac and Navigator pool cleaners Hayward Gear Box Assembly for Pool Vac and Navigator Cleaners, AXV408P$3399 Hayward AXV055P turbine bearing, two pack for Hayward suction pool cleaners Hayward Turbine Bearings, 2 Pack, AXV055P$2499 Hayward AXV434WHP white flap kit with two flaps and front and rear springs Hayward Flap Kit, White, 2 Flaps with Front and Rear Springs, AXV434WHP$3399 Hayward AXV413P vinyl pod shoes, four pack for Pool Vac and Navigator cleaners Hayward AXV413P Pod Shoes, Vinyl, 4 Pack$3099 Hayward AXV014P concrete pod shoes, 4 pack, for Pool Vac and Navigator cleaners Hayward Pod Shoe, Concrete, 4 Pack, AXV014P$2999 Hayward AXV603 white fixed access cover assembly for Pool Vac and Navigator cleaners Hayward Cover Assembly, Fixed Access, Concrete and Desert (Models 925C, 925CS), AXV603$2399 Hayward AXV301 intermediate gear for vinyl model pool cleaners Hayward Intermediate Gear, AXV301$2099

Product details

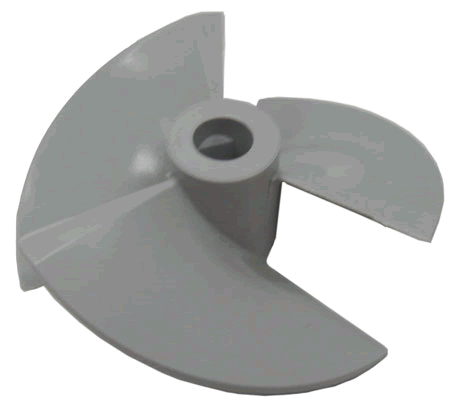

The Hayward RCX11000 is the replacement impeller for the AquaVac TigerShark and SharkVac robotic pool cleaners. It is the genuine Hayward part.

What the impeller does

Everything the cleaner picks up passes through the impeller. It spins inside the pump housing and pulls water, leaves and grit up off the floor and into the filter cartridge or bag. Because it handles debris rather than clean water, the vanes take a beating: sand rounds them off, hair wraps the hub, and small stones chip the edges.

The symptom

Wear happens slowly, so the usual complaint is that the cleaner still drives its pattern and still climbs, but leaves a film of fine dirt behind. Owners tend to clean the filter, check the brushes, then finally pull the pump housing and find a rounded off impeller.

While you are in there

The impeller screw is a separate Hayward part. It is small and often damaged during removal, so it is worth having a new one on hand before you start.

Specifications
Brand Hayward
Manufacturer part number RCX11000
UPC 610377062015
Part Type Pool Cleaner Part
Material Plastic
Type Impeller
Fits Hayward AquaVac TigerShark, TigerShark QC, TigerShark Plus, SharkVac, SharkVac XL
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which cleaners does this impeller fit?
Hayward AquaVac TigerShark, TigerShark QC and TigerShark Plus, and the SharkVac and SharkVac XL robotic cleaners.
Does it come with the screw?
No. The impeller screw is a separate Hayward part number, and it is worth ordering with the impeller since the old one is often chewed.
How do I know the impeller is worn?
The cleaner runs its pattern but picks up less, and fine debris is left behind after a full cycle. Pull the impeller and look for rounded or chipped vanes.
Is this a genuine Hayward part?
Yes. It is the Hayward OEM impeller, part RCX11000.
Ask your own question
