Hayward RCX78005 TigerShark filter bottom lid gasketHayward TigerShark Filter Bottom Lid Gasket, RCX78005 In stock$3399

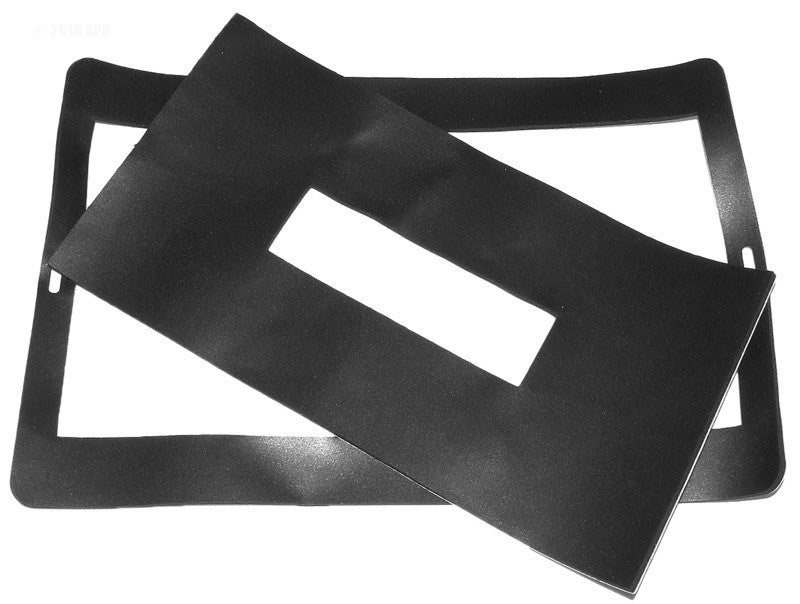

Hayward RCX78005 TigerShark filter bottom lid gasket
Shop all Hayward

Hayward TigerShark Filter Bottom Lid Gasket, RCX78005

Ask a questionMPN RCX78005
$3399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward The factory RCX78005 gasket rather than a generic seal.
  • TigerShark cleaners The bottom filter lid gasket used on the Hayward TigerShark range.
  • Seals the filter housing Its job is to stop water bypassing the media around the edge of the lid.
  • Cheap fix for poor pickup A flattened or split gasket lets dirt back out, which reads as a cleaner that is no longer picking up.
  • Wear part Gaskets take a set with age and heat, so they are expected to be replaced periodically.
  • Inspect at every clean Worth a look each time the filter comes out, since it is right there.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward TigerShark Filter Bottom Lid Gasket, RCX78005, SKU AQV-201-9931. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward TigerShark Filter Bottom Lid Gasket, RCX78005
Hayward

TigerShark Filter Bottom Lid Gasket, RCX78005

$3399
Hayward TigerShark Drive Track, Soft Thread, RCX23002
Hayward

TigerShark Drive Track, Soft Thread, RCX23002

$4499
Hayward Wheel Tube Assembly, Set of 2, RCX26003
Hayward

Wheel Tube Assembly, Set of 2, RCX26003

$8399
Hayward TigerShark Cord 55 Ft, RCX50061
Hayward

TigerShark Cord 55 Ft, RCX50061

$19299
Hayward Genuine OEM Standard Leaf Canister, W560
Hayward

Genuine OEM Standard Leaf Canister, W560

$7599
Hayward AquaVac TigerShark Roller Bearing Guide, RCX26001
Hayward

AquaVac TigerShark Roller Bearing Guide, RCX26001

$4099
Hayward Impeller, TigerShark, RCX11000
Hayward

Impeller, TigerShark, RCX11000

$2499
Subtotal

Similar products

Other products people compare with this one.

Hayward RCX31018 power supply outlet connector for SharkVac and TigerShark cleaners Hayward Power Supply Outlet Connector for SharkVac/XL/TigerShark, RCX31018$4899 Hayward RCX26005S wheel tube bearing for TigerShark robotic pool cleaners Hayward Wheel Tube Bearing for TigerShark Robotic Cleaners, RCX26005S$3699 Hayward RCX26008 replacement roller scrub brush for TigerShark and SharkVAC cleaners Hayward RCX26008 Roller Brush for TigerShark and SharkVAC Cleaners$3799 Hayward RCX70103PAK2 TigerShark spring cleanup filter cartridges, 2 pack Hayward TigerShark Spring Cleanup Filters, 2 Pack, RCX70103PAK2$3199 Hayward RCX13200 side cover for the TigerShark robotic pool cleaner Hayward TigerShark Side Cover, RCX13200$2799 Hayward RCX11208 new style venturi assembly for TigerShark and TigerShark QC robotic pool cleaners Hayward TigerShark Venturi Assembly, New Style, for TigerShark, TigerShark QC and TigerShark Plus Cleaners, RCX11208$3599 Hayward AXV414P pod shoes for concrete pools, 4 pack Hayward Genuine OEM Pod Shoes, Concrete, 4 Pack, AXV414P$2799 Hayward AXV604WHP white wing kit for Navigator pool cleaner Hayward OEM Wing Kit, White, AXV604WHP$2399 Hayward RCX26002 drive pulley assembly with ball bearing for TigerShark cleaners Hayward Drive Pulley Assembly with Ball Bearing, RCX26002$4299 Hayward AXV414604WHP wing and shoe maintenance kit in white for Navigator and Pool Vac Hayward Wing and Shoe Maintenance Kit for Navigator and Pool Vac, White, AXV414604WHP$4399
Hayward V094P in-line regulator valve for suction pool cleaners Hayward In-Line Regulator Valve, V094P$3599 Hayward AXV014SP slotted Santoprene pod shoes, 4 pack Hayward Slotted Santoprene Shoes (4 Pack), AXV014SP$2999 Hayward RCX97501GR SharkVac drive track belt Hayward SharkVac Drive Track Belt, RCX97501GR$3899 Hayward RCX26000PAK2 pulley bearing kit for AquaVac 500 Series robotic cleaners Hayward Pulley Bearing Kit for AquaVac 500 Series Robotic Cleaners, RCX26000PAK2$3399 Hayward AXV408P gear box assembly for Pool Vac and Navigator pool cleaners Hayward Gear Box Assembly for Pool Vac and Navigator Cleaners, AXV408P$3399 Hayward AXV055P turbine bearing, two pack for Hayward suction pool cleaners Hayward Turbine Bearings, 2 Pack, AXV055P$2499 Hayward AXV434WHP white flap kit with two flaps and front and rear springs Hayward Flap Kit, White, 2 Flaps with Front and Rear Springs, AXV434WHP$3399 Hayward AXV413P vinyl pod shoes, four pack for Pool Vac and Navigator cleaners Hayward AXV413P Pod Shoes, Vinyl, 4 Pack$3099 Hayward W400BBKP black vacuum lock safety wall fitting for Navigator cleaners Hayward Vacuum Lock Safety Wall Fitting, Black, W400BBKP$4399 Hayward AXV014P concrete pod shoes, 4 pack, for Pool Vac and Navigator cleaners Hayward Pod Shoe, Concrete, 4 Pack, AXV014P$2999

Product details

This is the Hayward RCX78005, the bottom filter lid gasket for TigerShark robotic pool cleaners. It is the genuine factory part.

What the gasket does

The gasket seals the filter housing where the bottom lid closes against it. That seal is what forces every bit of water the cleaner pulls in to pass through the filter media instead of slipping around the edge. When the gasket flattens, hardens or splits, some of the flow takes the easy route past the media and the dirt it was carrying goes straight back into the pool.

The symptom

A cleaner that still drives its pattern and still runs its full cycle, but leaves fine debris behind, and a filter that comes out looking too clean for the length of the run. That is a bypass, and a tired gasket is the usual reason for it.

While you are in there

The gasket is visible every time the filter is emptied, so it costs nothing to look at it during a routine clean. Replace it when it no longer springs back or when the sealing face is cracked.

Specifications
Brand Hayward
Manufacturer part number RCX78005
UPC 610377062138
Part type Pool cleaner part
Type Bottom filter lid gasket
Fits Hayward TigerShark pool cleaners
Shipping weight 0.26 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which cleaners does this fit?
Hayward TigerShark robotic pool cleaners. It is the bottom lid gasket, Hayward part RCX78005.
Is it a genuine Hayward part?
Yes. RCX78005 is the Hayward OEM gasket.
How do I know the gasket is the problem?
If the cleaner runs its full cycle but the pool still has fine debris in it, and the filter media comes out cleaner than it should, water is likely bypassing the media past a tired gasket.
Is this the top gasket or the bottom one?
The bottom filter lid gasket. The other seals on the cleaner are separate Hayward parts, so check which one is flattened or split before ordering.
