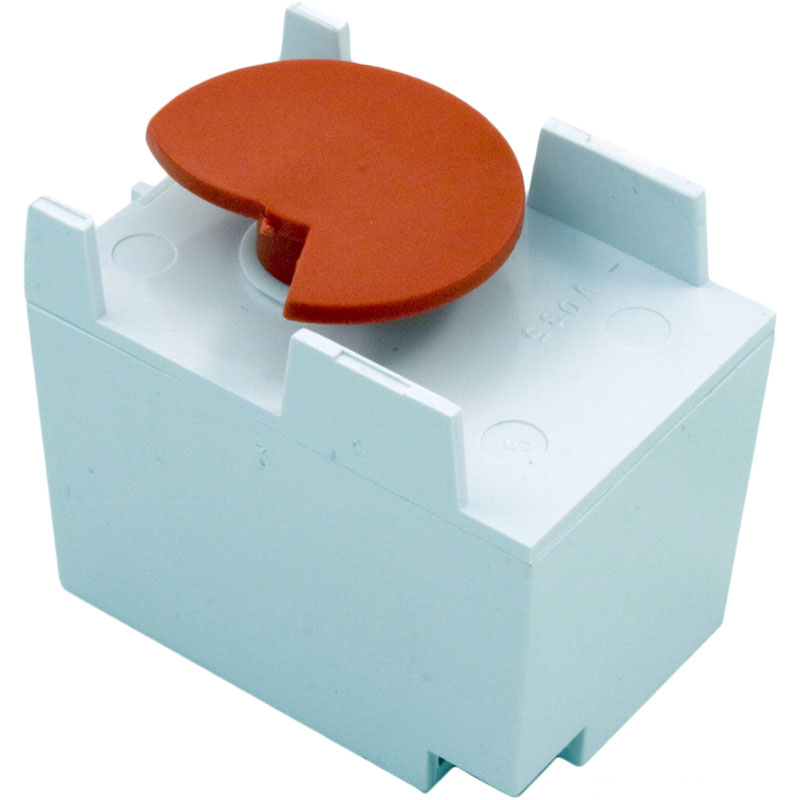

Hayward AXV408P gear box assembly for Pool Vac and Navigator pool cleanersHayward Gear Box Assembly for Pool Vac and Navigator Cleaners, AXV408P In stock$3399
Hayward AXV408P gear box assembly for Pool Vac and Navigator pool cleaners
Shop all Hayward

Hayward Gear Box Assembly for Pool Vac and Navigator Cleaners, AXV408P

Ask a questionMPN AXV408P
$3399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Check the top plate color first This is the red top plate version. A gear box with a black top plate is a different part and the two do not interchange.
  • Fixes a cleaner that turns one way A head that keeps steering the same direction and leaves the hose coiled like a pretzel is the classic failed gear box.
  • Try cleaning the old one first Gear boxes often jam on dog hair and fine debris, and stripping and clearing the existing box sometimes brings it back.
  • Broad fit across the range Listed for the Pool Vac, Pool Vac Ultra, Pool Vac XL, Navigator and Navigator Pro cleaners.
  • Molded plastic Built in plastic, as fitted originally.
  • Complete assembly Supplied assembled, so the whole unit drops into the cleaner rather than being rebuilt piece by piece.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Gear Box Assembly for Pool Vac and Navigator Cleaners, AXV408P, SKU ARN-201-1550. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Gear Box Assembly for Pool Vac and Navigator Cleaners, AXV408P
Hayward

Gear Box Assembly for Pool Vac and Navigator Cleaners, AXV408P

$3399
Hayward TigerShark Drive Track, Soft Thread, RCX23002
Hayward

TigerShark Drive Track, Soft Thread, RCX23002

$4499
Hayward Wheel Tube Assembly, Set of 2, RCX26003
Hayward

Wheel Tube Assembly, Set of 2, RCX26003

$8399
Hayward TigerShark Cord 55 Ft, RCX50061
Hayward

TigerShark Cord 55 Ft, RCX50061

$19299
Hayward Genuine OEM Standard Leaf Canister, W560
Hayward

Genuine OEM Standard Leaf Canister, W560

$7599
Hayward AquaVac TigerShark Roller Bearing Guide, RCX26001
Hayward

AquaVac TigerShark Roller Bearing Guide, RCX26001

$4099
Hayward Impeller, TigerShark, RCX11000
Hayward

Impeller, TigerShark, RCX11000

$2499
Subtotal

Similar products

Other products people compare with this one.

Hayward AXV414604WHP wing and shoe maintenance kit in white for Navigator and Pool Vac Hayward Wing and Shoe Maintenance Kit for Navigator and Pool Vac, White, AXV414604WHP$4399 Hayward Cork Pod Shoes for Navigator & Pool Vac Ultra for Vinyl and Fiberglass Pools | AXV014FNP Hayward Cork Pod Shoes for Navigator & Pool Vac Ultra for Vinyl and Fiberglass Pools | AXV014FNP$2999 Hayward AXV604-237 gray wing kit for Navigator V-Flex and PoolVac pool cleaners Hayward Wing Kit for Navigator V-Flex and PoolVac Pool Cleaners, AXV604-237$1799 Hayward RCX11208 new style venturi assembly for TigerShark and TigerShark QC robotic pool cleaners Hayward TigerShark Venturi Assembly, New Style, for TigerShark, TigerShark QC and TigerShark Plus Cleaners, RCX11208$3599 Hayward Navigator & Pool Vac Ultra Medium Turbine Drive Gear | AXV064A Hayward Navigator & Pool Vac Ultra Medium Turbine Drive Gear | AXV064A$2199 Hayward RCX26008 replacement roller scrub brush for TigerShark and SharkVAC cleaners Hayward RCX26008 Roller Brush for TigerShark and SharkVAC Cleaners$3799 Hayward Navigator & Pool Vac Ultra Cone Skimmer Adapter | AXV093CP Hayward Navigator & Pool Vac Ultra Cone Skimmer Adapter | AXV093CP$2299 Hayward Navigator & Pool Vac Ultra Flap Adjuster AD PV Turcte | AXV031B Hayward Navigator & Pool Vac Ultra Flap Adjuster AD PV Turcte | AXV031B$2199 Hayward Navigator & Pool Vac Ultra Medium Turbine | AXV062C Hayward Navigator & Pool Vac Ultra Medium Turbine | AXV062C$3299 Hayward RCX26005S wheel tube bearing for TigerShark robotic pool cleaners Hayward Wheel Tube Bearing for TigerShark Robotic Cleaners, RCX26005S$3699
Hayward RCX26000PAK2 pulley bearing kit for AquaVac 500 Series robotic cleaners Hayward Pulley Bearing Kit for AquaVac 500 Series Robotic Cleaners, RCX26000PAK2$3399 Hayward AXV603 white fixed access cover assembly for Pool Vac and Navigator cleaners Hayward Cover Assembly, Fixed Access, Concrete and Desert (Models 925C, 925CS), AXV603$2399 Hayward PVXH019SA shaft bearing for AquaNaut and PoolCleaner pool cleaners Hayward Shaft Bearing for AquaNaut 200/400 and PoolCleaner 2X/4X, PVXH019SA$3199 Hayward RCX31018 power supply outlet connector for SharkVac and TigerShark cleaners Hayward Power Supply Outlet Connector for SharkVac/XL/TigerShark, RCX31018$4899 Hayward RCX26002 drive pulley assembly with ball bearing for TigerShark cleaners Hayward Drive Pulley Assembly with Ball Bearing, RCX26002$4299 Hayward AXV434WHP white flap kit with two flaps and front and rear springs Hayward Flap Kit, White, 2 Flaps with Front and Rear Springs, AXV434WHP$3399 Hayward AXV301 intermediate gear for vinyl model pool cleaners Hayward Intermediate Gear, AXV301$2099 Hayward AXV306 plastic cone gear bushing for suction pool cleaners Hayward Cone Gear Bushing, AXV306$1999 Hayward AXV303 cone spindle gear for vinyl model pool cleaners Hayward Cone Spindle Gear (Vinyl), AXV303$1999 Hayward AXV066A plastic spindle gear bushing for suction pool cleaners Hayward AXV066A Spindle Gear Bushing$2499

Product details

The Hayward AXV408P is the gear box assembly used across the Pool Vac and Navigator suction cleaners, including the Pool Vac Ultra, the Pool Vac XL and the Navigator Pro. It ships as a complete assembly.

The symptom to look for

The gear box is what makes the cleaner change direction as it works the pool. When it fails, the cleaner keeps steering the same way, circles one part of the floor and winds the hose into a knot. If the head still drives but no longer turns, this is the part.

Try cleaning before you replace

Gear boxes seize on debris more often than they wear out. Dog hair in particular packs into them. Opening the old box, clearing it and reassembling is worth an hour before you buy a new one, and it costs nothing to try.

Red plate or black plate

Check the top plate on your existing gear box before ordering. This is the red top plate version. The black top plate gear box is a separate part and the two are not interchangeable, so getting this wrong means sending it back.

Specifications
Brand Hayward
Manufacturer part number AXV408P
UPC 610377230377
Type Gear box assembly
Part type Pool cleaner part
Material Plastic
Top plate Red
Fits Hayward Pool Vac, Pool Vac Ultra, Pool Vac XL, Navigator, Navigator Pro
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

How do I know if I need the red or the black gear box?
Look at the top plate on the gear box in your cleaner. This part is the red top plate version and it is not interchangeable with the black one.
My cleaner keeps going in circles and the hose tangles. Is this the part?
That is the usual symptom of a gear box that is no longer changing the cleaner direction, so it is the first thing to check.
Can a gear box be repaired instead of replaced?
Sometimes. They clog with dog hair and fine debris, and taking one apart and cleaning it out can restore it. If the gears themselves are worn or stripped, replace it.
Does this fit both the Pool Vac and the Navigator?
Yes. It is listed for the Pool Vac, Pool Vac Ultra and Pool Vac XL as well as the Navigator and Navigator Pro.
Ask your own question
