Hayward RCX26000PAK2 pulley bearing kit for AquaVac 500 Series robotic cleanersHayward Pulley Bearing Kit for AquaVac 500 Series Robotic Cleaners, RCX26000PAK2 In stock$3399
Hayward RCX26000PAK2 pulley bearing kit for AquaVac 500 Series robotic cleaners
Shop all Hayward

Hayward Pulley Bearing Kit for AquaVac 500 Series Robotic Cleaners, RCX26000PAK2

Ask a questionMPN RCX26000PAK2
$3399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Hayward part RCX26000PAK2 The factory pulley bearing kit for the AquaVac 500 Series.
  • For the 500 Series robots Listed for Hayward AquaVac 500 Series robotic pool cleaners.
  • Bearings, not the whole pulley This kit covers the bearings, while the drive pulley assembly is a separate Hayward part.
  • Fixes drag and noise Worn bearings make the tracks bind, which shows up as grinding, uneven travel or missed coverage.
  • Supplied as a kit Comes with the bearing set rather than as a single loose bearing.
  • Do it with the tracks off The bearings sit behind the drive train, so change them while the cleaner is already open.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Pulley Bearing Kit for AquaVac 500 Series Robotic Cleaners, RCX26000PAK2, SKU AQV-201-9844. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Pulley Bearing Kit for AquaVac 500 Series Robotic Cleaners, RCX26000PAK2
Hayward

Pulley Bearing Kit for AquaVac 500 Series Robotic Cleaners, RCX26000PAK2

$3399
Hayward TigerShark Drive Track, Soft Thread, RCX23002
Hayward

TigerShark Drive Track, Soft Thread, RCX23002

$4499
Hayward Wheel Tube Assembly, Set of 2, RCX26003
Hayward

Wheel Tube Assembly, Set of 2, RCX26003

$8399
Hayward TigerShark Cord 55 Ft, RCX50061
Hayward

TigerShark Cord 55 Ft, RCX50061

$19299
Hayward Genuine OEM Standard Leaf Canister, W560
Hayward

Genuine OEM Standard Leaf Canister, W560

$7599
Hayward AquaVac TigerShark Roller Bearing Guide, RCX26001
Hayward

AquaVac TigerShark Roller Bearing Guide, RCX26001

$4099
Hayward Impeller, TigerShark, RCX11000
Hayward

Impeller, TigerShark, RCX11000

$2499
Subtotal

Similar products

Other products people compare with this one.

Hayward RCX26005S wheel tube bearing for TigerShark robotic pool cleaners Hayward Wheel Tube Bearing for TigerShark Robotic Cleaners, RCX26005S$3699 Hayward AXV604-237 gray wing kit for Navigator V-Flex and PoolVac pool cleaners Hayward Wing Kit for Navigator V-Flex and PoolVac Pool Cleaners, AXV604-237$1799 Hayward RCX26002 drive pulley assembly with ball bearing for TigerShark cleaners Hayward Drive Pulley Assembly with Ball Bearing, RCX26002$4299 Hayward AXV414604WHP wing and shoe maintenance kit in white for Navigator and Pool Vac Hayward Wing and Shoe Maintenance Kit for Navigator and Pool Vac, White, AXV414604WHP$4399 Hayward RCX26008 replacement roller scrub brush for TigerShark and SharkVAC cleaners Hayward RCX26008 Roller Brush for TigerShark and SharkVAC Cleaners$3799 Hayward AXV408P gear box assembly for Pool Vac and Navigator pool cleaners Hayward Gear Box Assembly for Pool Vac and Navigator Cleaners, AXV408P$3399 Hayward PVXH019SA shaft bearing for AquaNaut and PoolCleaner pool cleaners Hayward Shaft Bearing for AquaNaut 200/400 and PoolCleaner 2X/4X, PVXH019SA$3199 Hayward RCX11208 new style venturi assembly for TigerShark and TigerShark QC robotic pool cleaners Hayward TigerShark Venturi Assembly, New Style, for TigerShark, TigerShark QC and TigerShark Plus Cleaners, RCX11208$3599 Hayward RCX31018 power supply outlet connector for SharkVac and TigerShark cleaners Hayward Power Supply Outlet Connector for SharkVac/XL/TigerShark, RCX31018$4899 Hayward AXV604WHP white wing kit for Navigator pool cleaner Hayward OEM Wing Kit, White, AXV604WHP$2399

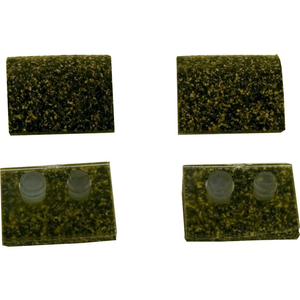

Hayward AXV434WHP white flap kit with two flaps and front and rear springs Hayward Flap Kit, White, 2 Flaps with Front and Rear Springs, AXV434WHP$3399 Hayward Cork Pod Shoes for Navigator & Pool Vac Ultra for Vinyl and Fiberglass Pools | AXV014FNP Hayward Cork Pod Shoes for Navigator & Pool Vac Ultra for Vinyl and Fiberglass Pools | AXV014FNP$2999 Hayward AXV414P pod shoes for concrete pools, 4 pack Hayward Genuine OEM Pod Shoes, Concrete, 4 Pack, AXV414P$2799 Hayward RCX70103PAK2 TigerShark spring cleanup filter cartridges, 2 pack Hayward TigerShark Spring Cleanup Filters, 2 Pack, RCX70103PAK2$3199 Hayward V094P in-line regulator valve for suction pool cleaners Hayward In-Line Regulator Valve, V094P$3599 Hayward AXV014SP slotted Santoprene pod shoes, 4 pack Hayward Slotted Santoprene Shoes (4 Pack), AXV014SP$2999 Hayward RCX97501GR SharkVac drive track belt Hayward SharkVac Drive Track Belt, RCX97501GR$3899 Hayward RCX78005 TigerShark filter bottom lid gasket Hayward TigerShark Filter Bottom Lid Gasket, RCX78005$3399 Hayward AXV055P turbine bearing, two pack for Hayward suction pool cleaners Hayward Turbine Bearings, 2 Pack, AXV055P$2499 Hayward AXV413P vinyl pod shoes, four pack for Pool Vac and Navigator cleaners Hayward AXV413P Pod Shoes, Vinyl, 4 Pack$3099

Product details

The Hayward RCX26000PAK2 is the pulley bearing kit for AquaVac 500 Series robotic pool cleaners. It is the genuine Hayward part.

What goes wrong

The drive pulleys carry the tracks and turn constantly whenever the cleaner is running. Their bearings live in warm chlorinated water and eventually pick up grit. Once they do, the pulley no longer spins freely: the tracks drag, the drive motor works harder than it should, and coverage falls off because the cleaner cannot hold its pattern. Grinding or squealing from the drive side is the audible version of the same problem.

Before you order

This kit is the bearings. Hayward sells the drive pulley assembly separately, so pull the tracks and look at the pulley body as well. If the pulley itself is worn or cracked, bearings alone will not fix it. Since the cleaner has to come apart either way, it is worth checking the roller bearing guides at the same time.

Specifications
Brand Hayward
Manufacturer part number RCX26000PAK2
UPC 610377268509
Type Pulley bearing kit
Fits Hayward AquaVac 500 Series robotic cleaners
Shipping weight 0.24 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which cleaners does this kit fit?
Hayward AquaVac 500 Series robotic pool cleaners.
Does this include the pulley itself?
No. This is the bearing kit. The drive pulley assembly is a separate Hayward part, so check whether the pulley body is also worn before ordering.
What are the symptoms of a worn bearing?
Grinding or squealing from the drive side, tracks that drag or slip, and a cleaner that starts missing sections of the pool it used to cover.
Is it a genuine Hayward part?
Yes. It is Hayward OEM part RCX26000PAK2.
