Pentair 24700-0075Z 4.5 inch sand filter lateral assemblyPentair 4.5" Long Lateral Assembly for HRPB24 and HRPB30, 24700-0075Z In stock$2999
Pentair 24700-0075Z 4.5 inch sand filter lateral assembly
Shop all Sta-Rite

Pentair 4.5" Long Lateral Assembly for HRPB24 and HRPB30, 24700-0075Z

Ask a questionMPN 24700-0075Z
$2999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 4.5 inch long The short lateral used in these high rate sand filter tanks.
  • Lateral only Sold on its own, not as a complete underdrain or hub assembly.
  • Genuine Pentair Factory part 24700-0075Z.
  • Filter part It threads into the collector hub at the bottom of the sand bed.
  • Sand in the pool A cracked lateral is the usual reason sand starts returning to the pool.
  • Check the model first The source lists this lateral under both the HRPB and HRP naming, so verify against the filter label.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair 4.5" Long Lateral Assembly for HRPB24 and HRPB30, 24700-0075Z, SKU SWQ-051-3902. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair 4.5" Long Lateral Assembly for HRPB24 and HRPB30, 24700-0075Z
Sta-Rite

Pentair 4.5" Long Lateral Assembly for HRPB24 and HRPB30, 24700-0075Z

$2999
Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S
Pentair

Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S

$46499
Pentair 6-Position Top Mount Clamp Valve Top Assembly, 272568Z
Pentair

6-Position Top Mount Clamp Valve Top Assembly, 272568Z

$15199
Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037
Unicel Filter Cartridges

Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037

$24599
Pentair Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541
Pentair

Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541

$1199
Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in., 178745Z
Pentair

Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in., 178745Z

$15499
Pentair Genuine OEM Sand Filter Drain Cap, 154712
Pentair

Genuine OEM Sand Filter Drain Cap, 154712

$3399
Subtotal

Similar products

Other products people compare with this one.

Pentair 154540 12 in. lateral assembly for Triton II TR140 sand filter Pentair Genuine OEM Lateral Assembly TR140, 154540$2799 Pentair 152202Z 9-1/8 inch replacement lateral for TA100 and TR100 filters Pentair 9-1/8" TA100 and TR100 Replacement Lateral, 152202Z$1699 Pentair 154660 1/4 in. FPT brass tee fitting Pentair 1/4 in. FPT Brass Tee Fitting for PF Series and Triton II Sand Filters, 154660$2799 Jandy R0523000 filter drain cap with O-ring and union nut Jandy Drain Cap with O-Ring and Union Nut for DEV and CL Filters, R0523000$3599 Pentair 154527Z plastic wrench for the 8-1/2 in. Triton filter closure Pentair Plastic Wrench for Triton 8.5" Closure, 154527Z$3599 Waterway 505-3010 split-nut assembly for Carefree, Clearwater and TWM sand filters Waterway Split-Nut Assembly for Carefree, Clearwater, TWM Sand Filters, 505-3010$3099 Pentair 154763 hub assembly for Triton II TR40, TR50 and TR60 sand filters Pentair Genuine OEM Hub Assembly TR40/TR50/TR60, 154763$3799 Pentair 354588 union adapter for Sand Dollar sand filter systems Pentair Union Adapter for Sand Dollar, 354588$2799 Super-Pro O-523KIT-9 PSV valve key and cover o-ring kit for Hayward PSV valves Super-Pro PSV Valve Key and Cover O-Ring Kit for Hayward® PSXVZ2A, O-523KIT-9$1799 Pentair 155753 genuine OEM hub adapter assembly for Triton II sand filters Pentair Genuine OEM Hub Adapter Assembly, 155753$4399

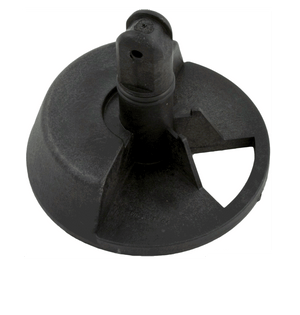

Pentair Basket Short with Restrictor Assembly | R172686 Pentair Basket Short with Restrictor Assembly | R172686$2299 Baker Hydro 31B9036 bulkhead seal gasket for 30 in. and 36 in. HRV sand filters Baker Hydro Bulkhead Seal Gasket for 30 in. and 36 in. HRV Filters, 31B9036$1999 Pentair Rotor Spider Gasket Assembly | 50131400 Pentair Rotor Spider Gasket Assembly | 50131400$4199 Astral 00555-0401 tee adapter for Millenium and Astramax sand filters Astral Tee Adapter for Millenium and Astramax Sand Filters, 00555-0401$1599 Hayward SX200Z6 o-ring for S160T, S-200 and S-240 sand filters Hayward S160T/S200 and S240 Sand Filters O-Ring, SX200Z6$1599 Jandy R0487400 lid O-ring for JS100-SM filter Jandy Lid O-Ring for JS100-SM Filter, R0487400$2499 Pentair 154871 threaded 1-1/2 inch cap for Triton II sand filters Pentair Genuine OEM Cap Threaded 1-1/2" Triton II, 154871$1599 Pentair 150041 air relief tube for Triton II TR100 sand filter Pentair Genuine OEM Air Relief Tube TR100 (After 11/99), 150041$2099 Pentair 150040 air relief tube for Triton II TR50 and TR60 sand filters Pentair Genuine OEM Air Relief Tube TR50/60 (After 11/99), 150040$2699 Jacuzzi 47038047R OEM filter tank o-ring for Sherlock filters Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R$3299

Product details

The Pentair 24700-0075Z is a 4.5 inch long lateral assembly for high rate sand filters, supplied as the lateral only.

What a lateral does

Laterals are the slotted fingers that thread into the collector hub at the bottom of the tank, under the sand bed. The slots are sized to let filtered water through to the underdrain while holding the sand back. When one cracks or its slots wear open, sand begins returning to the pool through the returns, which is usually the first symptom an owner notices.

Model check

The source names this part two ways. The product title gives HRPB24 and HRPB30; the catalog name gives HRP24, HRP30 and T-240BP. Both are listed in the specifications above rather than one being chosen for you. Read the model from the filter label and match it to the parts list for that tank before ordering.

Scope of supply

This listing is a lateral on its own. The collector hub and the remaining laterals are ordered separately, and it is worth inspecting all of them while the sand is out, since they age at the same rate.

Specifications
Brand Pentair
Manufacturer part number 24700-0075Z
UPC 788379885854
Type Sand filter lateral assembly
Length 4.5"
Part type Pool filter part
Fits, per the product title HRPB24, HRPB30
Fits, per the catalog name HRP24, HRP30, T-240BP
Sold as Lateral only
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Sta-Rite

Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$53899 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly, 272568Z$15199 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037$24599 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3499 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S$30499 Sta-Rite 27002-0300S 300 square foot MOD media replacement filter module for the PLM300 Sta-Rite 300 Sq. Ft. Filter Replacement MOD Media, 27002-0300S$56999 Pentair 170147 large and small cartridge filter pack for the Sta-Rite System:3 S8M150 Pentair Sta-Rite S8M150 Large and Small Cartridge Filter Pack 25021-0202S & 25022-0203S, 170147$76799 Sta-Rite 27001-0020S System 2 black upper tank shell half Sta-Rite System 2 Tank Shell Upper Half, Black, 27001-0020S$28799 Sta-Rite 77707-0054 Max-E-Therm igniter with gasket kit Sta-Rite Max-E-Therm Igniter with Gasket Kit, 77707-0054$9499
Sta-Rite 178745Z 12.5 in. Posi-Clear RP replacement filter lid, top view Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in., 178745Z$15499 Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ$29699 Pentair 474957 combustion chamber assembly for Sta-Rite Max-E-Therm heaters Pentair Combustion Chamber Assembly for Max-E-Therm Heaters, 474957$37399 Pentair Sta-Rite 474061 cupro nickel tube sheet coil assembly kit for MasterTemp 400NA and 400LP Sta-Rite Tube Sheet Coil Assembly Kit for Model 400NA, 400LP MasterTemp Heater, 474061$1,22199 Sta-Rite C103-194PZ Max-E-Pro pump seal plate, front view Sta-Rite Max-E-Pro Seal Plate, C103-194PZ$7099 Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters Sta-Rite Valve and Gauge Assembly for System 3 Filters, 24850-0105$11099 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022$3899 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap, 154712$3399 Pentair 356893Z IntelliPro VSF drive kit with keypad, black Pentair IntelliPro VSF Drive Kit with Keypad, Black, 356893Z$1,22699 Sta-Rite 42001-0061S air flow switch for Max-E-Therm SR200, SR333 and SR400 heaters Sta-Rite Max-E-Therm Air Flow Switch, 42001-0061S$15799

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does it fit?
The source gives two readings. The product title lists HRPB24 and HRPB30, while the catalog name lists HRP24, HRP30 and T-240BP. Check the model on your filter label and confirm against the parts list before ordering.
Do I get the whole underdrain?
No. This is the lateral only. The collector hub and the other laterals are separate parts.
How long is it?
4.5 inches.
Why would a lateral need replacing?
Laterals are slotted so water passes and sand does not. When one cracks or the slots open up, sand starts coming back to the pool through the returns.
Ask your own question
