Super-Pro O-523KIT-9 PSV valve key and cover o-ring kit for Hayward PSV valvesSuper-Pro PSV Valve Key and Cover O-Ring Kit for Hayward® PSXVZ2A, O-523KIT-9 In stock$1799
Super-Pro O-523KIT-9 PSV valve key and cover o-ring kit for Hayward PSV valves
Shop all SuperPro

Super-Pro PSV Valve Key and Cover O-Ring Kit for Hayward® PSXVZ2A, O-523KIT-9

Ask a questionMPN O-523KIT-9
$1799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Key and cover in one kit Covers both of the sealing points a PSV valve depends on, rather than one ring at a time.
  • Super-Pro O-523KIT-9 The Super-Pro kit listed against Hayward® part number PSXVZ2A.
  • The usual leak fix Water weeping from under the valve cover or around the handle stem is almost always hardened o-rings.
  • Restores handle feel Fresh seals let the diverter key turn without dragging or binding.
  • Buy the set, not the single Replacing both seals while the valve is open saves pulling it apart again in a month.
  • Use silicone lubricant O-ring seals like these want a silicone based lube, not a petroleum grease, which swells and ruins the rubber.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Super-Pro PSV Valve Key and Cover O-Ring Kit for Hayward® PSXVZ2A, O-523KIT-9, SKU SPG-561-0523. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Super-Pro PSV Valve Key and Cover O-Ring Kit for Hayward® PSXVZ2A, O-523KIT-9
SuperPro

Super-Pro PSV Valve Key and Cover O-Ring Kit for Hayward® PSXVZ2A, O-523KIT-9

$1799
Pleatco 7 in. Diameter 105 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean and Clear Plus 420, X15-ULT-A6-Q4
SuperPro

Pleatco 7 in. Diameter 105 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean and Clear Plus 420, X15-ULT-A6-Q4

$30099
SuperPro Volute O-Ring #268, 805-0268
SuperPro

Volute O-Ring #268, 805-0268

$1299
Pleatco Xtreme Blue A6 CCP420 Single Filter Cartridge, X15-ULT-A6-M
SuperPro

Pleatco Xtreme Blue A6 CCP420 Single Filter Cartridge, X15-ULT-A6-M

$11999
SuperPro Xtreme Blue A5 Replacement Filter Cartridge 4 Per Pack, for Clean & Clear Plus 320, X15-ULT-A5-M-Q4
SuperPro

Xtreme Blue A5 Replacement Filter Cartridge 4 Per Pack, for Clean & Clear Plus 320, X15-ULT-A5-M-Q4

$34699
SuperPro Diffuser O-Ring for Pentair Pump 355331 | O-421-9
SuperPro

Diffuser O-Ring for Pentair Pump 355331 | O-421-9

$399
SuperPro Cover Strainer For Trap O-RING SPX3000S U9-375 | O-12-9
SuperPro

Cover Strainer For Trap O-RING SPX3000S U9-375 | O-12-9

$599
Subtotal

Similar products

Other products people compare with this one.

Pentair 272541 valve body o-ring for Sand Dollar, Tagelus and Cristal-Flo II filters Pentair Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541$1199 Hayward SX160Z1 tank o-ring for Pro Series S160T sand filter Hayward O-Ring for Pro Series S160T Sand Filter, SX160Z1$1099 Hayward DEX2400Z3A air relief valve stem o-ring set of 3 Hayward O-Ring for Air Relief Valve Stem, Set of 3, DEX2400Z3A$1899 Hayward CX4000Z3 air relief tube assembly for SwimClear and Super Star Clear cartridge filters Hayward Air Relief Tube for SwimClear and Super Star Clear Filters, CX4000Z3$2099 Hayward SPX1434JA seal rings and o-ring kit Hayward Seal Rings and O-Ring Kit, SPX1434JA$1499 Sta-Rite 24206-0103S air release valve with o-ring for PXC, System:2 PLDE and Posi-Clear filters Sta-Rite Air Release Valve with O-Ring for PXC, System:2 PLDE and Posi-Clear Filters, 24206-0103S$2199 SuperPro O-429-9 generic tank o-ring for Hayward filters, replaces DEX2400K SuperPro Tank O-Ring (Generic) for Select Hayward® Filters, O-429-9$1499 Hayward SX180LA drain cap assembly for Pro-Series sand filters Hayward Drain Cap Assembly for Pro-Series Sand Filters, 2006 to Current, SX180LA$1499 Hayward SX200Z6 o-ring for S160T, S-200 and S-240 sand filters Hayward S160T/S200 and S240 Sand Filters O-Ring, SX200Z6$1599 Hayward ECX1322A air relief valve with o-ring for pool filters Hayward Air Relief Valve with O-Ring, ECX1322A$1799
Super-Pro O-240-9 o-ring, replacement for U9-228A and CX900F Super-Pro O-Ring, U9-228A/CX900F, O-240-9$1199 Hayward ECX1287 o-ring for the Perflex DE filter gauge adapter Hayward O-Ring for Gauge Adapter, ECX1287$1099 Hayward CCX1000Z5 air relief o-ring set of 2 Hayward OEM O-Ring Set for Air Relief, Set of 2, CCX1000Z5$1099 Hayward SX200Z4PAK2 valve and union o-ring, 2 pack Hayward OEM Valve Union O-Ring, 2 Pack, SX200Z4PAK2$1799 SuperPro G-382-9 drain cap gasket for Hayward sand filters, replaces SX180G SuperPro Drain Cap Gasket for Hayward® Pro Series Sand Filters, G-382-9$1199 Hayward CX120D filter lid o-ring for the Micro-Star cartridge filter Hayward O-Ring for Micro Star-Clear Filter Lid, CX120D$2299 Aladdin O-305-9 tank o-ring for the Hayward C-250-F filter Aladdin O-Ring for Hayward® C-250-F Tank, O-305-9$1399 Hayward Outlet Elbow O-Ring Pro-Grid | DEX2400Z5 Hayward Outlet Elbow O-Ring Pro-Grid | DEX2400Z5$1399 Hayward ECX10271A filter head screw and nut set for Perflex DE filters Hayward Filter Head Screw and Nut Set for Perflex EC30/EC40 Filters, ECX10271A$1499 Hayward SX144Z1 1-1/2 in. ribbed hose for Pro Series S144T sand filter Hayward 1-1/2 in. Ribbed Hose for Pro Series S144T Sand Filter, SX144Z1$1899

Product details

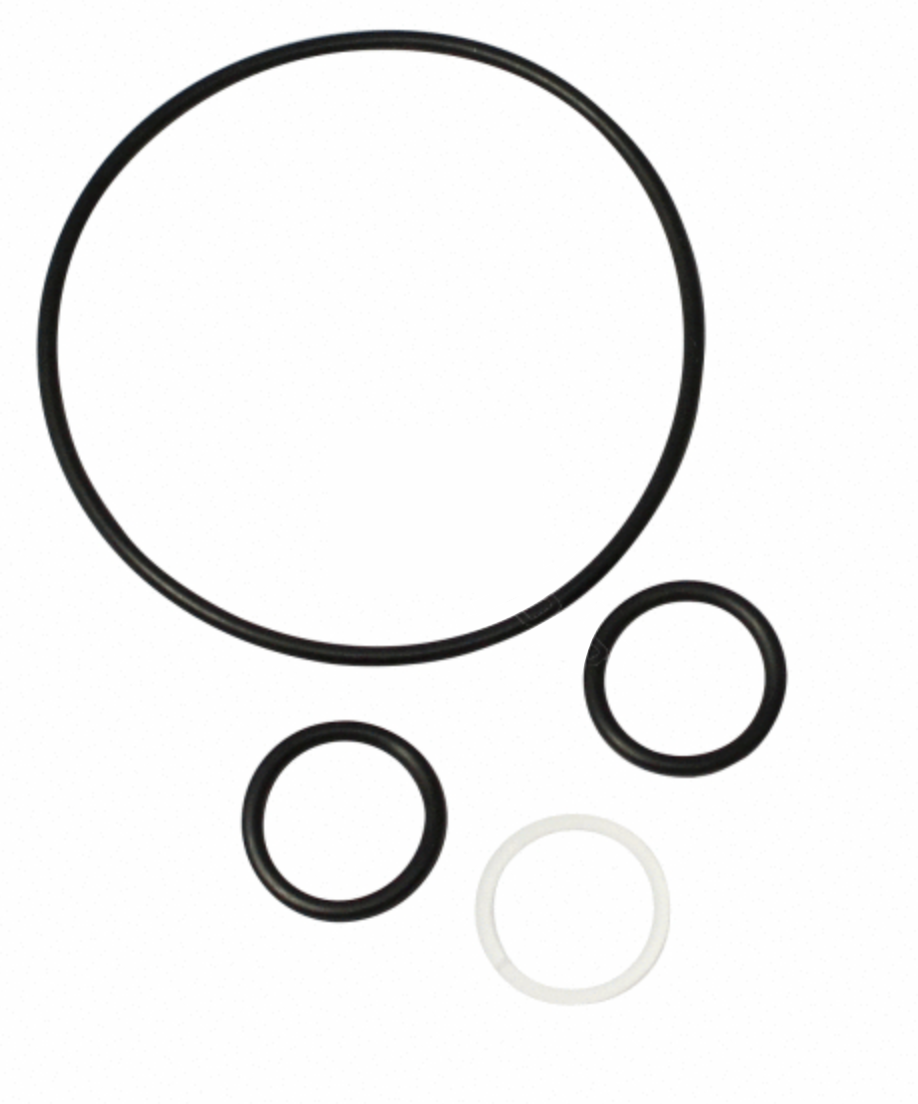

The Super-Pro O-523KIT-9 is an o-ring kit for the key and cover of a Hayward® PSV valve, sold as the replacement for Hayward® part PSXVZ2A. It supplies the rubber that seals the valve, which is the part of the assembly that wears out while the body itself stays serviceable for years.

When you need it

A PSV valve has two places that give trouble. Water can weep out from under the cover, or it can seep around the stem where the handle passes through. Both are seal problems, and both are cured by new o-rings rather than by a whole new valve. If the handle has also become stiff and drags as you turn it, that is the same hardened rubber gripping the key.

Fitting notes

Replace both the key and the cover seals while the valve is open, since the labor is the same and the second ring is the same age as the first. Lubricate the new o-rings with a silicone based o-ring lube. Petroleum greases swell this kind of rubber and will put you back into the valve sooner than you would like.

Specifications
Brand Super-Pro
Manufacturer part number O-523KIT-9
UPC 601402193644
Type Valve o-ring kit
Fits Hayward® PSV valve, key and cover
Hayward® reference number PSXVZ2A
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from SuperPro

SuperPro GO-KIT78 pump repair kit with AS-200 shaft seal and o-rings for Pentair SuperFlo and Sta-Rite SuperMax SuperPro Superflo / Supermax Pump Repair Kit, GO-KIT78$2299 SuperPro GO-KIT32V-9 Viton Whisperflo pump seal rebuild kit SuperPro Viton Whisperflo Pump Seal Rebuild Kit, GO-KIT32V-9$3899 Super-Pro 25215-001-000 gray fiberglass Hi-Flo suction fitting with 6 in. cover, wall fitting and nut SuperPro Gray Fiberglass Hi-Flo Suction Fitting Complete with 6" Cover, Wall Fitting and Nut, 25215-001-000$3599 SuperPro 200V-9 Viton PS-200 pump shaft seal SuperPro Viton PS200 Shaft Seal, 200V-9$2199 GLI 99-20-9100003 brass safety cover anchor for concrete decks GLI Brass Anchor for Concrete Decks, 99-20-9100003$1399 SuperPro LAD100SS three step pool ladder with stainless steel treads SuperPro 3-Step Pool Ladder with Stainless Steel Treads, LAD100SS$46799 Dunn-Rite B600 Splash and Shoot pool basketball hoop with stainless steel rim Dunn-Rite Splash and Shoot Adjustable Pool Basketball Set with Stainless Steel Rim, B600 STAINLESS$38499 SuperPro stainless steel safety cover installation tool with black handle SuperPro Safety Cover Installation Tool$2799 SuperPro GOKIT82V-9 Viton gasket and o-ring kit for Jandy SHPF and SHPM Stealth pumps SuperPro Jandy SHPF and SHPM Series Viton Seal Kit, GOKIT82V-9$4999 IPS Controllers FC100G Blue/Clear complete flow cell with flow switch IPS Controllers Blue/Clear Complete Flow Cell with Flow Switch, FC100G$24500
Super-Pro GO-KIT77-9 seal kit for Jandy JHP series pool pumps SuperPro Jandy JHP Pump Seal Kit, GO-KIT77-9$3999 Trendium Magnus oval above ground pool with resin top ledge Trendium Magnus 18' x 33' Oval, 54 in. Deep Above Ground Pool, PMAGELL-YE183354RSRSRSB11-TS$4,20199 SuperPro SG6404720 V 12 in. square white anti-vortex main drain frame and grate SuperPro 12" x 12" Square White Anti-Vortex Main Drain Frame and Grate, SG6404720 V$10399 Trendium Magnus round above ground pool with resin top ledge Trendium Magnus 15' Round, 54" Deep Above Ground Pool, PMAGELL-1554RSRSRSB11-TS$1,89699 SuperPro GO-KIT74 seal and gasket kit for Hayward Matrix pumps SuperPro Hayward® Matrix Pump Seal Kit, GO-KIT74$2199 SuperPro 311-8300 seal plate for a Waterway booster pump SuperPro Seal Plate, Booster Pump, 311-8300$14399 SuperPro 805-0268 volute housing o-ring, size 268 SuperPro Volute O-Ring #268, 805-0268$1299 SuperPro GO-KIT88V-9 pump repair kit for Jandy FloPro FHP series pumps SuperPro Jandy FloPro FHP Series Pump Repair Kit, GO-KIT88V-9$4899 SuperPro GO-KIT54-9 seal kit for Sta-Rite P2R pumps built after 1997 SuperPro Sta-Rite P2R Pump Seal Kit after 1997, GO-KIT54-9$5099 SuperPro 25098-000-000 1 in. S white air control assembly for gunite and fiberglass spas SuperPro 1" S White Air Control Assembly for Gunite/Fiberglass Spa, 25098-000-000$2299

Questions and answers

What people ask about this product, answered by our pool techs.

What is in this kit?
It is the o-ring set for the key and the cover of a Hayward® PSV valve. The listing does not break out an individual piece count, so open the valve and confirm which seals you are replacing before you order.
Is this a genuine Hayward® part?
No. It is Super-Pro part O-523KIT-9, sold as the replacement for the Hayward® PSXVZ2A o-ring kit.
My PSV valve leaks around the handle. Is this the right part?
That symptom points at the key seals, which this kit covers. Check the cover fasteners as well, because a loose or cracked cover leaks for a different reason.
Should I grease the new o-rings?
Yes, with a silicone based o-ring lubricant. Petroleum grease swells this kind of seal and will shorten its life considerably.
