Pentair 73998 natural gas valve IID for MiniMax pool heatersPentair Natural Gas Valve IID for MiniMax Heaters, 73998$28999
Pentair 73998 natural gas valve IID for MiniMax pool heaters
Shop all Pentair

Pentair Natural Gas Valve IID for MiniMax Heaters, 73998

Ask a questionMPN 73998
$28999
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair Factory gas valve, listed as part number 73998 and printed as 073998.
  • Natural gas This is the natural gas valve. A propane heater takes a different part.
  • IID heaters For MiniMax heaters using the intermittent ignition device system.
  • Check the model range Our source gives the range as both 120 to 400 and 150 to 400, so match the valve to your heater model plate.
  • A common no-fire cause When the igniter sparks and the heater still will not light, the gas valve is one of the first things a tech checks.
  • Gas work is licensed work Fitting a gas valve means breaking a gas connection and leak testing it. This is a job for a qualified gas technician.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Natural Gas Valve IID for MiniMax Heaters, 73998, SKU PUR-151-4903. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Natural Gas Valve IID for MiniMax Heaters, 73998
Pentair

Natural Gas Valve IID for MiniMax Heaters, 73998

$28999
Pentair Digital Thermostat Circuit Board (IID), 470179
Pentair

Digital Thermostat Circuit Board (IID), 470179

$18899
Pentair MiniMax NT STD Heater Flame Sensor, 471603
Pentair

MiniMax NT STD Heater Flame Sensor, 471603

$3499
Pentair MiniMax Pilot Generator with Clip Q313A, 071515
Pentair

MiniMax Pilot Generator with Clip Q313A, 071515

$9799
Pentair 2" Heat Pump PVC Union, 473381
Pentair

2" Heat Pump PVC Union, 473381

$3399
Pentair Thermister Probe MX NT, 471566Z
Pentair

Thermister Probe MX NT, 471566Z

$5399
Pentair Transformer for MiniMax Plus, ThermaFlo and ThermaFlo Titanium Heat Pump, 473155
Pentair

Transformer for MiniMax Plus, ThermaFlo and ThermaFlo Titanium Heat Pump, 473155

$15199
Subtotal

Similar products

Other products people compare with this one.

Pentair Ignition Control Module Minimax | 472150 Pentair Ignition Control Module Minimax | 472150$22699 Pentair 473605 pressure switch for MiniMax pool heaters Pentair Pressure Switch for MiniMax Heaters, 473605$7699 Pentair 471587 115 F hi-limit thermostat for MiniMax NT and MiniMax CH pool heaters Pentair Hi-Limit Thermostat, 115 F, for MiniMax NT and MiniMax CH Pool Heaters, 471587$4599 Pentair 471420 plastic main manifold bottom cap for MiniMax NT heaters Pentair Plastic Main Manifold Bottom Cap for MiniMax NT Heaters, 471420$1299 Pentair MiniMax Pilot Assembly Propane LP IID | 471205 Pentair MiniMax Pilot Assembly Propane LP IID | 471205$10599 Pentair MiniMax DDTC Control Circuit Board Assembly | 472100 Pentair MiniMax DDTC Control Circuit Board Assembly | 472100$44699 Pentair 470190Z Minimax pool heater pressure switch Pentair Minimax Pressure Switch, 470190Z$9099 Pentair Minimax Heat Exchanger Less Heads 200kBTU | 075628 Pentair Minimax Heat Exchanger Less Heads 200kBTU | 075628$58399 Pentair 460799Z igniter kit for NT Low NOx heaters Pentair Igniter Kit NT Low NOx TSI, 460799Z$13299 Pentair 71017 150F high limit switch with safety shutoff Pentair 150F High Limit with Safety Shutoff, 71017$4699
Pentair 155187 double insulated toggle switch Pentair Double Insulated Toggle Switch, 155187$2999 Pentair 70951 tube seal gasket for MiniMax pool heaters Pentair Tube Seal Gasket, 70951$699

Product details

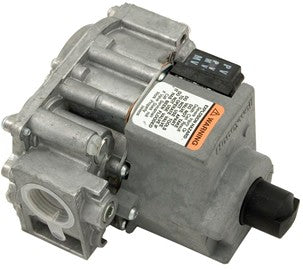

The Pentair 73998 is the natural gas valve for MiniMax pool heaters running the intermittent ignition device system. It is the genuine Pentair part, printed on the valve as 073998.

Natural gas only

Gas valves are fuel specific. This one is for natural gas. If the heater runs on propane, or has been converted, the valve is a different part number and this one is not a substitute.

Which heaters

Our source material does not agree with itself on the model range. One reference lists the valve for MiniMax heaters 120 through 400, another files it under MiniMax Plus 150 through 400. Both point at the same family of heaters, but the safe move is to read the model number and BTU rating off the data plate on your heater and check it against the Pentair parts breakdown for that exact model.

Fitting it

On an intermittent ignition heater, the gas valve is what opens on a call for heat once the control has proved the ignition sequence. When a heater sparks but never lights, or lights and drops out, the valve is on the short list of causes along with the igniter, the pressure switches and the control board. Changing it means breaking a gas union and leak testing the joint afterwards, which is licensed work in most places. Have a qualified gas technician do the swap.

Specifications
Brand Pentair
Manufacturer part number 73998
Also printed as 073998
UPC 788379696221
Type Gas valve, IID
Fuel Natural gas
Part type Pool heater part
Fits Pentair MiniMax and MiniMax Plus heaters
Shipping weight 1.66 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Will this work on a propane heater?
No. This is the natural gas valve. A propane heater needs the propane valve, and a natural gas valve cannot simply be reused after a fuel conversion.
Which MiniMax sizes does it cover?
The source is not consistent. One reference gives the range as MiniMax 120 to 400 and another files it under MiniMax Plus 150 to 400. Read the model and BTU rating off the heater data plate and check it against the Pentair parts list for that heater.
What is IID?
Intermittent ignition device. Instead of a standing pilot, the heater lights the pilot or burner electronically on each call for heat, and the gas valve is part of that sequence.
Can I fit it myself?
Replacing a gas valve means opening a live gas connection and leak testing afterwards. In most areas that is licensed work, and it should be done by a qualified gas or pool heater technician.
Ask your own question
