Waterway 805-0435 number 435 o-ring for sand filter collarWaterway O-Ring # 435 Sand Filter Collar, 805-0435 In stock$1599

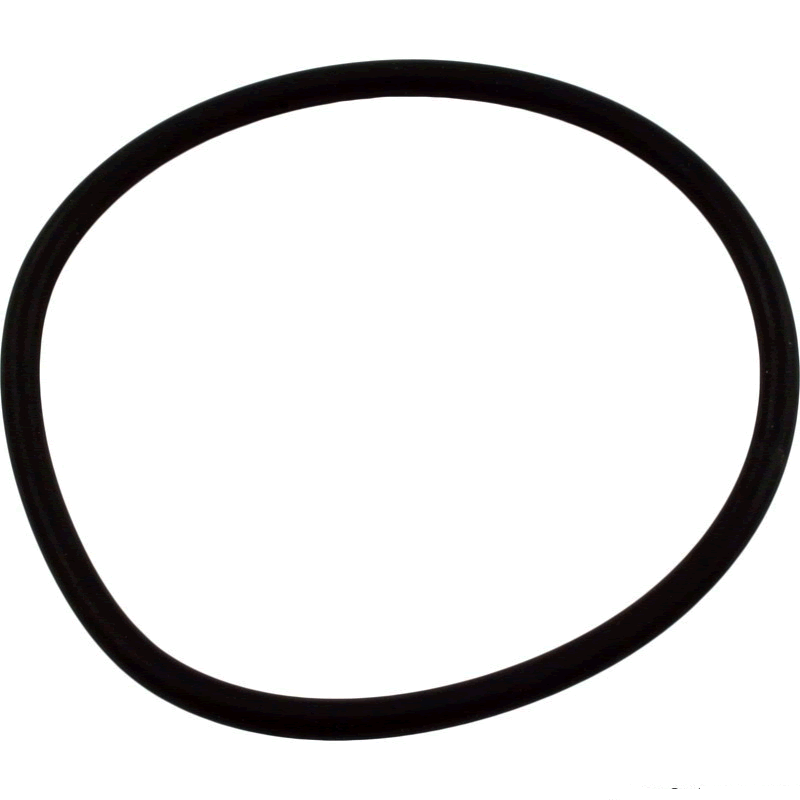

Waterway 805-0435 number 435 o-ring for sand filter collar
Shop all Waterway

Waterway O-Ring # 435 Sand Filter Collar, 805-0435

Ask a questionMPN 805-0435
$1599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Waterway Factory part 805-0435, sized to the collar rather than cut from stock.
  • Number 435 size The # 435 o-ring, so it can be matched by size as well as by part number.
  • Sand filter collar Seals the collar where the valve meets the sand filter tank.
  • Top mount valves Listed with the Waterway ClearWater top mount sand filter and the WVS002 and WVS003 valves.
  • Stops a wet pad A failed collar seal weeps at the top of the tank whenever the pump runs.
  • Change it while it is apart Any time the valve comes off the tank, this ring is worth renewing.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway O-Ring # 435 Sand Filter Collar, 805-0435, SKU WWP-051-0435. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway O-Ring # 435 Sand Filter Collar, 805-0435
Waterway

O-Ring # 435 Sand Filter Collar, 805-0435

$1599
Waterway Lock Ring, Pro Clean Plus, 550-0701B
Waterway

Lock Ring, Pro Clean Plus, 550-0701B

$9299
Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407
Waterway

Tank Body, Crystal Water, Gray, with Label, 550-4407

$43537
Waterway Crystal Water Tank O-Ring, 805-0000
Waterway

Crystal Water Tank O-Ring, 805-0000

$3399
Waterway Filter Collar Valve Wrench, 505-1970
Waterway

Filter Collar Valve Wrench, 505-1970

$1999
Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621
Waterway

Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621

$26299
Waterway Diverter Spider Gasket, 711-1910B
Waterway

Diverter Spider Gasket, 711-1910B

$2699
Subtotal

Similar products

Other products people compare with this one.

Waterway 805-0460 Clearwater II tank lid O-ring, 16-1/4 inch outside diameter Waterway Clearwater II Tank Lid O-Ring, OD 16-1/4", 805-0460$2299 Hayward SX160Z1 tank o-ring for Pro Series S160T sand filter Hayward O-Ring for Pro Series S160T Sand Filter, SX160Z1$1099 Waterway 711-1920 clear white round gasket for the Clearwater sand filter Waterway Gasket for Sand Filter, 711-1920$1799 Waterco O-Ring HRV Sand Filter | 00B7027 Waterco O-Ring HRV Sand Filter | 00B7027$1599 Pentair 272541 valve body o-ring for Sand Dollar, Tagelus and Cristal-Flo II filters Pentair Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541$1199 Hayward SX200Z6 o-ring for S160T, S-200 and S-240 sand filters Hayward S160T/S200 and S240 Sand Filters O-Ring, SX200Z6$1699 SuperPro 805-0268 volute housing o-ring, size 268 SuperPro Volute O-Ring #268, 805-0268$1299 Jandy R0989300 sight glass with plug kit for a top mount sand filter Jandy R0989300 Sight Glass with Plug Kit for Top Mount Sand Filter$1899 SuperPro O-484-9 generic filter tank o-ring for Sta-Rite PLM filters SuperPro Generic Filter Tank O-Ring for Sta-Rite PLM, After 2/97, O-484-9$1599 Sta-Rite U9-371 drain cap o-ring for Cristal-Flo filters Sta-Rite Drain Cap O-Ring for Cristal-Flo Filter, U9-371$1099

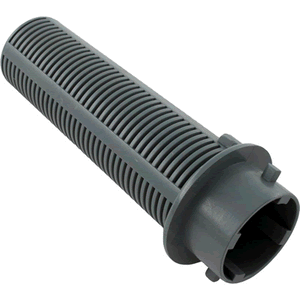

Astral 721R1820060 filter o-ring, 7.5 inch inside diameter Astral Filter O-Ring, 721R1820060$1299 Hayward SX144Z1 1-1/2 in. ribbed hose for Pro Series S144T sand filter Hayward 1-1/2 in. Ribbed Hose for Pro Series S144T Sand Filter, SX144Z1$1899 Waterway 505-1950 twist-lock lateral for ClearWater and TWM sand filters Waterway Twist Lock Lateral for ClearWater and TWM Sand Filters, 505-1950$1199 Pentair 152516Z Triton II buttress thread closure o-ring Pentair Triton II Buttress Thread Closure O-Ring, 152516Z$1199 Tank Channel O-Ring Tank Channel O-Ring$1599 Hayward SX180LA drain cap assembly for Pro-Series sand filters Hayward Drain Cap Assembly for Pro-Series Sand Filters, 2006 to Current, SX180LA$1599 Sta-Rite 35505-1424 adapter to tank O-ring, 2-3/8 inch inside diameter Sta-Rite O-Ring, 2-3/8" ID, Adapter to Tank, PLM/PLD, 35505-1424$1699 Pentair 150085 lateral for 22 inch sand filters, 1/4 turn Pentair Genuine OEM Lateral for 22" Filter, 1/4 Turn, After 10-04, 150085Z$1499 Pentair 154715 sand drain gasket for Meteor top mount sand filters Pentair Genuine OEM Sand Drain Gasket, Meteor, 154715$999 SuperPro O-342-9 lid o-ring for Commander Series filters SuperPro Lid O-Ring for Commander Series Filters, O-342-9$1099

Product details

The Waterway 805-0435 is the number 435 o-ring for the sand filter collar. It is the genuine Waterway part, sized for the joint rather than pulled from a generic assortment.

What it seals

The collar is where the valve meets the top of the sand filter tank, and that joint carries full filter pressure every time the pump runs. When the ring in it hardens, flattens or splits, the tank weeps at the collar. It is a small leak that never fixes itself and slowly ruins whatever is under it.

Fitment

Waterway lists this ring with the ClearWater top mount sand filter and with the WVS002 and WVS003 valves. If you have the valve off the tank for any other reason, replace this ring while you are there rather than reusing a seal that has already taken a set.

Specifications
Brand Waterway
Manufacturer part number 805-0435
UPC 806105185853
Type O-Ring
Size reference # 435
Part type Filter Valves Part
Application Sand filter collar
Fits Waterway ClearWater top mount sand filter, WVS002 and WVS003 valves
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$43537 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7399 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9299 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$92799 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$76899 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2299 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3099 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$26299 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$2099 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3399 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1699 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16799 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3999 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3399 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9999 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6899

Questions and answers

What people ask about this product, answered by our pool techs.

Where does this o-ring sit?
On the sand filter collar, sealing the joint where the valve meets the filter tank.
What size o-ring is it?
It is the number 435 size, Waterway part 805-0435.
Which valves is it listed with?
The Waterway ClearWater top mount sand filter and the WVS002 and WVS003 valves.
My filter leaks at the top of the tank. Is this the part?
It is the first thing to check. A collar seal that has hardened or taken a set will weep at that joint under pressure. Confirm the leak is at the collar and not at the valve body or a union before ordering.
