Pentair 523036 80 watt high output UV lamp for BioShield model 522636Pentair 80 Watt BioShield High Output UV Lamp for Model #522636, 523036 In stock$18499
Pentair 523036 80 watt high output UV lamp for BioShield model 522636
Shop all Pentair

Pentair 80 Watt BioShield High Output UV Lamp for Model #522636, 523036

Ask a questionMPN 523036
$18499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair OEM lamp 523036, made for the BioShield 522636 sanitizer.
  • Fits model 522636 The 80 watt residential BioShield. The larger 522637 takes a 120 watt lamp instead.
  • 80 watt high output Full germicidal output for the 522636 chamber.
  • Dual voltage system For the 115/230V BioShield unit.
  • Restores UV dose Lamp output falls with hours of use even while it still glows; a fresh lamp brings the sanitizer back to rated performance.
  • Check the quartz sleeve Inspect the 38.25 in. quartz sleeve when changing the lamp and replace it if scaled or cracked.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair 80 Watt BioShield High Output UV Lamp for Model #522636, 523036, SKU PAC-451-0588. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair 80 Watt BioShield High Output UV Lamp for Model #522636, 523036
Pentair

80 Watt BioShield High Output UV Lamp for Model #522636, 523036

$18499
Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator
Jandy

R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator

$76799
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$24599
Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder
Hayward

CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder

$12899
Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws
Jandy

R0984100 AquaPure Power Interface PCB, Large Backboard with Screws

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Subtotal

Similar products

Other products people compare with this one.

Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Pentair 523037 120 watt BioShield UV replacement lamp for model 522637 Pentair 120 Watt Bioshield UV Lamp for Model #522637, 523037$20499 Hayward 005952123000 one piece replacement lamp for HydraPure ozone systems Hayward 1-Piece Lamp for HydraPure Ozone Systems, 005952123000$17499 Hayward 005422901700 Ultra UV2 replacement lamp Hayward Ultra UV2 Lamp, 005422901700$13899 Zodiac R0502600 tab feeder assembly for the Nature2 Inground Fusion water sanitizer Zodiac Tab Feeder Assembly for Nature2 Inground Fusion Water Sanitizer, R0502600$10699 Pentair 523038 150 watt UV lamp for BioShield 522638 and 522945 Pentair 150 Watt UV Lamp for BioShield Models 522638 and 522945, 523038$18799 Solaxx UV4000A-010 Renaissance dual output replacement bulb Solaxx Renaissance Dual Output Bulb, UV4000A-010$13999 Pentair 523035 50 watt high output UV lamp for BioShield model 522635 Pentair 50 Watt BioShield High Output UV Lamp for Model 522635, 523035$17999 Nature2 W28000 DuoClear 25 cartridge for pools up to 25,000 gallons Nature2 DuoClear 25 Cartridge, Up to 25,000 Gallons, W28000$24499
Paramount 005-402-3834-00 replacement lamp for the Clear O3 system Paramount Clear O3 Replacement Lamp, 005402383400$14699 Pentair 523041 Bioshield quartz sleeve, 50.75 in., for model 522637 Pentair Bioshield Quartz Sleeve 50.75 in. for Model 522637, 523041$18999 Jandy R0476300 25 ft DC cord for Nature2 Fusion Soft and PureLink water sanitizers Jandy R0476300 DC Cord for Nature2 Fusion Soft and PureLink Water Sanitizers, 25 ft$18599 Hayward 004402585000 Clear O3 start-up kit Hayward Clear O3 Start-Up Kit, 004402585000$20199 PoolRx 331066 +Plus black and white pool mineral unit for 20,000 to 30,000 gallon pools PoolRx +Plus Black/White (with silver) Unit, for 20K-30K Gallon Pools, 331066$10999 Nature2 Express replacement mineral cartridge for in ground and above ground pools Nature2 Express Replacement Cartridge$19499 Pentair 523098 3 inch pipe clamps for the BioShield UV sterilizer Pentair Pipe Clamps 3" for BioShield UV Sterilizer, 523098$16299 King Technology Pool Frog in ground mineral reservoir cartridge King Technology Pool Frog In Ground Mineral Reservoir, 01-12-5462$14895 Web Price King Technology Pool Frog 6100 in-line mineral sanitizing system King Technology Pool Frog 6100 In-line System, 1563240$26995 Web Price PoolRx 332064 4-Pack Plus booster in black and white for 20K to 30K gallon pools PoolRx 4-Pack Plus Booster Black/White, 20K-30K Gallon Pools, 332064$22399

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

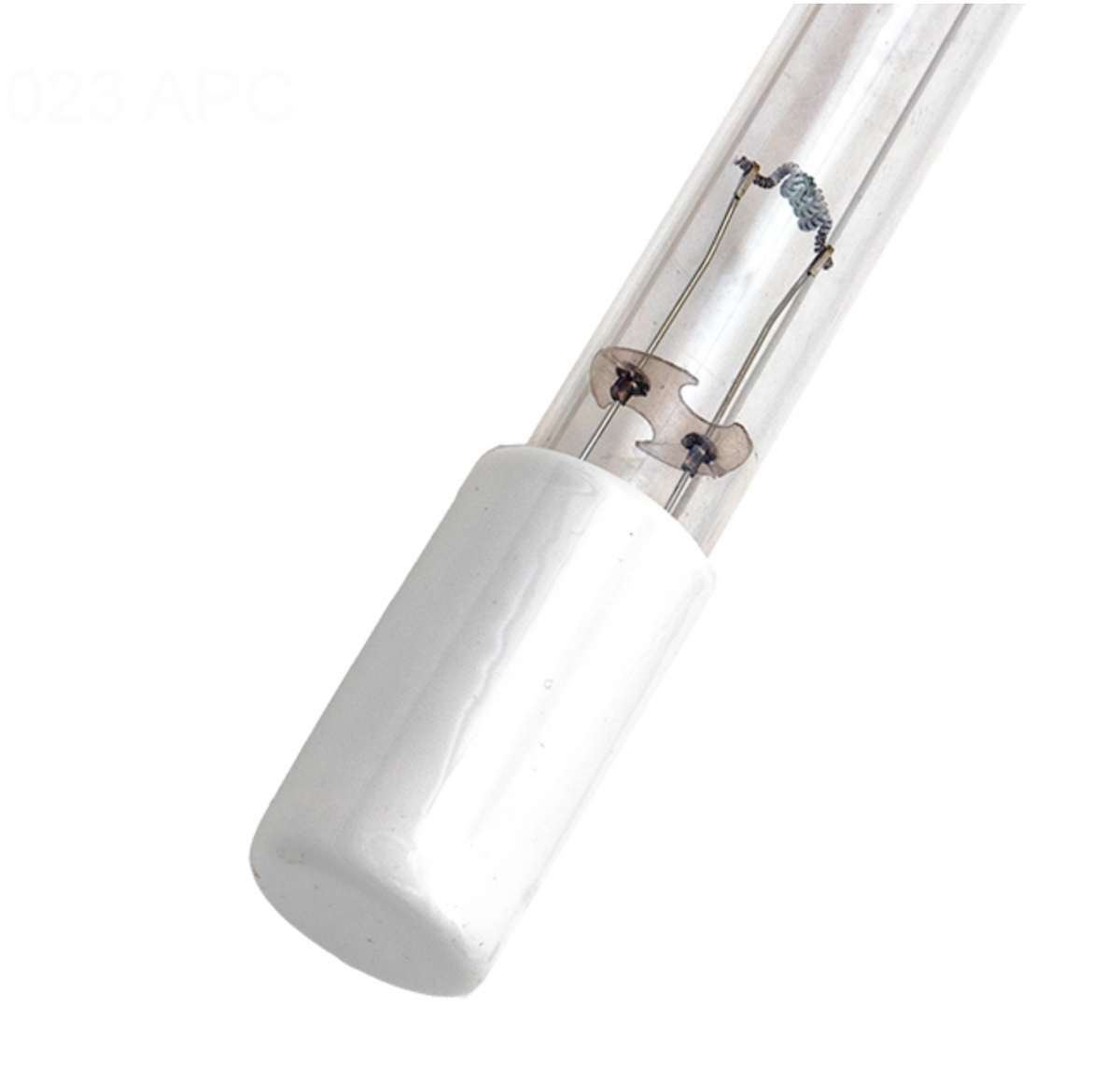

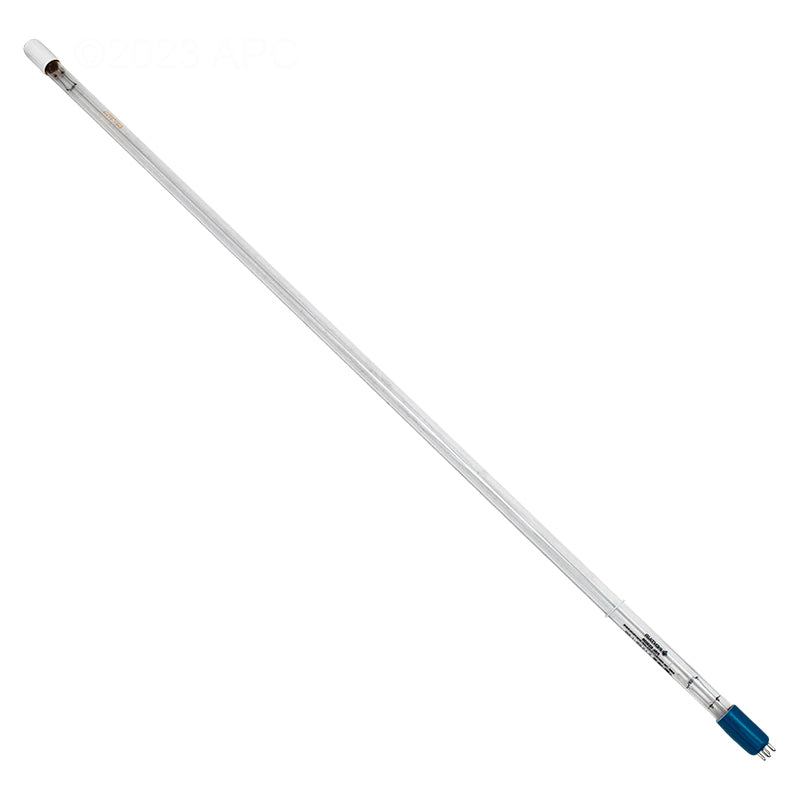

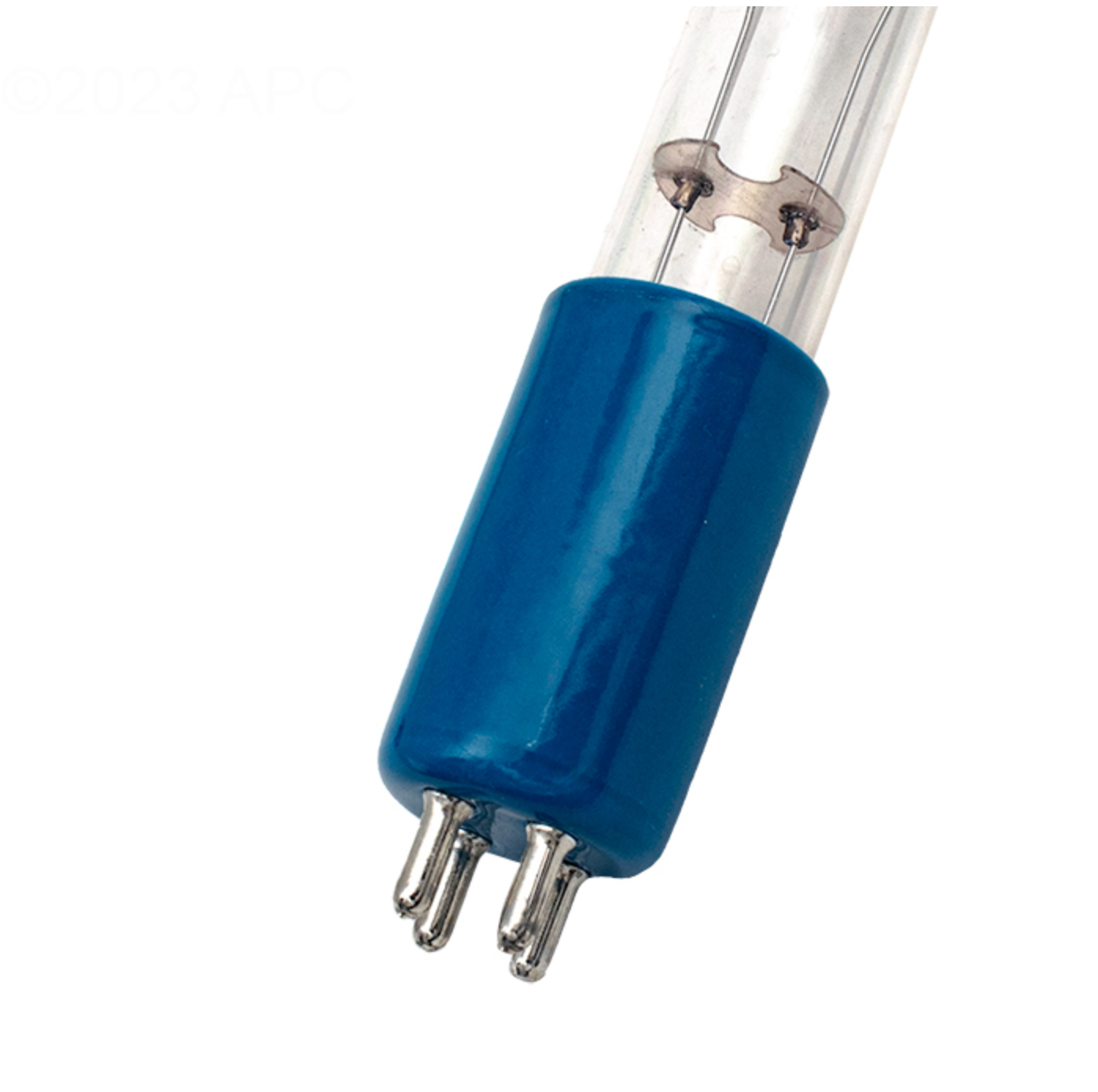

The Pentair 523036 is the 80 watt high output UV lamp for the residential BioShield UV sanitizer, model 522636. It is the genuine Pentair replacement for the 115/230V unit.

Why the lamp gets replaced

A UV lamp keeps glowing long after its germicidal output has dropped, so the sanitizer can look like it is working while doing much less than it should. Replacing the lamp on schedule keeps the BioShield delivering its rated UV dose.

Before you order

Check the model number on the sanitizer. This lamp is for the 522636; the larger 522637 uses a 120 watt lamp. While the unit is open, look over the 38.25 in. quartz sleeve and replace it if it is scaled or cracked, since a fouled sleeve blocks the UV the new lamp produces.

Specifications
Brand Pentair
Manufacturer part number 523036
UPC 788379875916
Type High output UV lamp
Wattage 80 watt
Fits Pentair BioShield model 522636
Voltage 115/230V
Shipping weight 2.6 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which BioShield does this fit?
The residential BioShield model 522636, the 80 watt unit. The 522637 uses a 120 watt lamp, so check the model number on your sanitizer before ordering.
How do I know when to replace the lamp?
UV lamps lose germicidal output over time even while they are still lit, so replace on the interval in the BioShield manual rather than waiting for the lamp to fail.
Is the quartz sleeve included?
No. This is the lamp on its own. The 38.25 in. quartz sleeve for the 522636 is a separate part.
Is this the genuine Pentair lamp?
Yes, Pentair part 523036, UPC 788379875916.
