Pentair 520538 EasyTouch 4 pool and spa combo control system with two actuatorsPentair EasyTouch 4 Pool/Spa Combo Control System (No Salt Chlorine Generator, 2 Actuators), 520538$1,78899
Pentair 520538 EasyTouch 4 pool and spa combo control system with two actuators
Shop all Pentair

Pentair EasyTouch 4 Pool/Spa Combo Control System (No Salt Chlorine Generator, 2 Actuators), 520538

Ask a questionMPN 520538
$1,78899
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pool and spa combo The four function EasyTouch, configured to run a shared pool and spa.
  • Four feature relays Relays for the equipment you want under automation.
  • Four valve outputs Two valve actuators are supplied with the system.
  • Eight position breaker panel The enclosure takes up to eight breaker positions.
  • Two temperature sensors Sensors come with the system rather than as an extra.
  • No chlorine generator This model ships without one, so the generator, transformer and indoor control are ordered separately.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair EasyTouch 4 Pool/Spa Combo Control System (No Salt Chlorine Generator, 2 Actuators), 520538, SKU COM-30-0538. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair EasyTouch 4 Pool/Spa Combo Control System (No Salt Chlorine Generator, 2 Actuators), 520538
Pentair

EasyTouch 4 Pool/Spa Combo Control System (No Salt Chlorine Generator, 2 Actuators), 520538

$1,78899
Pentair Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218
Pentair

Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218

$31299
Pentair OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045
Pentair

OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045

$23599
Pentair Air, Water, Solar Sensor with 20 ft Cable, 520272
Pentair

Air, Water, Solar Sensor with 20 ft Cable, 520272

$8399
Subtotal

Similar products

Other products people compare with this one.

Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Pentair 522048 IntelliTouch and EasyTouch to IntelliCenter upgrade kit, i10PS for CLC/CPC Pentair IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10PS for CLC/CPC, 522048$1,23399 Jandy R0468501 AquaLink RS8 upgrade kit, Pool/Spa Combo, Rev.QQ Jandy AquaLink RS8 Upgrade Kit, Pool/Spa Combo, Rev.QQ, R0468501$1,15599 Hayward HLWIRELESS OmniLogic waterproof wireless remote Hayward OmniLogic Waterproof Wireless Remote, HLWIRELESS$1,03699 Pentair EasyTouch 8 EC-520540 pool and spa combo control system with 2 actuators Pentair EasyTouch 8 Pool/Spa Combo with 2 Actuators, EC-520540$2,13099 Jandy IQ30-RS AquaLink 3.0 upgrade kit with RS-PS8 PCB, bezel and CPU Jandy AquaLink IQ30-RS 3.0 Upgrade Kit with RS-PS8 PCB, Bezel, CPU$1,28599 Pentair 523448 IntelliCenter load center system with i5P personality kit Pentair IntelliCenter Load Center System with i5P Personality Kit, 523448$2,14699 Pentair 521907 IntelliCenter Load Center System with i5PS personality kit Pentair IntelliCenter Load Center System with i5PS Personality Kit, without SCG, 521907$2,52299 Hayward OmniHub smart pool and spa control, part HLOMNIHUB Hayward OmniHub Smart Pool and Spa Control with One Smart Relay, HLOMNIHUB$1,07299 Pentair 521909 IntelliCenter i5P single body personality kit Pentair IntelliCenter i5P Single Body Personality Kit, 521909$1,36499
Pentair 520547 EasyTouch wireless controller for 8 circuit systems Pentair Genuine OEM EasyTouch Wireless Controller for 8 Circuit System, 520547$1,36499 Pentair 523529 IntelliCenter next generation upgrade kit for IntelliTouch and EasyTouch Pentair IntelliTouch/EasyTouch to IntelliCenter Next Generation Upgrade Kit CLC/CPC, 523529$96599 Jandy AQWHR18 AquaLink wireless handheld remote with transceiver Jandy AquaLink AQWHR18 Wireless Handheld Remote with Transceiver$1,14399 Hayward Goldline Hayward Pro Logic Pool & Spa 8 Relays | PL-PS-8 Hayward Goldline Hayward Pro Logic Pool & Spa 8 Relays | PL-PS-8$2,61499 Jandy AquaLink RS-PS6 pool and spa combo 6 function automation control system Jandy AquaLink RS Pool and Spa Combo 6 Automation System, RS-PS6$2,21899 S.R. Smith PT-6001 poolLUX Plus2 60W single zone LED light control power tower S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001$87399 Pentair EasyTouch PL4-PSL4 Wireless Remote | 522464 Pentair EasyTouch PL4-PSL4 Wireless Remote | 522464$85599 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN$79499 Hayward HLXPLCONTROL replacement OmniPL controller Hayward HLXPLCONTROL Replacement OmniPL Controller$78699 Pentair iS10 10-Function Spa-side Wired Remote with LED Screen | 150 | 521178 Pentair iS10 10-Function Spa-side Wired Remote with LED Screen | 150' Cable | 521178$75299

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

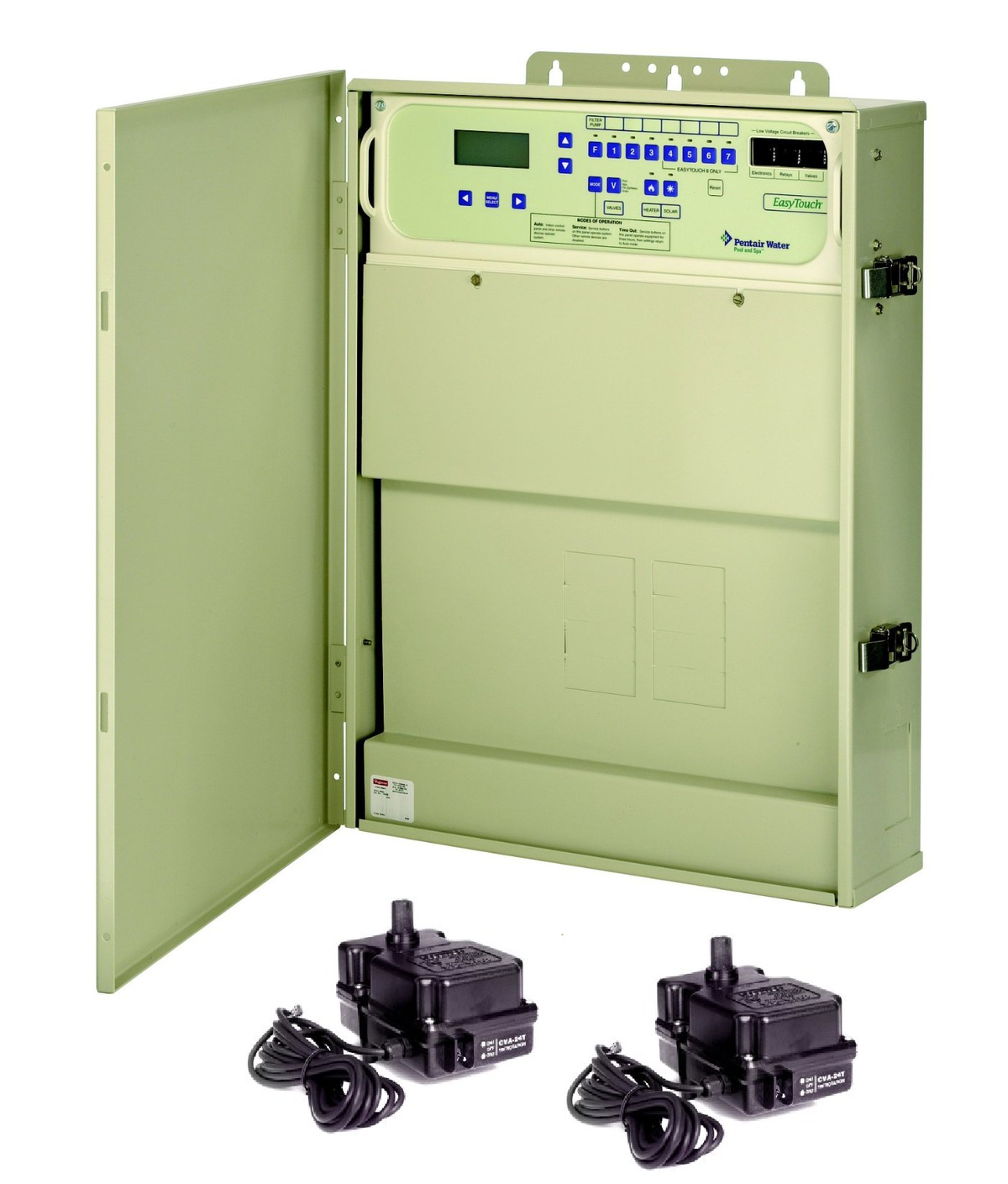

The Pentair 520538 is the EasyTouch 4 control system for a pool and spa combination, supplied with two valve actuators and without a salt chlorine generator.

What it controls

The system provides four feature relays and four valve outputs, with two actuators included. An eight position breaker panel is built in, a local remote runs from the power supply, and two temperature sensors are part of the package. That covers the shared pool and spa arrangement where valves have to move water between the two bodies.

What is not included

There is no salt chlorine generator with this model, and no indoor control panel. If you want salt chlorination, the generator and its transformer are separate purchases, as is an indoor control if you want to run the system from inside the house.

Installation

An EasyTouch load center is line voltage equipment. Have it installed and wired by a licensed electrician who works on pool equipment, and follow local code for bonding and disconnects.

Specifications
Brand Pentair
Manufacturer part number 520538
UPC 788379704391
Model EasyTouch 4
Configuration Pool and spa combo
Feature relays 4
Valve outputs 4
Actuators included 2
Breaker panel 8 position
Remote Local remote from power supply
Temperature sensors 2
Not included Salt chlorine generator, transformer, indoor control
Shipping weight 54.85 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Does this include a salt chlorine generator?
No. This version comes without one. The chlorine generator, its transformer and an indoor control must be purchased separately.
What does the 4 refer to?
It is the four function EasyTouch control. This model is set up to run a pool and spa combo.
How many valve actuators come with it?
Two actuators are included, and the system provides four valve outputs.
What else is in the package?
Four feature relays, four valve outputs, two actuators, an eight position breaker panel, a local remote from the power supply and two temperature sensors.
Ask your own question
