Raypak 600019B thermocouple pilot generator with 35 inch leadRaypak Genuine OEM Thermocouple Pilot Generator, 600019B In stock$6799

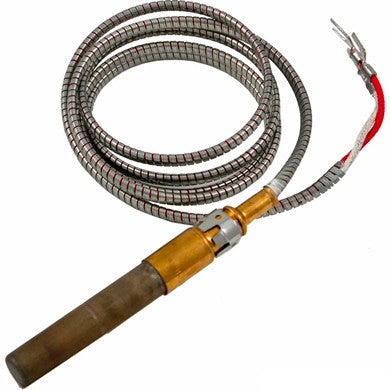

Raypak 600019B thermocouple pilot generator with 35 inch lead
Shop all Raypak

Raypak Genuine OEM Thermocouple Pilot Generator, 600019B

Ask a questionMPN 600019B
$6799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Raypak The factory 600019B part, not an aftermarket thermocouple.
  • 750 mV output Rated at 750 mV, the output a millivolt gas valve needs to stay open.
  • 35 inch lead Supplied with a 35 inch lead.
  • Common no heat cause A pilot that lights and then drops out as soon as the button is released usually points at the pilot generator.
  • Check the fit list The source data lists two different sets of Raypak models for this part, so confirm your heater model before ordering.
  • May suit other models Raypak notes it may fit heater models beyond those listed, but confirm rather than assume.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak Genuine OEM Thermocouple Pilot Generator, 600019B, SKU RAY-151-3600. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak Genuine OEM Thermocouple Pilot Generator, 600019B
Raypak

Genuine OEM Thermocouple Pilot Generator, 600019B

$6799
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak

Genuine OEM Protek Shield Module Assembly, 017960F

$5099
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347
Raypak

Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347

$29699
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak

Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F

$21699
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak

Genuine OEM Propane and Natural Gas Pilot, 002003F

$8199
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak

Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345

$32499
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329
Raypak

100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329

$10299
Subtotal

Similar products

Other products people compare with this one.

Raypak 009577F 3-wire temperature sensor kit Raypak Genuine OEM Temperature Sensor Kit, 009577F$5799 Raypak 006719F Capron unitherm governor for polymer heat exchanger heaters Raypak Genuine OEM Unitherm Governor for Polymer Heat Exchanger, 006719F$5799 Raypak 006737F direct mount pressure switch, 1.75 psi Raypak Genuine OEM Direct Mount Pressure Switch, 1.75 psi, 006737F$4999 Raypak 006723F 2 in. PVC connector and nut set for pool heaters Raypak Genuine OEM 2 in. PVC Connector and Nut, 006723F$4999 Raypak 006725F surface mount auto reset thermostat, 135 deg F Raypak Genuine OEM 135 Degree Auto Reset Thermostat, 006725F$4099 Raypak 006736F transformer 120/240/24 V for 185A, 265A, 335A and 405A pool heaters Raypak Genuine OEM Transformer for Model 185A, 265A, 335A, 405A Pool Heater, 120/240/24 V, 006736F$7299 Raypak 009487F control bezel cover for RP2100 pool heaters Raypak Genuine OEM Control Bezel Cover for RP2100, R185B and R265B Pool Heaters, 009487F$3899 Raypak 006715F Capron header bypass kit with valve, dam, shaft and spring Raypak Genuine OEM Bypass Kit with Valve, Dam, Shaft and Spring, 006715F$5599 Raypak 006714F genuine OEM digital sensor adapter for pool heaters Raypak Genuine OEM Digital Sensor Adapter, 006714F$3699 Raypak 006720F Unitherm governor Capron plug for pool heaters Raypak Genuine OEM Unitherm Governor Plug, 006720F$3999
Raypak 062234B unitherm governor thermal bypass for gas pool heaters Raypak Genuine OEM Unitherm Governor, 062234B$6199 Raypak 005264F genuine OEM rear drain plug and cover Raypak Genuine OEM Rear Drain Plug and Cover, 005264F$3599 Raypak 600893B 140 deg F high limit temperature control with black epoxy body Raypak Genuine OEM 140 Degree F Hi-Limit Control, 600893B$4799 Raypak 009492F switch and decal membrane for pool heater control panels Raypak Genuine OEM Switch Decal, 009492F$8099 Raypak 008135F genuine OEM air pressure switch 267A for digital low NOx pool heaters Raypak Genuine OEM Air Pressure Switch 267A, 008135F$5199 Raypak 009184F switch decal membrane kit for RP2100 digital gas heaters Raypak Genuine OEM Switch Decal Membrane Kit, 009184F$8099 Raypak 008091F 125 psi pressure relief valve for pool heaters Raypak Genuine OEM Pressure Relief Valve, 125 PSI, 008091F$6999 Raypak 009505 PoolStat cover with lock Raypak Genuine OEM Poolstat Cover/Lock, 009505$5899 Raypak 009133F 11 psi pool heater pressure switch Raypak Genuine OEM Pressure Switch 11PSI, 009133F$4599 Raypak 004087F sensor well for ELS 552-2 and ELS 1102-2 pool heaters Raypak Genuine OEM Sensor Well, 5.5 kW and 11 kW, 004087F$6999

Product details

The Raypak 600019B is a thermocouple pilot generator with a 35 inch lead and a 750 mV output. It is the genuine Raypak part for millivolt heaters.

What it does

A pilot generator sits in the pilot flame and turns that heat into a small electrical output. In a millivolt heater there is no external power, so that output alone is what holds the gas valve open. As the generator ages its output falls, and the first sign is a pilot that lights fine but drops out the moment you release the manual knob.

Check the model list

The catalog data for this part carries two different model lists, one covering the 53 through 155A heaters and another covering the 206A and 266A. Confirm your heater model against both, and treat the note that it may fit other Raypak models as a reason to verify rather than assume. Gas work belongs to a qualified technician.

Specifications
Brand Raypak
Manufacturer part number 600019B
UPC 84089100257
Part type Pool Heater Part
Type Thermocouple pilot generator
Lead length 35 Inch
Output 750 mV
Fits, listing description Raypak heater models 53, 53A, 55A, 105A, 130A, 151, 153, 155A
Fits, catalog data Raypak 206A, 266A
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200 Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400 Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4199 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$77399 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$69499 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300

Questions and answers

What people ask about this product, answered by our pool techs.

Which Raypak heaters does this fit?
The source carries two lists. One names models 53, 53A, 55A, 105A, 130A, 151, 153 and 155A; the other names the 206A and 266A. Check your heater model against both, and note Raypak states it may fit other models as well.
What is the output?
750 mV, with a 35 inch lead.
My pilot lights but goes out when I let go of the knob. Is this the part?
That is the classic symptom of a weak pilot generator. It no longer produces enough millivolts to hold the gas valve open once the manual override is released.
Is it a genuine Raypak part?
Yes. It is Raypak part number 600019B.
